RAM mounts base plate round with B-ball 1 inch (RAM-B-202U)
RAM Mounts round base plate B-ball

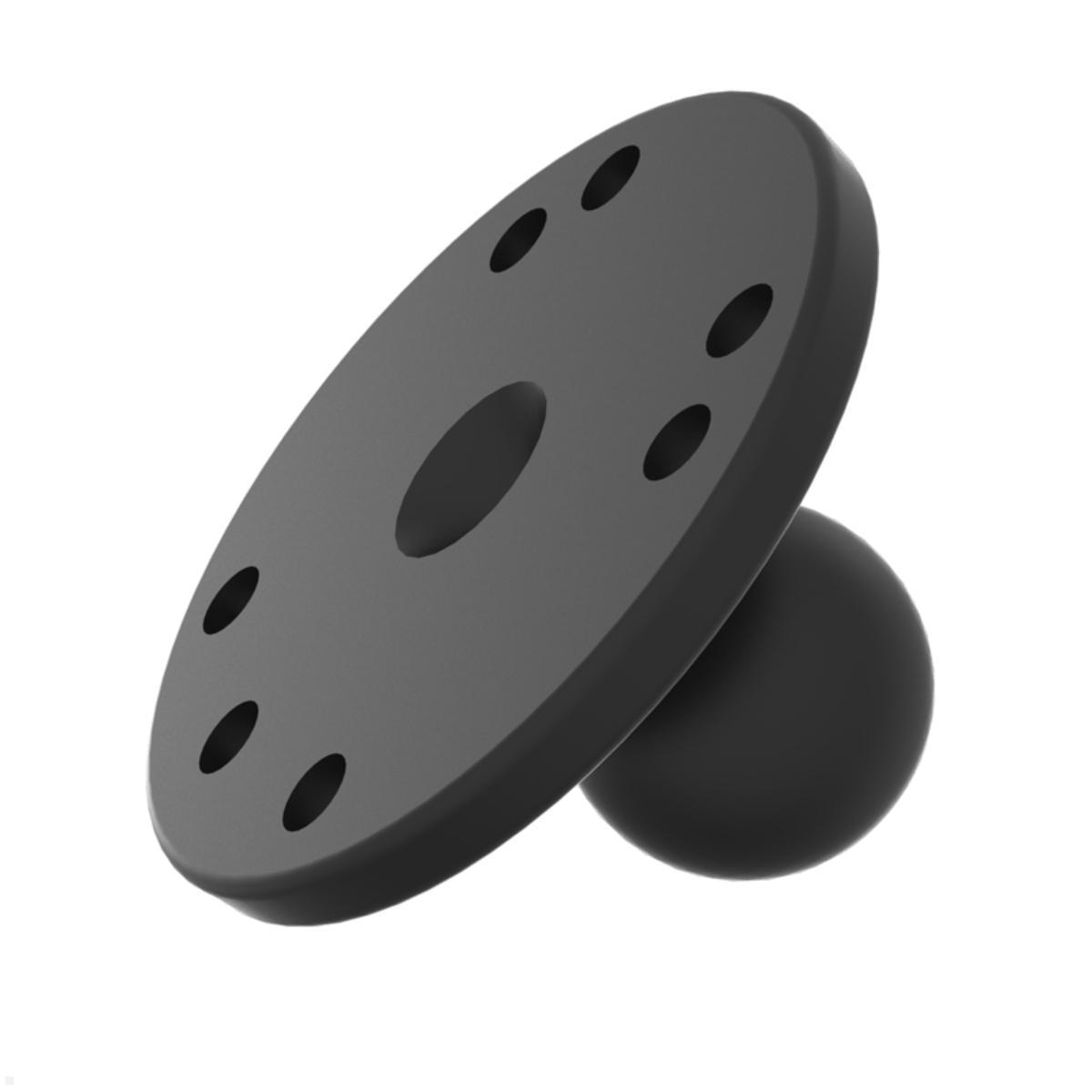

The RAM Mounts round base plate with AMPS hole pattern RAM-B-202U has a B-ball with 1 inch diameter. The base plate is suitable for attachment to smooth, vertical or horizontal surfaces. RAM Mounts base plates form the basis for many mounting solutions. Combine your personal RAM Mount Holder with RAM Mount Ball and, for example, RAM Mount Cell Phone Holder.
iPad Mounting solutions

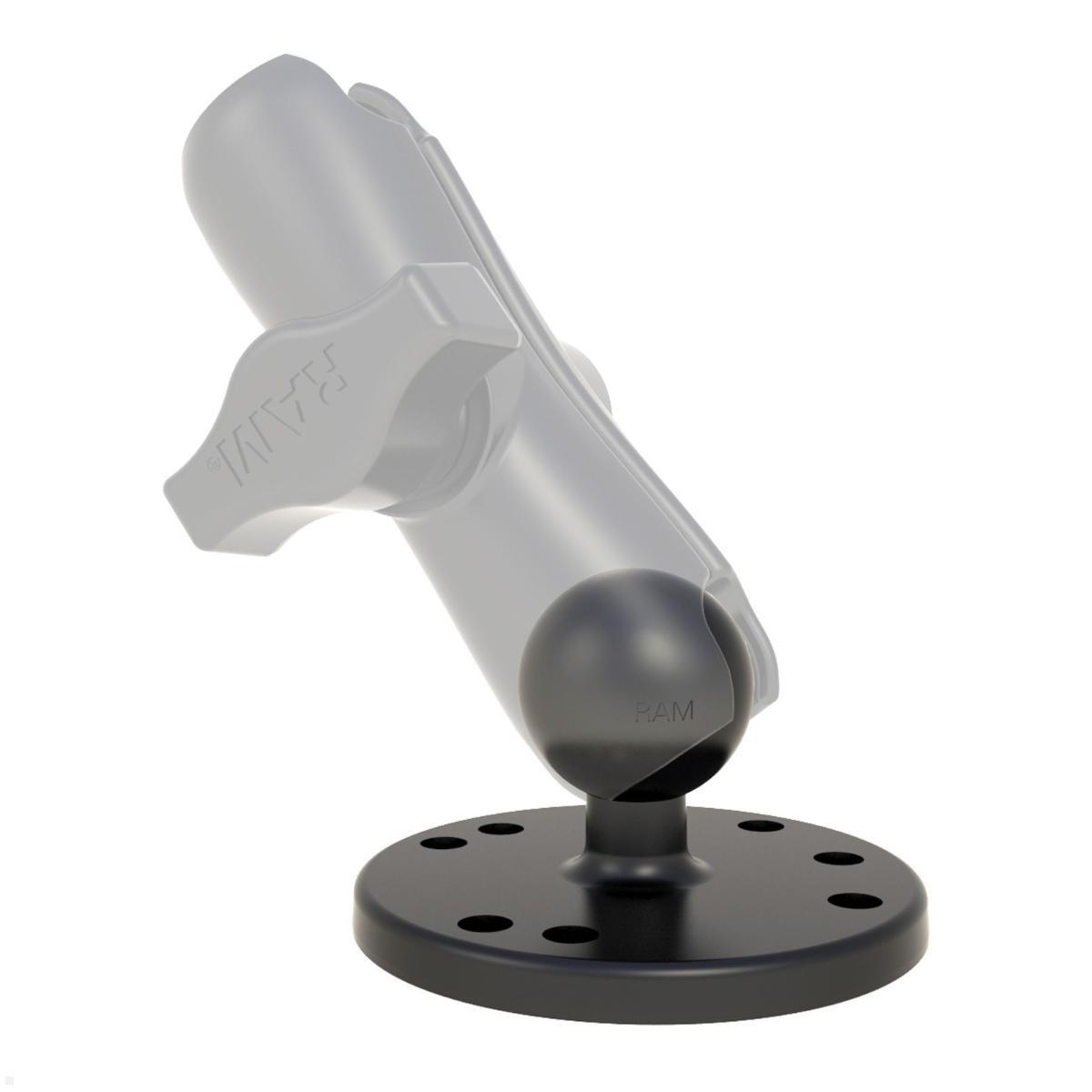

Various connection arms can be combined with the RAM Mount base plate with C-ball. The arms are available in several lengths. The connection arm is combined with a base plate and a device holder for a complete mount and is suitable for various mounting solutions, for example for the Apple iPad.
Key features RAM Mounts RAM-B-202U
- Material: aluminum, powder-coated
- Ball diameter: 25.4 mm
- B-ball 1 inch
- Base diameter: 63.5 mm
- AMPS hole pattern
- High-quality powder coating
- Colour: black RAL 9005
- Weight: approx. 68 g
- Load capacity: up to approx. 0.9 kg
| Product sheet: |  [pdf] |
|---|---|

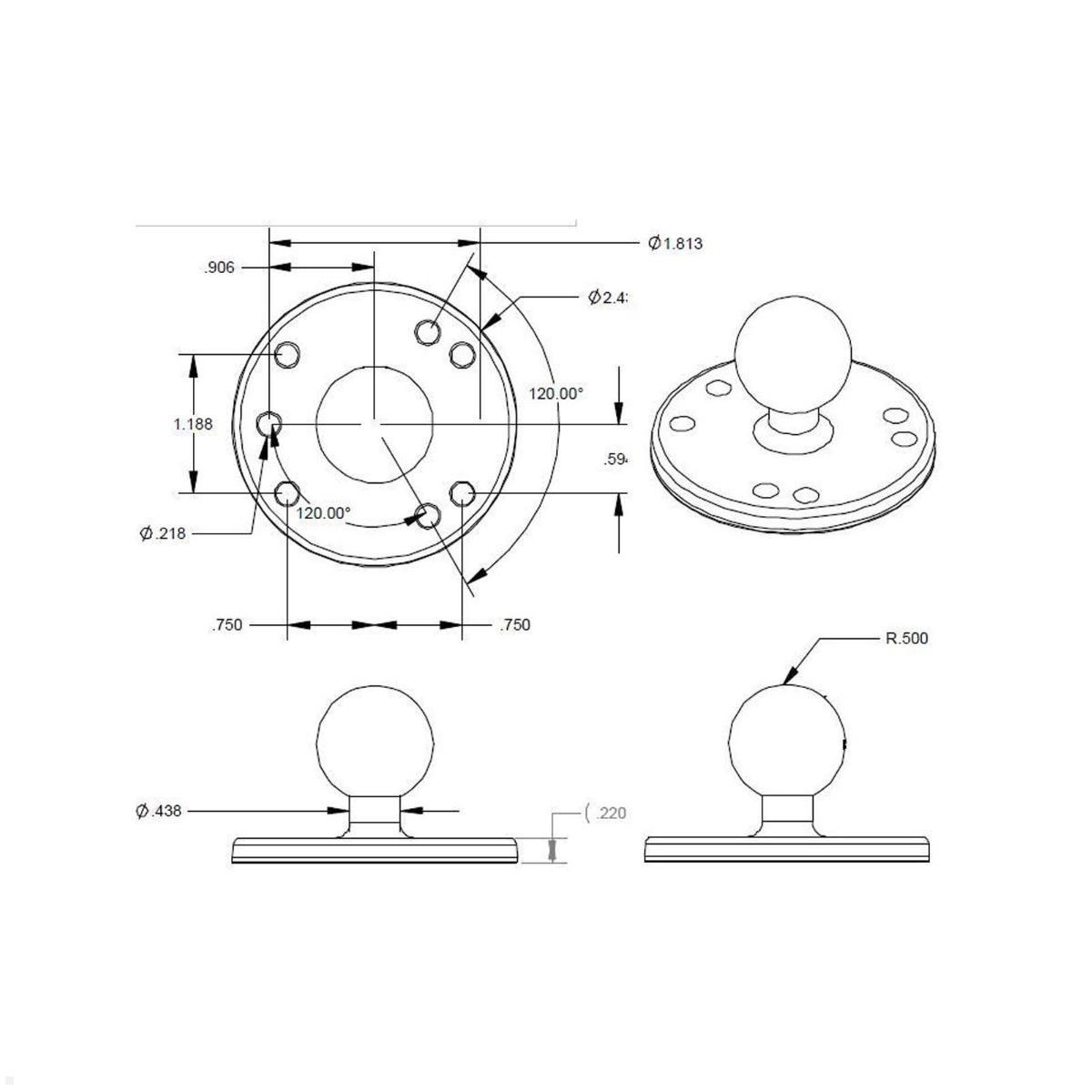

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Capacity: | 0,9 kg |
| Material: | Aluminum, powder-coated |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 1x base plate with B-ball (RAM-B-202U) |
| Contains installation material: | - |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts round base plate with 1-inch B-ball (RAM-B-202U)?
It is a round base plate with a 1-inch B-ball diameter, suitable for mounting on smooth, vertical or horizontal surfaces. It forms the base for many RAM Mount configurations.
-
What are the dimensions and specifications?
Ball diameter 25.4 mm; base diameter 63.5 mm; AMPS hole pattern; weight approx. 68 g; material aluminium, powder-coated; colour black RAL 9005.
-
What is the load capacity?
Load capacity approx 0.9 kg.
-
What is it used for?

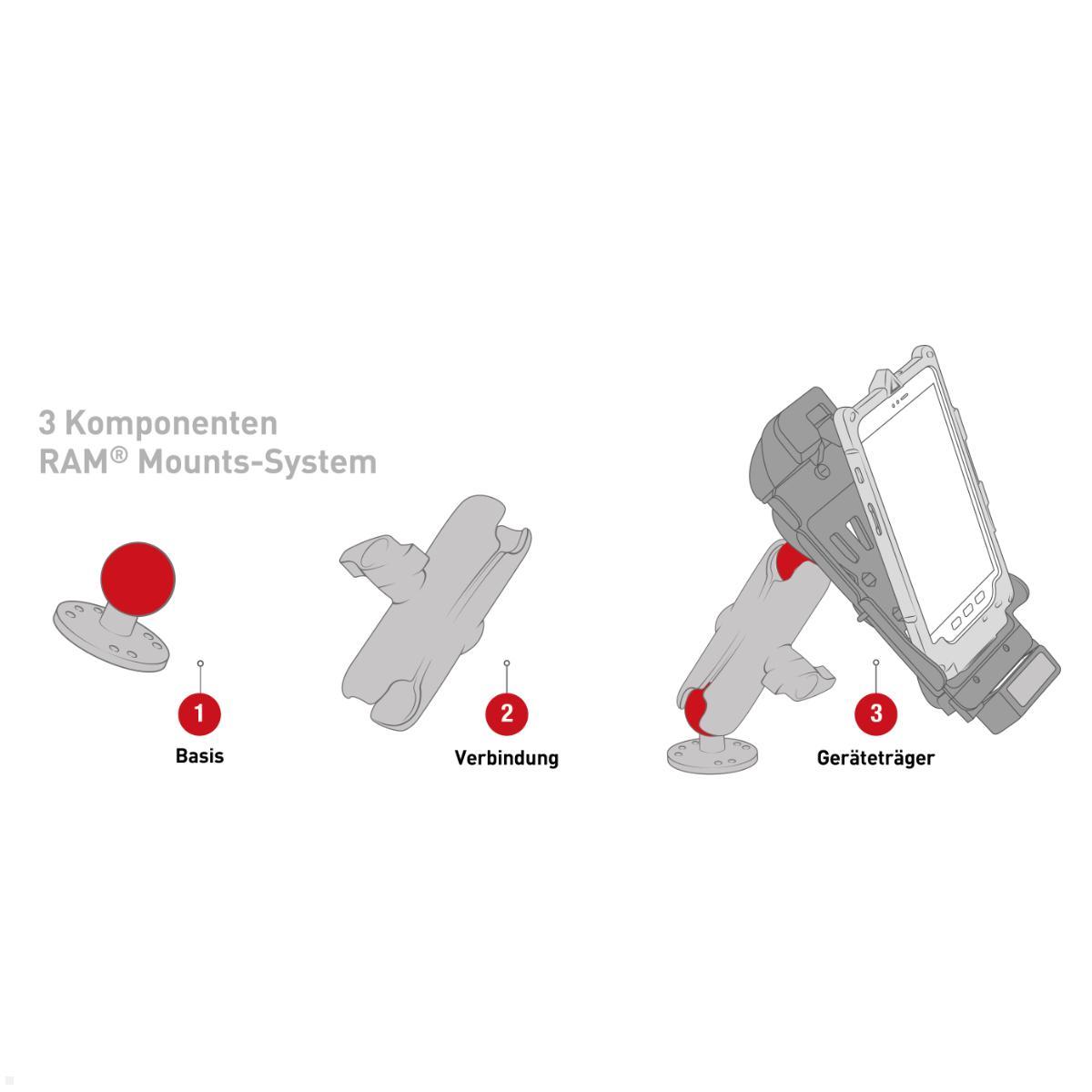

It forms the base for various mounting solutions and can be combined with a RAM Mount ball and a device holder to create a complete mount, for example for a smartphone holder or iPad mounting solutions.
-
What size is the ball?
B-ball diameter: 1 inch.
-
What surfaces can it be mounted on?
Suitable for smooth, vertical or horizontal surfaces.
-
What finish/color is available?
Powder-coated aluminium in black RAL 9005.
-
Does the description mention iPad mounting solutions?
Yes, the description mentions iPad mounting solutions.
