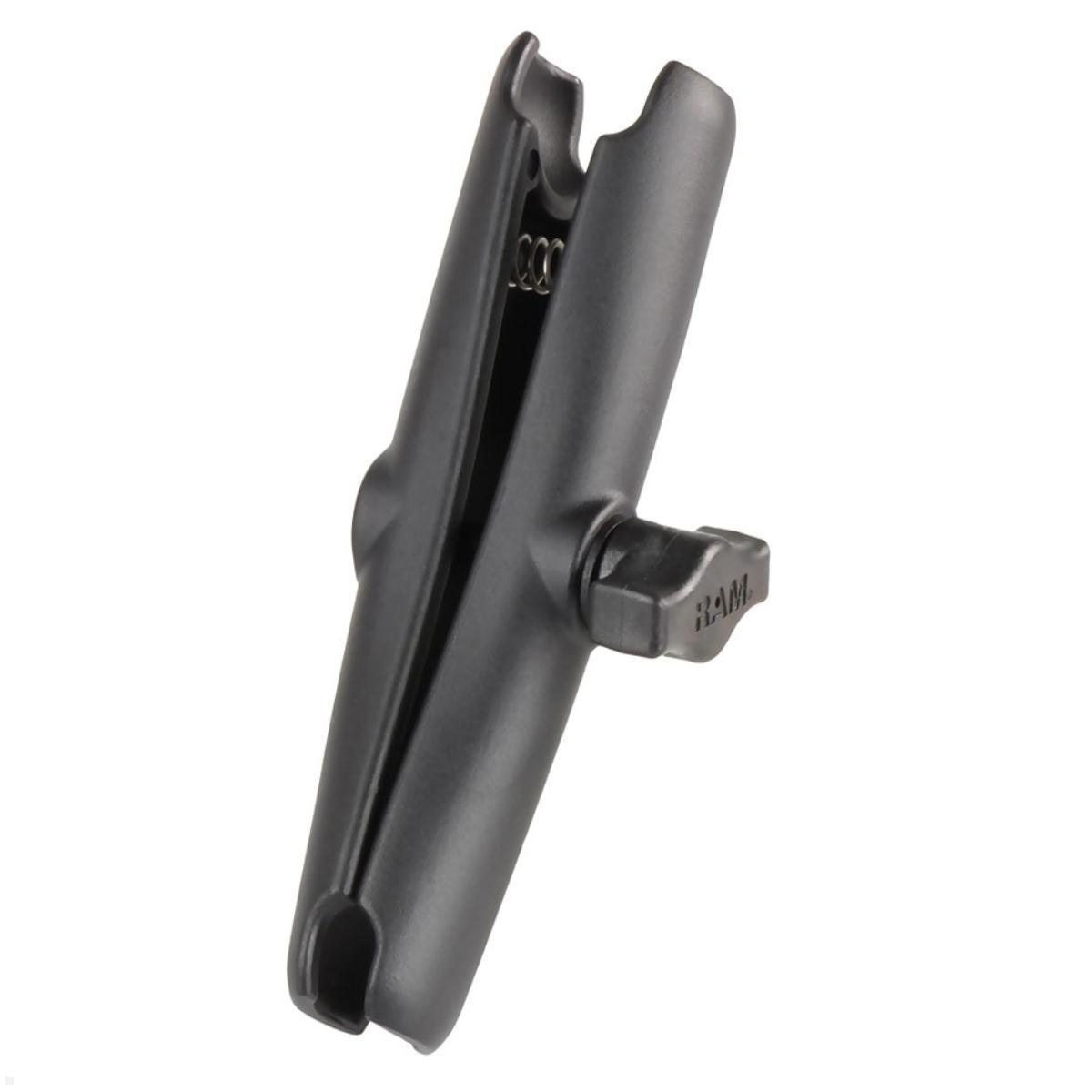

RAM Mounts connecting arm 154 mm for B-balls (RAM-B-201U-C), black
Long connector for B-balls

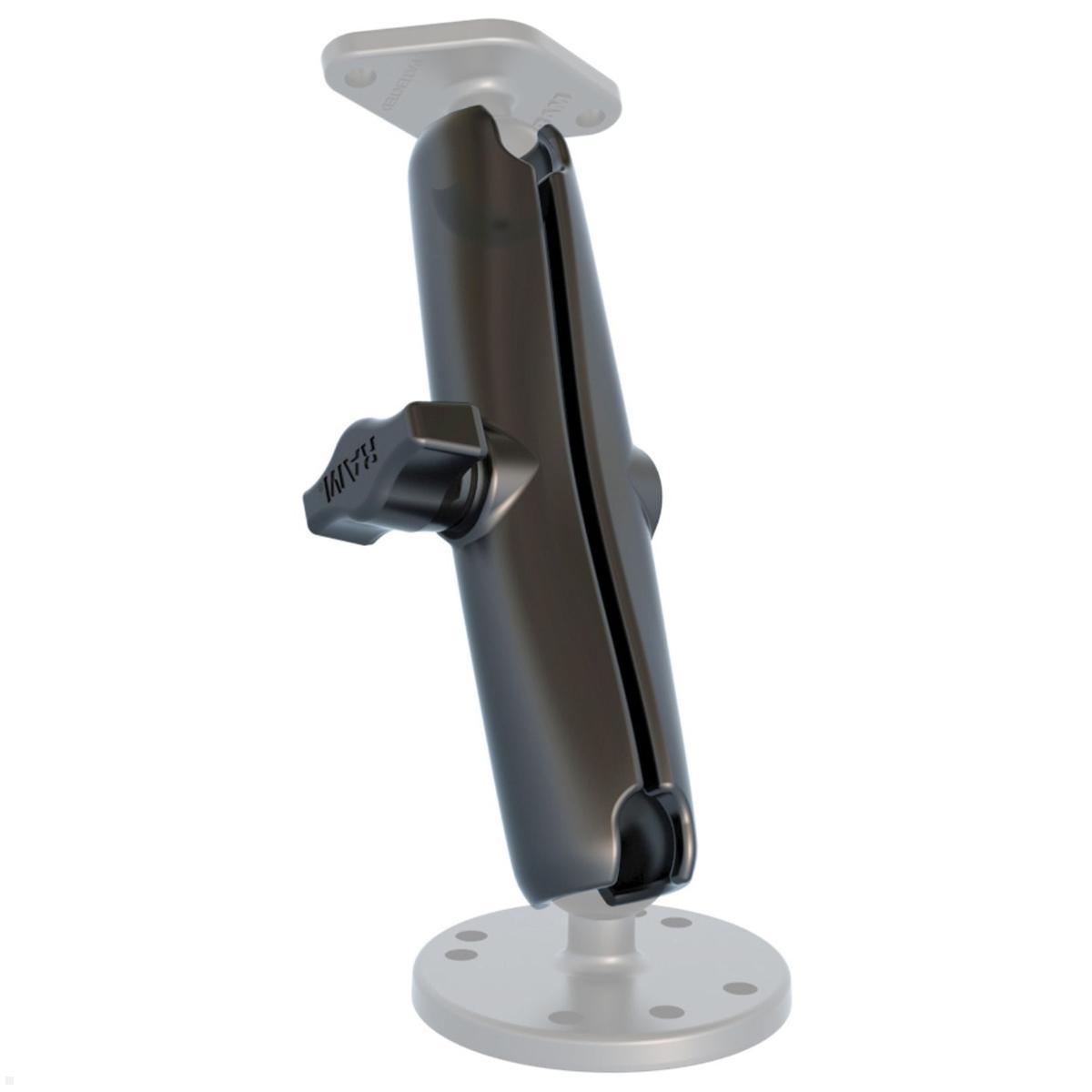

The RAM Mounts connecting arm with a length of approx. 154 mm is mounted between two B-balls with a diameter of 1 inch each and can be fixed with a twist lock as soon as the final position is found. The long connector for B-balls is combined with a base plate and a device holder to form a complete vehicle mount and is therefore suitable for various mounting solutions, for example for tablets, laptops or smartphones. The connecting arms are available in several lengths. The modular RAM Mounts system with B-ball offers a wide range of combination options with other components, for example to create a customized tablet holder or smartphone mount for the car.
Key features RAM Mounts connection arm (RAM-B-201U-C)
- Length: 154 mm (6 inch)
- Socket-to-socket distance: 133.35 mm (5.25 inches)
- Ball size: B-ball (1 inch to 0.9 kg)
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Material: Aluminum, powder-coated
- Color: Black
| Product sheet: |  [pdf] |
|---|---|

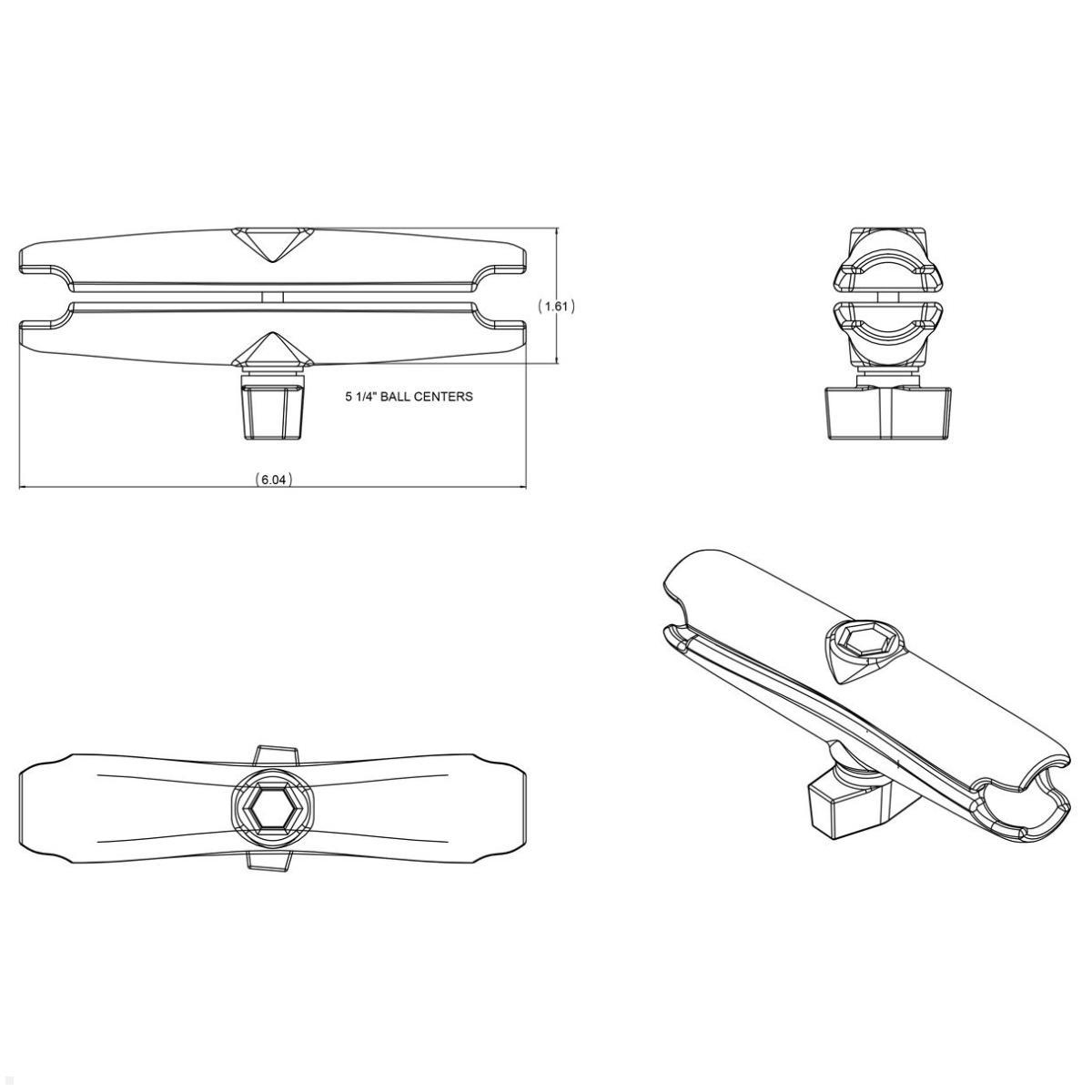

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Material: | Aluminum, powder-coated |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 1x connecting arm long |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
22 January 2026 18:23
Überzeugende Service, hat Erwartungen übertroffen
Reibungsloser Ablauf von A bis Z. Robuste Verarbeitung, macht einen soliden Eindruck.
Questions & Answers
-
What is the RAM Mounts 154 mm Connecting Arm for B-Balls (RAM-B-201U-C)?
It is a 154 mm long connecting arm mounted between two B-balls and can be fixed with a twist lock once the position is chosen.
-
What length is the RAM-B-201U-C?
It is 154 mm (6 inches) long.
-
What ball size and diameter does it use and what is the load?
Ball size is B-ball (1 inch) with a diameter of 25.4 mm; maximum load per ball is up to 0.9 kg.
-
What material and colour is it?
Material is aluminium, powder-coated; colour is black.
-
What can it be used for?
When paired with a base plate and a device holder, it forms a complete vehicle mount suitable for tablets, laptops or smartphones.
-
Is it part of a modular RAM Mounts system?
Yes, it is part of the modular RAM Mounts system with B-ball, offering many configuration options with additional components.
-
What is the centre-to-centre distance between sockets?
Centre-to-centre distance between sockets: 133.35 mm (5.25 inches).
-
Are other lengths available?
Yes, connecting arms are available in several lengths.
