RAM Mounts connecting arm 2-way rotatable for B-ball (RAP-B-200-2U), black
RAM Mounts connecting arm for B ball

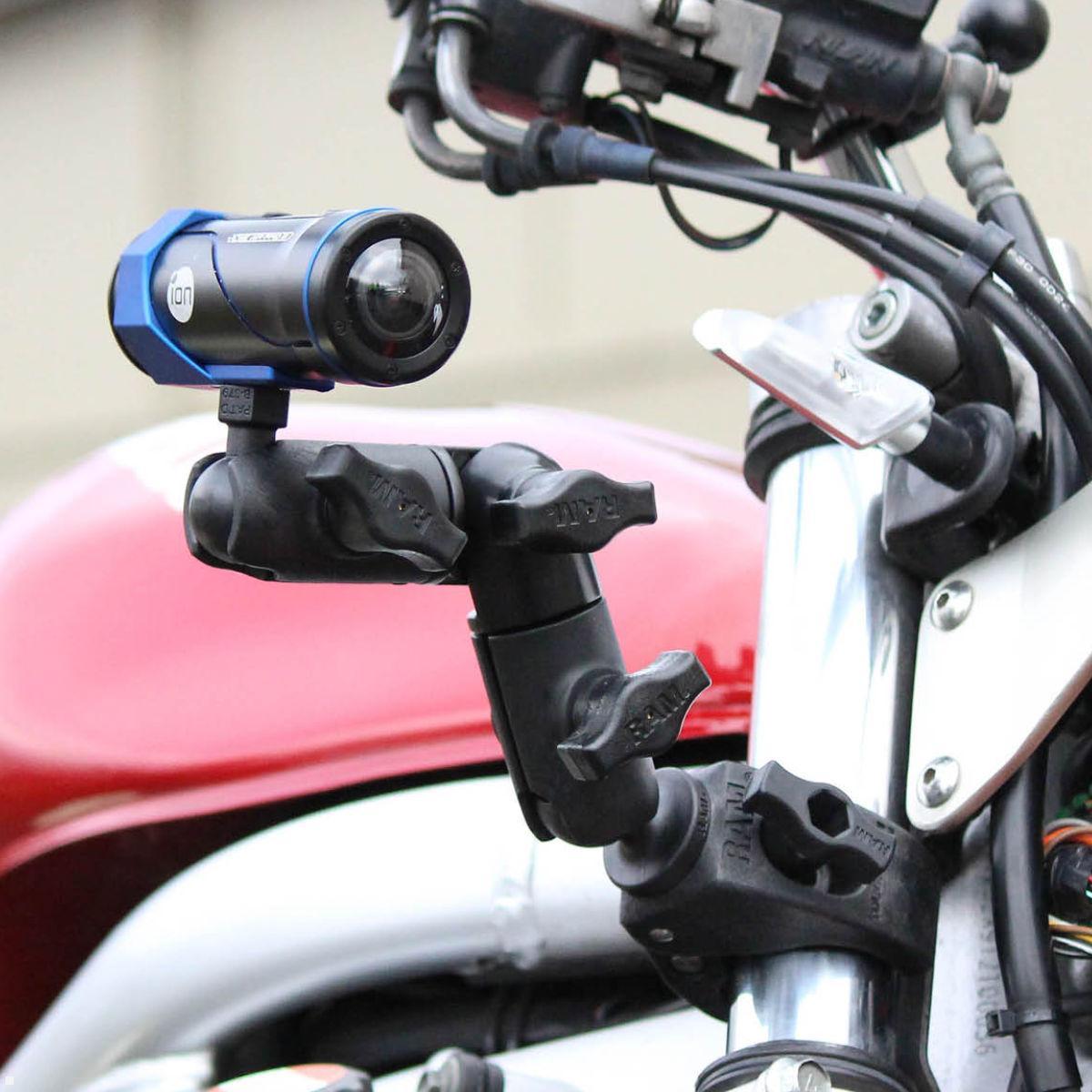

This RAM Mounts composite connecting arm with a total length of approx. 160 mm is the ideal solution for Versatile mounting options, especially for the use of action sports cameras. Equipped with B-ball mounts (1 inch) on both sides and a central swivel joint that allows a full 360° rotation, this connection arm offers unbeatable flexibility. The middle joint can be rotated by 180°. can be moved forwards and backwards, providing additional adjustment options. Whether for sports, leisure activities or professional use - with this connection arm you are ideally equipped to attach your camera or other devices securely and stably.
iPad mounting solutions
The connecting arms are available in different lengths for the B-ball plates. The connecting arm is combined with a base plate and a device holder to form a complete holder and is suitable for various mounting solutions, for example for the Apple iPad or others Tablets.Key features RAM Mounts RAP-B-200-2U
- Ball diameter: 25.4 mm for B-ball 1 inch
- Centrally located swivel joint
- Rotating: 360°
- Center joint: +/- 180°
- Total length: 158.8 mm (6.25 inches)
- B base to B base distance: 139.7 mm (5.5 inches)
- Color: black RAL 9005
- Material: High strength composite
| Capacity: | 0,97 kg |
|---|---|
| Rotate: | 360° |
| Material: | High strength composite |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 1x connecting arm (RAP-B-200-2U) |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mobility: | Drehbar |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
22 August 2024 09:38
super flexibel - typisch RAM
Natürlich RAM Mount, super flexibel einstellbar, perfekt um so wie bei mir die GoPro oder die Smartphone-Halterung im Wohnmobil universell zu befestigen ohne Angst haben zu müssen das sich was löst.
Questions & Answers
-
What is the RAM Mounts RAP-B-200-2U dual-arm swivel?
A RAM Mounts high-strength composite arm with two 1-inch B-ball sockets on both ends and a central swivel joint. It measures about 158.8 mm in length and is ideal for versatile mounting options, especially for action-sport cameras; it comes with a base plate and device holder for a complete setup.
-
How does the rotation work?

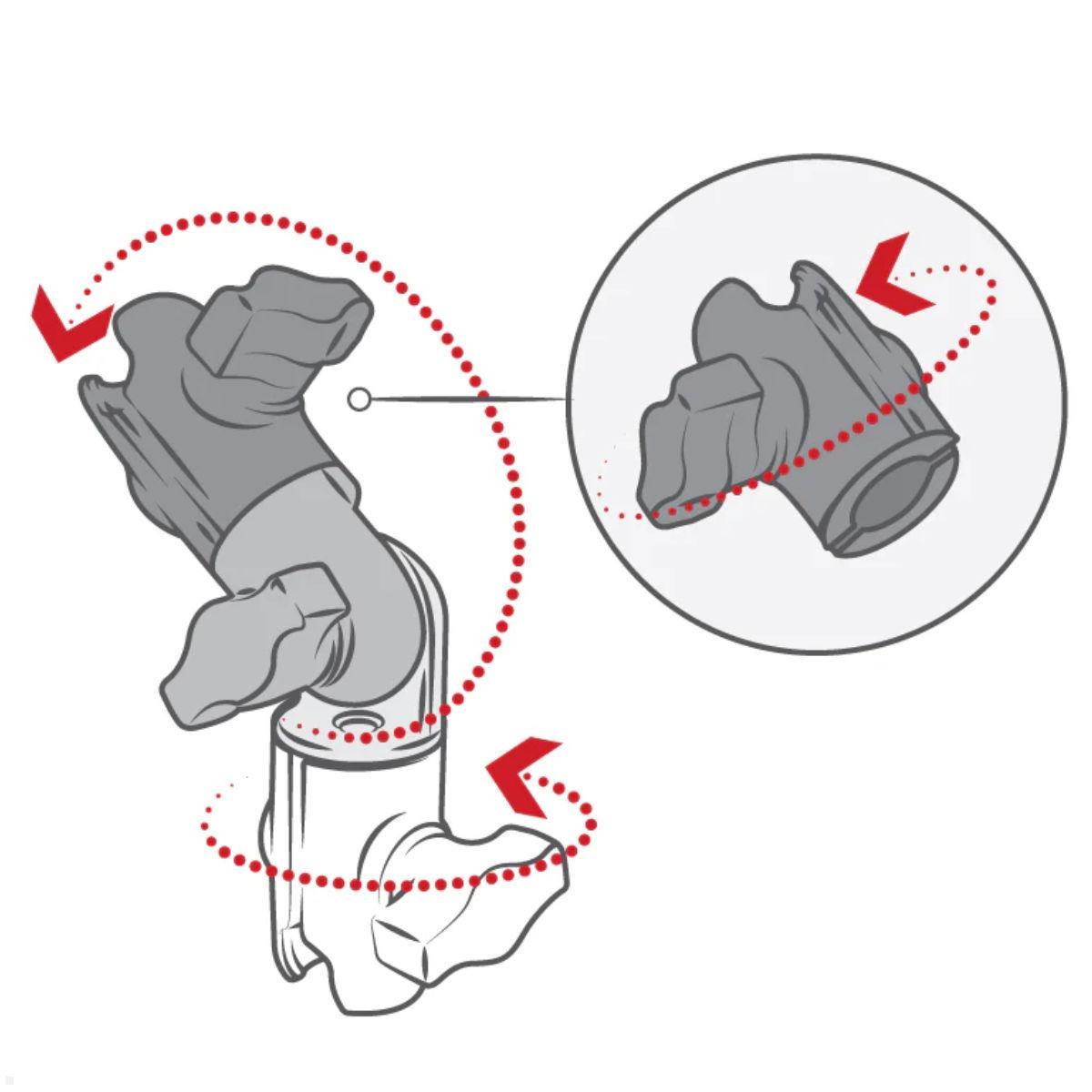

The central swivel joint allows 360° rotation, and the middle joint can move ±180°.
-
What are the dimensions?
Overall length is 158.8 mm (6.25 in); distance between the two B-balls is 139.7 mm (5.5 in).
-
What ball size does it use?
Each end uses a 25.4 mm (1 inch) B-ball.
-
What is the load capacity?
Maximum load is 0.97 kg.
-
What material and colour is the arm?
Made from high-strength composite; colour is black (RAL 9005).
-
What does the package include and what is it suitable for?
The arm is supplied with a base plate and device holder for a complete mounting; suitable for various mounting solutions, including Apple iPad or other tablets, and for cameras or other devices.
-
What applications is it particularly good for?
It offers versatile mounting options and is especially intended for action-sport cameras; suitable for sport, leisure, or professional use.
