RAM Mounts connection arm short for B-balls 1 inch (RAM-B-201U-A)
RAM Mounts connection arm, short

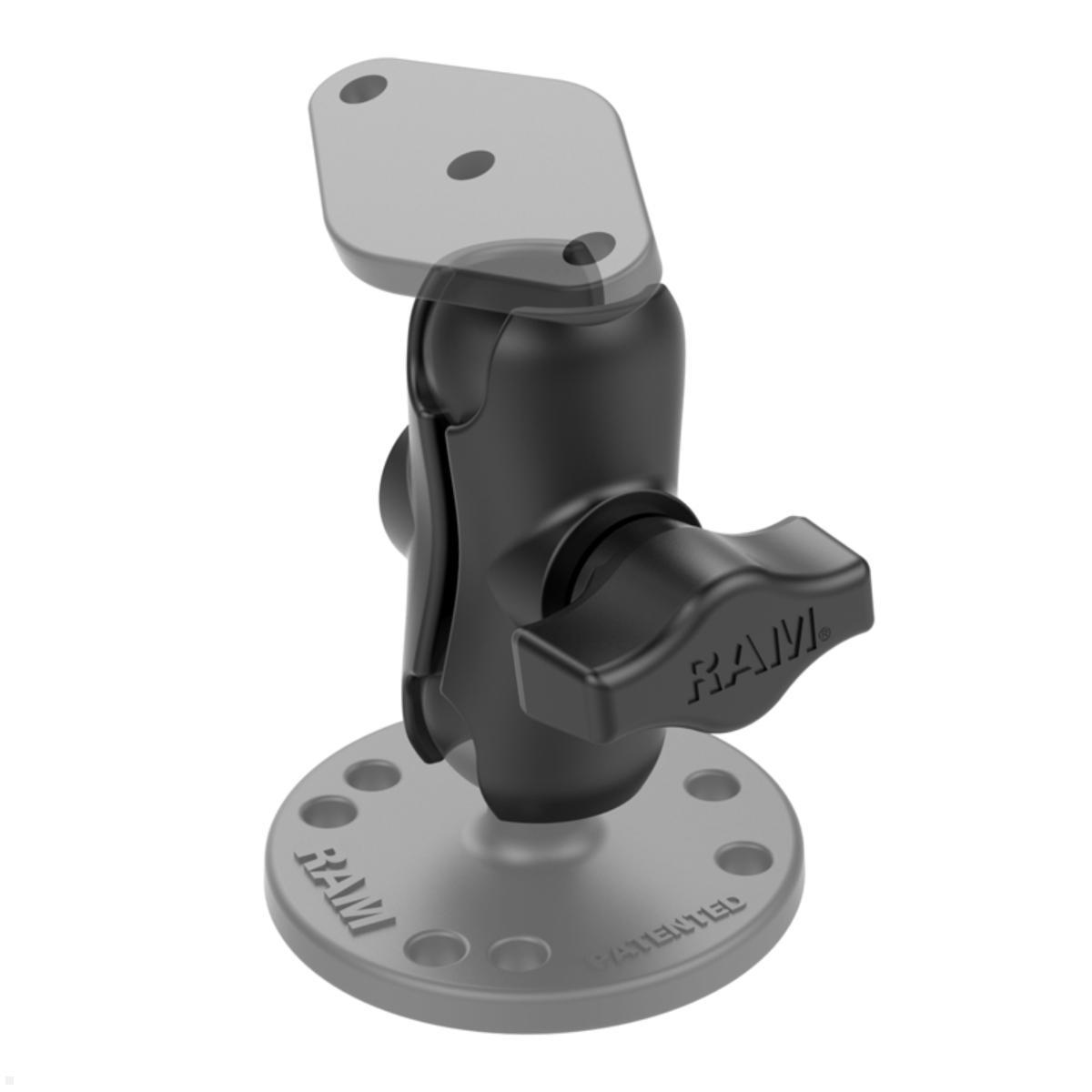

The short RAM Mounts connection arm RAM-B-201U-A has a total length of approx. 60 mm and is connected between two B balls fitted with 1 inch diameter each. The arm can be fixed with a twist lock once the final position has been found. Combine your personal RAM Mount Holder with RAM Mount Ball and, for example, RAM Mount Mobile Phone Holder.
Combinable mounting solutions
The connecting arms are available in different lengths for the B-ball plates. The connection arm is combined with a base plate and a device holder for a complete mount and is suitable for various mounting solutions, for example for the Apple iPad or other tablets.
Key features RAM Mounts RAM-B-201U-A
- Material: aluminum, powder-coated
- Ball diameter: 25.4 mm for B-ball 1 inch
- Length: 60.45 mm
- Base-to-base distance: 44.45 mm
- High-quality powder coating
- Colour: black RAL 9005
- Weight: approx. 95 g
| Product sheet: |  [pdf] |
|---|---|

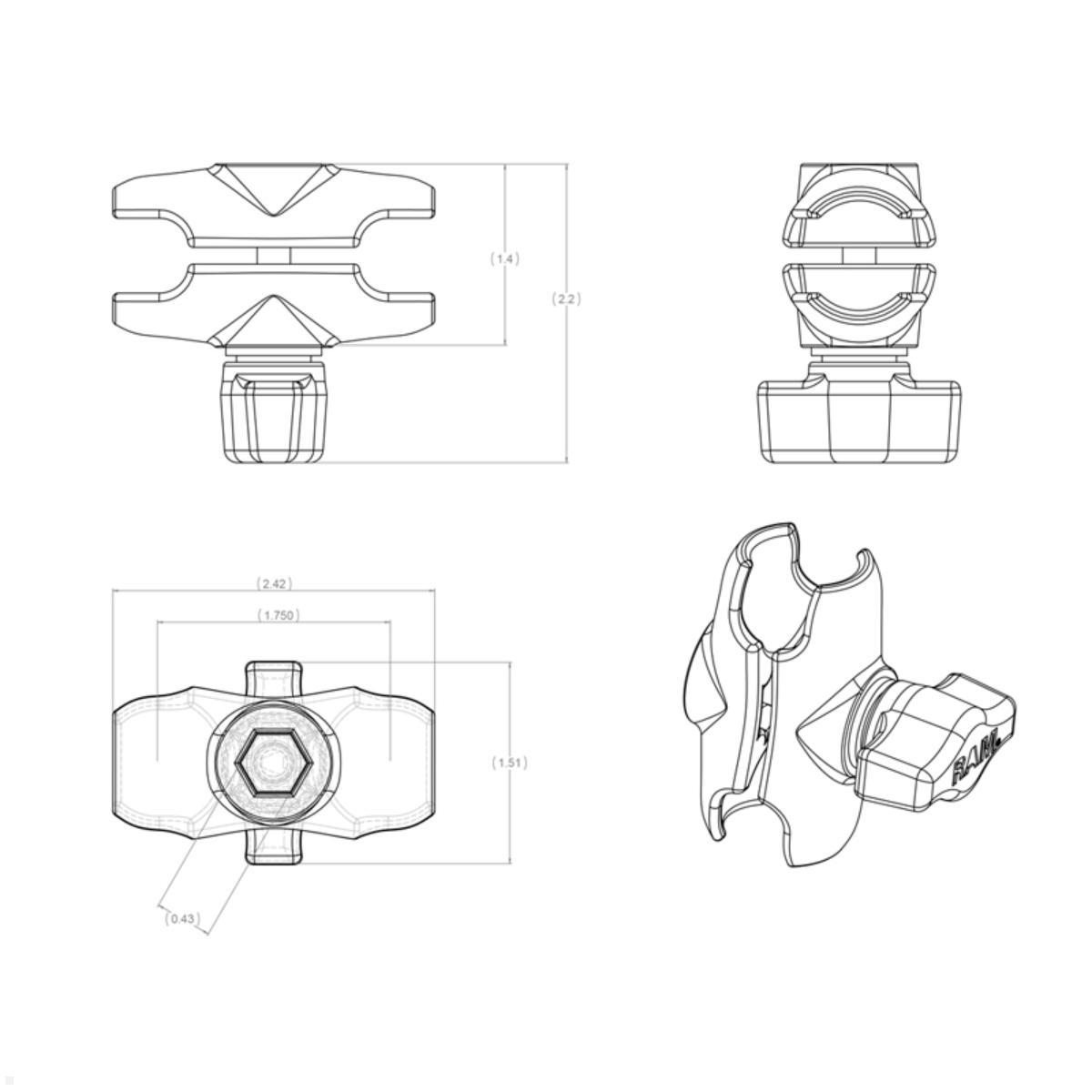

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Material: | Aluminum, powder-coated |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 1x link arm (RAM-B-201U-A) |
| Contains installation material: | - |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM-B-201U-A short linkage arm?
The RAM-B-201U-A short linkage arm has a total length of about 60 mm and is mounted between two B-balls with 1 inch diameter.
-
What is the length of the short arm and the socket-to-socket distance?
Length is approx. 60.45 mm; socket-to-socket distance is approx. 44.45 mm.
-
How is the arm fixed?
It can be fixed using a twist lock once the final position is found.
-

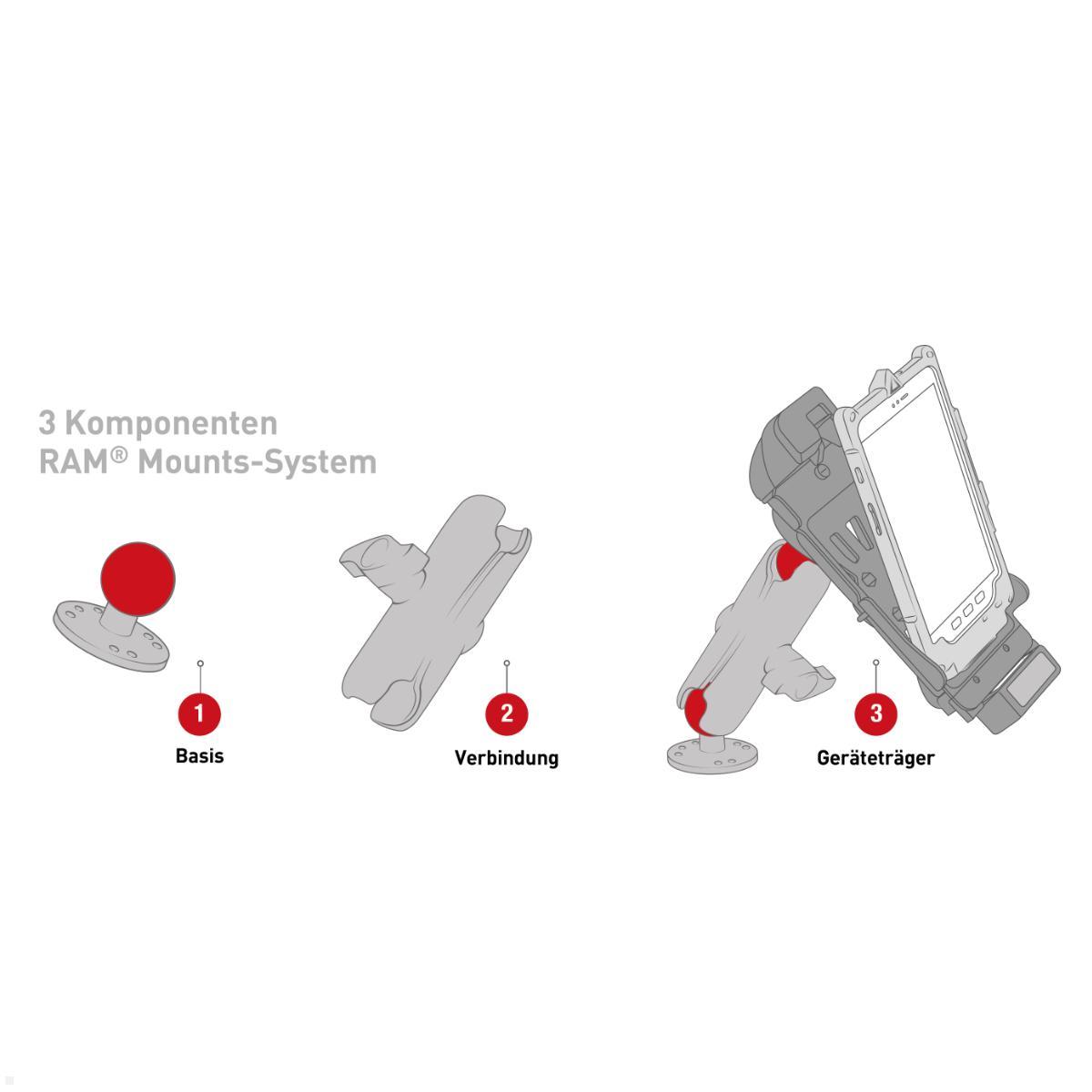

What components are needed for a complete mounting, and what is it suitable for?
The arm is combined with a base plate and a device holder for a complete mount and is compatible with RAM Mount balls and, for example, RAM Mount phone holders; it is suitable for various mounting solutions, such as for an Apple iPad or other tablets.
-
What material and finish does the arm have, and what is its weight?
Material: aluminium, powder coated; finish: high‑quality powder coating; weight: approx. 95 g.
-
What is the ball diameter?
Ball diameter: 25.4 mm for the 1 inch B-ball.
-
What colour is the arm?
Colour: Black, RAL 9005.
