RAM Mounts GDS IntelliSkin Tab Active Pro (RAM-GDS-SKIN-SAM54-NG-1)
Highlights
- For Tab Active Pro, Active4 & Active5 Pro
- GDS charging function with USB-C 2.0
- External USB-C port available
- Holder for stylus pen
- Compatible with GDS docking stations
IntelliSkin Next Gen Charging Protection Case with GDS Connector for Samsung Galaxy Tab Active Pro

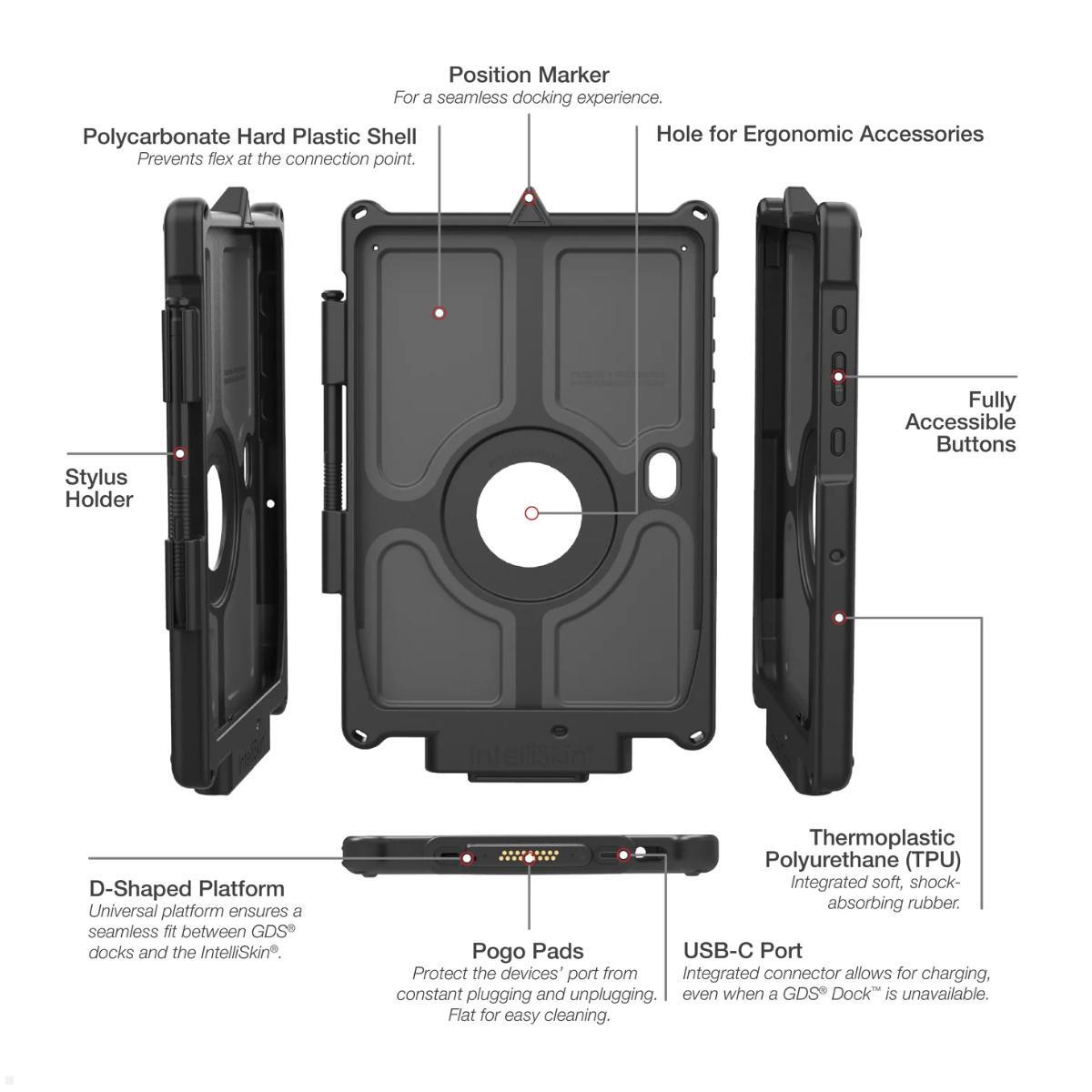

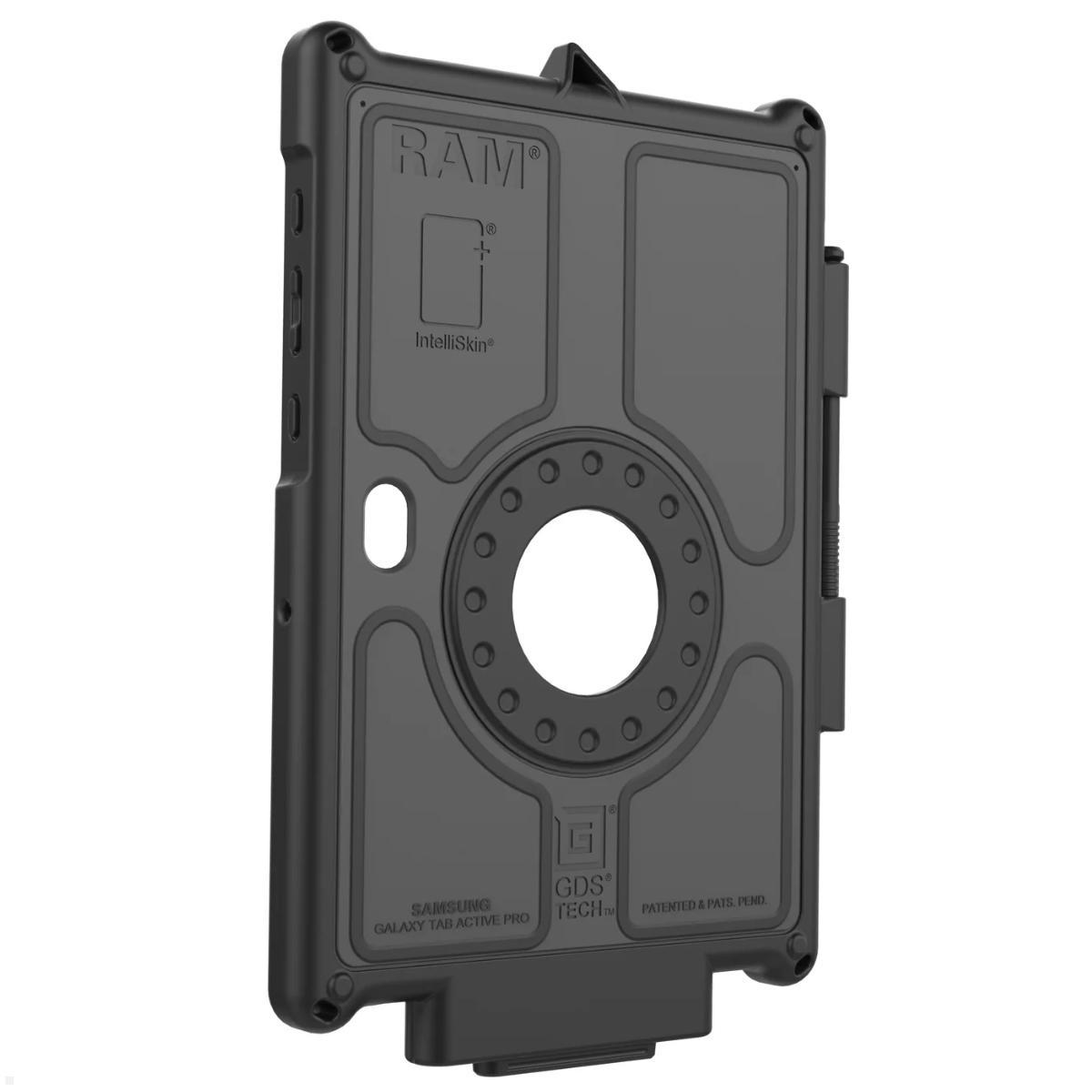

The RAM Mounts GDS IntelliSkin Tab Active Pro (RAM-GDS-SKIN-SAM54-NG-1) is a Next Gen charging protection case for the Samsung Galaxy Tab Active Pro, Active4 Pro and Active5 Pro. It offers reliable protection combined with a practical charging function. The integrated GDS connector is located in the inner frame of the case, so the device can be charged or continuously powered even while inserted. Additionally, the charging protection case features an external USB-C port, so the tablet can also be charged without a GDS docking station.
Thanks to the thoughtful design, the camera, buttons and ports remain usable. An integrated holder for the stylus is also provided. The IntelliSkin case is compatible with numerous GDS mounts and docking stations, making it ideal for professional use—whether in the vehicle, at the workplace or in mobile field service. Please note that the flash of the Samsung Galaxy Tab Active5 Pro is covered by the case; however, the camera remains fully usable.
Technical Details - RAM Mounts IntelliSkin Next Gen Charging Protection Case Tab Active Pro
- Compatible with Samsung Galaxy Tab Active Pro, Active4 Pro and Active5 Pro
- Compatible with GDS mounts and docking stations

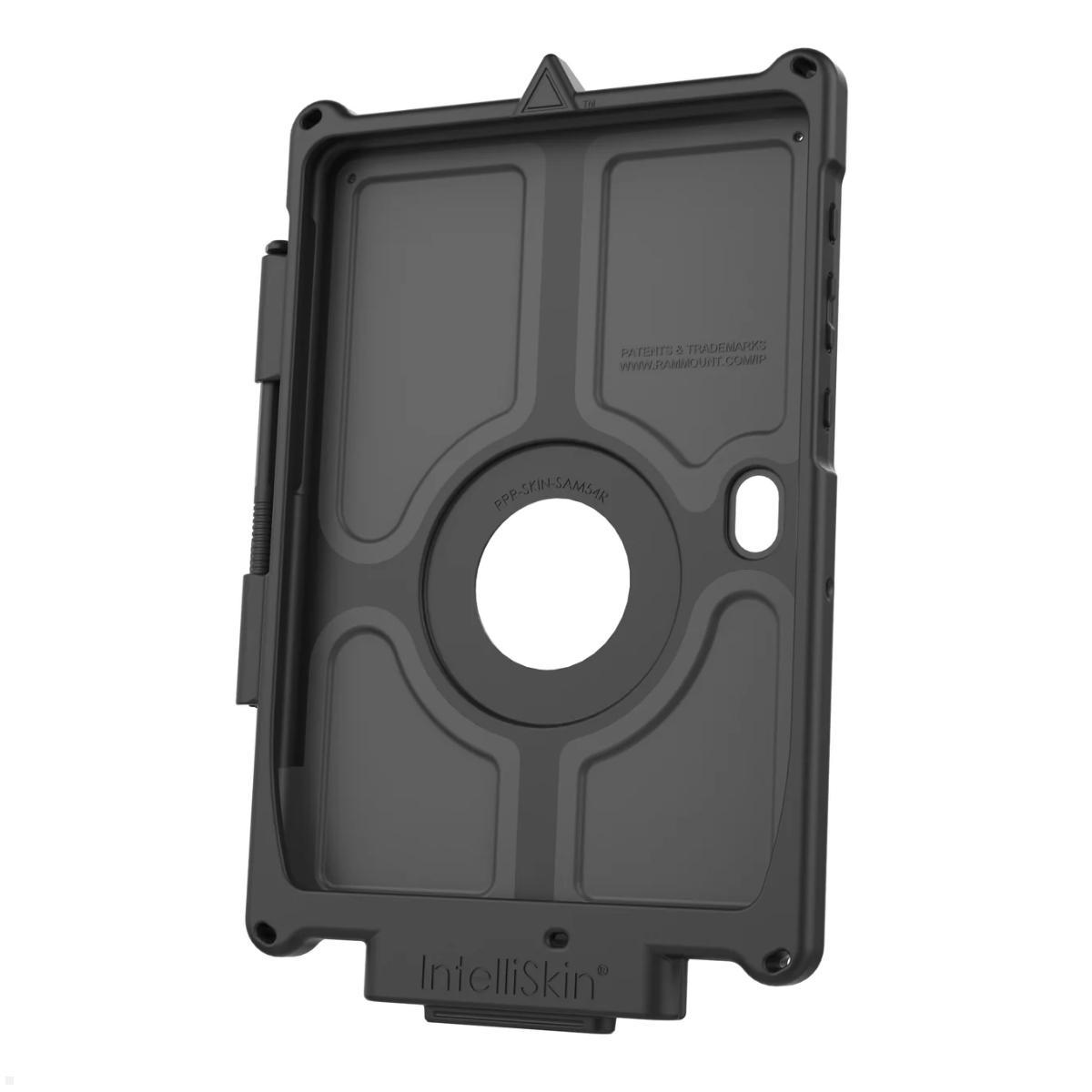

- Integrated GDS connector in the inner frame
- External USB-C 2.0 port
- USB 3.1 @ 5 Gbps (via pogo pins)
- USB 2.0 @ 480 Mbps (via external USB-C port)
- Camera usable (flash on Active5 Pro covered)
- Holder for stylus
- Easy insertion and simple removal
- For GDS Uni-Conn: adjustable adapter RAM-GDS-U1AU required
| Suitable for: | Samsung Tab Active Pro|Samsung Tab Active4 Pro|Samsung Tab Active5 Pro |
|---|---|
| Scope of delivery: | 1x RAM Mounts IntelliSkin Next Gen protective case (RAM-GDS-SKIN-SAM54-NG-1) |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts GDS IntelliSkin Tab Active Pro?
It is a next-gen charging case with a GDS connection for the Samsung Galaxy Tab Active Pro, Active4 Pro and Active5 Pro, providing protection with charging capability.
-
Which devices are compatible?
Compatible with Samsung Galaxy Tab Active Pro, Active4 Pro and Active5 Pro.
-
Where is the GDS port located?
The integrated GDS port is located in the frame, allowing charging while the device is installed.
-
What ports and data speeds are available?
It has an integrated GDS port in the frame, an external USB-C 2.0 port, USB 3.1 at 5 Gbps via Pogo Pins, and USB 2.0 at 480 Mbps via the external USB-C port.
-
Does the camera work and what about the flash?
The camera remains usable; the flash on the Active5 Pro is obscured by the case.
-
Is there a stylus holder?
Yes, the IntelliSkin case includes a holder for the stylus.
-
Is the case compatible with GDS mounts and docking stations?
Yes, it is compatible with numerous GDS mounts and docking stations.
-
What adapter is required for GDS Uni-Conn?
The adjustable RAM-GDS-U1AU adapter is required.
What is the RAM Mounts IntelliSkin Next Gen protective case for the Samsung Galaxy Tab Active Pro suitable for?
The RAM Mounts GDS IntelliSkin with the model number RAM-GDS-SKIN-SAM54-NG-1 is a Next Gen series charging protective case for the Samsung Galaxy Tab Active Pro line. It is compatible with the Tab Active Pro, the Tab Active4 Pro and the Tab Active5 Pro. The protective case reliably protects the rugged enterprise tablet from damage while at the same time enabling charging via the integrated GDS connector or the external USB-C port. Typical areas of use are vehicle fleets, warehouse logistics, field service, construction sites and all industrial environments where rugged tablets need to be continuously powered and at the same time protected.
How does the GDS charging function of the IntelliSkin case for the Tab Active Pro work?

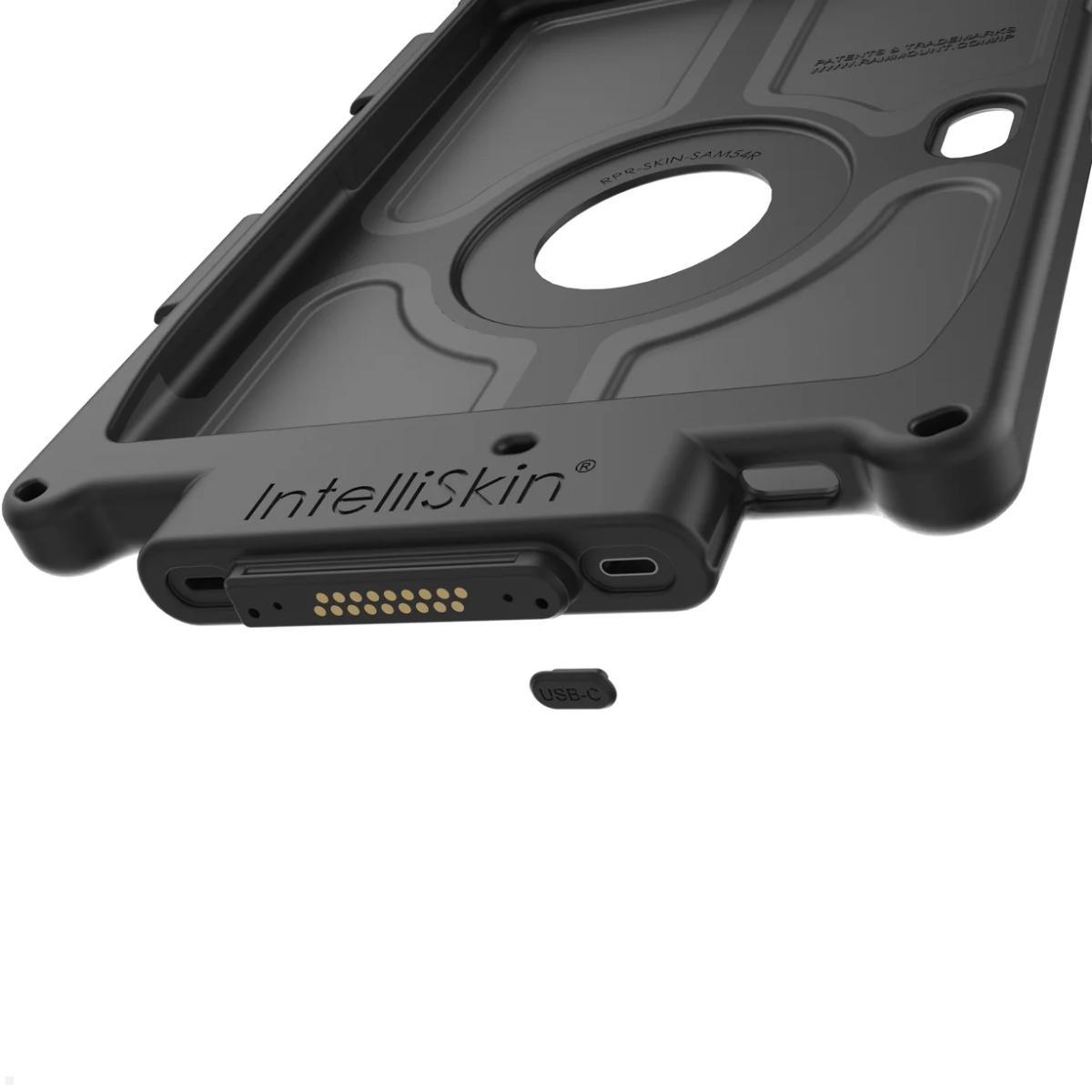

The GDS connector is integrated into the inner frame of the case and establishes the connection between tablet and docking station. Data transfer of up to 5 Gbps in the USB 3.1 standard is enabled via the pogo pins. Alternatively, the tablet can be charged and connected via the external USB-C 2.0 port at up to 480 Mbps. This external port offers the advantage that the device can also be charged directly with a USB-C cable without a GDS docking station. For connecting GDS Uni-Conn the adjustable adapter RAM-GDS-U1AU is required, which is available separately.
What special features does the IntelliSkin case offer for the Samsung Tab Active5 Pro?
When used with the Samsung Galaxy Tab Active5 Pro, note that the tablet's flash is covered by the protective case. However, the camera itself remains fully usable. This restriction applies only to the Active5 Pro model. On the Tab Active Pro and Active4 Pro models, all functions are accessible without restriction. The case features an integrated holder for the stylus and is compatible with the entire RAM Mounts GDS mounting system, including docking stations, vehicle mounts and accessory products such as the GDS Hand-Stand or the Roto-Mag Adapter.
