RAM Mounts Laptop Mount Tough-Tray with flat side arms Universal for 10-16 inches - AMPS hole pattern
Highlights
- Universal laptop mount for devices from 10" to 16"
- Flat side arms for optimal access to ports
- Many laptops can remain closed while in the mount
- Spring-loaded design for secure and flexible hold
- Compatible with RAM Mounts attachment and mounting systems

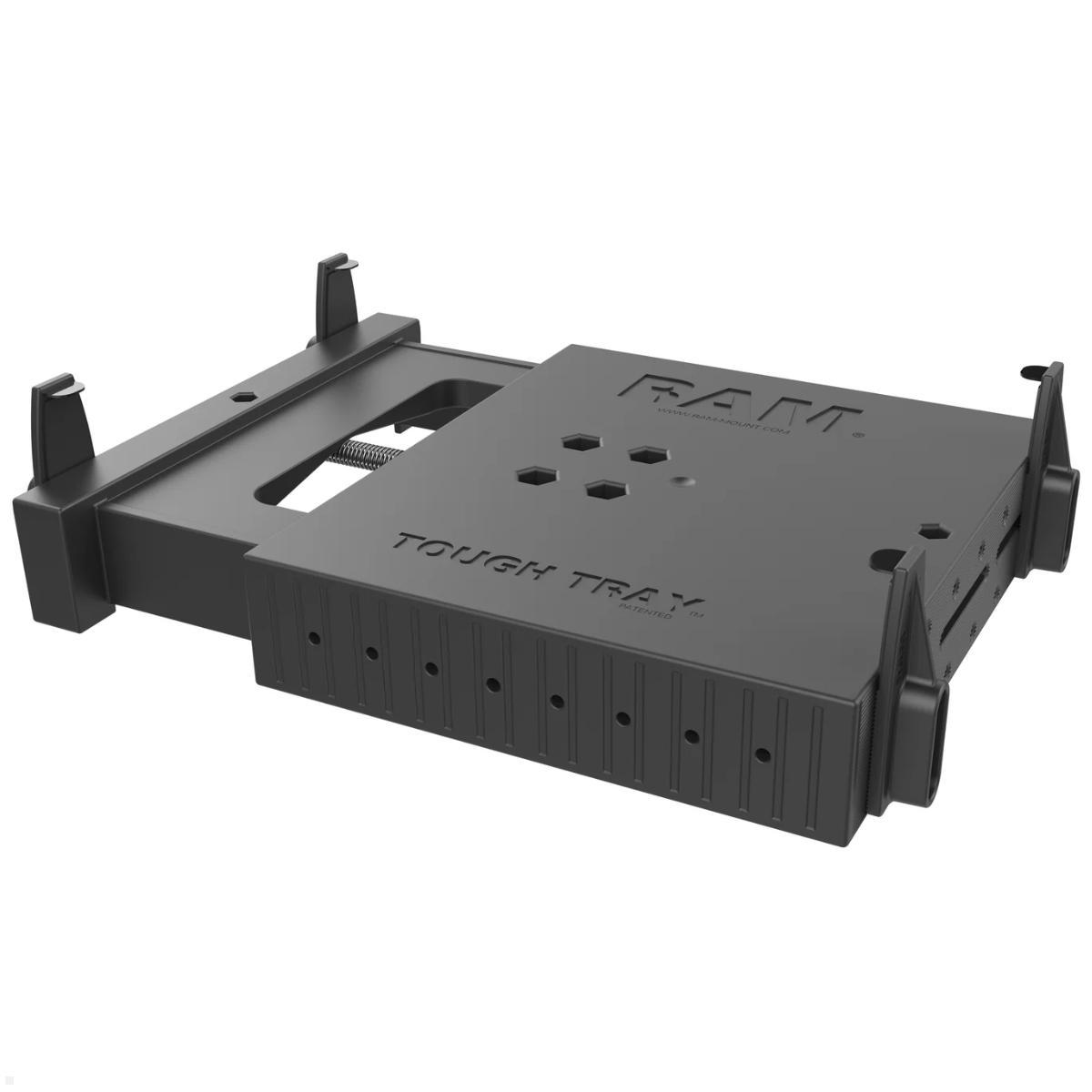

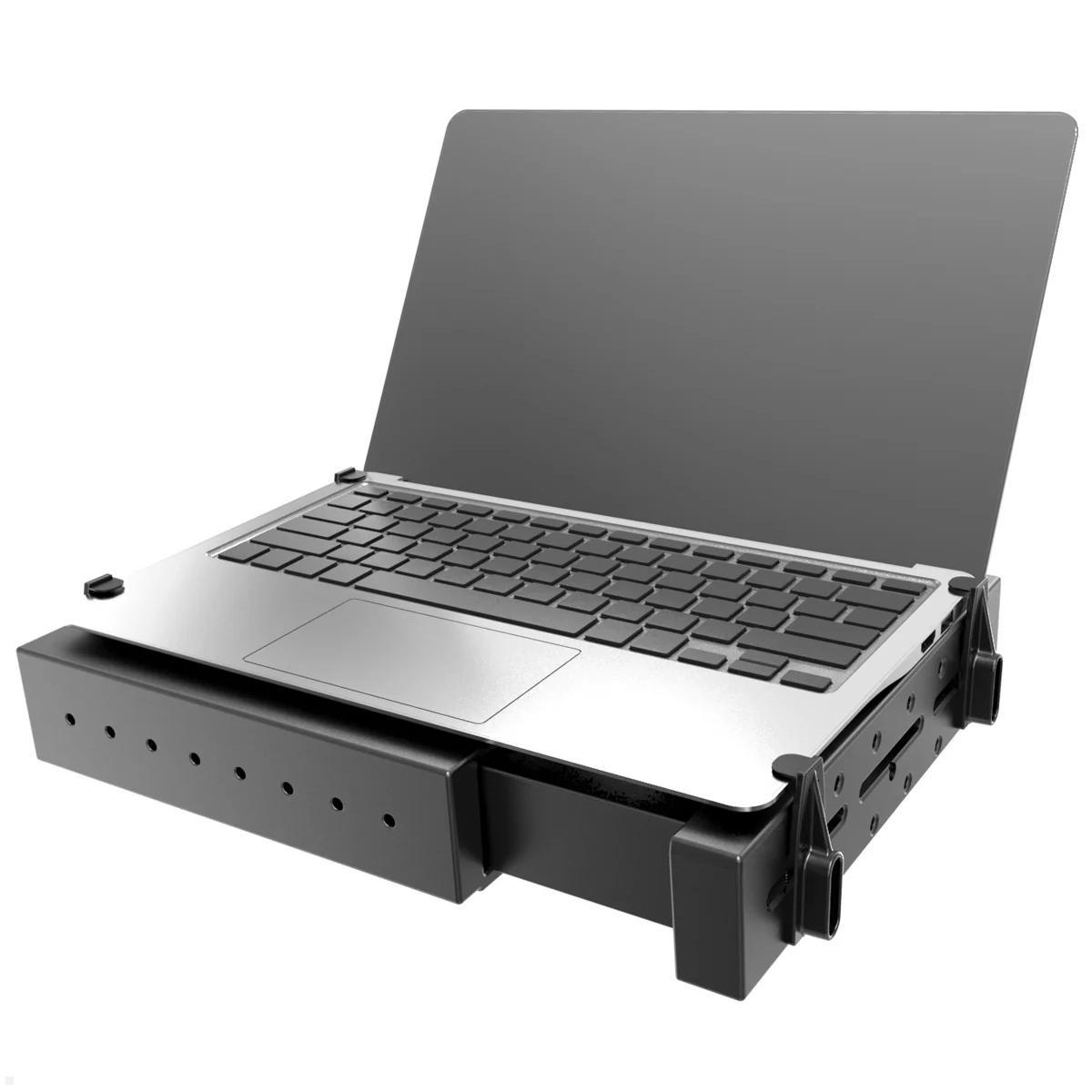

RAM Mounts Tough-Tray™ RAM-234-3FL – Universal Laptop Mount with Flat Side Arms
The RAM Mounts laptop mount Tough-Tray with flat side arms Universal for 10–16 inch - AMPS hole pattern, is a professional, spring-loaded laptop mount for secure use in vehicles, control centers, service vehicles and industrial work environments. Thanks to its expandable design it is suitable for numerous laptop models with a width of 10 to 16 inches and provides a stable and flexible mounting solution for mobile workstations. Particularly noteworthy are the four flat, adjustable side arms that securely hold the laptop without covering important ports, drives or controls. Unlike conventional mounting arms, the flat clamps even allow many laptops to be fully closed while remaining in the mount. The clamps can be adjusted both horizontally and vertically to accommodate different device widths and thicknesses, ensuring a custom and secure fit. The robust construction from high-strength composite material has been specifically developed for demanding operating conditions and impresses with its durability as well as resistance to vibration and daily wear. Additional hole patterns on the rim of the mount allow the installation of further RAM Mounts components, for example for GPS devices, tablets or other electronic devices. Thanks to the integrated AMPS hole pattern the Tough-Tray™ can be flexibly combined with numerous RAM Mounts mounting systems.
Technical Details for the RAM Mounts Laptop Holder Tough-Tray
- Model: RAM Mounts Tough-Tray™
- Part number: RAM-234-3FL
- Type: Universal laptop mount
- Construction: Spring-loaded and side-expandable
- Compatibility: For laptops with a width of approx. 25.4 to 40.6 cm (10–16 inches)

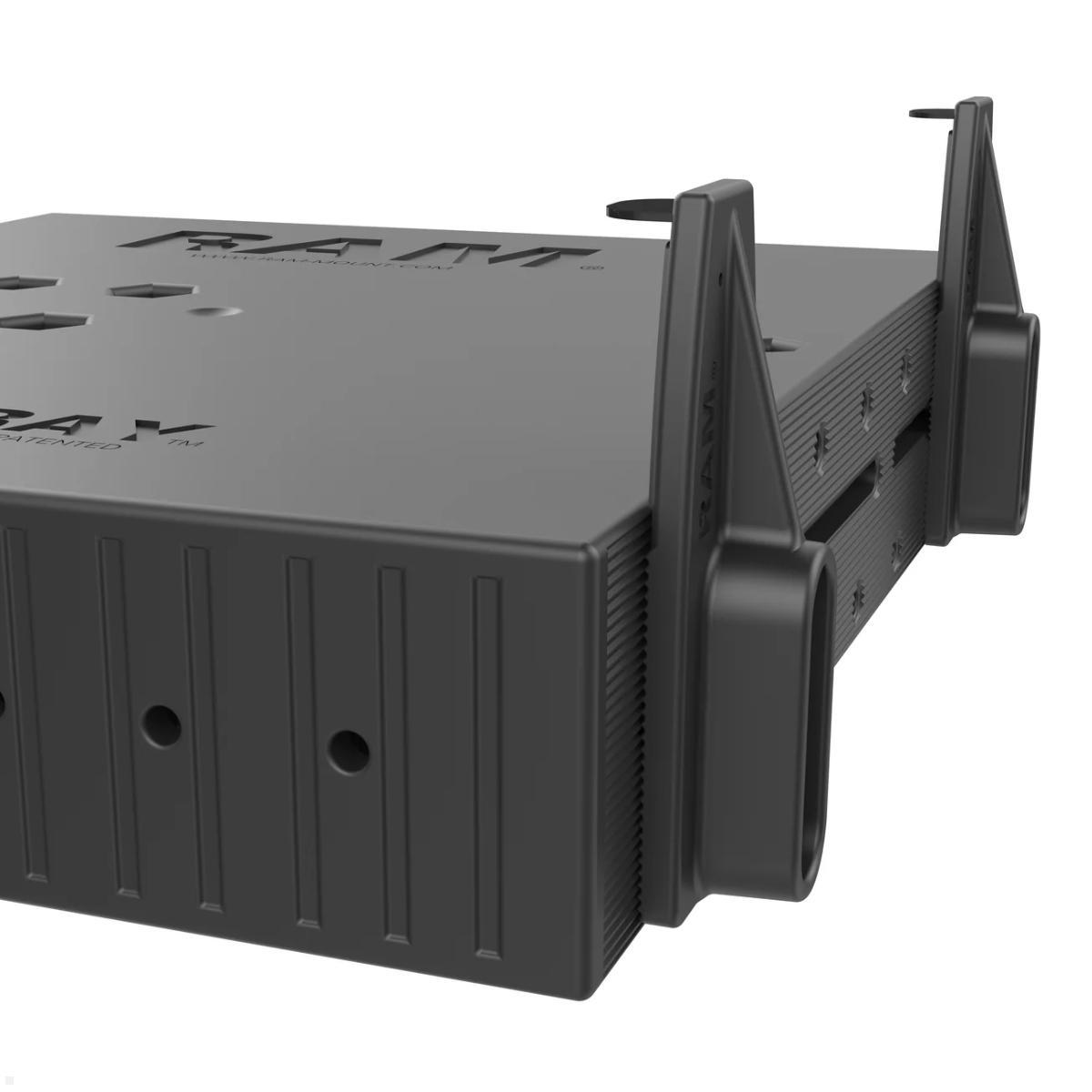

- Retention system: Four flat, adjustable side arms
- Material: High-strength composite material
- Clamping range: 25.4 cm to 40.6 cm
- Height of side clamps: approx. 1.27 cm to 4.45 cm
- Depth of the mount: approx. 25.4 cm
- Thickness of the mount: approx. 5.4 cm
- Hole pattern: 4-hole AMPS (1.181" x 1.496")
- Weight: approx. 1.25 kg
| Material: | Hochfester Verbundstoff |
|---|---|
| Scope of delivery: | 1x Universal Laptop holder Tough-Tray RAM-234-3FL |
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Tough-Tray?
The RAM Mounts Tough-Tray is a universal laptop holder with flat side arms, designed for professional, spring-loaded securing in vehicles, control rooms, service vehicles and industrial environments.
-
What laptop sizes does it support?
Compatible with laptops width about 25.4 cm to 40.6 cm (10–16 inches).
-
How does it secure the laptop?
Four flat, adjustable side arms fix the laptop securely without covering important ports; the arms can be adjusted horizontally and vertically to fit width and thickness.
-
What material is it made of?
Made from high-strength composite; robust for demanding use; resistant to vibrations and daily loads.
-
What is the mounting hole pattern?
4-Hole AMPS (1.181" x 1.496").
-
Are there additional mounting options?
Additional edge holes allow mounting other RAM Mounts components; integrated AMPS hole pattern enables flexible combination with RAM Mounts mounting systems.
-
What are the dimensions and weight?
Clamp range: 25.4 cm to 40.6 cm; Depth: 25.4 cm. Height of side clamps: 1.27 cm to 4.45 cm; Thickness: 5.4 cm; Weight: 1.25 kg.
Why is a professional laptop mount important for mobile workstations?
In many industries, laptops are indispensable equipment in everyday work. Whether in field service, service vehicles, logistics or industrial applications – mobile computers must be securely mounted while remaining comfortable to use. The RAM Mounts Tough-Tray™ RAM-234-3FL was specifically developed to reliably hold laptops while ensuring optimal usability. A high-quality laptop mount not only improves workplace ergonomics but also protects the device from slipping, shocks and damage. Especially in vehicles or mobile work environments, a stable mounting provides greater safety and a more efficient workflow. The RAM-234-3FL offers a flexible and durable solution that can be adapted to a wide range of requirements.
How does the RAM-234-3FL ensure secure hold and maximum flexibility?
The RAM Mounts Tough-Tray™ features a spring-loaded securing system with four adjustable side arms. These allow individual adjustment to different laptop sizes and ensure the device remains securely in position. The holding arms can be adjusted both horizontally and vertically, allowing precise adaptation to the dimensions of each laptop. A special feature of this version is the flat side arms. They provide a secure hold without covering important ports, drives or controls. This preserves the device’s full functionality. In many cases the laptop can even remain closed while still securely in the mount. This facilitates transport and additionally protects the device from external influences.
For which applications is the RAM Mounts Tough-Tray™ suitable?
The RAM-234-3FL was developed for professional use and is suitable for numerous applications. It is particularly commonly used in operational and service vehicles, fleet management systems, logistics companies as well as in industrial and production operations. It also provides a reliable solution for securing laptops in workshops, control centers or mobile workstations. Thanks to its generous adjustment range it is suitable for many devices between 10 and 16 inches and can be flexibly adapted to changing requirements. Companies thus benefit from a universal solution that can securely accommodate different laptop models. The robust construction also ensures high resistance to vibrations, shocks and the daily stresses of demanding work environments.
What advantages does integration into the RAM Mounts system offer?
A decisive advantage of the RAM Mounts Tough-Tray™ RAM-234-3FL is its compatibility with the extensive RAM Mounts mounting system. Thanks to the integrated AMPS hole pattern the mount can be easily combined with a variety of RAM components. This enables individual mounting solutions for vehicles, desks, machines or mobile workstations. Additional hole patterns allow integration of other devices such as tablets, GPS systems or communication solutions. Companies thereby receive a particularly flexible and future-proof platform for their mobile work environment. Furthermore, the mount impresses with its high-quality construction from high-strength composite material. This material was specially developed for long-term use under demanding conditions and offers an excellent combination of stability, durability and low weight. The RAM Mounts Tough-Tray™ RAM-234-3FL is therefore the ideal choice for users seeking a professional, secure and versatile laptop mount.
