RAM Mounts Power Grip Universal Scanner Cradle, 4-Hole AMPS, Screw Set (RAP-396U)
Highlights
- Universal holder for a wide range of barcode scanners
- Robust construction made from high-strength composite material
- Secure hold provided by replaceable elastomer slats
- Open design allows quick removal of the scanner
- Compatible with the RAM Mounts AMPS mounting system
RAM Mounts RAP-396U Power-Grip™ Universal Scanner Holder
The RAM Mounts RAP-396U Power-Grip™ universal cradle, 4-hole AMPS, screw set was designed for the secure housing of industrial barcode scanners and is ideal for use in warehousing, logistics, production and in vehicles. Due to its universal design, the holder can be used with numerous pistol scanners from different manufacturers. The robust construction made of high-strength composite ensures a long service life even under demanding conditions. Thanks to the open design, the scanner remains quickly accessible at all times and can even be used directly in the holder for many applications. Replaceable elastomer slats ensure a secure fit and reliably protect the device from vibrations and shocks.
Technical details for the RAM Mounts Power-Grip™ universal scanner holder
- Product name: Power-Grip™ Universal Scanner Holder
- Material: High-strength composite (High Strength Composite)
- Mounting pattern: 4-hole AMPS (30 x 38 mm)
- Internal width: 88.13 mm
- Internal length: 54.86 mm
- Internal depth: 124.46 mm
- Weight: approx. 320 g
- Universal fit for numerous scanner models
- Open bottom for scanning while in the holder
- Replaceable elastomer slats for secure hold

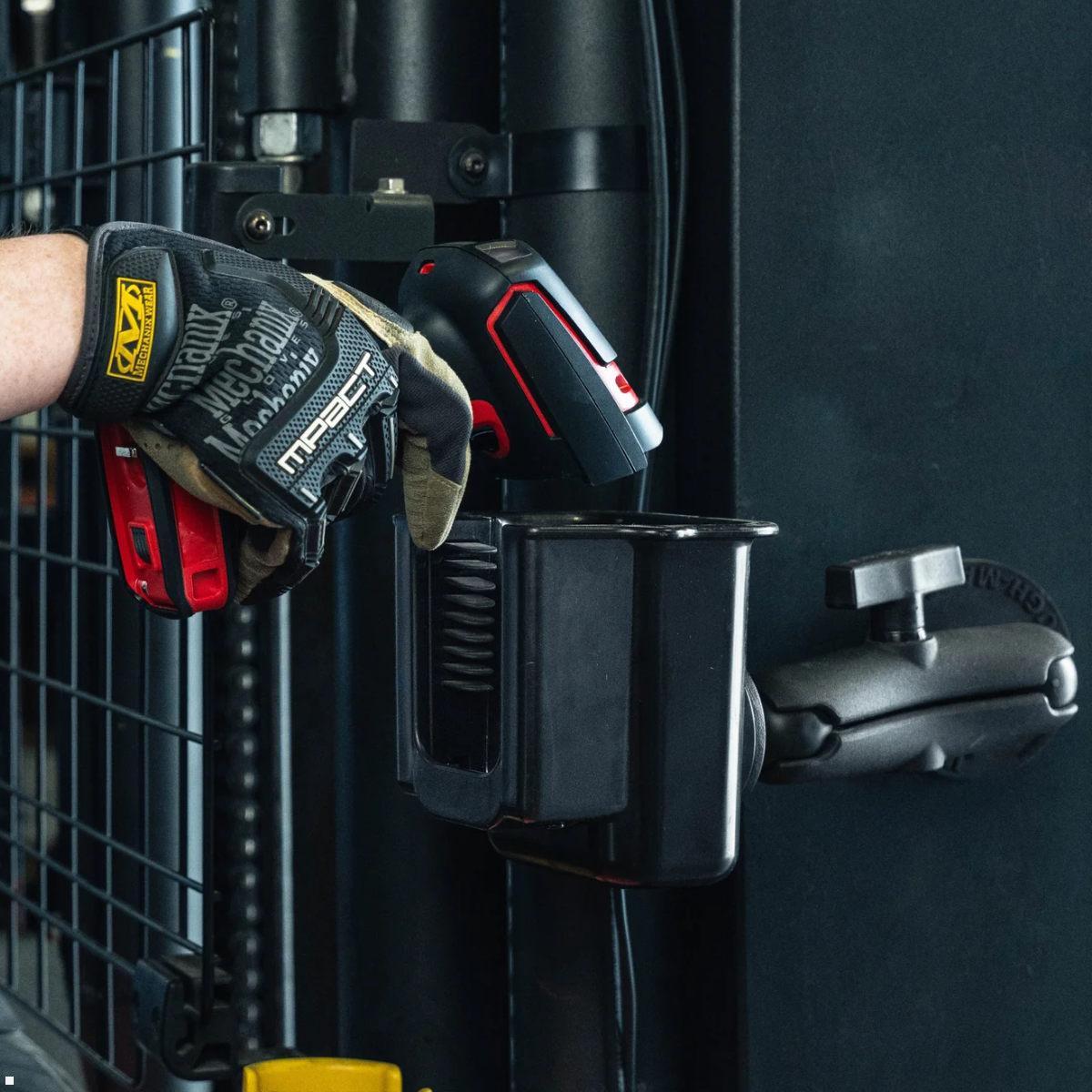

- Quick insertion and removal of the scanner
- Attachment options for carrying straps or safety lanyards available
- Compatible with RAM Mounts mounting systems
| Material: | Hochfester Verbundstoff |
|---|---|
| Scope of delivery: | 1x universal scanner mount, 4 machine screws (#8-32 x 5/8"), 4 Nylock lock nuts |
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
15 July 2026 04:33
Top Leistung
Sehr schnelle Bearbeitung und Lieferung.
Questions & Answers
-
What is the RAM Mounts RAP-396U Power-Grip Universal Scanner Holder?
It is designed for secure mounting of industrial barcode scanners and offers universal applicability.
-
What applications is it suitable for?
Ideal for warehouses, logistics, manufacturing and vehicle use.
-
Which scanners are compatible?
It provides universal accommodation for numerous scanner models and is compatible with RAM Mounts mounting systems.
-
What are the mounting pattern and dimensions?
Mounting pattern: 4-hole AMPS (30 x 38 mm); inner width 88.13 mm; inner length 54.86 mm; inner depth 124.46 mm.
-
What materials is it made from and its durability features?
Made from high-strength composite, designed for long service life; open bottom allows scanning in the holder; replaceable elastomer lamellae ensure a secure hold and protect against vibration and shocks.
-
How easy is it to insert and remove the scanner?
The design allows quick insertion and removal of the scanner.
-
Are there additional mounting options?
Yes, there are mounting options for lanyards or retention cords, and the holder is compatible with RAM Mounts mounting systems.
Kunden kauften auch
Why is the RAM Mounts RAP-396U the ideal solution for barcode scanners?
The RAM Mounts RAP-396U Power-Grip™ Universal Scanner Holder was specifically designed to securely, accessibly and reliably mount industrial barcode scanners. In warehouses, logistics centers, manufacturing plants or on floor conveyors, scanners must be available at all times and protected from damage. This is exactly where the RAP-396U comes in. Its universal construction makes the holder suitable for a variety of common pistol scanners and provides a professional solution for daily use in demanding working environments. The high-quality construction from high-strength composite material ensures a long service life and high resistance to impacts, vibrations and loads. This makes the scanner holder suitable for both stationary workstations and mobile applications in vehicles and machinery.
What advantages does the universal Power-Grip™ construction offer?
RAM Mounts' proven Power-Grip™ technology ensures a secure hold for different scanner sizes and shapes. Flexible elastomer fins adapt to the device used and prevent slipping while driving or during vehicle movements. At the same time, the scanner remains readily accessible and can be removed or reinserted with just one hand. A particular advantage of the RAP-396U is its open design. This allows many scanner models to read barcodes while the device is still in the holder. This can make workflows more efficient and save valuable time. The integrated mounting options for safety tethers or carrying straps additionally increase safety in everyday work.
For which applications is the RAM Mounts scanner holder suitable?
The RAP-396U was designed for professional applications and is used in numerous industries. It is particularly common in warehouses and logistics centers where scanners are used continuously and must be available at all times. The holder also provides secure storage for devices in manufacturing, shipping, retail, and on forklifts and other floor conveyors. Because it is compatible with the AMPS hole pattern, the scanner holder can be easily combined with numerous RAM Mounts mounting systems. This allows individual mounting solutions to be created for vehicles, workstations or machinery. Companies benefit from a flexible and durable solution that adapts optimally to existing workflows.
Why is investing in the RAP-396U scanner holder worthwhile?
Anyone who works with barcode scanners every day knows how important secure and ergonomic storage is. The RAM Mounts RAP-396U reduces the risk of damage, increases workplace safety and at the same time improves efficiency in everyday work. Thanks to its robust construction, universal compatibility and ease of use, the scanner holder is a long-term investment for companies. The combination of high build quality, thoughtful design and versatile application possibilities makes the RAP-396U a reliable solution for professional scanner applications. With RAM Mounts' lifetime manufacturer warranty, users also receive a product they can rely on for many years.
