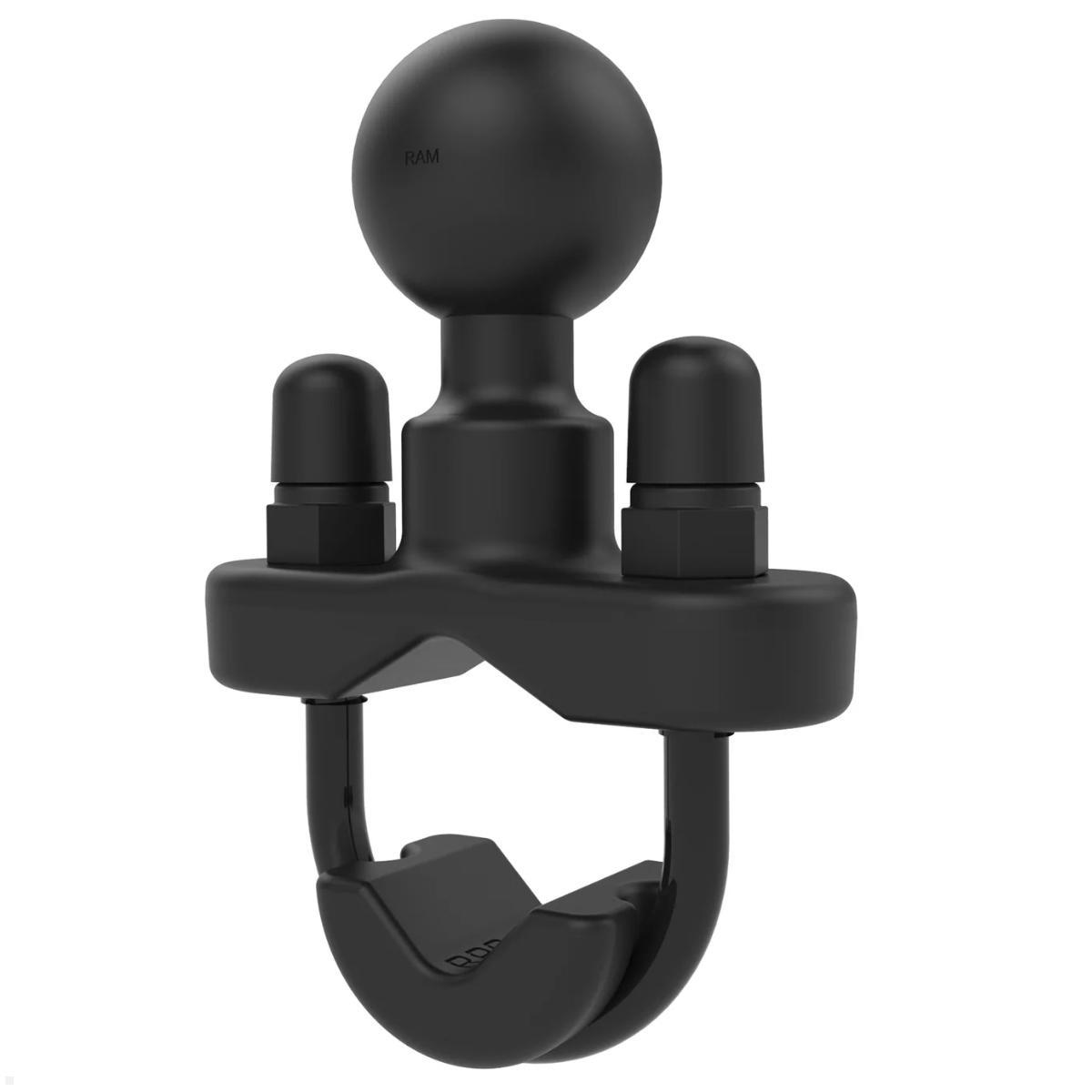

RAM Mounts screw clamp 12.7 - 31.8 mm with B-ball (RAM-B-231ZU), black

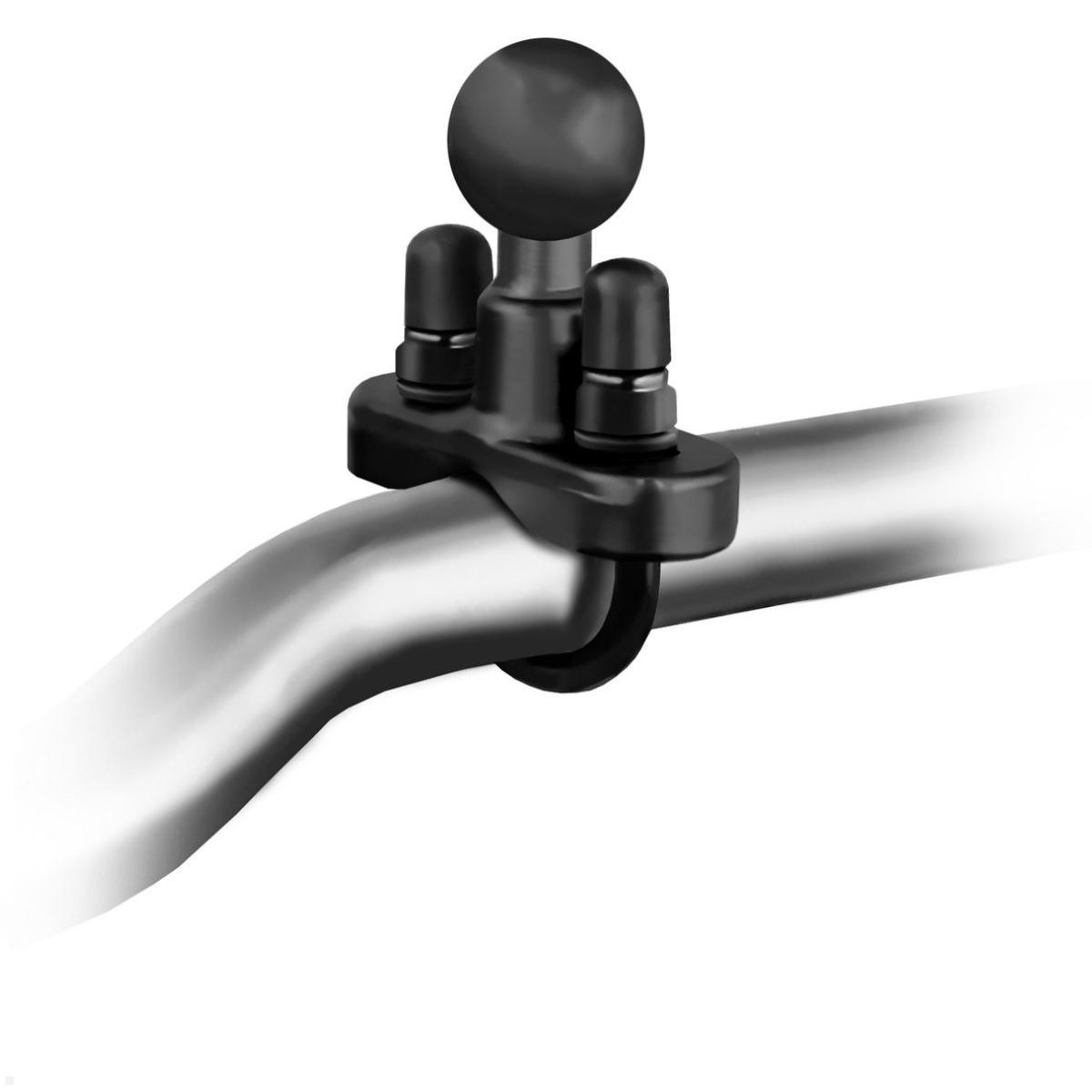

Tube mount with B-ball

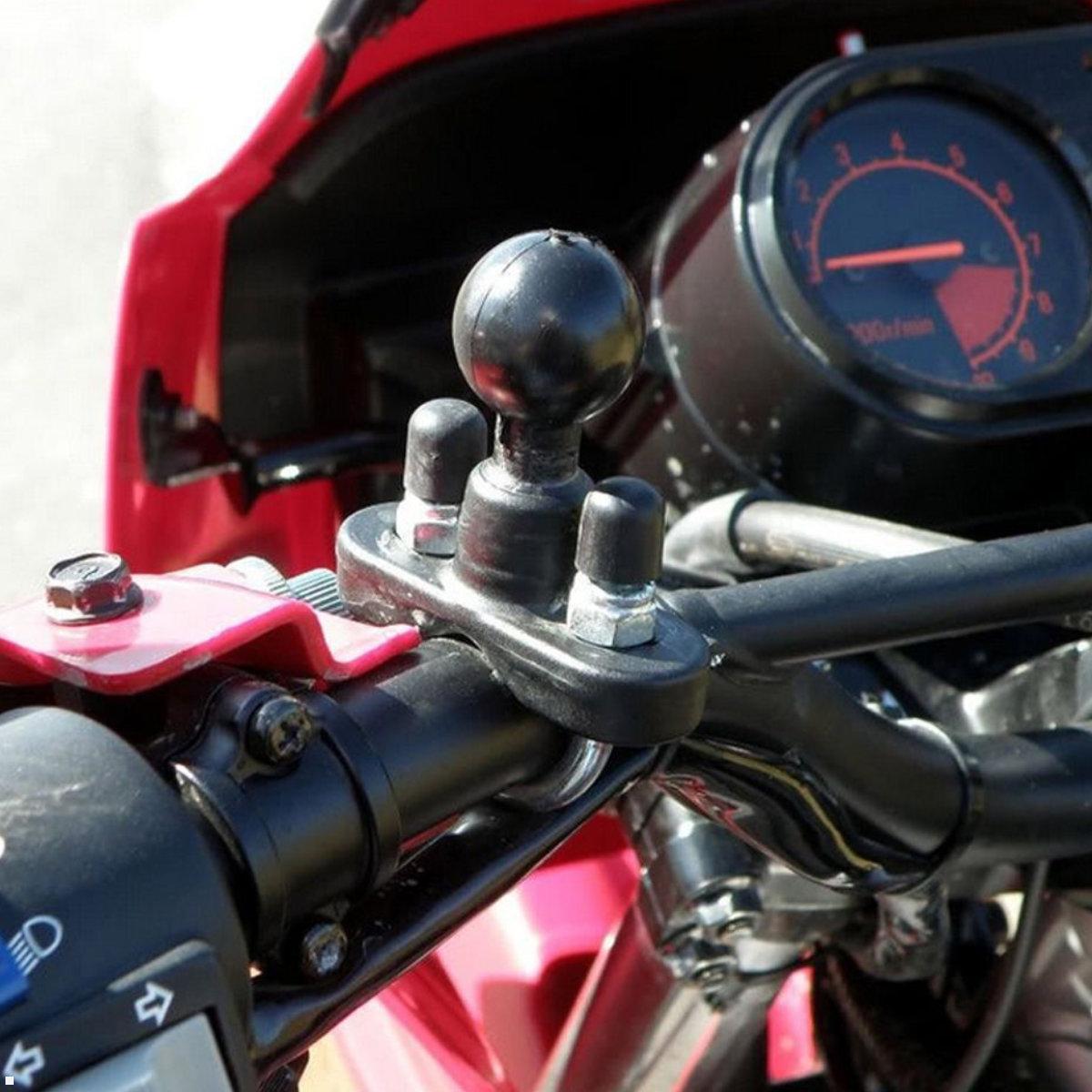

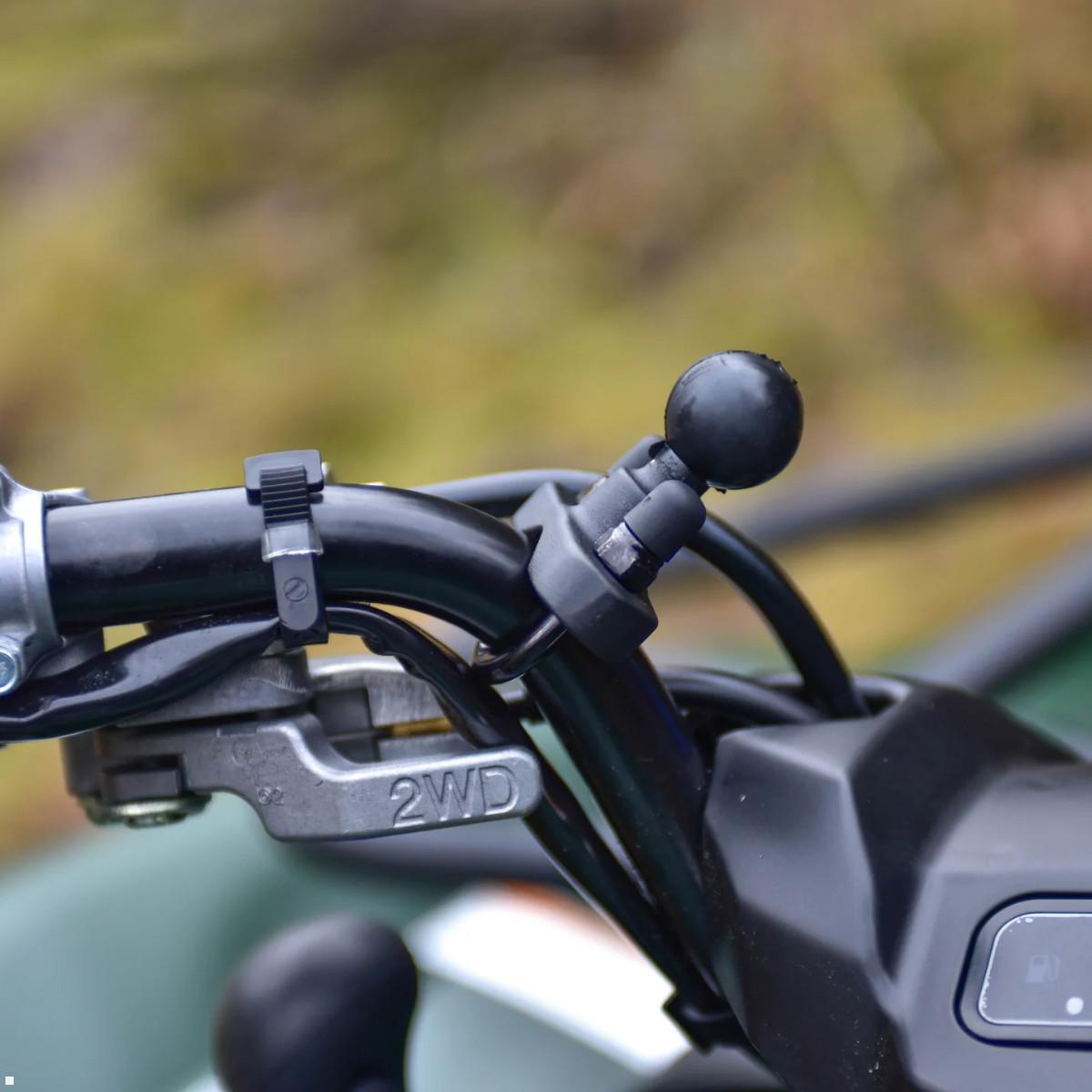

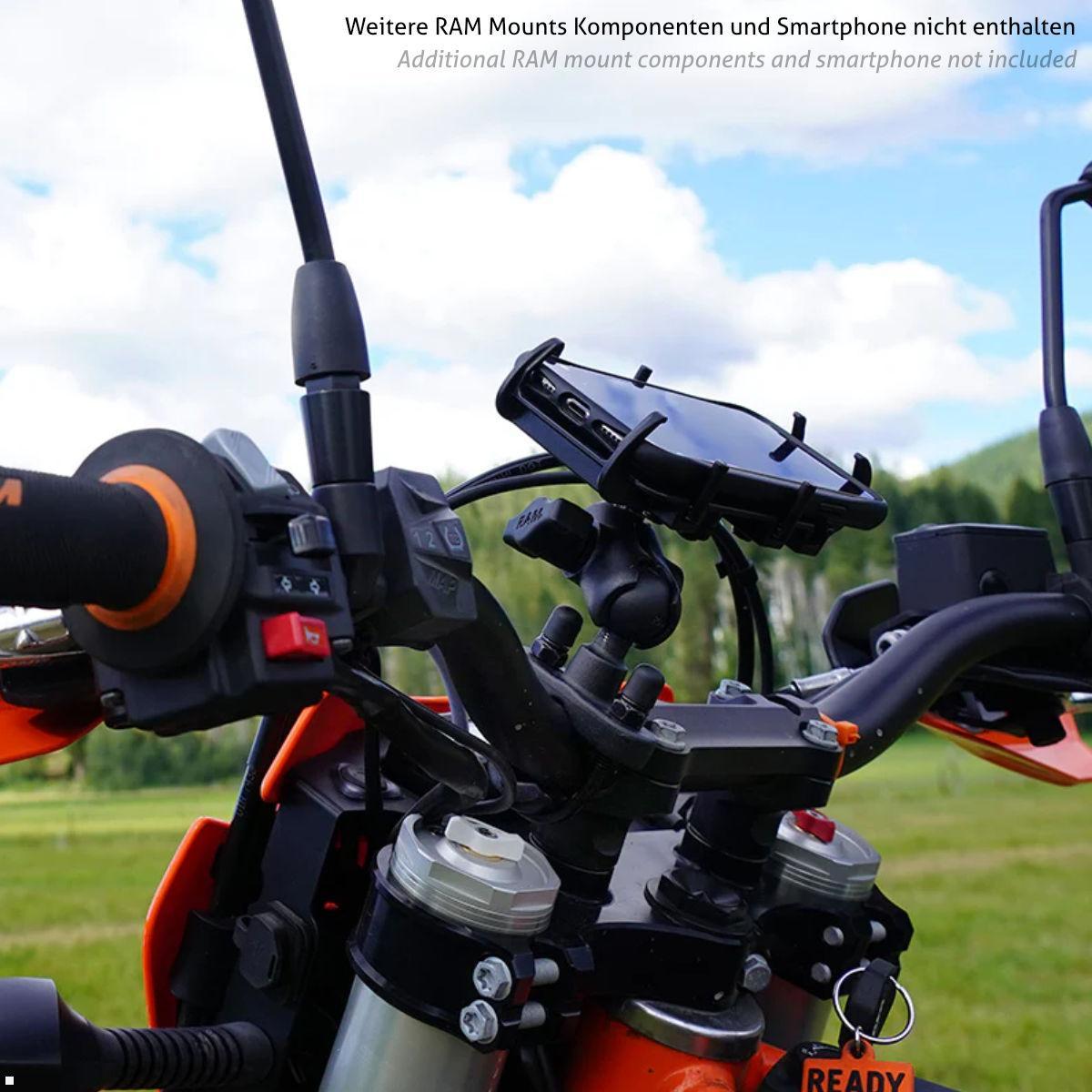

The RAM Mounts tube mount with B-ball is designed for mounting on handlebars, columns or tubes and is suitable as the basis for a motorcycle handlebar mount, among other things. The screw clamp can be easily adapted to different tube diameters from 12.7 - 31.8 mm using the included brackets and adapter, thus providing a secure hold. In combination with other RAM Mounts components such as the connecting arm and device holder, the clamp can easily be extended to form a complete vehicle mount. The modular RAM Mounts system offers a wide range of combination options, e.g. to create a customized motorcycle navigation system holder.
Key features RAM Mounts screw clamp (RAM-B-231ZU)
- Suitable for tube diameters: 12.7 - 31.8 mm
- Load capacity: 0.9 kg
- Ball size: B-ball (1 inch)
- Ball diameter: 25.4 mm
- Material: powder-coated aluminum, rubber caps, high-strength composite material
- Color: Black
| Product sheet: |  [pdf] |
|---|---|

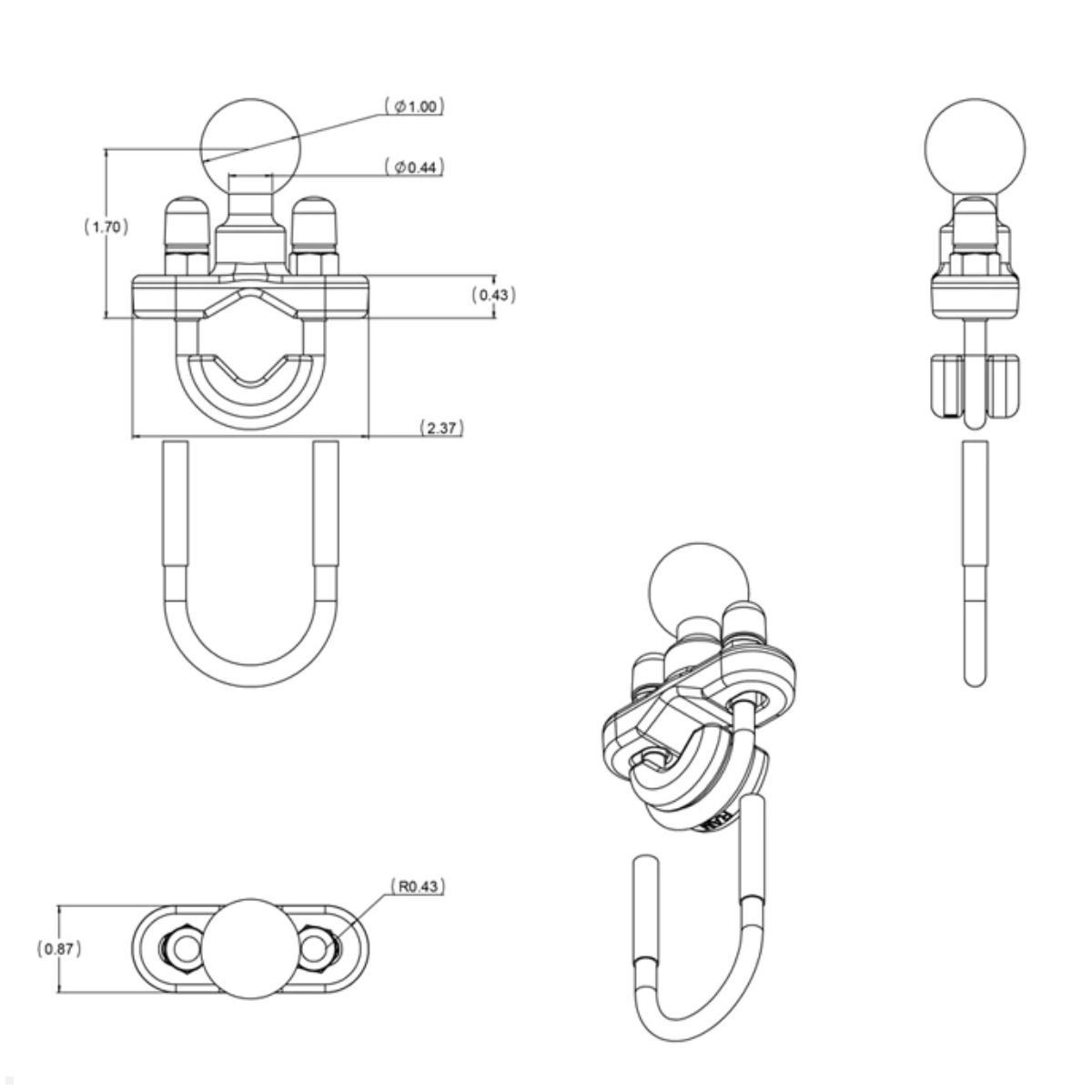

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 0,9 kg |
| Material: | High-strength composite material, rubber, powder-coated aluminum |
| Suitable for: | Für fast alle Notebookmodelle |

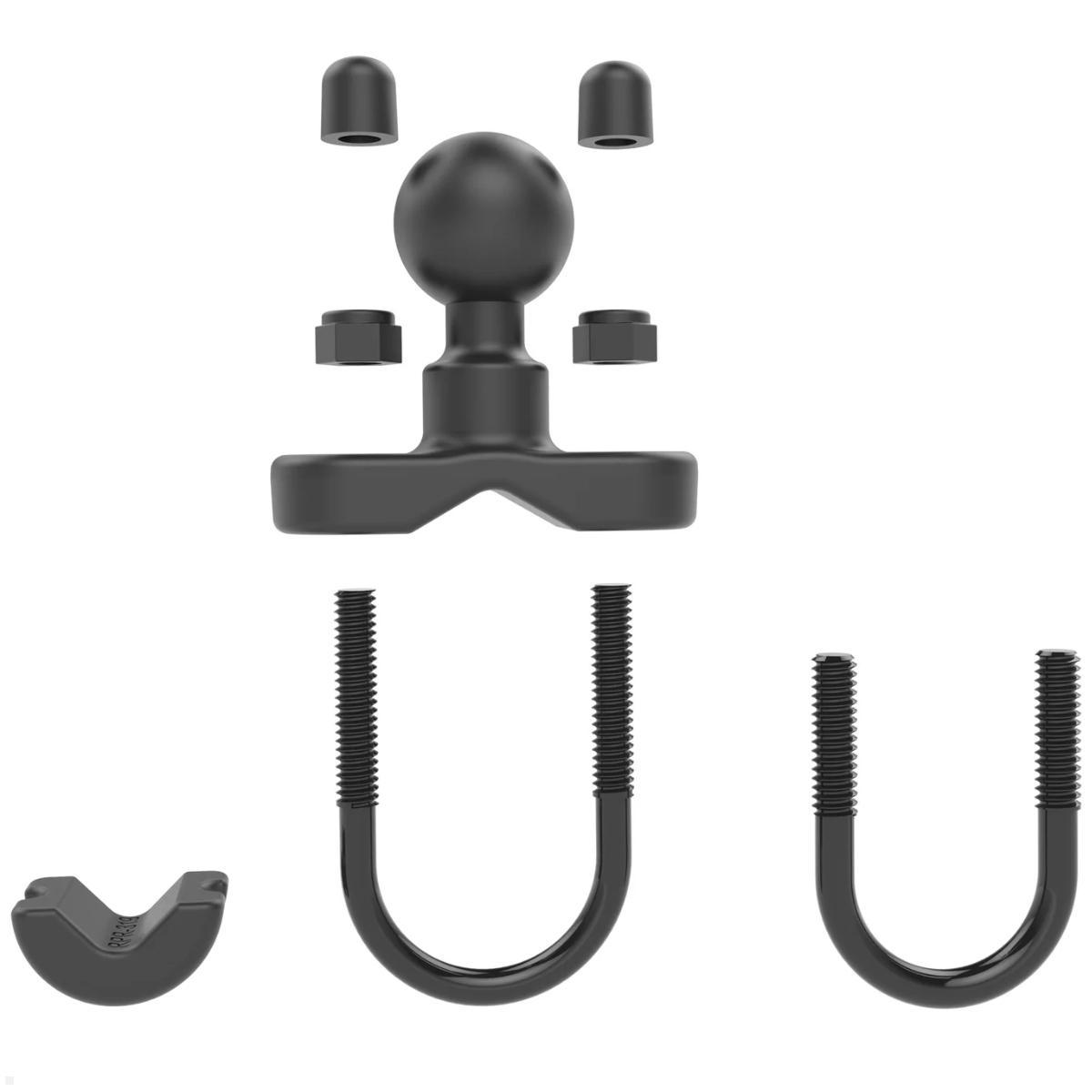

| Scope of delivery: | 1x plate with B-ball | 1x U-bolt 12.7 - 25.4 mm | 1x U-bolt 25.4 - 31.8 mm | 2x nut | 2x rubber cover | 1x spacer |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
16 October 2024 10:28
Qualität und Zuverlässigkeit
Durch den Kauf des Originals bin ich sicher, dass ich keine Probleme mit der Zuverlässigkeit habe. Bereits an 3 verschiedenen Fahrrädern montiert und ich bin 100% zufrieden damit
Questions & Answers
-
What is the RAM Mounts screw-clamp collar RAM-B-231ZU?
A tube holder with a B-ball designed for mounting on handlebars, posts or tubes and as the base for a motorcycle handlebar mount.
-
What tube diameters does it fit?
Fits 12.7 to 31.8 mm diameter tubes.
-
What is the load capacity?
0.9 kg.
-
What ball size does it use?
Ball size: B-ball (1 inch); ball diameter 25.4 mm.
-
What material is it made from?
Made from powder-coated aluminium, rubber caps, and high-strength composite.
-
What colour is it?
Black.
-
How can it be expanded into a full vehicle mount?
In combination with other RAM Mounts components such as a connecting arm and a device holder, it can be easily extended to a full vehicle mount.
-
Does it come with parts for adjustment?
The included clamps and adapter allow adjustment to different tube diameters (12.7–31.8 mm).
