RAM Mounts Tough-Claw small holding clamp with locking screw C-ball diameter 15.9-29.0 mm (RAP-400U)
Highlights
- Clamping range 15.88 to 29.0 mm
- C-ball 1.5 in (38.1 mm)
- Tool-free assembly
- Rubber coating for secure grip
- Composite material with steel elements
RAM Mounts Tough-Claw RAP-400U Small Clamp with C-Ball
Die RAM Mounts Tough-Claw Halteklammer klein mit Feststellschraube C-Kugel (RAP-400U) ist ideal für die schnelle, werkzeugfreie Befestigung an runden, flachen und unregelmäßig geformten Rohren oder Stangen. Die Klammer passt für Außendurchmesser von 15.88 bis 29.0 mm und bietet eine C-Ball mit 1.5 Zoll Durchmesser (38.1 mm) für den Anschluss an das RAM Mounts Kugelsystem.

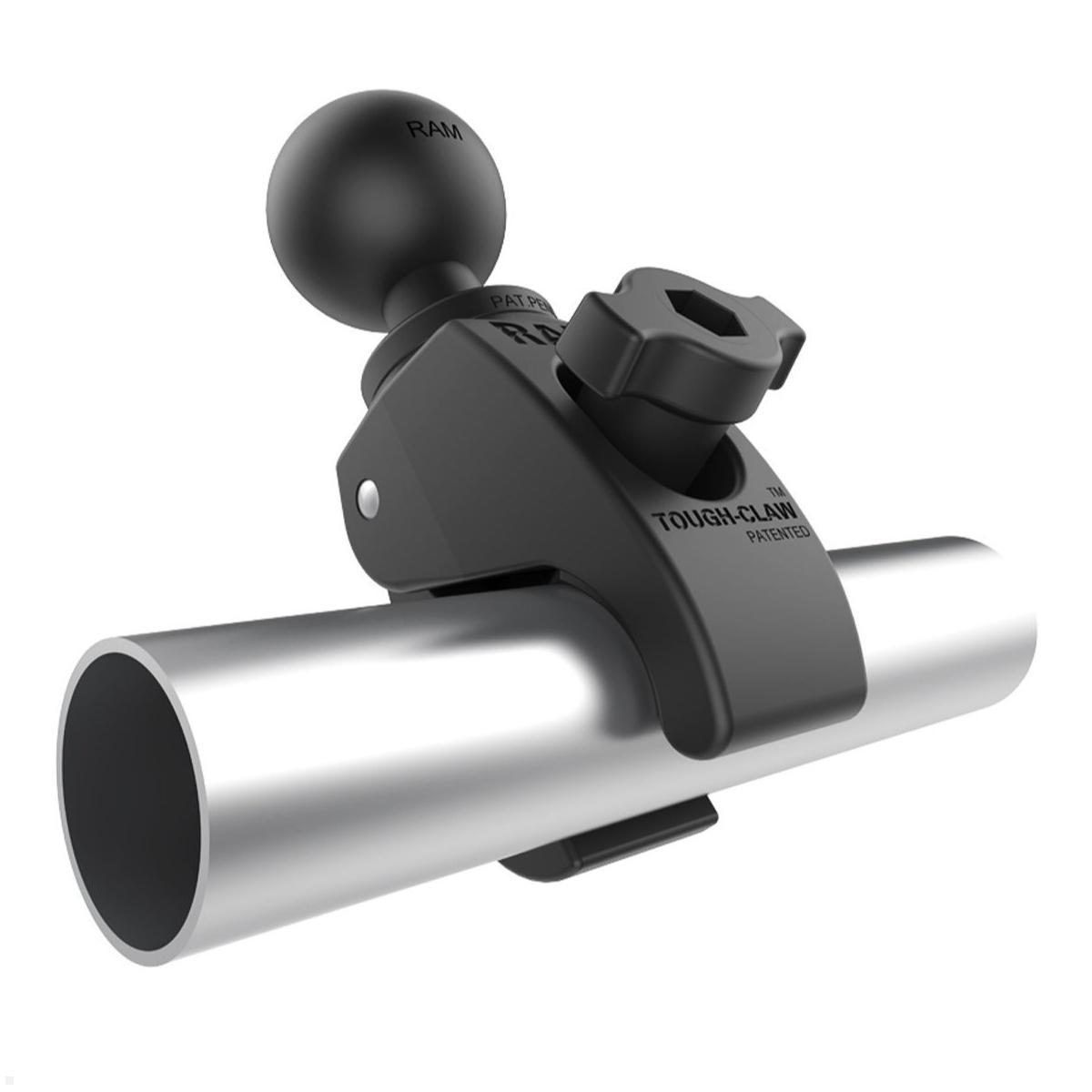

Der Gummibelag auf den Innenseiten der Klammer sorgt für stabilen Sitz und schützt die Oberfläche. Die Klemmbacken eignen sich für runde, flache oder ungerade Formen. Die Tough-Claw findet Einsatz an Fahrrädern, Rollstühlen, Steuerhörnern in Flugzeugen, Angelruten sowie an zahlreichen weiteren Rohren und Gestellen.
Technical details RAM Mounts Tough-Claw RAP-400U
- Clamping range: 15.88 to 29.0 mm

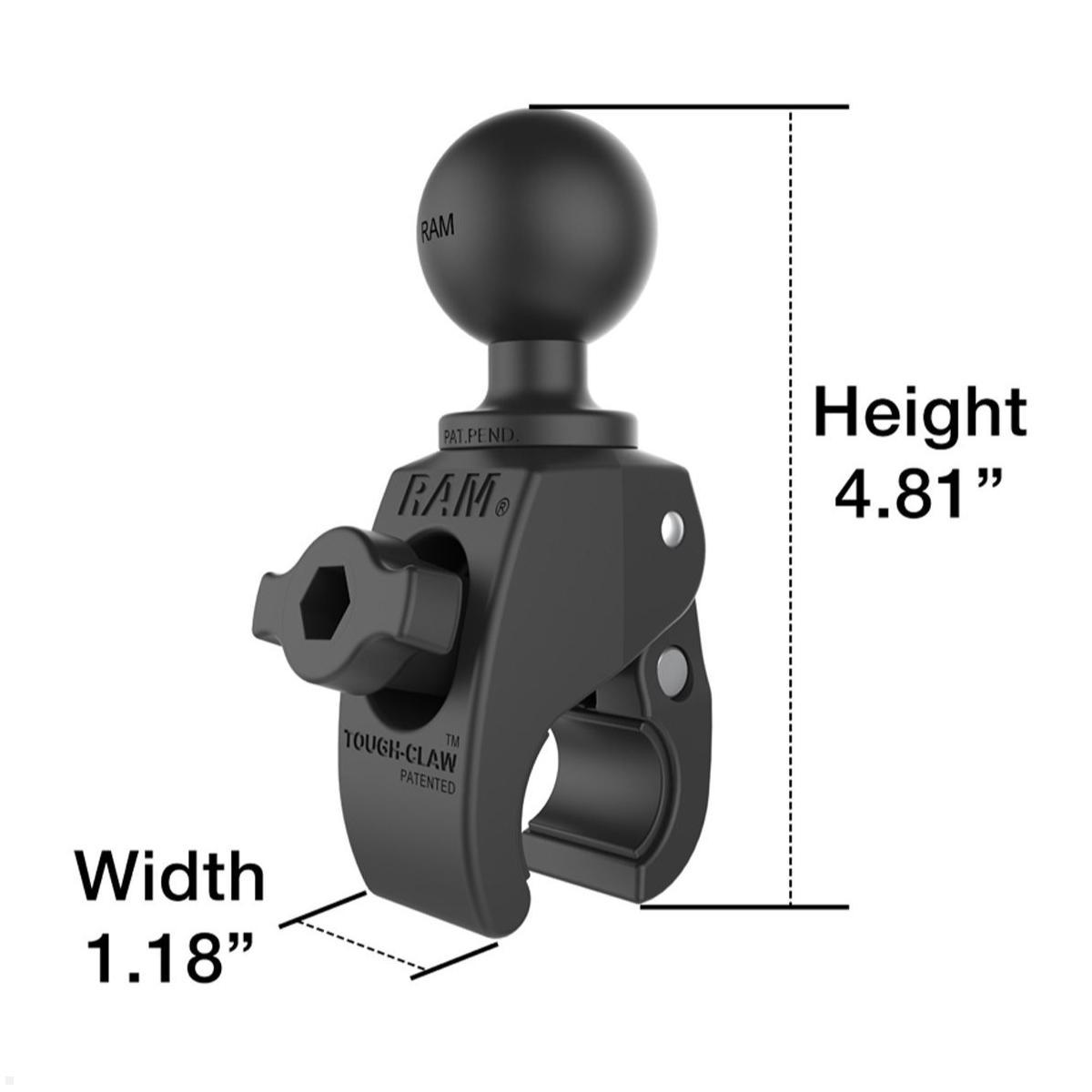

- Clamp dimensions: 122.17 mm (high), 29.97 mm (wide)
- Ball size: C-ball, 1.5 inch (38.1 mm diameter)
- Material: high-strength composite, rust-resistant steel components
- Rubber lining on the inside surfaces
- Tool-free installation
- Color: Black
- Weight: 175 g
- Warranty: 30 years
| Material: | Hochfestigkeits-Verbundstoff, rostbeständige Stahlelemente |
|---|---|
| Scope of delivery: | 1x RAM Mounts Tough-Claw small clamp with locking screw C-ball diameter 15.9-29.0 mm (RAP-400U) |
| Contains installation material: | - |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | C-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Tough-Claw RAP-400U?
A small clamp with a set screw and a C-ball (1.5 inch / 38.1 mm) for quick, tool-free mounting on round, flat or irregular pipes or rods. It has a clamp range of 15.88–29.0 mm and a 1.5 inch C-ball for the RAM Mounts ball system.
-
What clamping range does it cover?
Clamping range: 15.88 to 29.0 mm.
-
What ball size does it use?
Ball size: C-ball, 1.5 inch (38.1 mm) diameter, for the RAM Mounts ball system.
-
What is it made of?
Material: high-strength composite with rust-resistant steel elements.
-
Does it have a rubber coating?
Yes, a rubber coating on the inner sides provides a secure fit and surface protection.
-
Is installation tool-free?
Yes, tool-free installation.
-
What are the color and weight?
Color: black. Weight: 175 g.
-
What are typical mounting applications?
Used on bicycles, wheelchairs, aircraft yokes, fishing rods and many other pipes and frames.
What is the RAM Mounts Tough-Claw RAP-400U clamp suitable for?
The RAM Mounts Tough-Claw small clamp with locking screw C-ball RAP-400U is a versatile clamping mount for the modular RAM Mounts ball system. With its clamping range of 15.88 to 29.0 mm outer diameter, it fits numerous tubes, bars and frames. The clamp jaws are suitable for round, flat and irregularly shaped profiles. Typical applications include bicycle handlebars, wheelchair frames, control yokes in aircraft, fishing rods, boat railings and motorcycle handlebars. In combination with a suitable RAM Mounts connecting arm and a device holder, smartphones, tablets, action cameras, navigation devices or fishfinders can be mounted quickly and securely. The tool-free installation makes the Tough-Claw particularly attractive for users who frequently relocate their mount or use it in varying positions.
What are the advantages of the Tough-Claw's tool-free installation?
The RAM Mounts Tough-Claw RAP-400U is simply clamped onto the desired position and secured with the locking screw. No tools are required, which is especially advantageous on the go or when changing locations frequently. The rubber lining on the inner sides of the clamp protects the tube surface from scratches while providing a non-slip grip. The high-strength composite material with rust-resistant steel components guarantees durability even when used outdoors or in damp environments. The small Tough-Claw holds reliably even under vibrations and shocks, such as those experienced while cycling, on boats or in off-road vehicles. The specially shaped clamp jaws adapt to different tube profiles, offering maximum flexibility in choosing the mounting point.
How is the RAM Mounts Tough-Claw RAP-400U integrated into a mounting system?
The Tough-Claw forms the base of the three-part RAM Mounts system: the clamp is attached to the tube, and a connecting arm links the C-ball of the clamp to the ball of the device holder. The ball-joint connection allows the mounted device to be adjusted smoothly to almost any position. With a net weight of 175 g, the small Tough-Claw is light enough for mobile applications and does not noticeably affect the handling of the bike, wheelchair or boat. The modular concept allows different connecting arm lengths and device holders to be freely combined to assemble the optimal mounting configuration for any use case. Whether smartphone navigation on a bicycle handlebar, tablet mounting on a wheelchair or fishfinder installation on a boat railing – the Tough-Claw offers the right solution for every requirement. RAM Mounts' 30-year warranty underlines the quality and reliability of the Tough-Claw clamps.
