RAM Mounts Tough-Claw large holding clamp with locking screw B-ball diameter 25.4-55.9 mm (RAP-B-401U)
Highlights
- For pipes with 25.4 to 55.9 mm diameter
- Tool-free assembly
- Rubber coating protects surface
- Composite material with stainless steel
- B-ball with 25.4 mm (1 inch)
Tough-Claw holding clamp for tool-free mounting on pipes
The RAM Mounts Tough-Claw holding clamp large with locking screw B-ball diameter 25.4–55.9 mm (RAP-B-401U) is suitable for quick, tool-free attachment to round, flat and uneven pipes or bars. The clamping jaws fit outer diameters from 25.4 to 55.9 mm and are fitted with a rubber lining that ensures a secure hold and protects the surface.
The holding clamp is made of high-strength composite with corrosion-resistant steel elements and features a B-ball with a 25.4 mm diameter. The Tough-Claw is ideal for handlebars, control horns in aircraft, wheelchair frames, bicycle frames and other tube profiles. The clamp dimensions are 152.4 mm height and 57.15 mm width.
Technical details RAM Mounts Tough-Claw large holding clamp
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Fits outer diameters: 25.4 to 55.9 mm

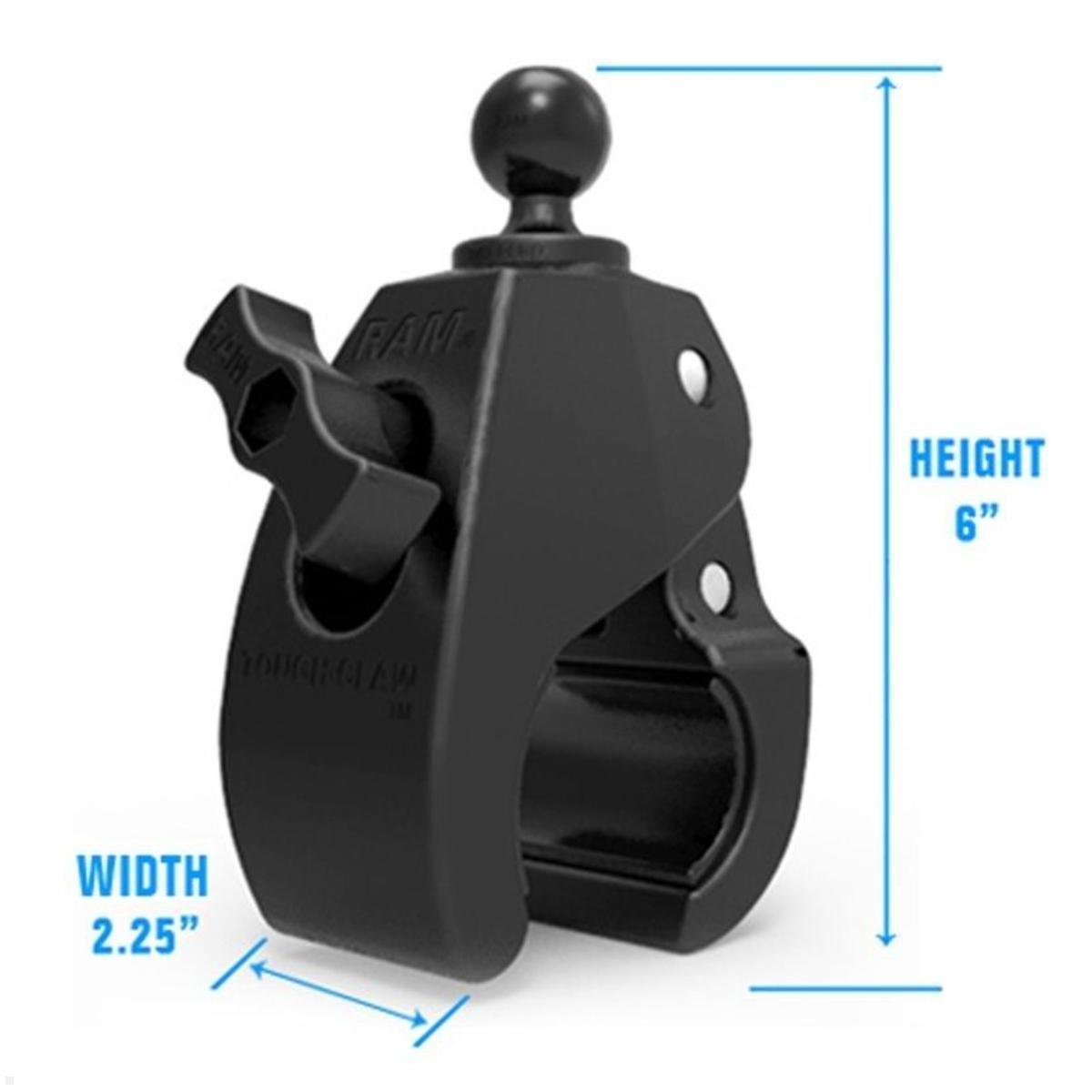

- Clamp dimensions: 152.4 mm (high) x 57.15 mm (wide)
- Material: high-strength composite, corrosion-resistant steel elements
- Rubber lining on the inner surfaces of the clamp
- Tool-free installation
- Color: Black
- Weight: approx. 460 g
| Material: | Hochfestigkeits-Verbundstoff, rostbeständige Stahlelemente |
|---|---|
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the full product name of the clamp?
RAM Mounts Tough-Claw Clamp large with set screw B-ball diameter 25.4-55.9 mm (RAP-B-401U).
-
Which pipe diameters does it fit?
Outer diameters of 25.4 to 55.9 mm, with a rubber lining on the inner sides for a stable fit and surface protection.
-
What material is it made from?
Made from high-strength composite with rust-resistant steel elements.
-
What is the B-ball size?
B-ball diameter is 25.4 mm.
-
What are the clamp dimensions?
Clamp dimensions are 152.4 mm high and 57.15 mm wide.
-
Is the mounting tool-free?
Yes, it features tool-free mounting.
-
What applications is it suitable for?
Ideal for handlebars, aircraft control yokes, wheelchair posts, bicycle frames and other tube profiles.
-
What color and weight does it have?
Color: black; weight approx. 460 g.
