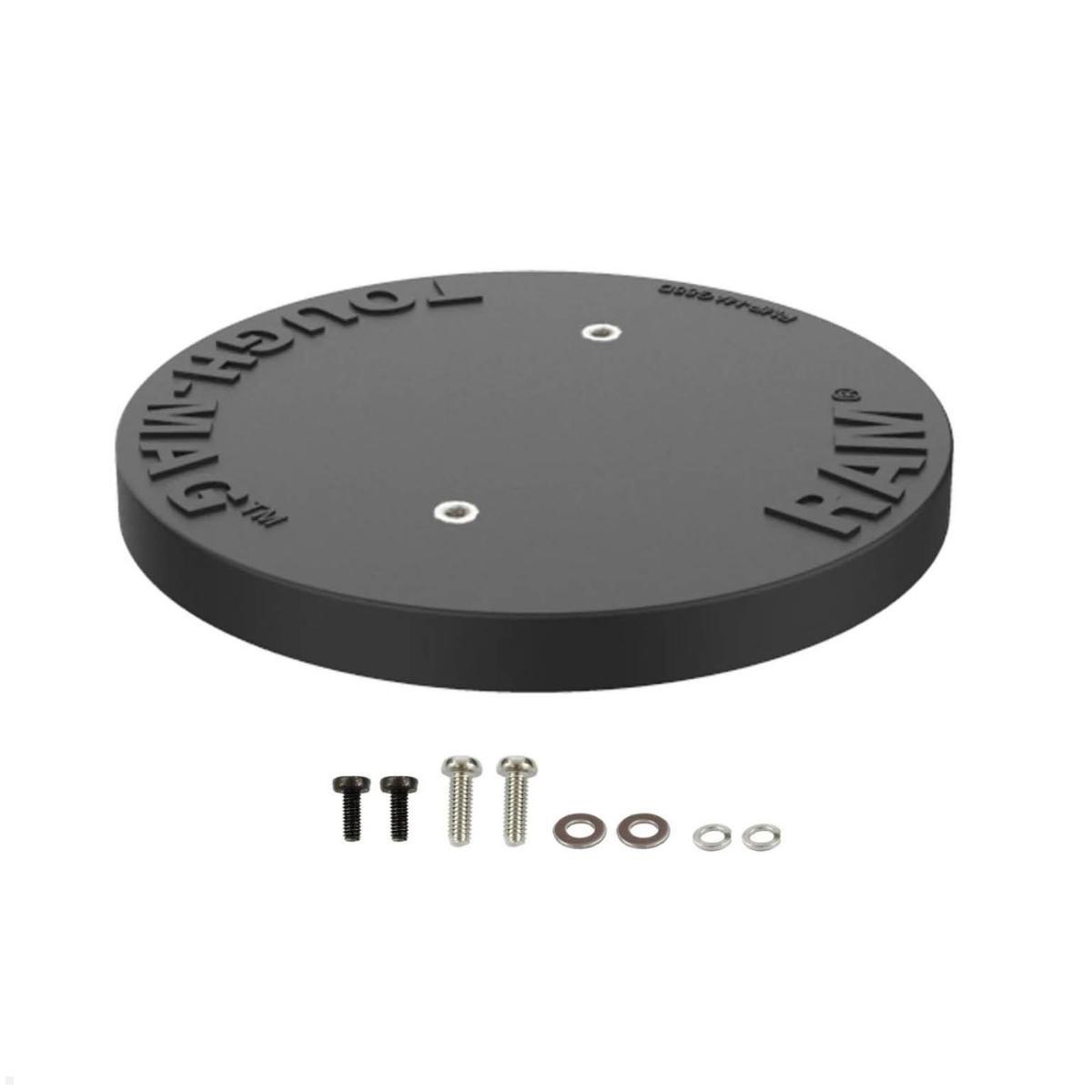

RAM Mounts Tough-Mag™ Base - Magnet, 88 mm diameter, 2-hole AMPS (RAM-MAG88DU)
Highlights
- Strong N52 magnetic force for secure hold on metal surfaces
- Tool-free installation without drilling or screws
- AMPS hole pattern for versatile mounting compatibility
- Rubberized underside protects surfaces from scratches
- Compact design with low profile and high flexibility
RAM Mounts Tough-Mag™ Magnet Base – 88 mm with 2-Hole AMPS (RAM-MAG88DU)
The RAM Mounts Tough-Mag™ Base - Magnet, 88 mm diameter, 2-hole AMPS is a robust and flexible mounting solution for device holders on metallic surfaces. Thanks to its strong magnet with industrial N52 magnet technology it enables secure mounting without drilling or permanent attachment. The rubberized surface protects sensitive metal surfaces from scratches and damage. The integrated 2-hole AMPS receptacle makes the magnet base compatible with numerous RAM Mounts components and other AMPS-compatible holders.
Technical details for the RAM Mounts Tough-Mag™ base magnet
- Magnetic base with 88 mm diameter
- Standardized 2-hole AMPS hole pattern
- M4 threaded inserts for attaching holders and bases
- Equipped with 10 high-performance N52 magnets
- Suitable for horizontal and vertical metal surfaces
- Rubberized surface to protect against scratches
- Maximum static load: up to 900 g
- Diameter: 87.88 mm
- Height: approx. 8 mm
- Weight: approx. 320 g
- Color: Black
- Compatible with numerous RAM Mounts mounting systems
| Scope of delivery: | 1x Tough-Mag™ Base - Magnet (RAM-MAG88DU) |
|---|---|
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Magnetische Tough-Mag™ Basis |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Tough-Mag Base - Magnet?
The RAM Mounts Tough-Mag Base - Magnet, 88 mm diameter, 2-hole AMPS (RAM-MAG88DU), is a robust and flexible mounting solution for devices on metal surfaces. It uses a strong magnet with industrial N52 magnet technology to provide secure mounting without drilling or permanent fastening. The rubberized surface protects delicate metal surfaces from scratches, and the integrated 2-hole AMPS receptacle makes it compatible with RAM Mounts components and other AMPS-compatible mounts.
-
What surfaces is it suitable for?
Suitable for horizontal and vertical metal surfaces.
-
What are its dimensions and weight?
Diameter 87.88 mm (88 mm nominal), height approximately 8 mm, weight approximately 320 g.
-
How many magnets does it have and what technology?
Equipped with 10 high-performance N52 magnets.
-
What is the maximum static load?
Maximum static load: up to 900 g.
-
What AMPS pattern does it use and is it compatible?
Standardised 2-hole AMPS pattern and 2-hole AMPS receptacle; with M4 threaded inserts for mounting holders and bases, compatible with numerous RAM Mounts mounting systems and RAM Mounts components as well as other AMPS-compatible mounts.
-
Does it require drilling?
Installation is designed to be without drilling or permanent fastening.
Kunden kauften auch
Why is the RAM-MAG88DU Tough-Mag™ magnetic base the ideal solution for flexible mounting?
The RAM-MAG88DU Tough-Mag™ magnetic base was developed for users who need a reliable yet flexible fastening solution. Whether in vehicles, workshops, warehouses or industrial environments – the strong magnetic base enables secure mounting of holders and devices on metallic surfaces without the need for drilling or permanent installations. With its combination of high magnetic force, compact design and proven RAM Mounts quality, the magnetic base is suitable for numerous professional applications.
How does the strong magnetic force ensure a secure hold?
Equipped with ten powerful N52 magnets, the RAM-MAG88DU provides impressive holding power on suitable metal surfaces. This allows compatible device mounts to be securely attached without altering the mounting surface. The magnetic base is suitable for both horizontal and vertical applications and offers high stability in daily use. Additionally, the rubberized underside protects sensitive surfaces from scratches and damage. At the same time, the coating improves grip on metallic surfaces and ensures a secure seating of the mount. This makes the RAM-MAG88DU particularly attractive for mobile workstations, service vehicles and industrial applications where flexibility and reliability are required.
Which devices and mounts can be used with the RAM-MAG88DU?
The magnetic base features a standardized 2-hole AMPS hole pattern, providing high compatibility with numerous RAM Mounts components as well as other AMPS-compatible mounts. Tablets, smartphones, scanners, displays or other electronic devices can easily be combined with appropriate holders. Thanks to the integrated M4 threaded inserts, installation is particularly simple and secure. Users benefit from a versatile fastening solution that can be quickly adapted to changing requirements. Especially in areas such as logistics, transport, production or field service, the RAM-MAG88DU enables efficient and flexible use of a wide range of devices.
What advantages does the RAM-MAG88DU offer in professional use?
The RAM-MAG88DU Tough-Mag™ magnetic base convinces with its combination of mobility, stability and ease of use. Because no drilling is required, the position of the mount can be changed at any time. This saves time during installation and increases flexibility in everyday work. The robust construction was developed for professional continuous use and meets RAM Mounts’ high quality standards. With its compact design and low profile, the magnetic base integrates unobtrusively into a wide range of work environments. Users benefit from a durable solution that performs reliably even under demanding conditions. Those looking for a powerful magnetic base with high compatibility and easy installation will find the RAM-MAG88DU Tough-Mag™ magnetic base to be a professional fastening solution for many applications in industry, vehicles, workshops and mobile work areas.
