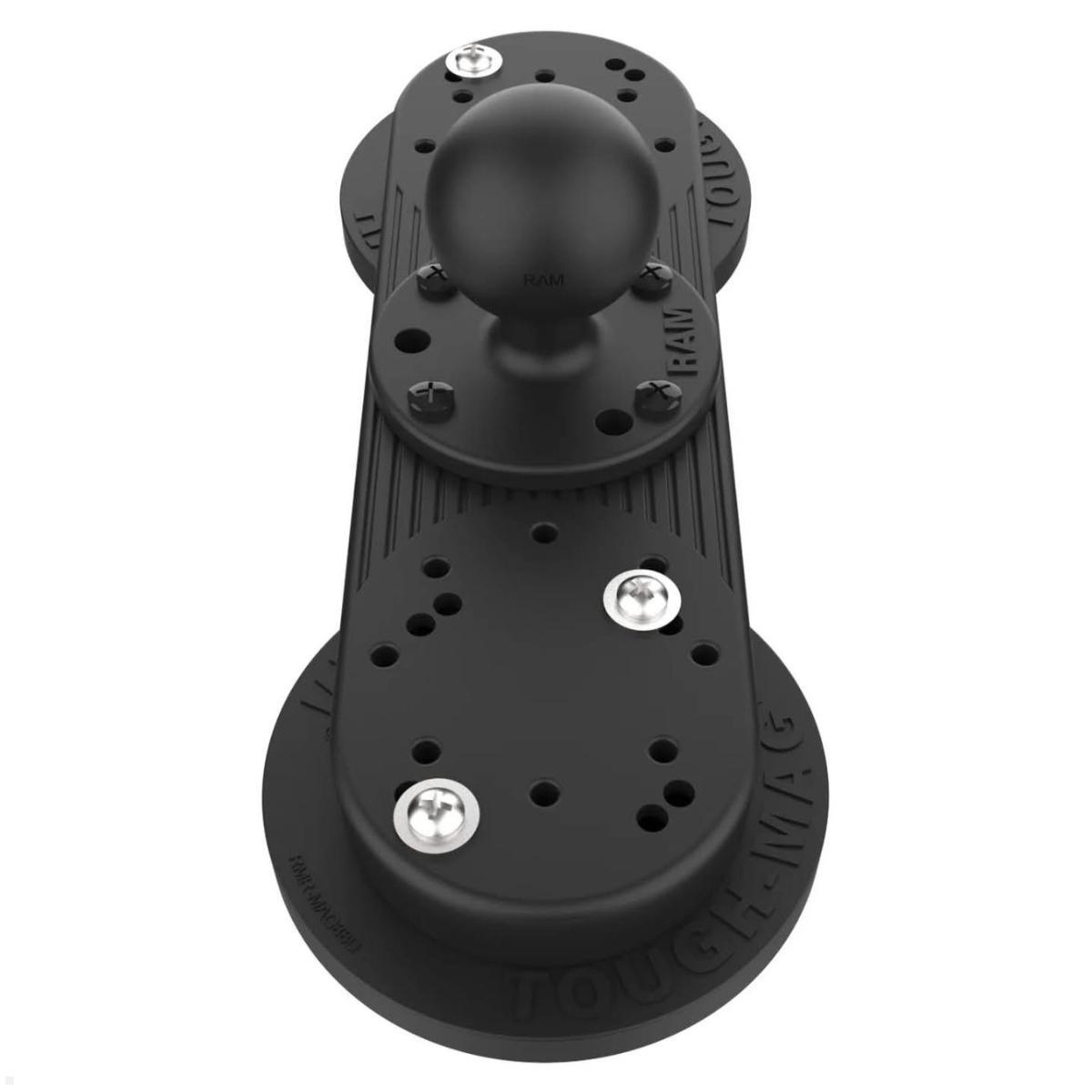

RAM Mounts Tough-Mag double base C-ball 1.5 inch magnetic (RAM-202-333-MAG88U)
Highlights
- Double Tough-Mag magnet base
- 2 x 10 N52 industrial magnets
- Marine-grade aluminum
- C-ball 1.5 inch
- 30-year warranty
Double Magnetic Base for High-Performance Mounting Systems
The RAM Mounts Tough-Mag double base C-ball 1.5 inch magnetic (RAM-202-333-MAG88U) combines the power of two Tough-Mag magnetic units into an especially powerful magnetic mount. Each unit is equipped with 10 N52 industrial-grade magnets that adhere to any ferrous metal surface.
The double base features a C-ball and is compatible with all RAM Mounts connecting arms of size C. Manufactured from marine-grade aluminum, it is extremely durable and reliable, even under extreme operating conditions. The rubber coating protects the mounting surface from scratches. Ideal for mounting tablets, cameras or peripherals in vehicles, on boats or in industrial environments.
Technical Details – RAM Mounts Tough-Mag Magnetic Base C-Ball
- Overall length: approx. 235 mm (9.25 inches)
- Overall width: approx. 88 mm (3.46 inches)
- Overall height: approx. 83 mm (3.25 inches)
- Ball diameter: 38.1 mm (1.5 inches, C-ball)
- Load capacity: Standard 1.8 kg, Heavy duty 1.4 kg
- Magnets: 2 x 10 N52 industrial magnets
- Material: marine-grade aluminum, high-strength composite
- Color: black
- Weight: approx. 572 g
| Material: | Aluminium in Marine-Qualität, Hochfestigkeits-Verbundstoff |
|---|---|
| Scope of delivery: | 1x Tough-Mag double base with C-ball RAM-202-333-MAG88U |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | C-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Tough-Mag Double Base C-Ball 1.5 inch magnetic?
The double base combines the power of two Tough-Mag magnet units into a particularly powerful magnetic mounting. Each unit has 10 industry-quality N52 magnets and will cling to iron-containing metal surfaces.
-
What is the load capacity?
Load capacity is standard 1.8 kg and 1.4 kg for heavy-duty.
-
What ball size does it use?
It uses a 1.5 inch C-ball (38.1 mm).
-
What materials is it made from?
It is made from marine-grade aluminium with a high-strength composite, and a rubber coating protects the mounting surface.
-
What is it suitable for?
Ideal for securing tablets, cameras or peripherals in vehicles, on boats or in industrial environments.
-
What surfaces do the magnets adhere to?
The magnets cling to any iron-containing metal surface.
-
Is it compatible with RAM Mounts C-size arms?
Yes, it is compatible with all RAM Mounts C-size arms.
-
How heavy is the double base?
It weighs approximately 572 g.
What makes the RAM Mounts Tough-Mag double base so powerful?
The RAM Mounts Tough-Mag double base C-ball 1.5-inch magnetic (RAM-202-333-MAG88U) combines two Tough-Mag magnetic units with a total of 20 industry-grade N52 magnets into an especially powerful magnetic mount. These neodymium magnets are among the strongest commercially available permanent magnets and generate a holding force sufficient for the secure mounting of larger tablets and peripherals. The load capacity is 1.8 kg in standard use and 1.4 kg under heavy-duty conditions. The marine-grade aluminum provides extremely high corrosion resistance.
How does the magnetic mounting work in everyday use?
The Tough-Mag double base adheres to any ferrous metal surface and can be attached and removed without tools, drilling, or clamps. The rubber coating on the underside protects the mounting surface from scratches and provides additional grip. The integrated C-ball is compatible with all RAM Mounts arms of size C, allowing the system to integrate seamlessly into existing configurations. The tool-free installation makes the magnetic base particularly flexible, as it can be quickly moved between different locations.
For which applications is the magnetic base suitable?
The RAM-202-333-MAG88U is ideal for use in vehicles, on boats, in workshops, and anywhere a temporary or semi-permanent attachment to metal surfaces is desired. Typical applications include mounting tablets to machine frames, cameras to vehicle bodies, or GPS devices to metal surfaces on boats. The dual construction offers significantly greater stability compared to single magnetic bases and is therefore especially suited for larger and heavier end devices. The 30-year warranty and marine-grade aluminum ensure a long service life.
