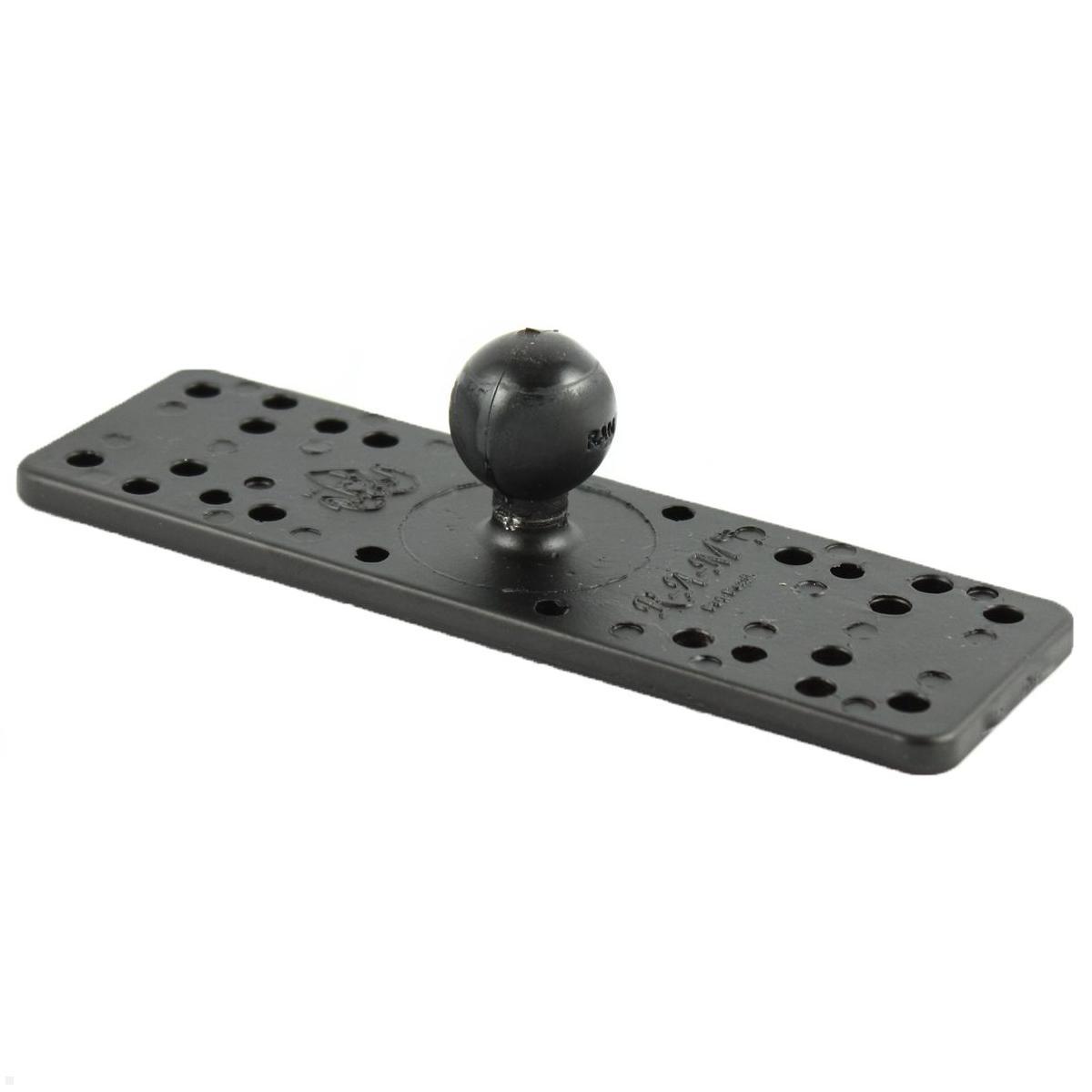

RAM Mounts Universal base plate with B-ball 1 inch (RAM-B-111BU)
Highlights
- Universal base plate with flexible hole pattern
- Integrated 1-inch B-ball for secure mounting
- Durable, powder-coated aluminum
- Compatible with Garmin GPSMAP devices
- Ideal for marine and outdoor use
Universal RAM Mount Base Plate RAM-B-111BU with B-Ball (1 Inch)
The RAM Mount base plate RAM-B-111BU is a robust and versatile solution for securely mounting a variety of devices in the marine environment, vehicles, or industrial use. Equipped with a B-ball (1 inch), which is mounted at a right angle to the base plate, it enables flexible and stable attachment in combination with compatible RAM Mount arms and holders. Thanks to the universal hole pattern, the mounting plate is compatible with a wide range of device holders and electronic devices. Particularly noteworthy is the direct compatibility with several Garmin GPSMAP devices, making this base ideal for navigation solutions on boats. Made from powder-coated aluminum, the plate impresses with its high resistance to corrosion and weathering – perfect for use in the outdoor and marine environment. The sturdy construction provides reliable fastening even under demanding conditions.
Technical Details RAM Mount solution for Garmin & universal device holders
- Model: RAM-B-111BU

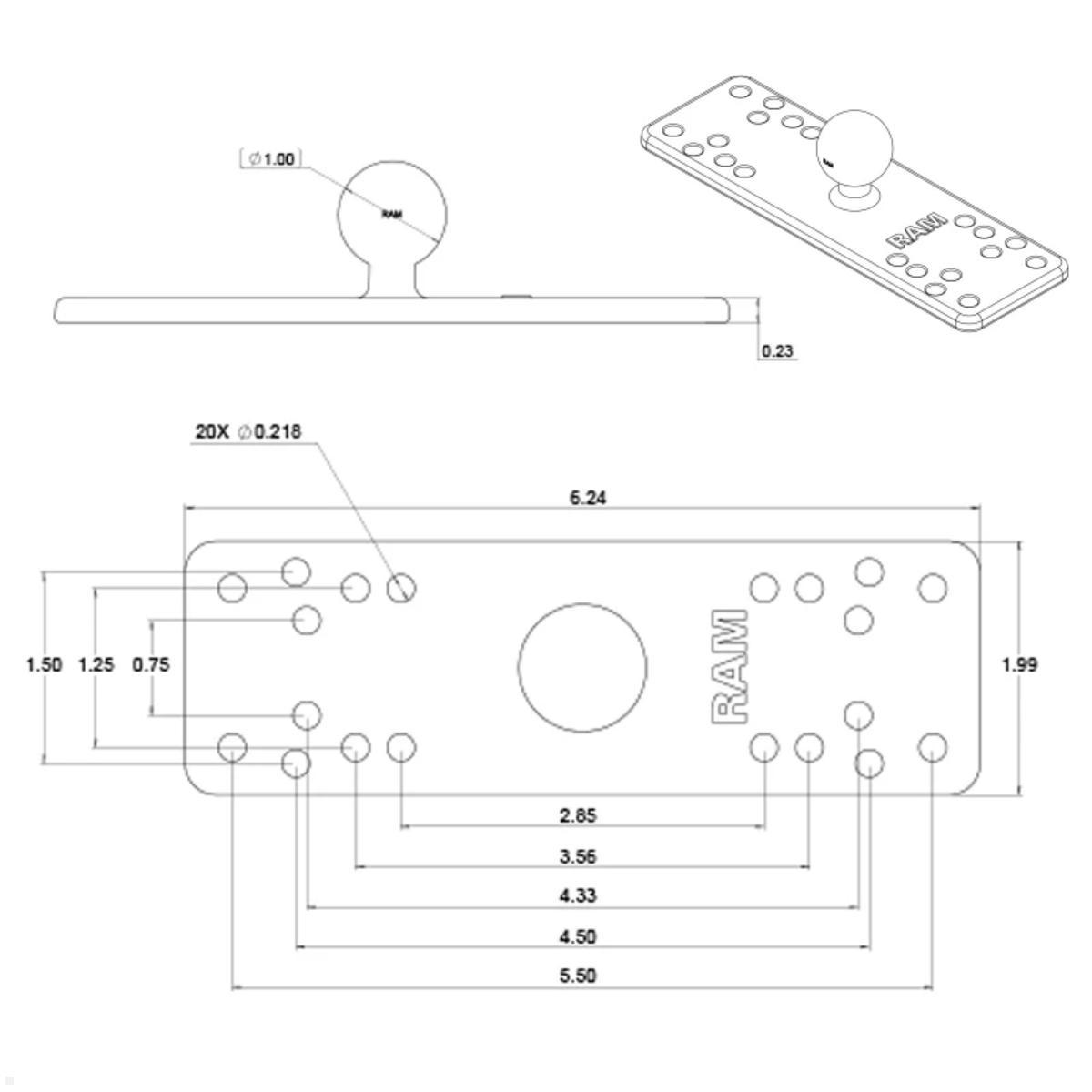

- Base area: 15.88 x 5.1 cm (6.25 x 2 inches)
- Material: Powder-coated aluminum
- Ball diameter: 2.54 cm (1 inch), B-ball
- Color: Black
- Weight: n/a
- Mounting type: Screw mounting
- Hole pattern: Universal, compatible with many device holders
Compatibility
- Garmin GPSMAP 162
- Garmin GPSMAP 168
- Garmin GPSMAP 175
- Garmin GPSMAP 180
- Garmin GPSMAP 180C
- Garmin GPSMAP 182
- Garmin GPSMAP 185
- Garmin GPSMAP 188
- Garmin GPSMAP 232
- Garmin GPSMAP 238
| Others: |  [pdf] |
|---|---|
| Capacity: | 0,9 kg |
| Material: | Aluminium, pulverbeschichtet |
| Scope of delivery: | 1x base plate with B-ball (RAM-B-111BU) |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is the RAM Mount base plate RAM-B-111BU the ideal solution for your device mounting?
The RAM Mount base plate RAM-B-111BU offers a well-designed and particularly sturdy solution for securely mounting a wide range of electronic devices. Thanks to its robust construction and the integrated 1-inch B-ball, it is ideally suited for demanding environments such as marine, vehicles, or industrial applications. The combination of high-quality materials and functional design ensures long-lasting and reliable use, even under challenging conditions such as moisture, vibration, or temperature fluctuations.
What are the advantages of the integrated B-ball (1 inch)?
The integrated B-ball with a diameter of 2.54 cm allows flexible positioning of your device in almost any desired orientation. Used with compatible RAM Mount connecting arms, it provides a secure and vibration-resistant fixation. This is a decisive advantage especially for navigation devices, as a stable position significantly improves readability and operation. The B-ball is designed for devices up to approximately 0.9 kg, offering an optimal balance between stability and flexibility.
How does the universal hole pattern ensure maximum compatibility?
One major advantage of the RAM-B-111BU base plate is the universal hole pattern, which opens up a wide range of mounting options. This allows various device holders and electronic devices to be attached without difficulty. Whether a GPS unit, chartplotter, or other accessories – the mounting plate adapts flexibly to your requirements. This makes it an ideal solution for users seeking a versatile and future-proof mount.
Which Garmin devices is the base plate compatible with?

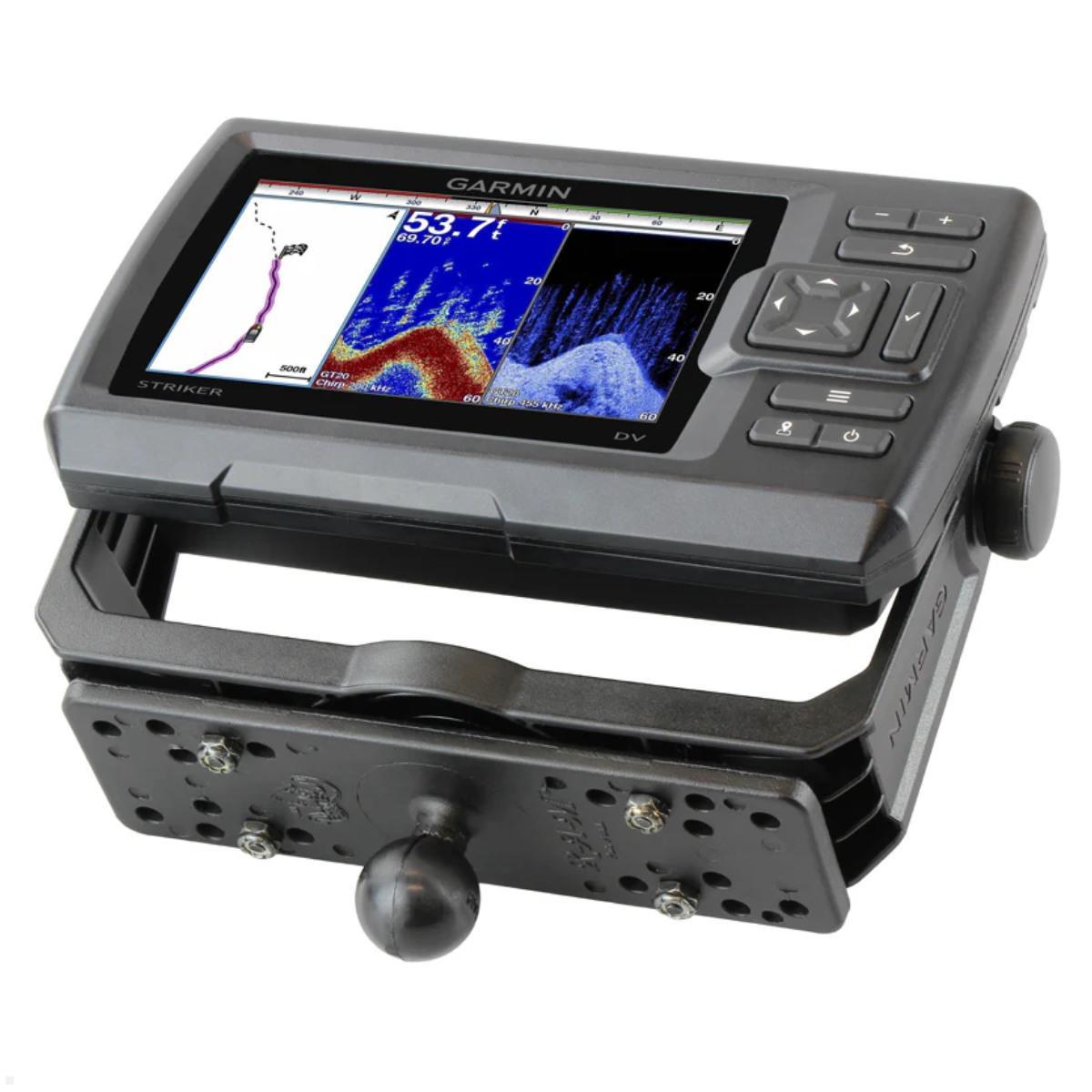

The RAM Mount base plate is specifically tailored to numerous Garmin GPSMAP models. These include, among others, the models 162, 168, 175, 180, 180C, 182, 185, 188, 232, and 238. This direct compatibility enables simple and quick installation without additional modifications. Users particularly benefit in marine environments from a secure and precise attachment of their navigation devices.
Why is the material crucial for marine use?
The use of powder-coated aluminum makes the RAM-B-111BU particularly resistant to external influences. Corrosion, saltwater, and UV radiation can hardly affect the surface, making the base plate ideal for prolonged outdoor use. At the same time, the sturdy material ensures high load capacity and long service life, even under intensive use.
How easy is the installation of the RAM Mount base plate?
The installation of the base plate is straightforward using a conventional screw mount. With the clearly defined base area of 15.88 x 5.1 cm, the plate can be securely fastened to solid surfaces. The thoughtful design allows quick integration into existing mounting systems so that your device is ready for use in no time. Thus, the RAM Mounts universal base plate with 1-inch B-ball (RAM-B-111BU) is the perfect choice for those who value a reliable, flexible, and durable mounting solution.
