RAM Mounts X-Grip cell phone holder car with suction cup (RAM-B-166-UN10U), black
Universal phablet car mount

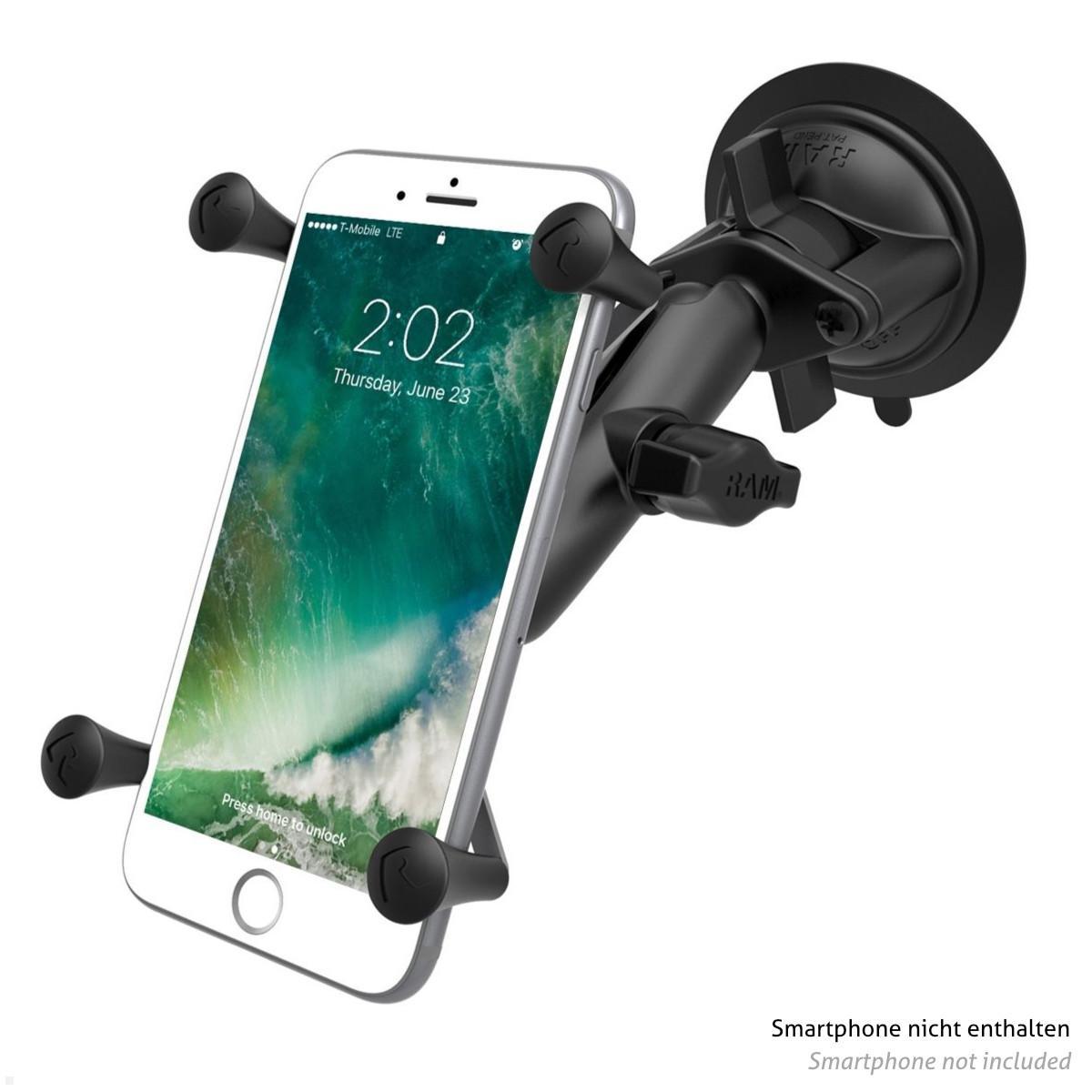

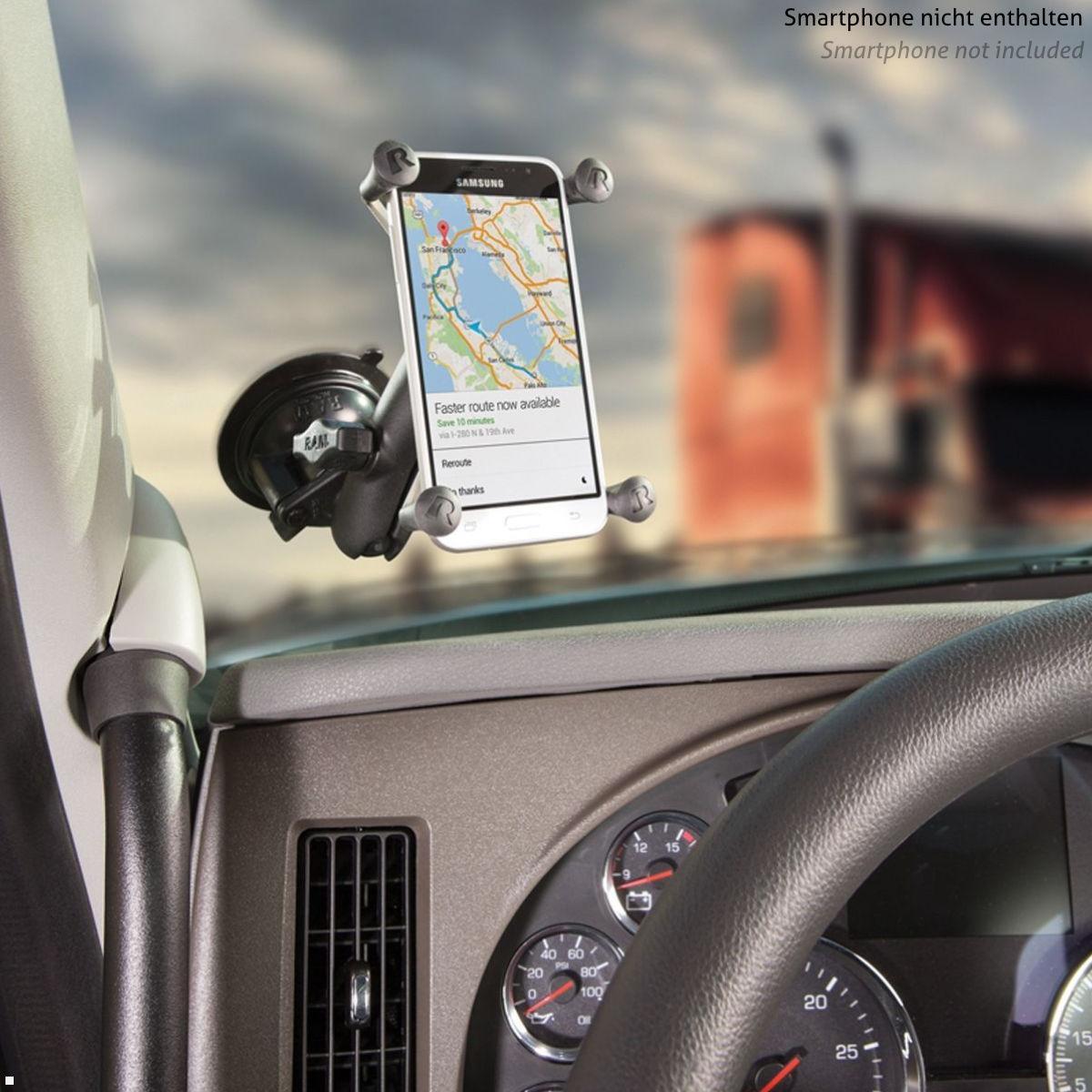

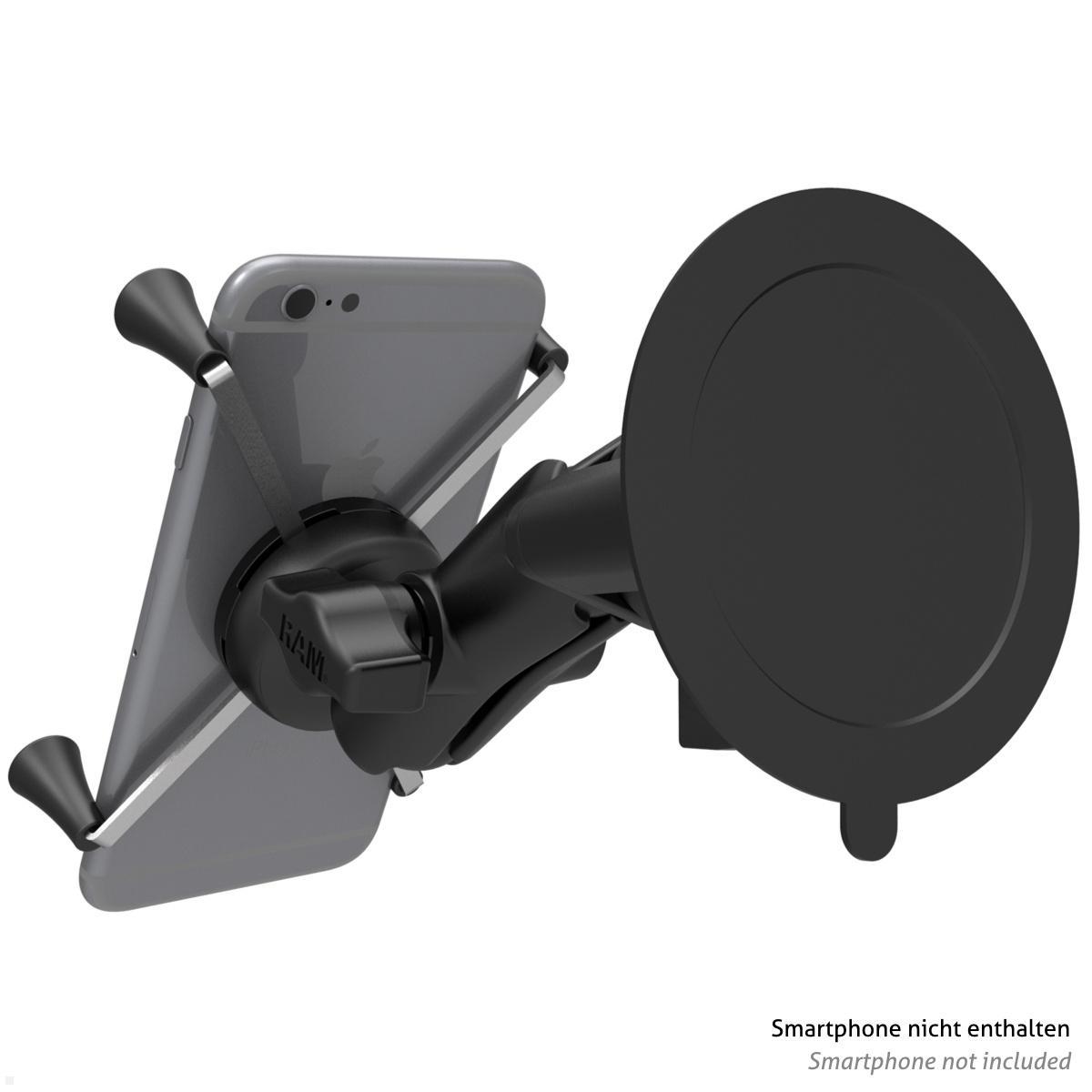

The RAM Mounts X-Grip mount ensures a stable attachment of large smartphones (phablets over 6 inches) in vehicles and is attached to the windshield using a suction cup. Thanks to spring-supported tensioning, the device sits firmly and securely in the universal phablet car mount without being hidden behind covers. The rubber-covered holding fingers are gentle on the material. The car smartphone holder is suitable for phones up to 114.3 mm wide. The modular RAM Mounts system with B-ball also offers a wide range of combination options with other components.
Key features RAM Mounts cell phone car mount (RAM-B-166-UN10U)
- Universal mount for large smartphones (phablets)
- Spring-loaded tensioning of the holding arms
- Holding fingers covered with rubber
- Min. device width: 44.45 mm (min. height: 139.7 mm)
- Max. Device width: 114.3 mm (min. height: 82.55 mm)
- Max. Device depth: 22.23 mm
- Ball size: B-ball (1 inch to 0.9 kg)
- Diameter of suction foot base: 82.6 mm
- Length of connecting arm: approx. 90 mm
- Material: High-strength composite material and rubber (suction foot base), powder-coated aluminum (base plate, connecting arm), high-strength composite material / steel / rubber (X-Grip retaining clip)
- Color: Black
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Material: | High-strength composite material, powder-coated aluminum, steel, rubber |
| Suitable for: | Für fast alle NotebookmodelleSmartphones with max. 114.3 mm width / 22.23 mm depth |

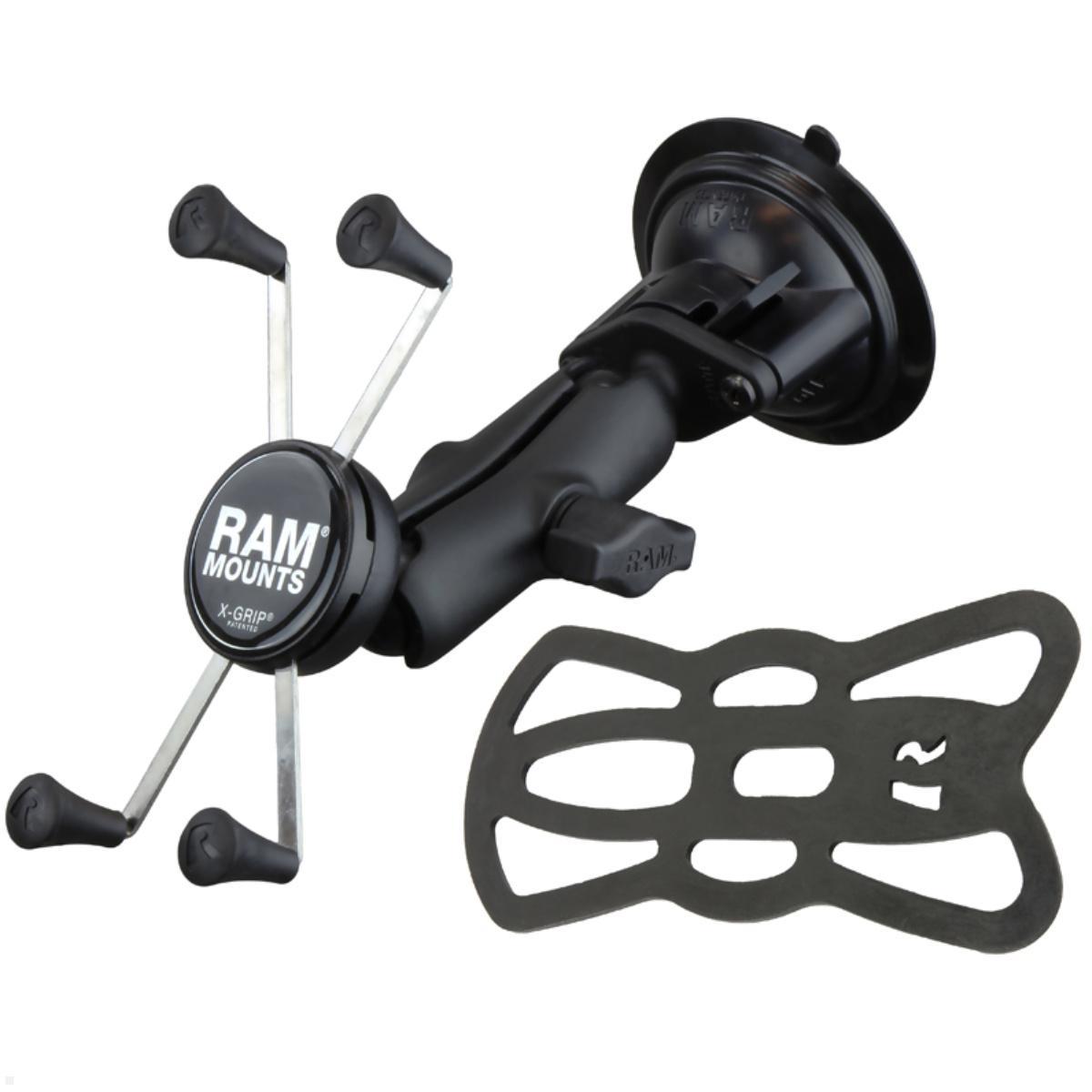

| Scope of delivery: | 1x suction foot base with twist lock | 1x Diamond base plate | 1x medium connecting arm | 1x X-Grip retaining clip |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts X-Grip Suction Cup Phone Holder Auto, XL?
It is a phone/smartphone holder for the car windscreen by RAM Mounts that securely holds large smartphones and is mounted on the windscreen with a suction cup.
-
Which devices are suitable?
It fits phones up to 114.3 mm in width and phablets larger than 6 inches.
-
How is the phone held?
The arms are spring-loaded and the fingers are rubber-coated, keeping the device firmly in place while protecting its surface.
-
Can I expand the system?
Yes, the modular RAM Mounts system with a B-ball allows a variety of combinations with other components.
-
What are the dimensions and specs?

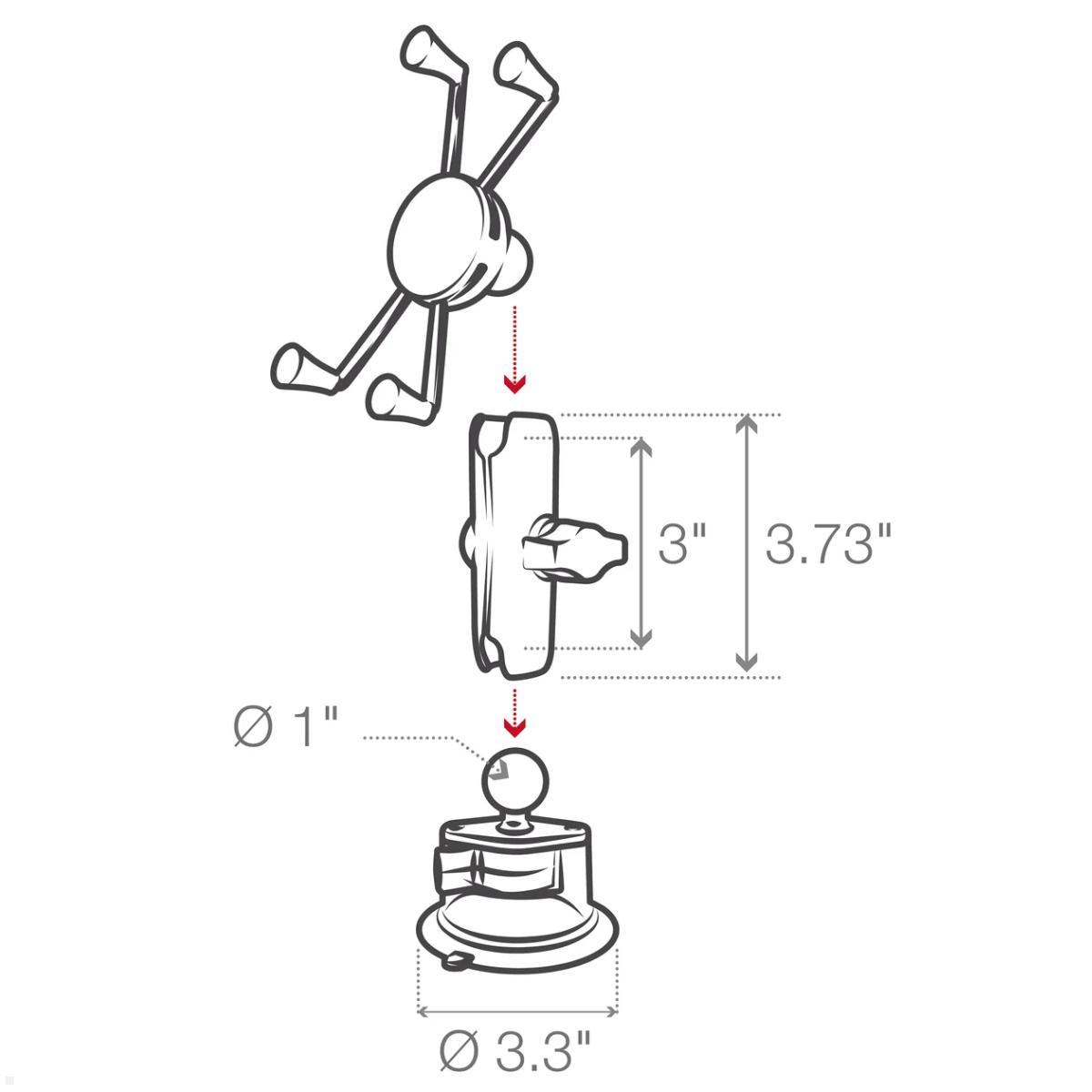

Suction cup base Ø82.6 mm; arm length about 90 mm. Max device width 114.3 mm; min width 44.45 mm; max depth 22.23 mm; ball size B-ball; colour is Black.
-
What materials is it made from?
Suction base consists of high-strength composite and rubber. Base plate and arm are made from powder-coated aluminium. X-Grip clamp contains composite, steel and rubber.
-
Who is the manufacturer?
Manufacturer is RAM Mounts.
