smart things accessory sCharge in-wall power supply for sDock
Accessory for invisible cables: smart things sCharge, the flush-mounted in-wall power supply especially for smart things sDocks iPad wall brackets. The sCharge can be installed in all 35mm standard flush-mounted sockets and permanently supplies power to the iPad in the tablet holder so that it is ready for use at any time.

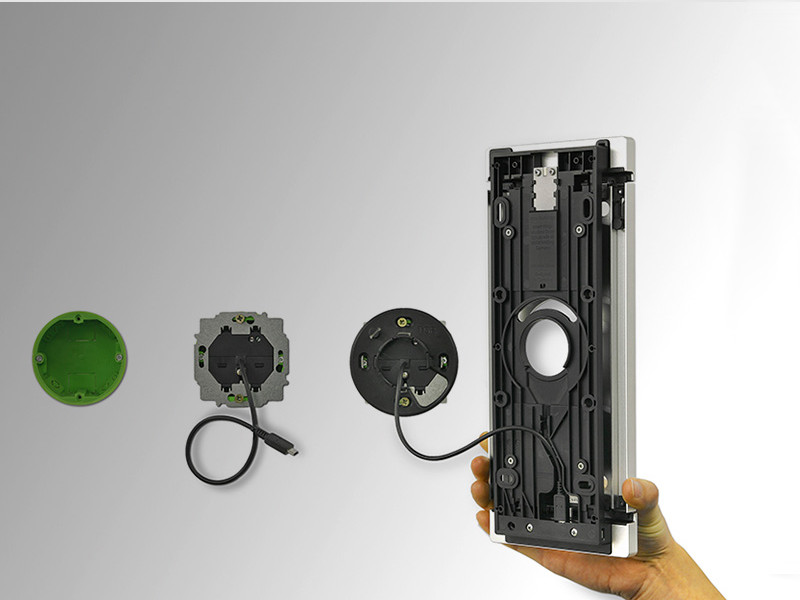

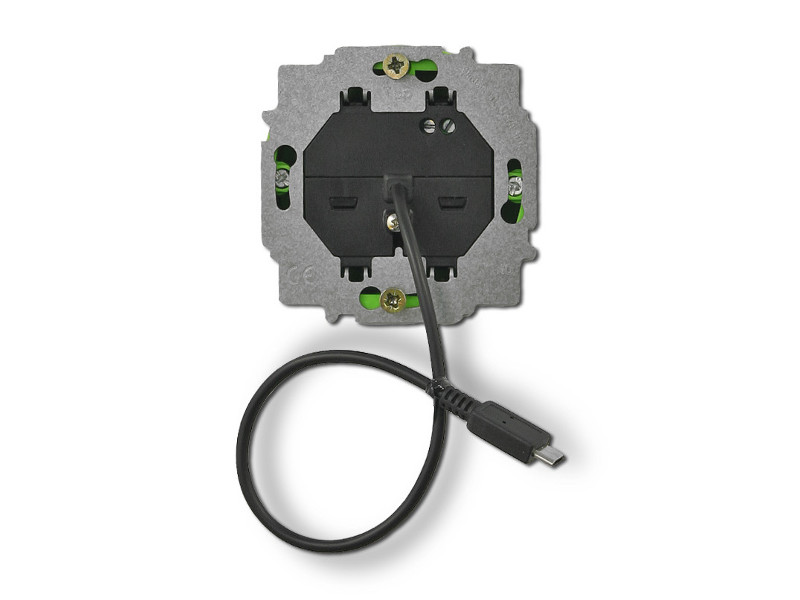

smart things sCharge in-wall power supply for standard flush-mounted boxes
Hidden Wiring

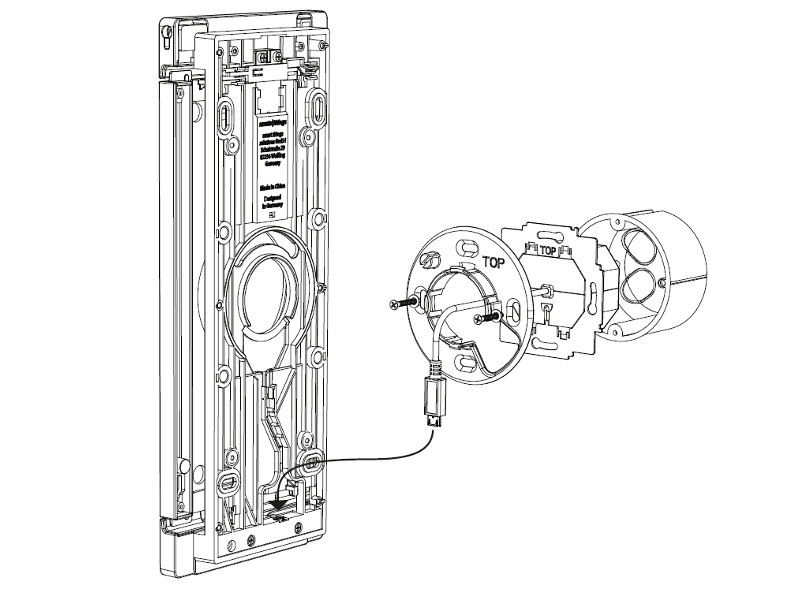

The smart things sCharge flush-mounted power supply specially developed for sDocks ensures that the Apple iPad is always charged in the wall mount and is always ready for use! Via the internal USB micro socket, the sDock can be powered from the back of the wall without any visible cables: Ideal for trade fairs and presentation walls or the smart home. Then you have a charging station for all your iOS devices! The sCharge can be installed in all 35mm standard flush-mounted sockets.
Key features smart things flush-mounted in-wall power supply for sDocks
- Flush-mounted power supply for all sDocks iPad wall brackets
- Not suitable for sDock Fix
- Direct connection to sDock with USB micro whip
- Suitable for all 35mm standard flush-mounted boxes
- Nominal input: 100 - 240 V ~, ± 10%, 50 - 60 Hz
- Nominal output: 5V, + 5% / -5%, 1400mA
- Material: metal support frame, plastic housing
- Environment: RoHS compatible, WEEE Registration: FWGB
- CE Approval: Low Voltage Directive 2006/95/EC, EMv Directive 2004/108/EC and Ecodesign Directive 2009/125/EC
- The sDock is not included in the scope of delivery and must be purchased separately

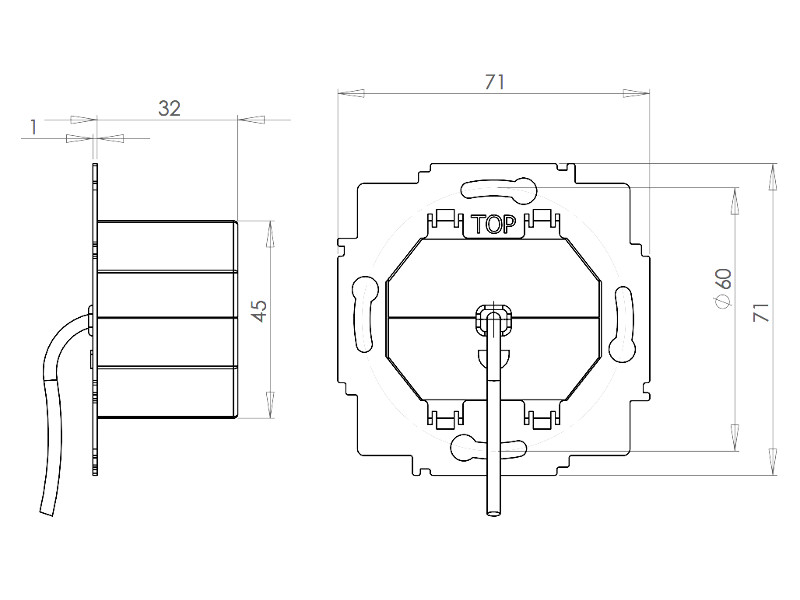

- Dimensions 71 x 71 x 33 mm
| Product sheet: |  [pdf, 255 kb] |
|---|---|
| Technical drawing: | [pdf, 35 kb] |
| Material: | metal, plastic |
| Suitable for: | For almost all notebook modelsGeräte mit MicroUSB-Anschluß |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | smart things solutions GmbH, Grubmühlerfeldstraße 54, 82131 Gauting, info@smart-things.com |
| Mobility: | fixed |
| Mounting type: | in-wall solution |
| color: | Others |
| Tablet: | universal |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
