smart things PoE Adapter 12W Lightning Power+Data Splitter (s26 L)
Highlights
- PoE+ adapter with 12W Lightning
- Power and data over a single cable
- IEEE 802.3at PoE+ compatible
- 10/100 Mbps Ethernet data
- Includes Lightning cable
PoE adapter with Lightning connector for iPad power and data
The smart things PoE Adapter 12W Lightning Power+Data Splitter (s26 L) supplies Apple iPads with a Lightning connector with both power and wired network data over a single Ethernet cable. The adapter converts IEEE 802.3af PoE voltage to 5 volts with a maximum continuous 12 watts and simultaneously provides a 10/100 Fast Ethernet connection via the Lightning connector. The range is up to 100 meters from the PoE switch or injector, so no additional power outlet is required on site. The plug-and-play design with a 90 cm connection cable enables easy installation.
The smart things s26 L is ideal for conference rooms using Zoom, Webex or Skype, for POS stations, kiosk systems, appointment schedulers and permanently mounted tablets. Wired data transmission via the Lightning connector provides higher network security compared to wireless connections. The adapter is optimized for fast charging and improved throughput and is suitable for use in businesses, reception areas, hotels, medical practices, trade shows and in building automation.
Technical details PoE Lightning Adapter 12W sCharge
- PoE standard: IEEE 802.3af compliant
- PoE method: Active
- Input voltage: 50V (44 to 57V)
- Output power: 5V / 12 Watts
- Data rate: 10/100 Fast Ethernet
- Power input: RJ45 socket
- Cable length: 90 cm
- Operating temperature: -10 to 60 °C
- Humidity: 5% to 90%
- Material: Plastic housing, RoHS compliant
- Certifications: CE, FCC, RoHS
- Package contents: 1x PoE adapter with Lightning cable (90 cm)

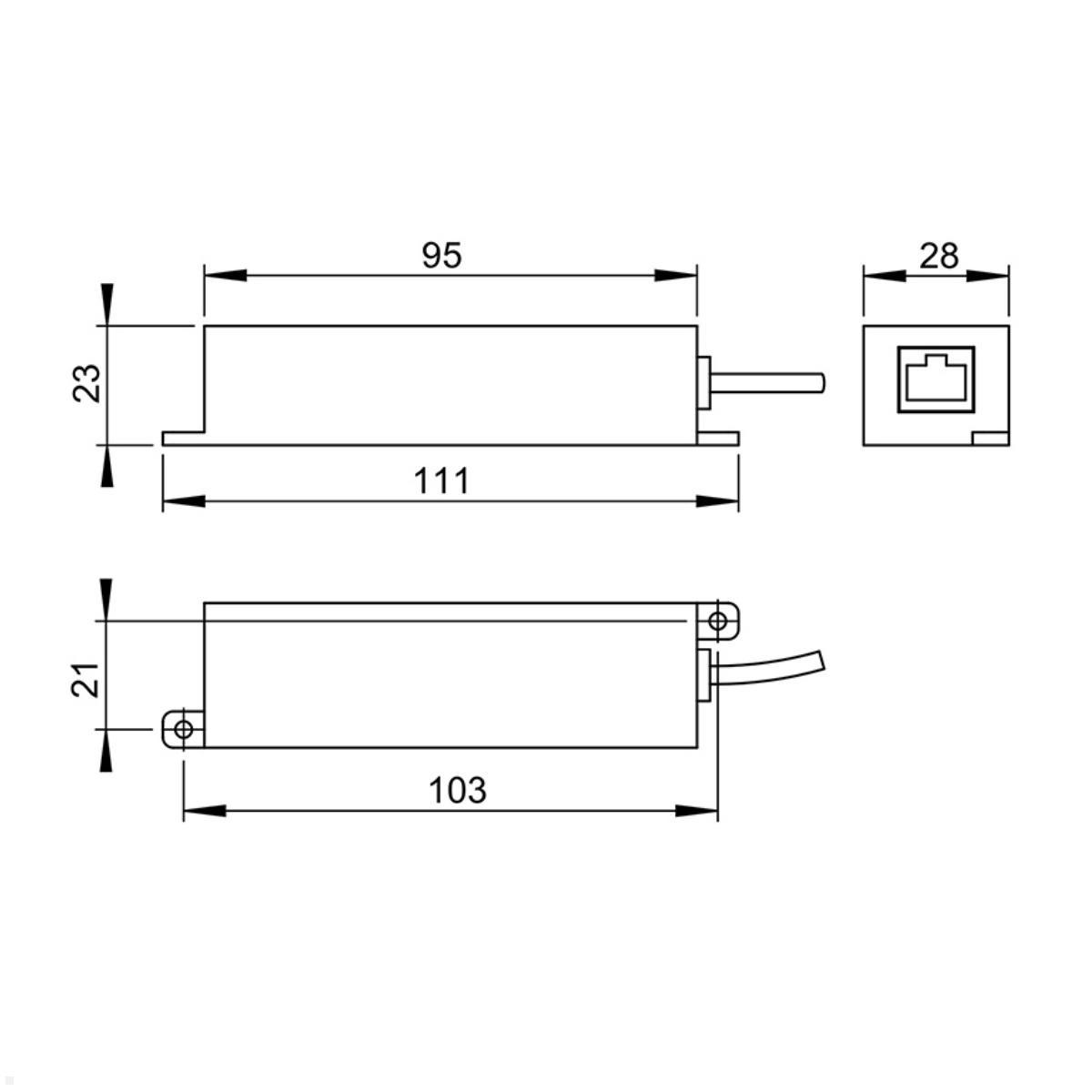

- Dimensions (H×W×D): 80 x 30 x 23 mm
| Material: | Kunststoff |
|---|---|
| Packaging dimensions (LxWxH in mm): | 143 x 88 x 37 |
| Scope of delivery: | 1x PoE Adapter with Lightning Cable (90 cm) |
| Warranty: | 1 year |
| Manufacturer/Importer: | smart things solutions GmbH, Grubmühlerfeldstraße 54, 82131 Gauting, info@smart-things.com |
| color: | Anthrazit |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the smart things PoE Adapter 12W Lightning Power+Data Splitter (s26 L)?
It is a PoE adapter with a Lightning connector that powers Apple iPads while simultaneously providing wired network data over a single Ethernet cable.
-
What connections does the adapter provide?
It converts IEEE 802.3af PoE voltage to 5V at up to 12W and also delivers a 10/100 Fast Ethernet connection via the Lightning port.
-
How far can it reach from a PoE switch or injector?
Up to 100 meters from the PoE switch or injector; no additional outlet is needed at the deployment site.
-
What are suitable use cases?
Ideal for conference rooms with Zoom, Webex or Skype, for POS stations, kiosk systems, appointment planners and fixed-mounted tablets. The wired data transmission increases network security compared to wireless connections.
-
What are the technical details?
PoE standard: IEEE 802.3af-compliant; PoE method: Active; Input voltage: 50V (44–57V); Output: 5V/12W; Data rate: 10/100 Fast Ethernet; Power input: RJ45 jack; Cable length: 90 cm; Operating temperature: -10 to 60 °C; Humidity: 5% to 90%; Material: plastic housing, RoHS compliant; Certifications: CE, FCC, RoHS.
-
What is included in the package?
1x PoE adapter with Lightning cable (90 cm).
-
What are the dimensions?
Dimensions (H×W×D): 80 × 30 × 23 mm.
-
Is this compatible with iPads?
Yes, it powers Apple iPads with Lightning and provides wired data over a single Ethernet cable.
