smart things sCharge 30W flush-mounted power adapter sC30-EU with USB-C to USB-C cable
delivery time: Delivery from manufacturer announced for week 42

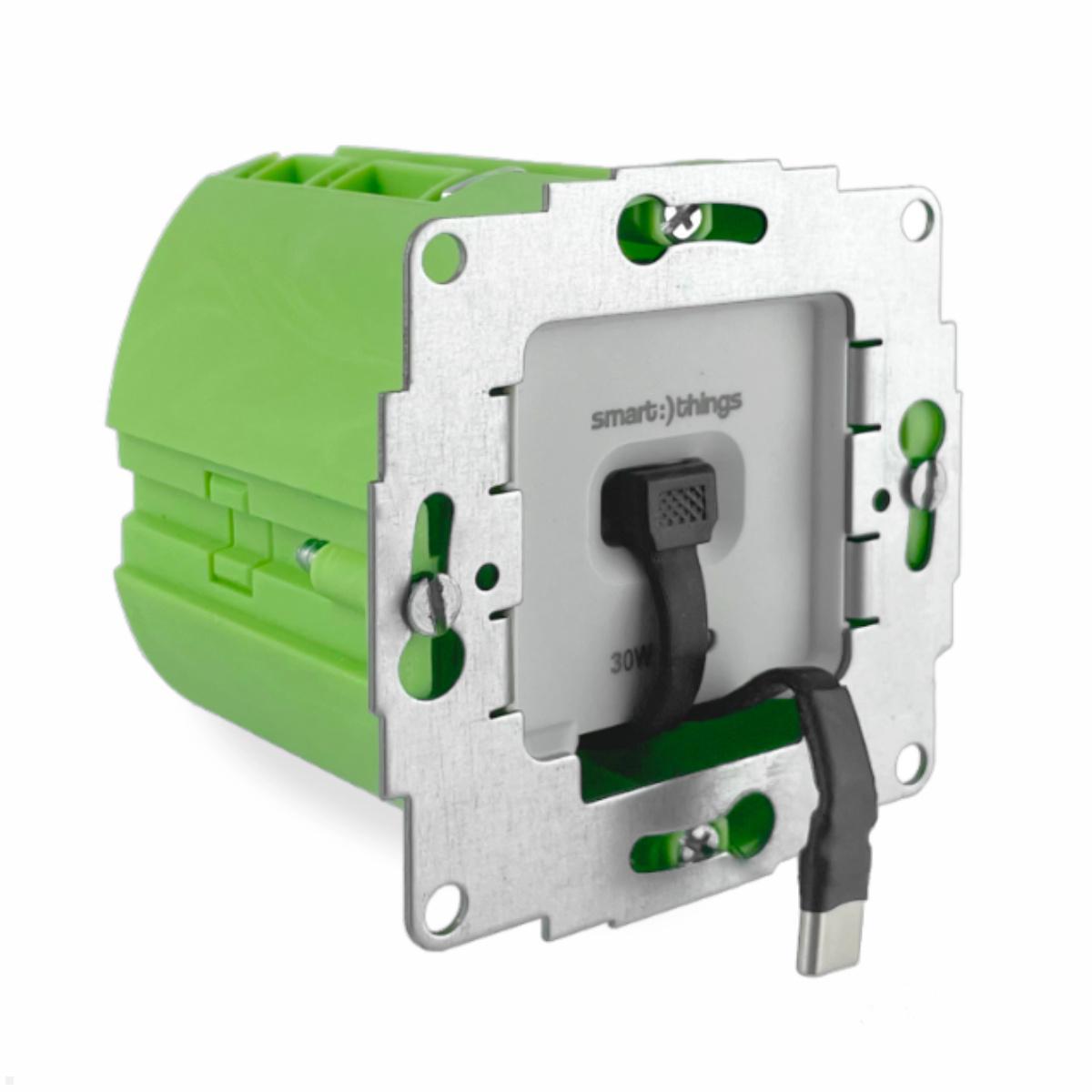

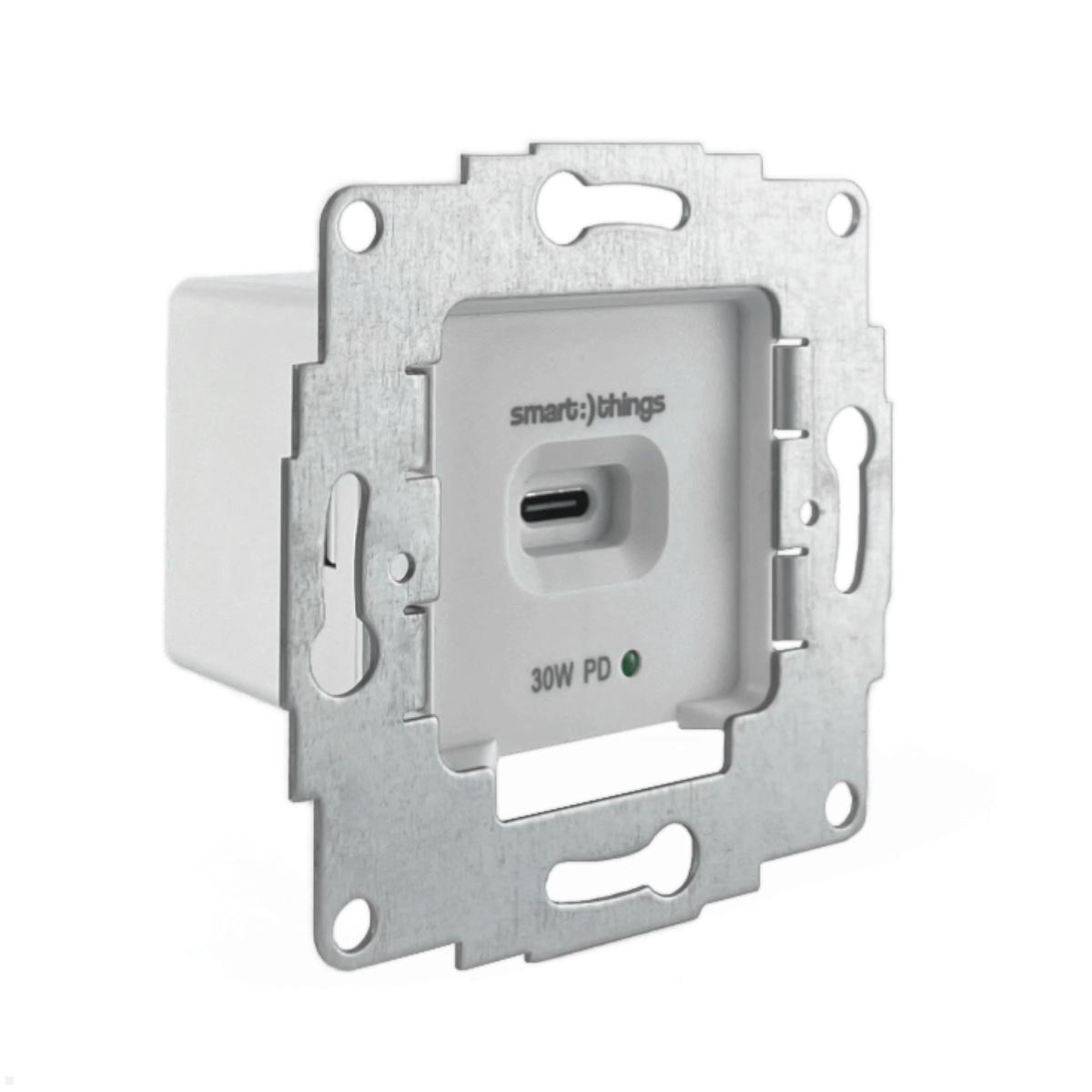

The smart things sCharge sC30-EU-C is a flush-mounted power supply unit for wall mounts. The sCharge can be installed in any standard flush-mount or device box and provides continuous power to the device in the tablet holder, ensuring it is always ready for use.
In-wall power supply unit 240V with USB-C/C cable
The in-wall power supply unit sC30-EU-C with USB-C connector from smart things provides a reliable and continuous power supply – not only for the sDock, but also for a wide range of other in-wall applications. With its 30-watt output, it ensures that, for example, an Apple iPad in the wall mount is always charged and ready for immediate use.
Power is supplied discreetly via a USB-to-USB-C adapter cable, which is routed invisibly behind the wall. This makes the sC30-EU-C particularly suitable for installations where, for example, an iPad is used permanently in one location –
Thanks to its compact design, the sC30-EU-C can be easily integrated into any standard flush-mounted or device box with a minimum depth of 50 mm.
Technical Details smart things sCharge sC30-EU-C
- Flush-mounted power supply for all devices with a USB-C port that require wall-mounted power

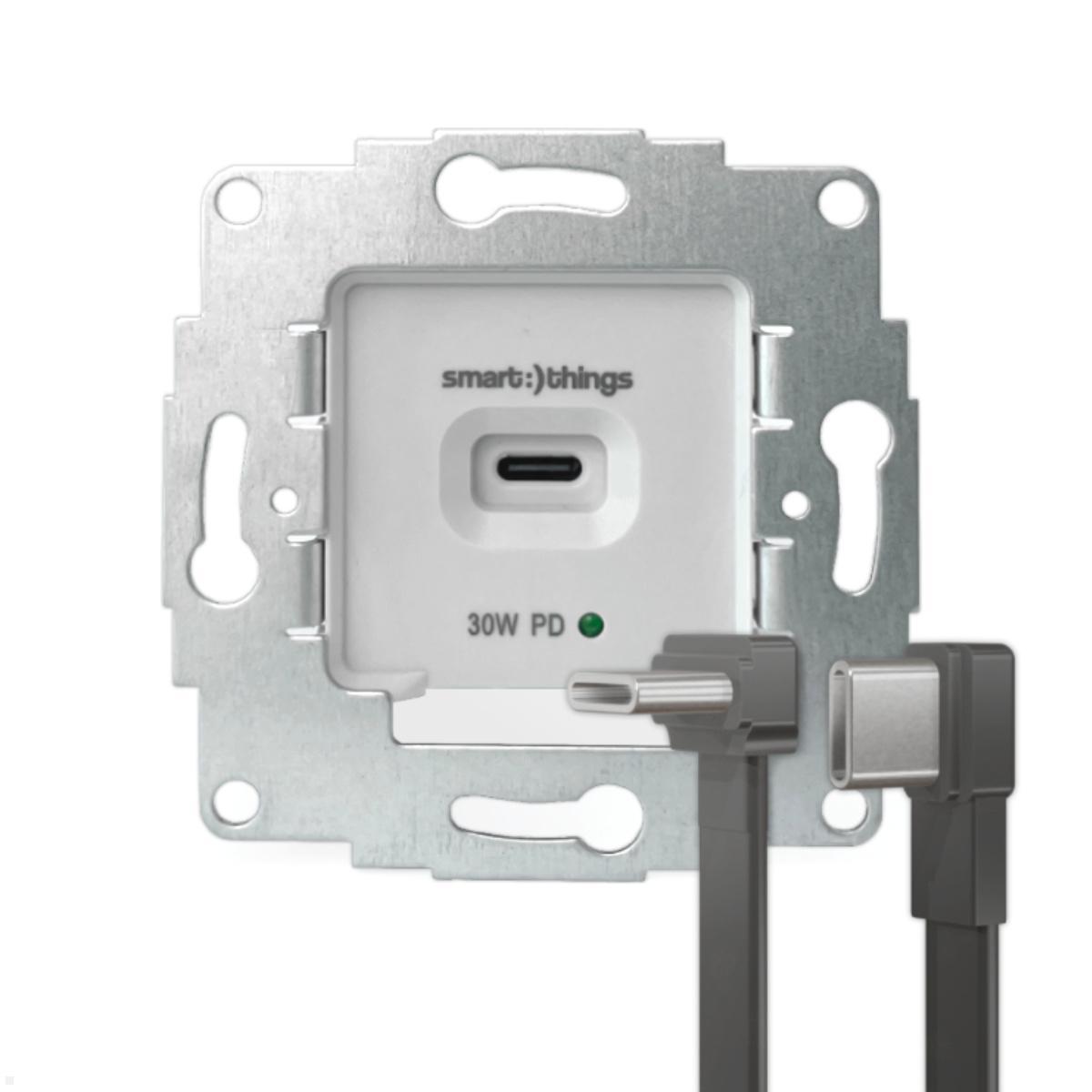

- Direct connection via USB-C to USB-C adapter cable
- Suitable for all flush-mounted or device boxes with a minimum depth of 42 mm
- Input: 100-240V~, 50/60 Hz, 0.5 A
- Output: 5V DC, 3.0 A; 9V DC, 3 A; 12V DC, 2.5 A; 15V DC 2A; 20V DC 1.3A
- Total output power: 30W max, Class II
- Material: Metal frame, plastic housing
- Environmental compliance: RoHS compliant
- Dimensions (H x W x D): 71 x 71 x 47 mm
- Includes a 25 cm long USB-C flat cable
| Product sheet: |  [pdf] |
|---|---|
| Warning/safety instructions: | [pdf] |
| Material: | Metal, plastic |
| Packaging dimensions (LxWxH in mm): | 76 x 76 x 48 |
| Scope of delivery: | sCharge 30W, USB-C flat cable, 25 cm length, instructions in EU languages, Turkish, Russian, Chinese |
| Manufacturer/Importer: | smart things solutions GmbH, Grubmühlerfeldstraße 54, 82131 Gauting, info@smart-things.com |
| Mobility: | fixed |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
sC30-EU-C – In-wall USB-C power supply for discreet power distribution
The sC30-EU-C in-wall power supply with USB-C connector is the elegant solution for reliable and unobtrusive power distribution. It is ideally suited for devices such as the Apple iPad, the sDock Fix, and a wide range of applications in smart home, room control, and industrial control systems. With its powerful 30-watt charging capacity, it ensures that connected devices remain fully charged and ready for use at all times – without any visible power adapters or unsightly cables.
Discreet and secure in-wall installation
Thanks to its compact design, the sC30-EU-C can be easily installed in standard in-wall boxes or junction boxes with a minimum depth of 50 mm. After installation, the power supply is completely hidden behind the wall and operates discreetly in the background.
Power is supplied via a USB-to-USB-C adapter cable, which is routed from the back of the wall. This creates a clean and modern look – perfect for spaces where functionality and design need to harmonize.
Wide range of applications
While the sC30-EU-C was originally developed for the sDock Fix wall mounting system, it is also ideally suited for numerous other applications.
Typical applications include:- Digital door and room signage in businesses, hotels, or public facilities
- Smart home controls for lighting, heating, air conditioning, or security systems
- Operator and control solutions in industrial environments
- Media and infotainment applications in private or commercial spaces
Wherever an iPad or another USB-C compatible device is permanently installed, the sC30-EU-C provides reliable and long-lasting power.
Future-proof with the USB-C standard
The integrated USB-C interface meets the current industry standard and ensures safe and efficient power transfer. With 30W of charging power, iPads, tablets, or control units can be operated quickly and reliably – even under continuous load. The sC30-EU-C is therefore ideally suited for modern applications that rely on high-performance and stable power supply.
Your advantages at a glance
- Discreet, flush-mounted installation for a clean room design
- Compatible with iPad, sDock Fix, and many other USB-C devices
- 30 Watt charging power – High-performance, reliable and safe
- Versatile application in smart homes, offices, conference rooms or industrial settings
- Easy installation in flush-mounted boxes or device boxes with a depth of 50 mm or more
Conclusion
The sC30-EU-C flush-mount power supply unit combines a discreet design with powerful performance. Whether in private homes, modern office environments, conference rooms or industrial control systems – it offers an elegant, reliable and future-proof solution for discreet power supply via USB-C.
