SmartMetals accessory mounting kit incl. white boards of enamelled steel for touch screen 70 - 86 inch

SmartMetals Accessory Mounting kit incl. white boards of enamelled steel for touch screen 70 - 86 inch - 152.0120-LS

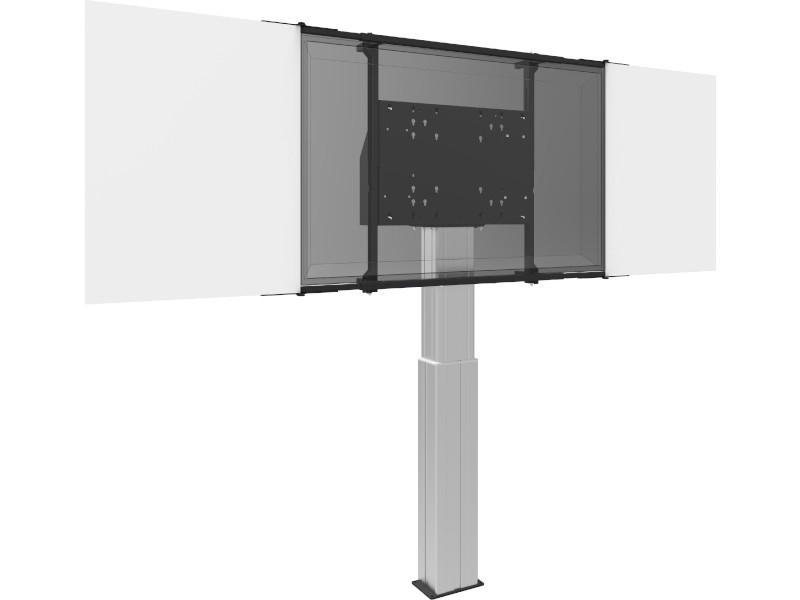

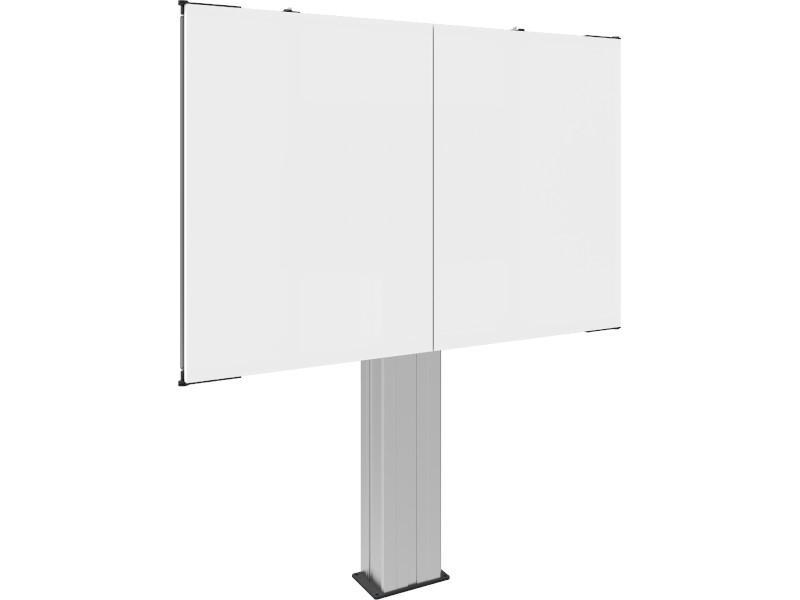

Quick change of touch screen and whiteboard.Adding a compatible SmartMetals lift system to the SmartMetals mounting kit, including whiteboards for about 70-86 inches (152.0120-LS), provides the ability to quickly and easily switch between touch screens and whiteboards. When the touchscreen is required, the whiteboards are folded apart quickly and easily. Just as quickly and easily, the whiteboards can be folded together again when they are being used on or just to cover the touchscreen.

Versatile application options. The mounting kit adds the floor lift with touchscreen around two whiteboard boards. This makes the set ideal for use in conference rooms, at universities, in colleges, schools, hotels, hospitals, libraries or in meeting rooms. It can serve as a presentation tool, represent service or mission statements, serve as a brainstorm in the office, record a schedule or project schedule. In addition, the closed whiteboards protect the underlying touchscreen from external impact.

Steel with enamel coating. On enamelled steel traces of use of whiteboard markers remain visible. Proper cleaning of whiteboards is also recommended.

Easy installation. Installing the whiteboard accessory set is easy and straightforward. The touch screen is temporarily removed from the floor lift and the mounting kit attached to the VESA adapters. Then the monitor or touchscreen is reinstalled and the whiteboards are mounted to the frame of the mounting kit.

Technical Details SmartMetals Accessory Mounting kit for lift systems 70 - 86 inch

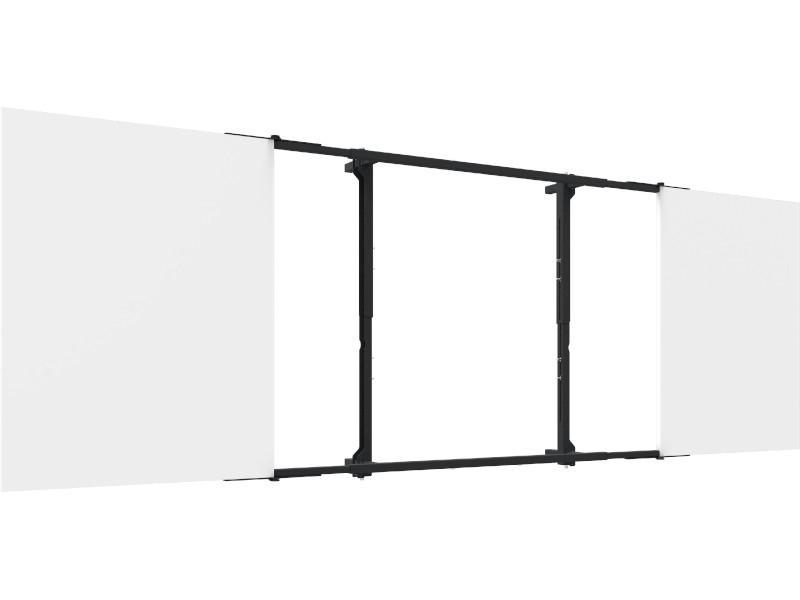

• Mounting kit extends lift systems with two folding whiteboards
• Material: Steel with enamel coating
• For 70 - 86 inch lift systems
• Weight Mounting kit: 11 kg
• Dimensions Whiteboard (WxH): 1021 x 1307 mm
• Overall dimensions (WxH): 1750 x 1097 mm
• Color: black / white
• Screen orientation: Landscape
• Monitor width (including frame): min. 1650 mm, max 2000 mm
• monitor height (including frame): min. 1000 mm, max. 1250 mm
• Monitor depth: 40 - 160 mm
• Compatible with SmartMetal's lift systems Model No: 052.7xxx and 062.71xx and 062.72xx
• Not suitable for interactive whiteboard lift systems

Does your monitor or display fit?

We'll be happy to let you know if your monitor is suitable for this SmartMetals product. Simply submit us your model (manufacturer + model no.) after placing the order. We will then check to see if the monitor or display fits the monitor mount and if not, we will contact you. Of course, you can contact us with any other questions. Our team will be happy to answer all your questions about the products offered.
