SmartMetals Electric Monitor Stand Mini up to 86 inches
SmartMetals Electric Monitor Stand Mini up to 86 inches - 052.7210 & 052.7250

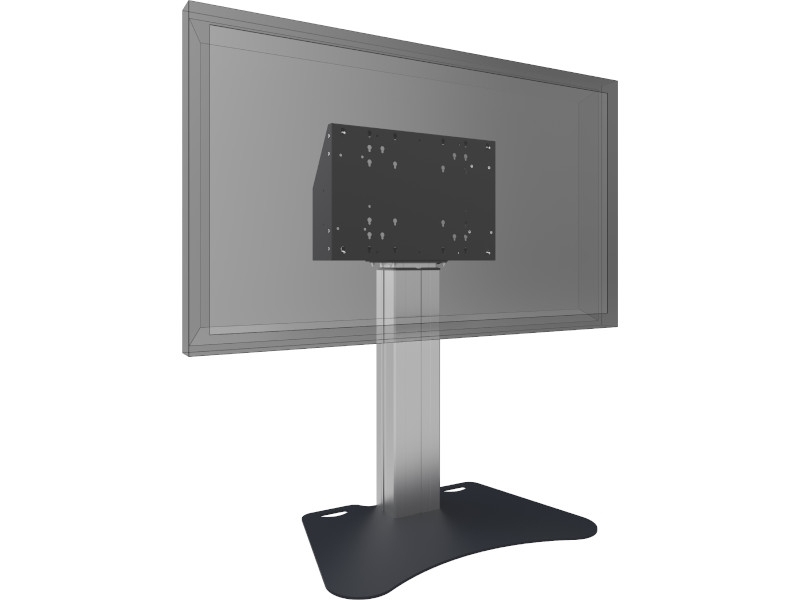

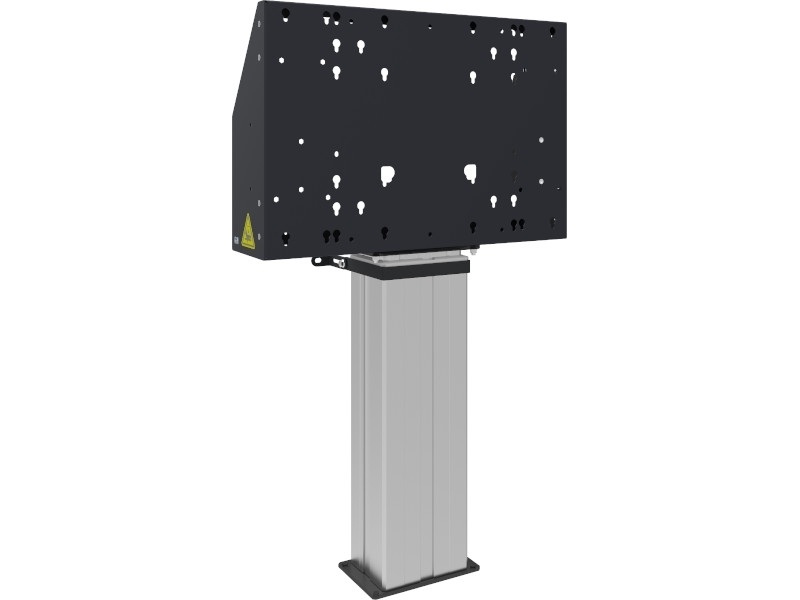

The SmartMetals Electric Monitor Stand Mini up to 86 inches is equipped with a electric lift system. Perfectly suited for the custom mounting of a touchscreen or monitor in lobbies, sales rooms or in halls. It consists of the base plate 052.7210 and the floor lift Mini 052.7250. So this is a floor lift with a 500 mm liftrange.

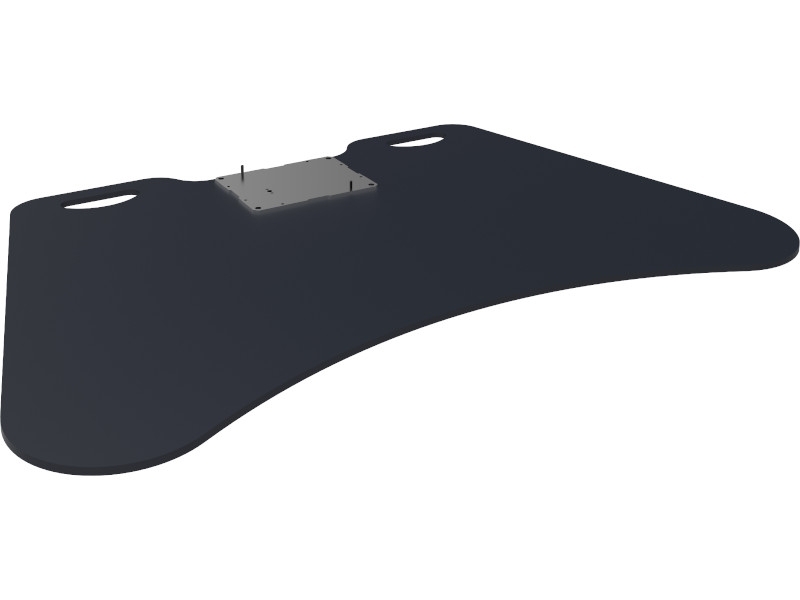

The VESA mount has a lot of hole patterns, so most screens will be compatible. The base plate allows the free-standing installation of the lift without the need to attach the stand to the ground. Behind the monitor holder is a compartment for mounting a mini-PC. Attaching a thin client is possible with the integrated VESA 75 or 100.
Multiple application options.SmartMetal'Electric Monitor Stand Mini for touchscreens up to 86 Inch screen diagonal can be flexibly used in many work environments. Whether as a point of information in a showroom, digital ordering in restaurants, at universities, colleges or schools. Likewise, hotels can benefit from a dynamic infoscreen. It can act as a presentation tool, represent service or mission plots, brainstorm in the office, and record a schedule or project schedule.Technical Details SmartMetals Electric Monitor Stand Mini up to 86 inches
- Weight: 57.7 kg
- Max. Capacity: 135 kg
- Color: Black, Aluminum
- Screen Orientation: Portrait or Landscape
- Screen Size: max. 86 in.
- Stroke range: 500 mm to 20 mm/s
- VESA holder: 200x200, 300x200, 400x200, 400x300, 400x400, 600x200, 600x400 mm
- Cable Guide: 30mm
VESA Standard - Learn more about the VESA monitor bracket standards!
Does your monitor or display fit?
We'll be happy to let you know if your monitor is suitable for this SmartMetals product. Simply submit us your model (manufacturer + model no.) after placing the order. We will then check to see if the monitor or display fits the monitor mount and if not, we will contact you. Of course, you can contact us with any other questions. Our team will be happy to answer all your questions about the products offered.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf, 5,8 Mb] |
| Capacity: | 135 kg |
| Height range (mm): | 500 mm |
| Screen size: | 55 - 86 " |
| Material: | Metall |
| Special features: | Elektrisch Höhenverstellbar |
| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.de) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | SmartMetals Mounting Solutions B.V., Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info@smartmetals.nl |
| Inch size: | 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 79 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch |
| Mobility: | electrical, height adjustable |
| Mounting type: | Floor stand |
| Multi-monitor mount: | 1 monitor |
| color: | Silver/Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
