SmartMetals Floor lift on wheels for Interactive Whiteboard 77 inch
SmartMetals Floor lift on wheels for Interactive Whiteboard 77 inch - 152.2000-77

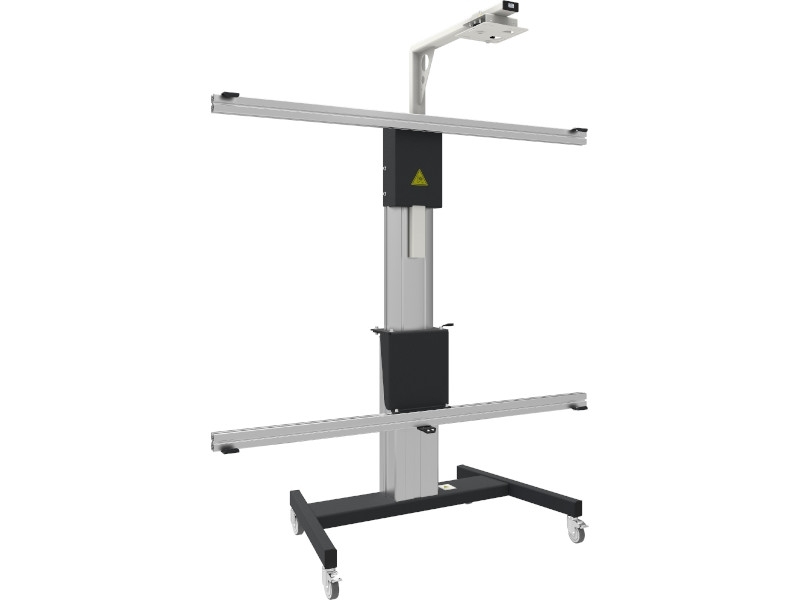

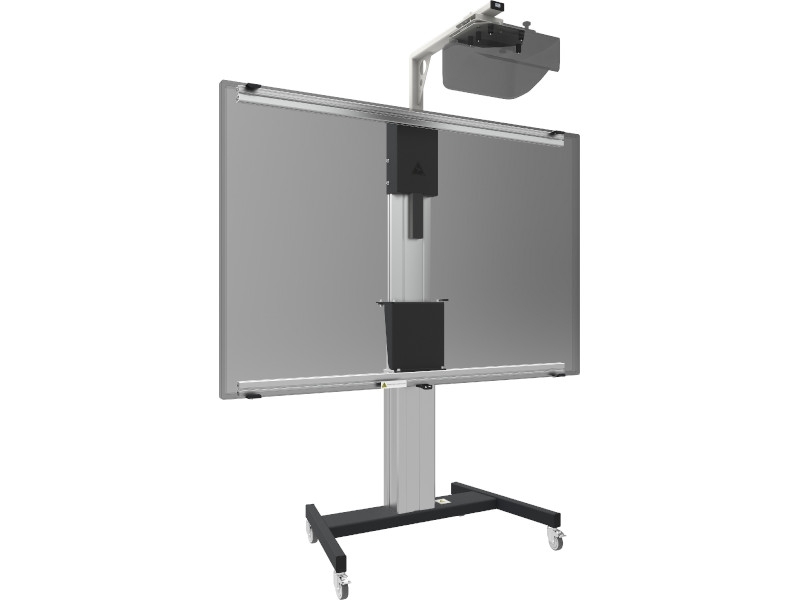

This is a quick and easy to install mobile floor lift that enables electric height adjustment for interactive whiteboards (IWB) up to 77 inches and projector.
The lifts are equipped with a universal whiteboard fitting so that they are suitable for almost any IWB. The floor lift is equipped with a remote control to move the display up and down electrically by 500 mm.
Please quote your whiteboard and the Projector of your choice. A projector mount is not included. This floor lift provides a mobile presentation solution to colleges or universities.
Multiple application capabilities. The mobile floor lift for interactive whiteboards. It opens a wide range of possible applications. Whether as a digital presentation medium in school rooms, auditoriums or workshops - this floor lift can perform all tasks as it can be used in different spaces on the move because of its wheels.
Technical data SmartMetals floor lift on wheels for interactive whiteboard and projector
- Weight: 75 kg
- Color: Black, Aluminum
- Max. Whiteboard Size: 79 inches
- Max. Payload: 40 kg
- Screen orientation: landscape
- Stroke range: 500 mm, electrically up to 20 mm/s
- Max. Whiteboard Width: 1899 mm
More about this SmartMetals product
Does this SmartMetals product not meet your requirements? We are happy to advise you in detail. Do not hesitate to contact our team.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf, 5,9 MB] |
| Capacity: | 40 kg |
| Height range (mm): | 500 mm |
| Screen size: | 77" |
| Material: | Aluminium |
| Packaging dimensions (LxWxH in mm): | 1200 x 450 x 800 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | SmartMetals Mounting Solutions B.V., Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info@smartmetals.nl |
| Inch size: | 77 inch |
| Mobility: | electrical, height adjustable |
| color: | Silver/Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
