SmartMetals outdoor case wall mount for display 65 inches landscape
The SmartMetals outdoor monitor enclosure accommodates a 65-inch landscape monitor. Supplied with a VESA mount inside the protective housing with a Vesa Standard of max. 600x400mm for the display and an integrated wall mount on the back of the case.
SmartMetals display case 65 inch landscape with wall mount
With the SmartMetals display case, a 65-inch display in landscape format can be protected and installed at a wall. With the practical, integrated wall bracket on the back, the protective housing can be easily and simply attached to the wall. The display housing is ideal for outdoor digital signage applications, such as as an advertising display or for signage.
SmartMetals outdoor display cabinet for wall mounting
The SmartMetals protective housing is equipped with a protective front and a tempered safety glass in a particularly clear quality. Outdoor enclosures are also equipped with active ventilation, thermostatic heating elements and a dust filter. The case pops up easily and offers easy service access. It is suitable for monitors with a brightness up to 700cd. The display case has a black frame around the monitor. Other colors are available on request.
Key features SmartMetals outdoor monitor housing 65 inches
- Suitable for a 65 inch display
- Outdoor Installation
- Dimensions incl. wall mount (WxHxD): 1680 x 1065 x 237 mm
- For monitors with a brightness up to 700cd
- Display installation in landscape orientation
- VESA mounting: 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm
- Protection class: IP55

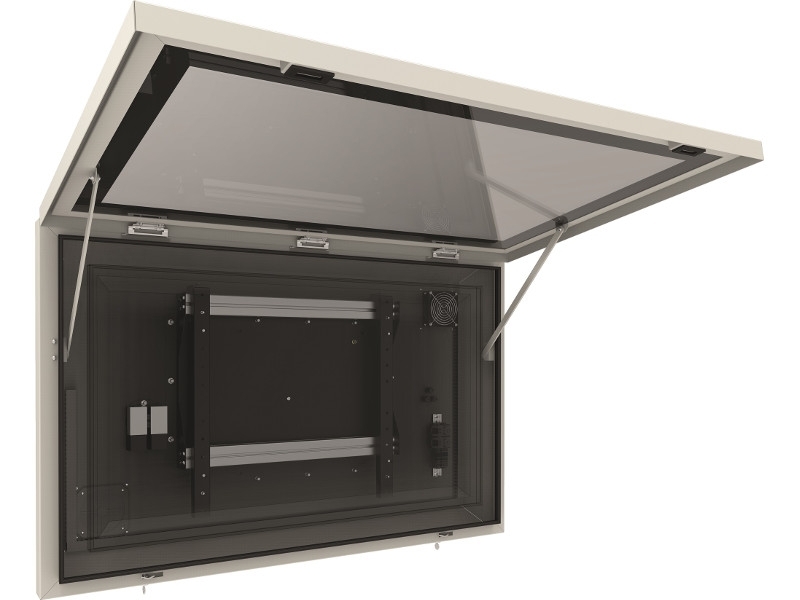

- Equipped with a hinged front and tempered safety glass
- Delivery including wall mount and VESA mount
- Finish: white with a black frame around the monitor
Does your monitor or display fit?
Feel free to check if your monitor is compatible with this SmartMetals 65" landscape monitor outdoor enclosure. At the end of the order process in the comment field your model (manufacturer + model no.). We'll check if the monitor or display fits the monitor mount, and we'll get back to you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 490 kb] |
|---|---|

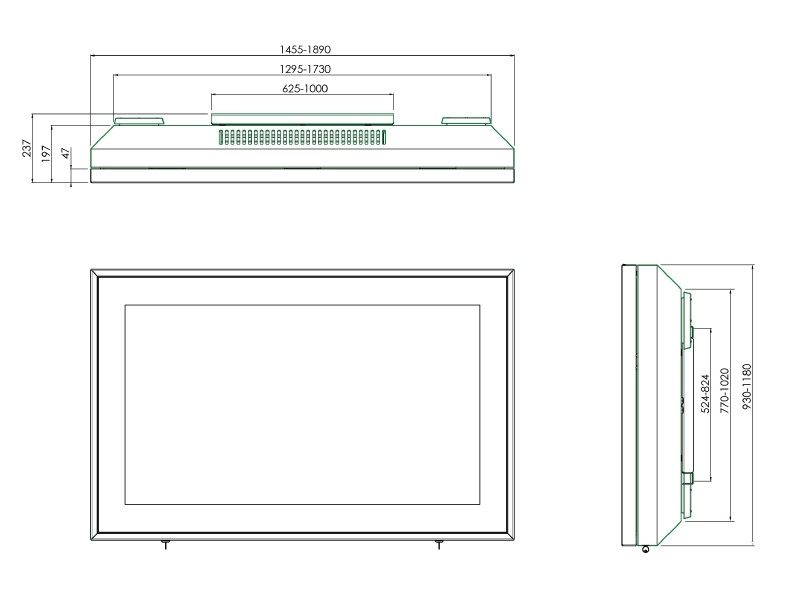

| Technical drawing: | [pdf, 30 kb] |
| Screen size: | 65 " |
| VESA Standard: | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | SmartMetals Mounting Solutions B.V., Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info@smartmetals.nl |
| Inch size: | 65 inch |
| Mobility: | fixed |
| Mounting type: | wall mount |
| color: | white/black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
