SmartMetals projector mount with pipe / truss clamp , 130mm

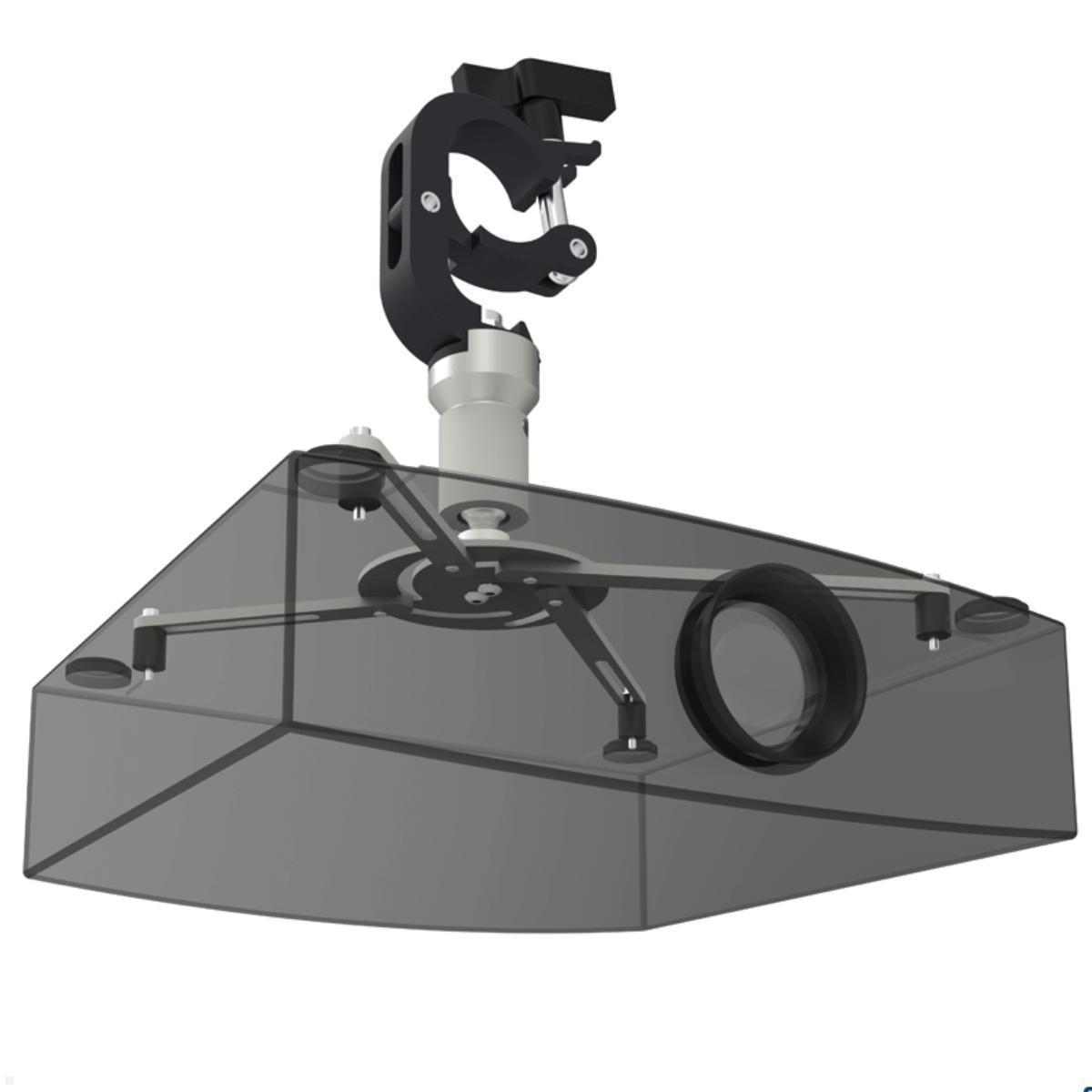

The SmartMetals projector mount with clamp can be used to attach projectors weighing up to 25 kg to a truss, column or tube.
Projector mount for truss

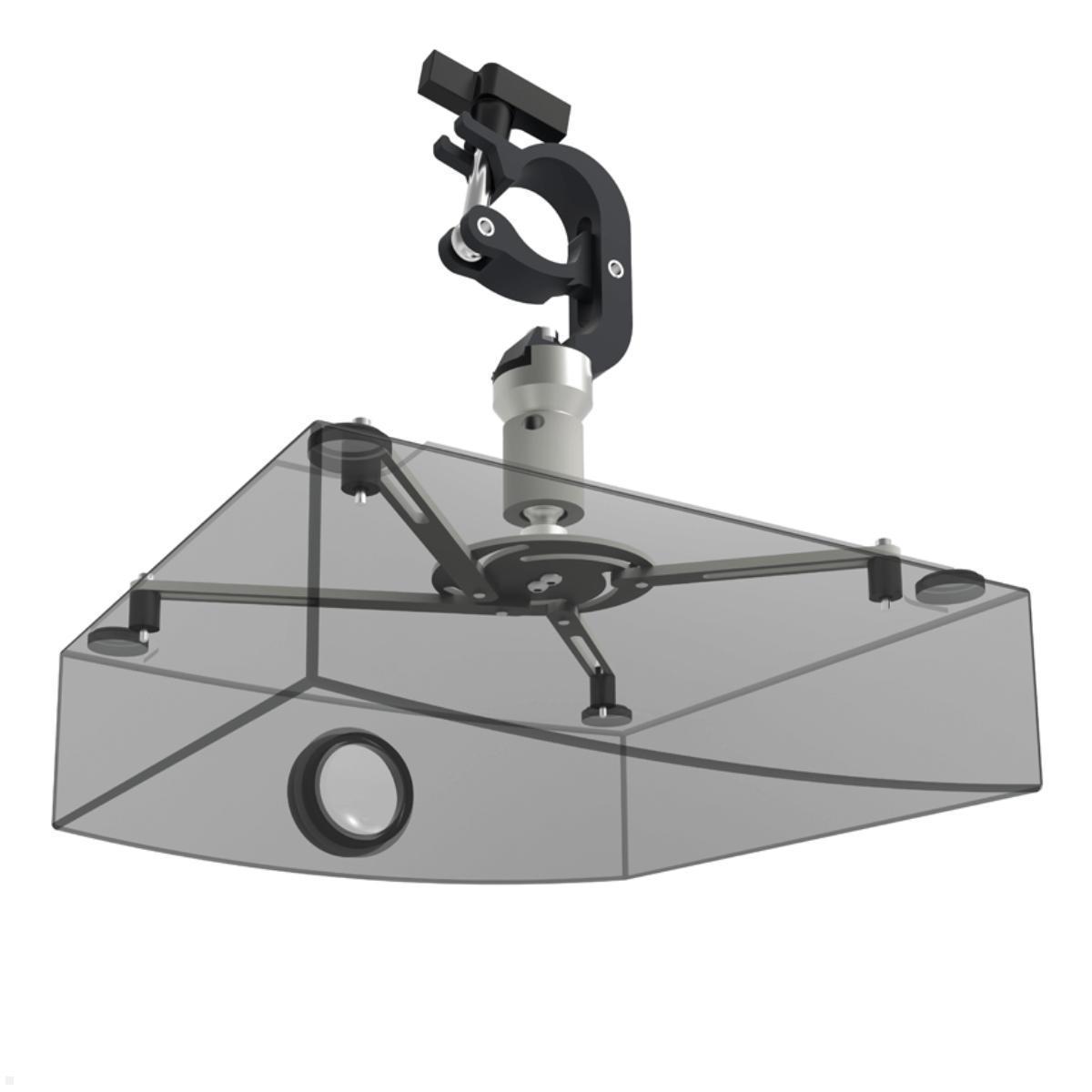

The SmartMetals projector mount with clamp for pipe mounting / truss is compatible with almost any projector. The ball joint allows the projector to be rotated and positioned effortlessly in any direction. This mount is perfectly suited for installing a beamer on a truss, so that the tube/column is not damaged by drilling or the like. With a load capacity of up to 25 kg, projectors can be attached to the SmartMetals projector mount with tube clamp. The projector mount can be rotated 360 degrees and tilted 20° to always obtain an ideally aligned projection - even after mounting.
Technical details SmartMetals projector mount with clamp for truss / tube / column
- Capacity: max. 25kg
- Height: 130 mm

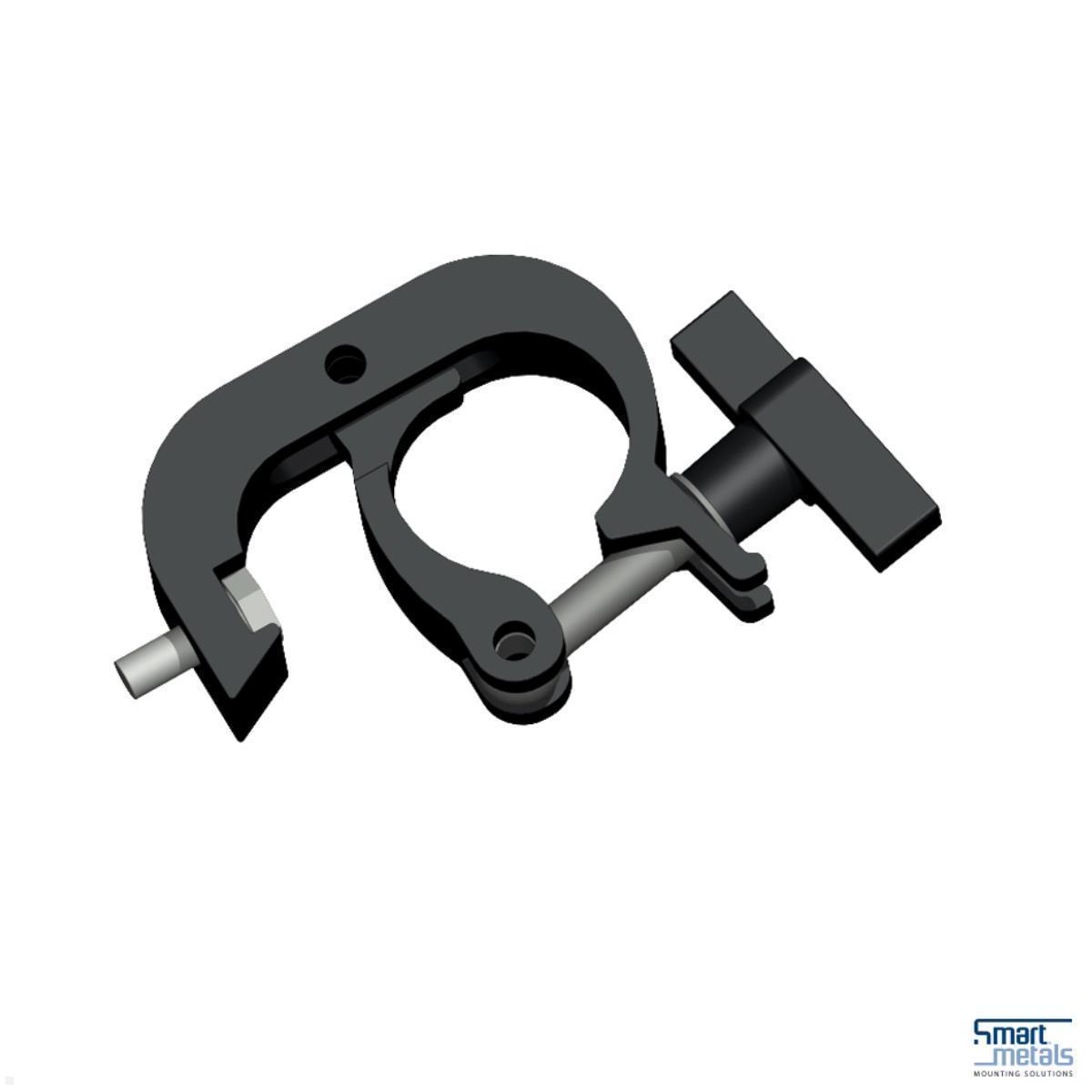

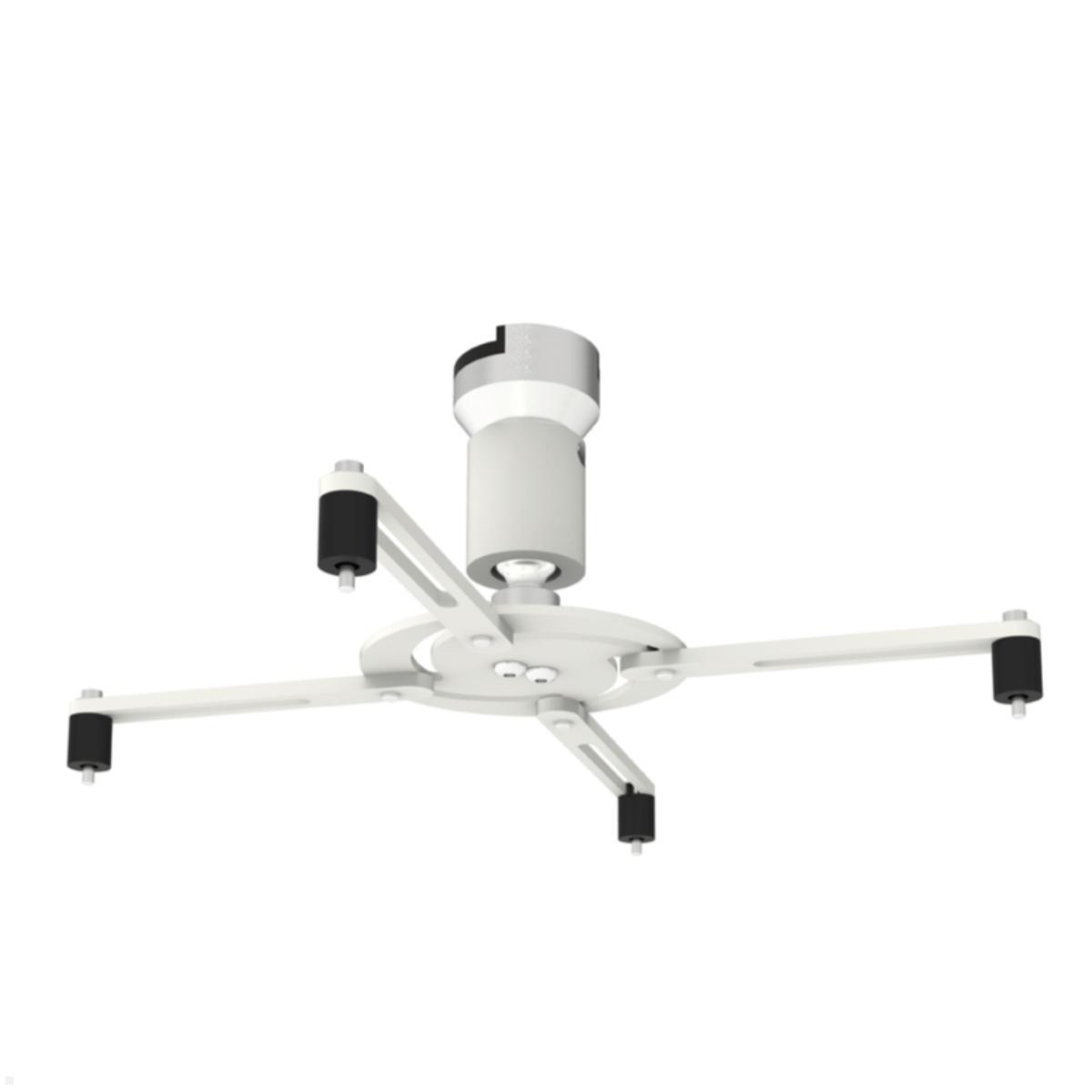

- Scope of delivery: SmartMetals projector mount L1T (002.2441) | SmartMetals Trigger Clamp truss clamp / tube clamp (003.1128)

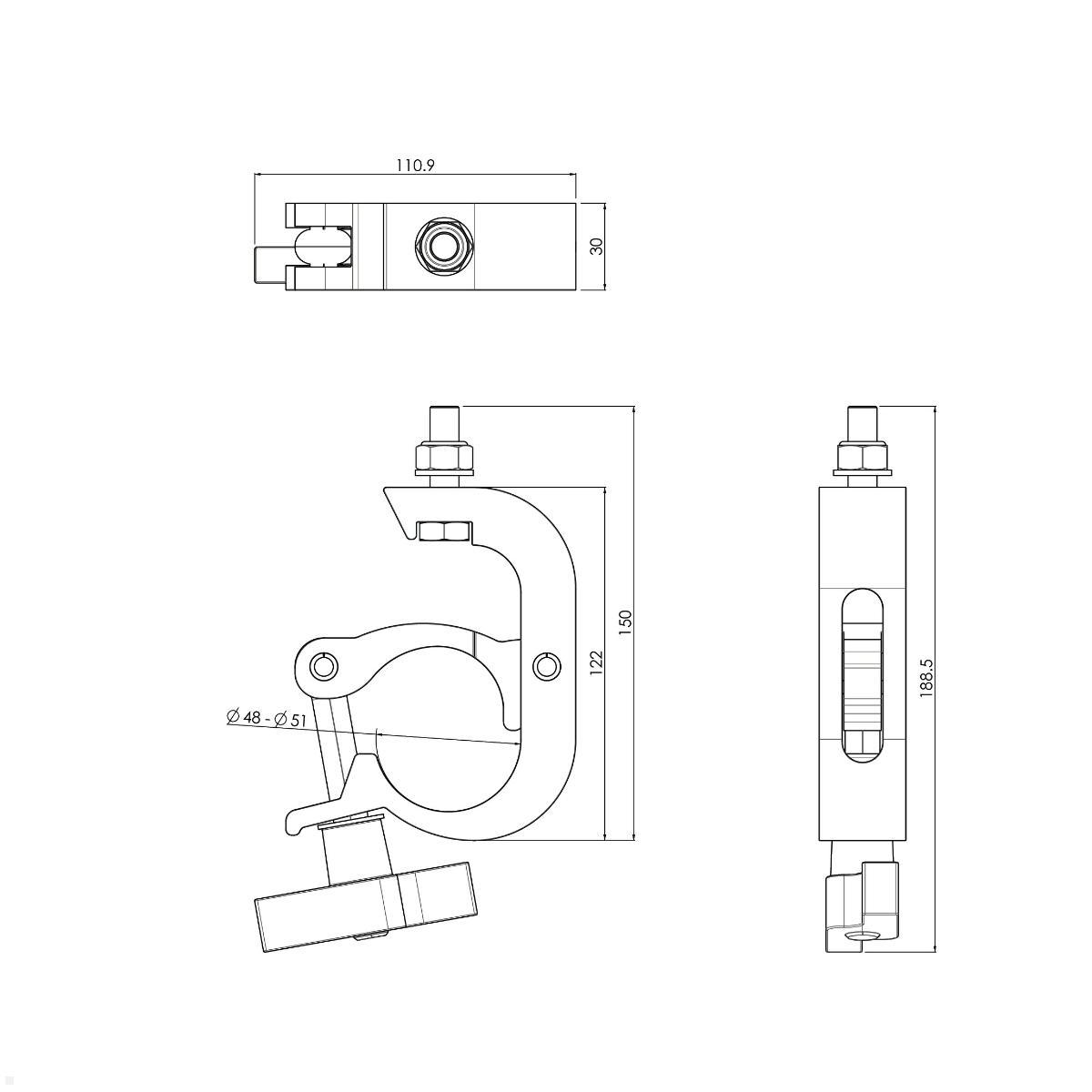

- Max. diameter pipe / column / truss: 51 mm
- Fixing range: max. 385 mm
- Tilt: +/-20°
- Rotate: 360°
- Ball joint for easy alignment of the projector
- Finish: white (RAL 9010)
- Warranty: 5 years
Does your projector fit the SmartMetals projector mount?
We will check whether your beamer or projector is suitable for this SmartMetals projector mount with pipe clamp. Please tell us your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will verify whether the projector fits or not and contact you.
| Product sheet: |  [pdf] |
|---|---|

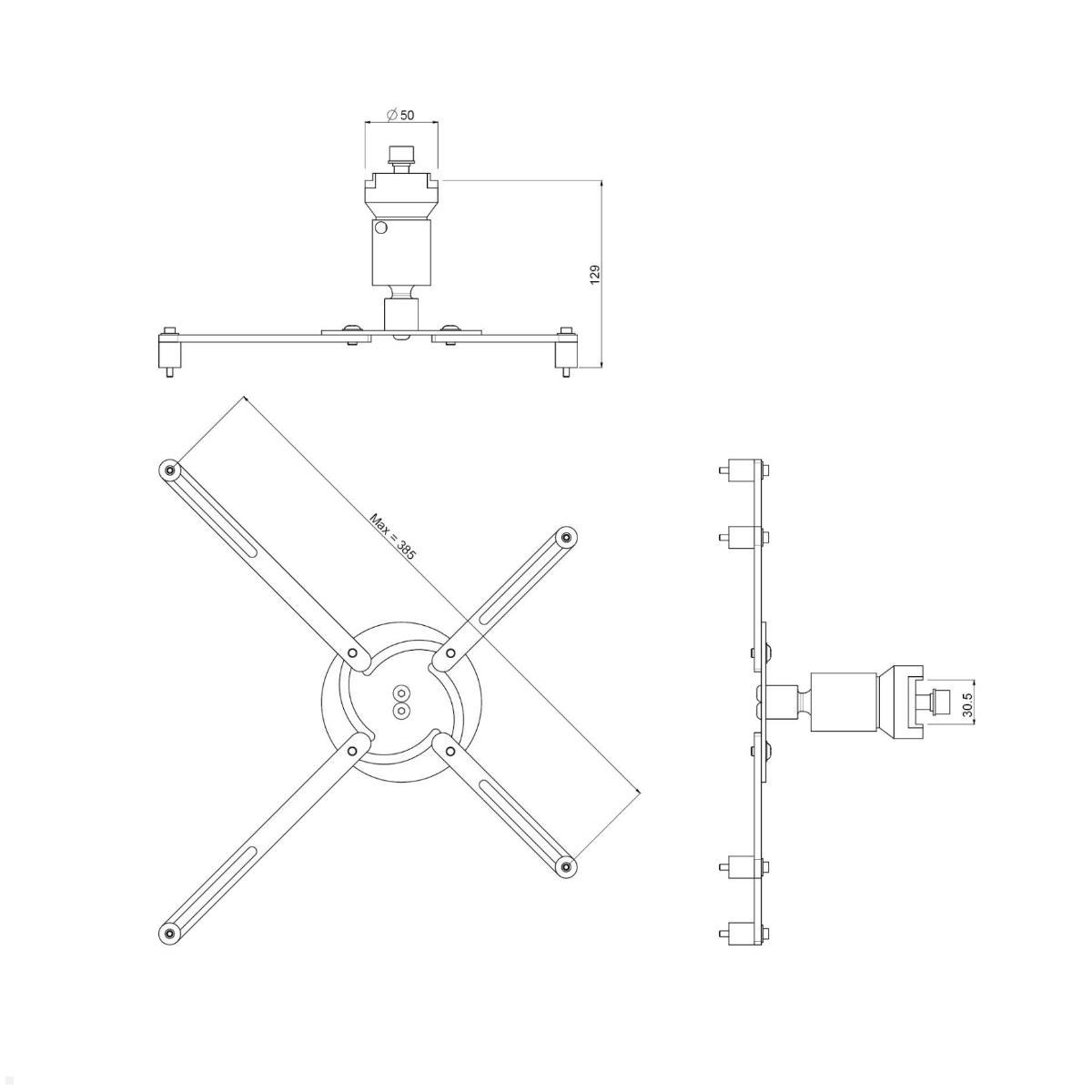

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 25 kg |
| Tilt: | +/-20° |
| Height range (mm): | - |
| Swivelling range: | 360° |
| Ceiling distance: | 130 mm |
| Packaging dimensions (LxWxH in mm): | 270 x 120 x 120 | 420 x 30 x 300 |
| Scope of delivery: | SmartMetals Projector Mount L1T | SmartMetals Trigger Clamp Truss Clamp |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | SmartMetals Mounting Solutions B.V., Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info@smartmetals.nl |
| Ceiling distance in m: | < 3m |
| Mobility: | swivelling, tilting |
| Mounting type: | Pillar mount |
| color: | Weiß |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
