SmartMetals TV floor wall mount up to 90 inch, VESA 400x400
Monitor floor / wall mount

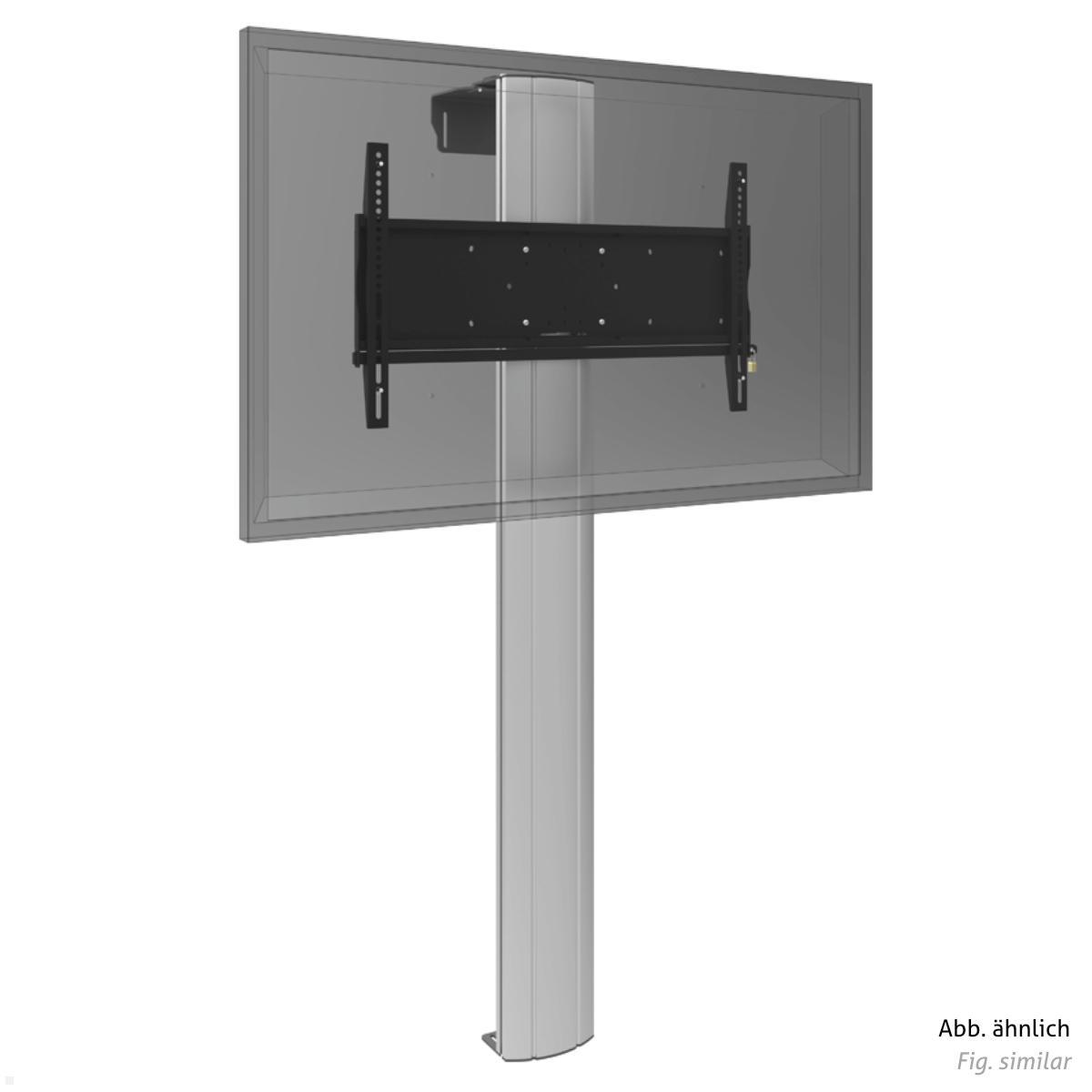

The monitor floor / wall mount from SmartMetals is specially designed for large and heavy displays weighing up to 100 kg or 90 inches diagonal (Heavy Duty). With its small footprint, it is especially suitable for confined spaces where a common TV stand would take up too much space on the floor. The monitor stand's design also shifts the weight of the screen from the wall to the floor, making it easy to mount even on less load-bearing walls. Areas of application for the TV floor wall holder include meeting and conference rooms, universities, schools or hospitals. To set the ideal viewing angle, the screen can be manually adjusted in any height along the column. Digital content can thus be presented in a way that is clearly visible to the general public, for example during video conferences. Thanks to the integrated cable management, a tidy overall appearance is ensured. For additional theft protection, the display can be secured to the TV stand with a separate padlock.
Key features SmartMetals Heavy Duty floor wall mount (063.1000)
- Floor wall mount for monitors or TVs
- Suitable for large format / heavy displays (Heavy Duty)
- Manually height adjustable
- Max. screen size: 90 inch
- Load capacity: 100 kg
- VESA mount: 75x75, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mm
- Height of column: 1900 mm
- Integrated cable guide
- Optional anti-theft padlock (sold separately)
- Easy installation, mounting material included
- Material: metal
- Color: aluminum / black
- Warranty: 5 years
Does your monitor or display fit the VESA mount?
We would be happy to check if your monitor is suitable for this SmartMetals Heavy Duty floor / wall mount (063.1000). Just tell us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you if the monitor or display fits the monitor mount and if not, we will contact you.
VESA standard - Learn more about VESA!
| Product sheet: |  [pdf] |
|---|---|

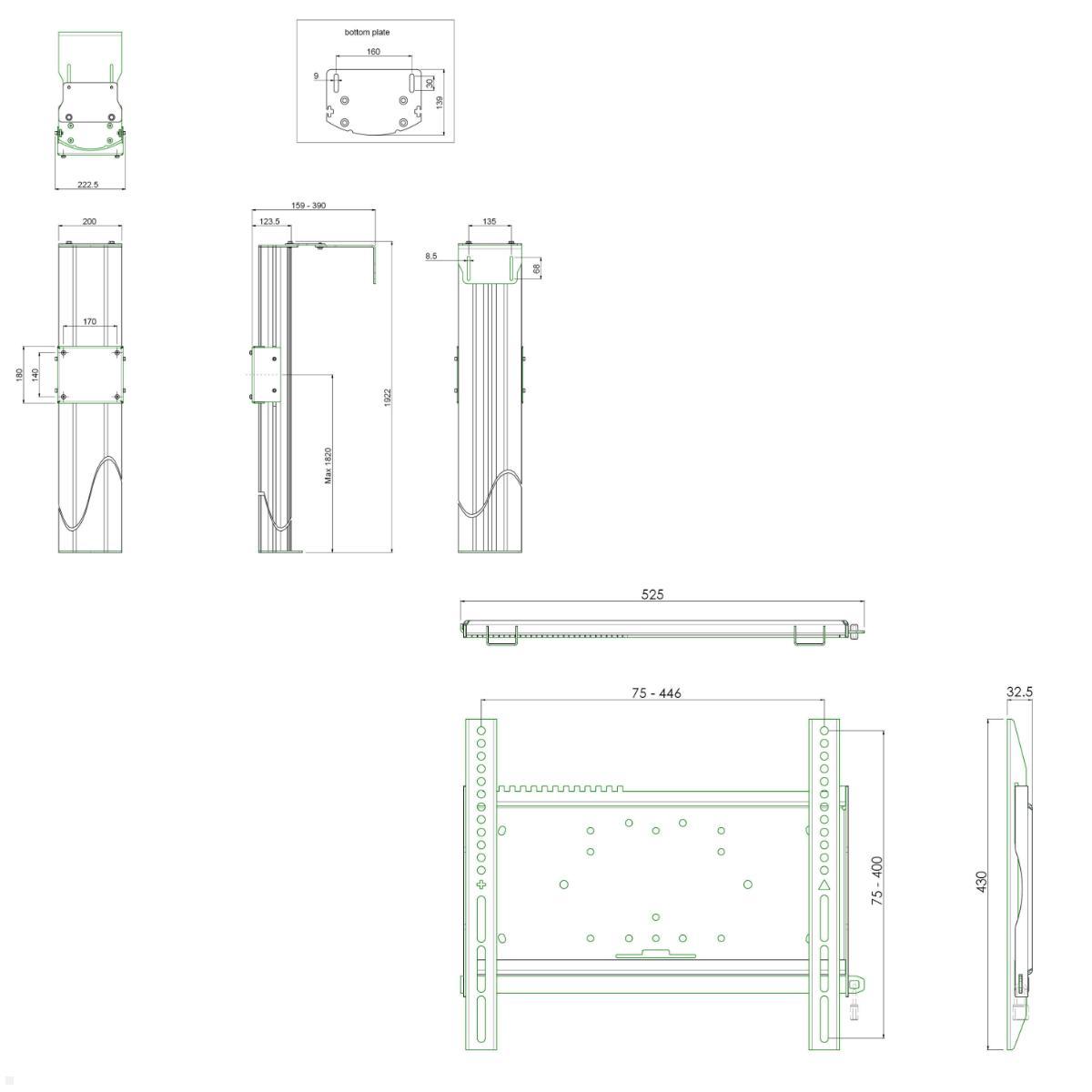

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 100 kg |
| Screen size: | max. 90 " |
| Material: | Metal |
| VESA Standard: | 75x75, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 1900 x 200 x 300 | 560 x 280 x 40 |
| Scope of delivery: | 1x floor wall pillar | 1x TV wall mount | installation material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | SmartMetals Mounting Solutions B.V., Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info@smartmetals.nl |
| Inch size: | 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 79 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch, 90 inch |
| Mobility: | height adjustable |
| Mounting type: | Floor wall mount, wall mount |
| Theft-proof: | Optional |
| color: | Silver/Black |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
