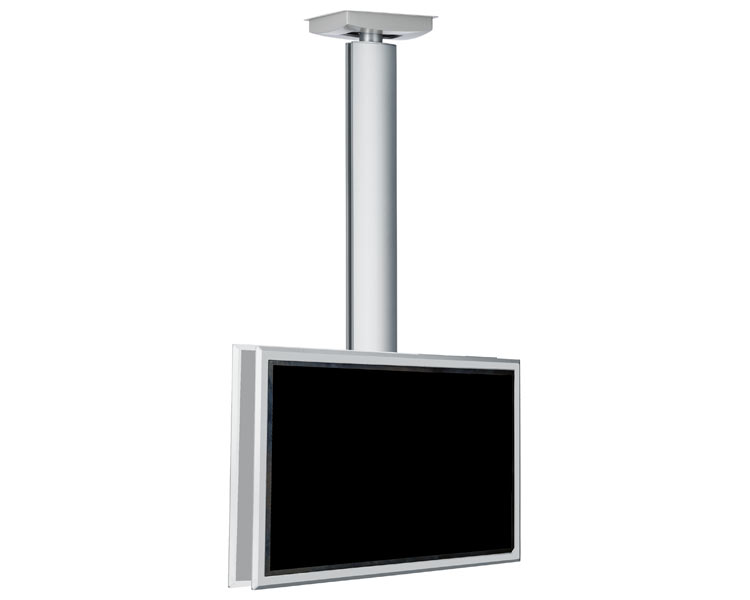

SMS Flatscreen CH STD 600 Aluminium/Silver EU
Twice as good. SMS Flatscreen CH STD fulfills two needs at once. A doubly good design that holds two screens on the same pillar.
As with most of our ceiling models, you can tilt the screen for the best possible viewing angle. The screens can also be swiveled from side to side to face any point in the room. A most ingenious way to display two screens at once. The bracket holds up to 100 kg. Perfect for the lobby or other public spaces or if you like to watch two programs at once. News for this bracket is that the screens can be adjusted stepless along the pillar.

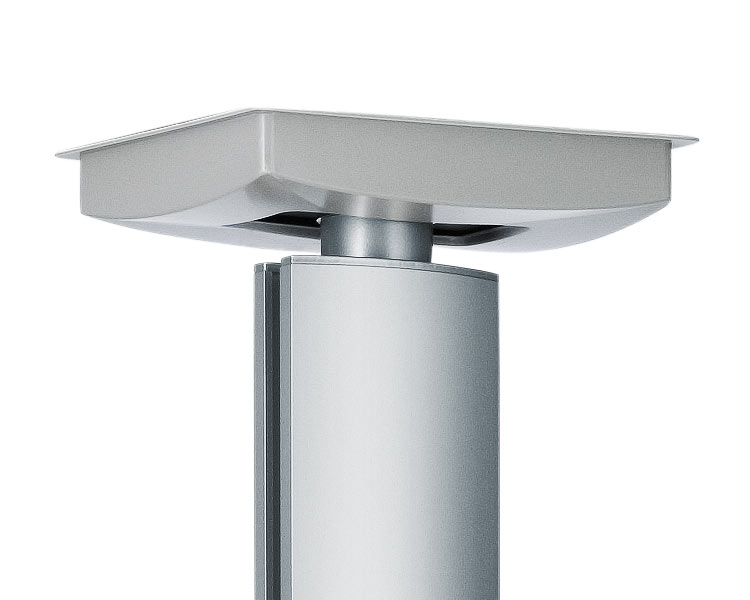

The adapterplate has a new design, which is easier and more user friendly. There is also a new design on the pillar which allows you to, stepless, raise and lower you screen and shelves. The new SMS Flatscreen H2 Unislide is included in the bracket.
- Color: aluminium/silver.
- Max load: 100 kg
- Length (pillar): 600 mm.
- Swivel & Tilt: The screen can be swivelled 360° and be tilted -3°/+10°.
- Optional: Shelves
- incl. SMS Flatscreen H2 Unislide
- Vesa standard: 200x100/200x200/400x200/400x400/600x200/600x400/800x400 and screens with max holepattern: 800x500 mm.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: | [pdf, 104 kb] |
|---|---|
| Technical drawing: |  [pdf, 57 kb] |
| Installation manual: | [pdf, 412 kb] |
| Capacity: | 200 kg |
| Tilt: | -3°/+10° |
| Swivelling range: | 360° |
| Screen size: | 32 - 60" |
| Ceiling distance: | 600 mm |
| VESA Standard: | 200x100, 200x200, 400x200, 400x400, 600x200, 600x400, 800x400, 800x500 (www.vesa-standard.com) |
| Accessories: | SMS Cable Managment SMS Shelfes H SMS Flatscreen H2 UniSlide |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | SMS Smart Media Solutions AB, Högbergsgatan 26b, 116 20 Stockholm, Sweden, info@smartmediasolutions.com |
| Ceiling distance in m: | < 1m |
| Mounting type: | Ceiling mount |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Silber |
| VESA (in mm): | VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
