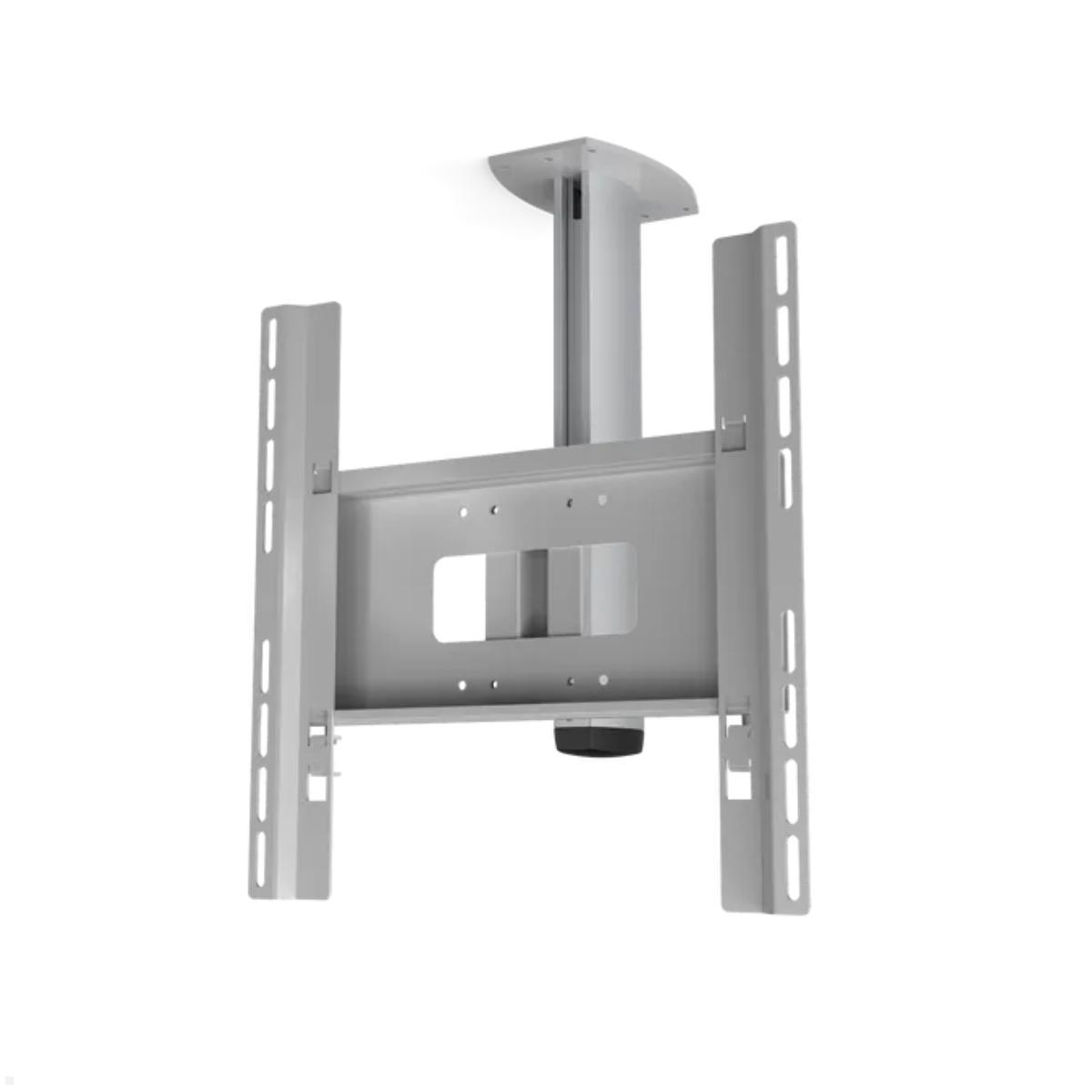

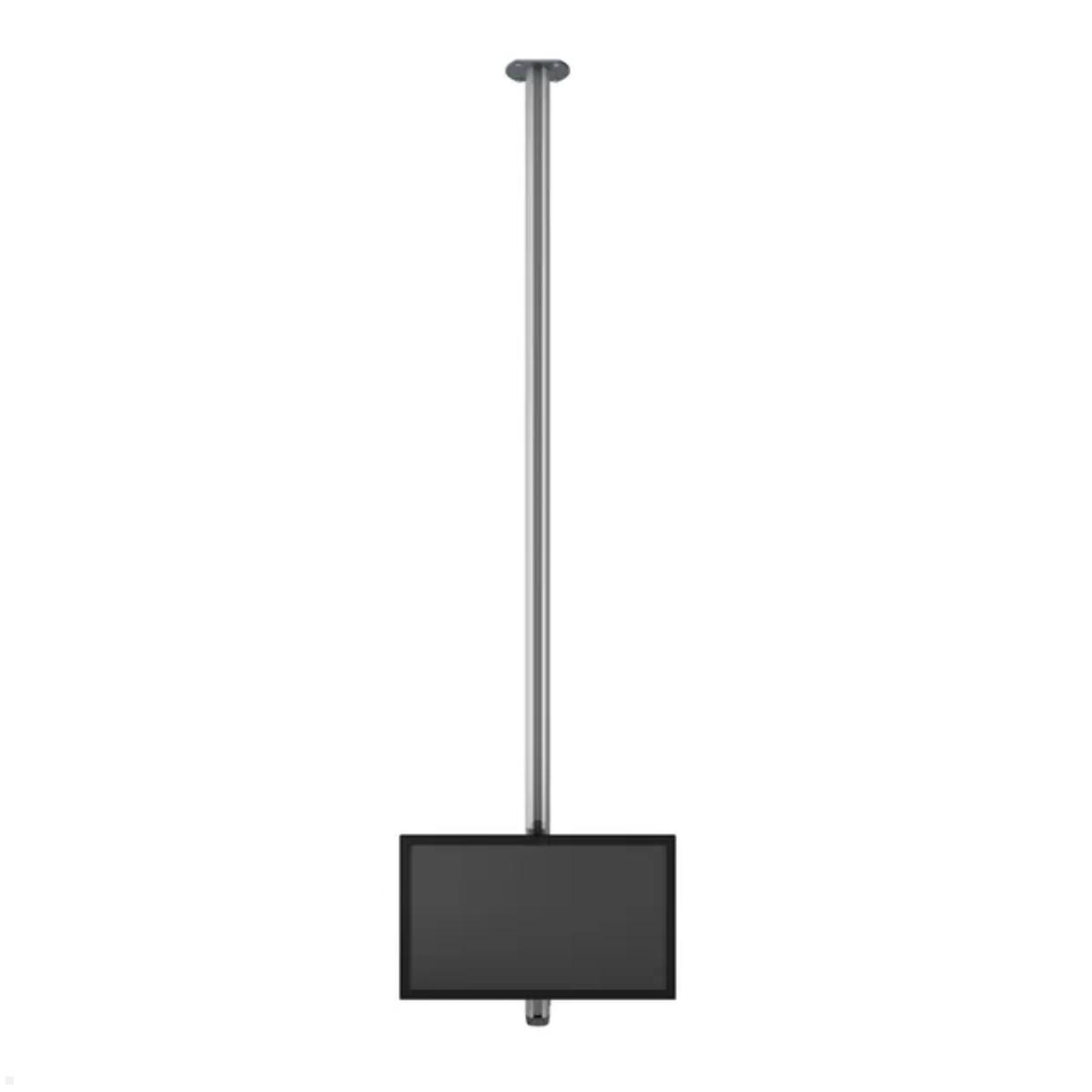

SMS Flatscreen CM ST 1800 monitor ceiling mount (FS061024-P0)
With the SMS FS061024-P0 ceiling mount Flatscreen CM ST 1800, up to four monitors with a maximum weight of 30kg can be safely mounted on the ceiling. The stylish ceiling mount is available in 4 different lengths.
SMS Flatscreen CM ST1800 monitor ceiling mount FS061024-P0
The SMS Flatscreen CM ST FS061024-P0 can support four middle weight screens suspended from the ceiling. This is an attractive and elegant ceiling mounted bracket that will do your display justice. Like most of the SMS ceiling brackets the screens can be tilted for the best viewing angle. The SMS Flatscreen CM ST can also feature a combination of screens and shelves (optional) mounted on to the bracket to offer multiple possibilities for your display.
Key features SMS Flatscreen ceiling bracket FS061024-P0
- Finish: Aluminium/black
- Max. capacity: 30 kg (per screen)
- Length: 1800 mm
- Swivel range: +/-45°
- Tilt: -3°/+12°
- Integrated cablemanagement
- VESA mounting Standard: 75x75, 100x100, 200x100, 200x200, 400x200, 400x300, 400x400 mm
- If you want to add an extra screen to your bracket you will need an extra SMS Flatscreen M Unislide Kit for each additional screen.
Does your monitor fit the SMS FS061024-P0 bracket?
We would be happy to check if your monitor (display, TV, LED, LCD, Plasma, TFT, screen) is suitable for this monitor holder FS061024-P0. Simply send us your model (manufacturer + model no.) At the end of the order process. We then check for you whether the monitor fits and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 345 kb] |
|---|---|

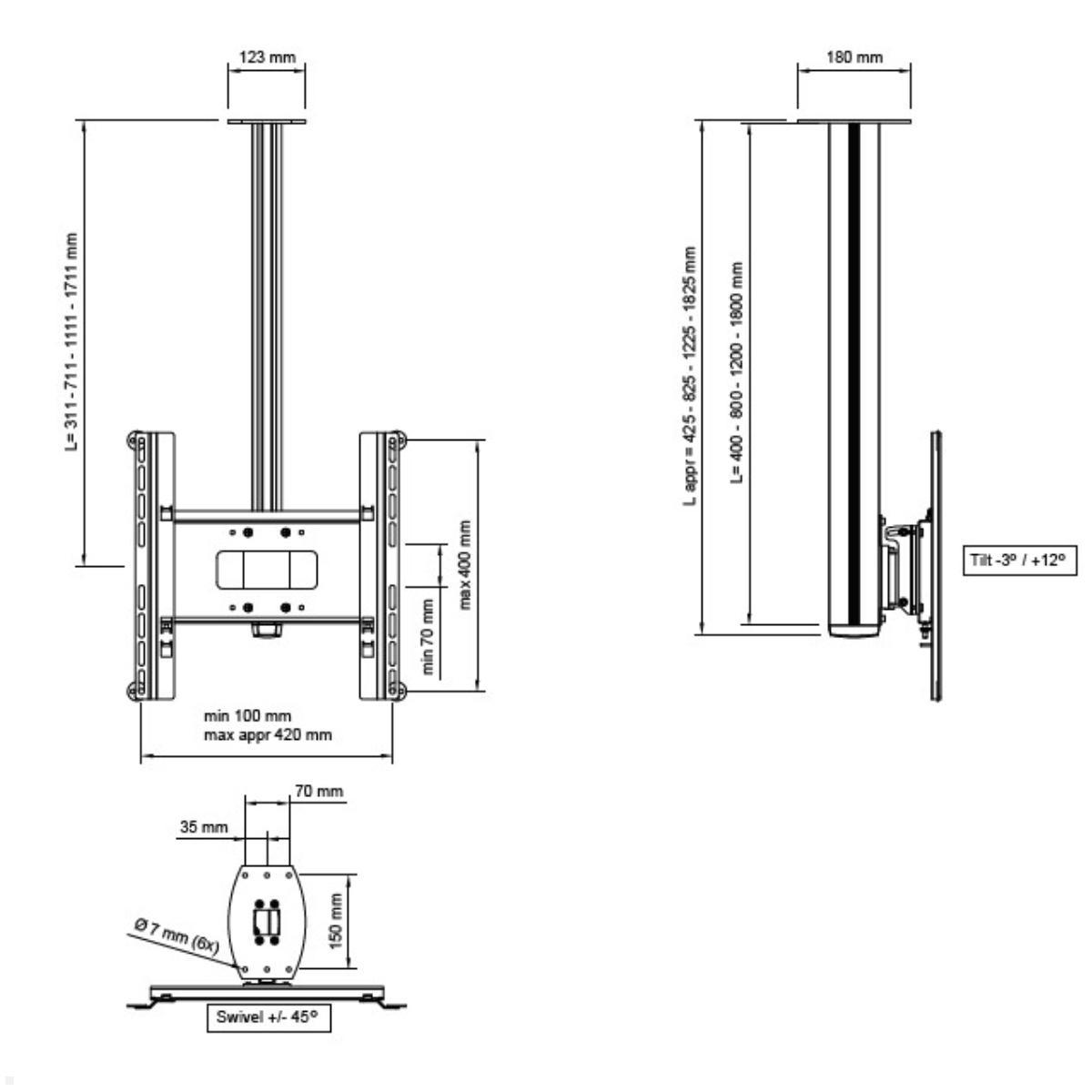

| Technical drawing: | [pdf, 58 kb] |
| Installation manual: | [pdf, 888 kb] |
| Capacity: | 30 kg |
| Tilt: | +12°/-3° |
| Swivelling range: | +/- 45° |
| Ceiling distance: | 1800 mm |
| VESA Standard: | 75x75, 100x100, 200x100, 200x200, 400x200, 400x300, 400x400mm a href="http://www.vesa-standard.com" target="_blank" title="VESA">(www.vesa-standard.com) |
| Accessories: | SMS Flatscreen M ST Kit Unislide |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | SMS Smart Media Solutions AB, Högbergsgatan 26b, 116 20 Stockholm, Sweden, info@smartmediasolutions.com |
| Ceiling distance in m: | < 2m |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | Ceiling mount |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
