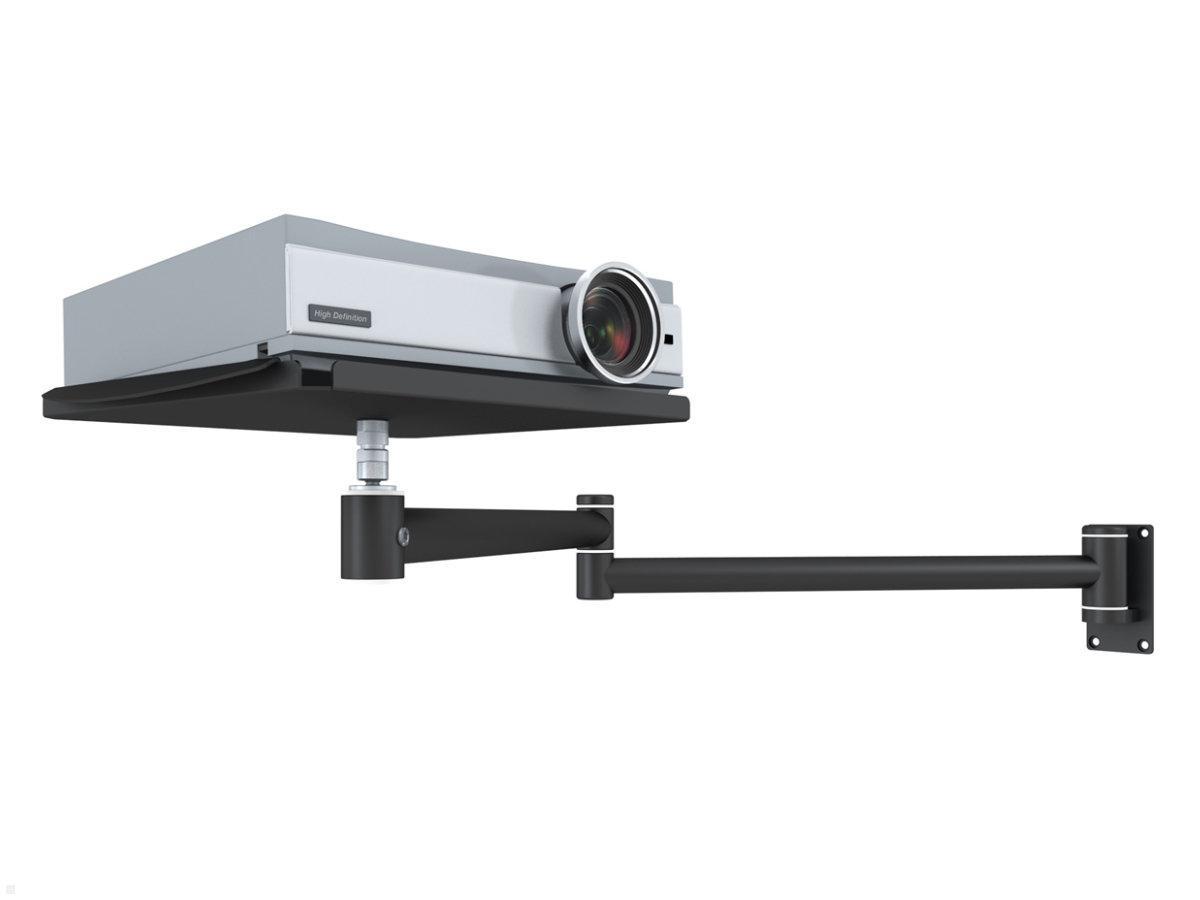

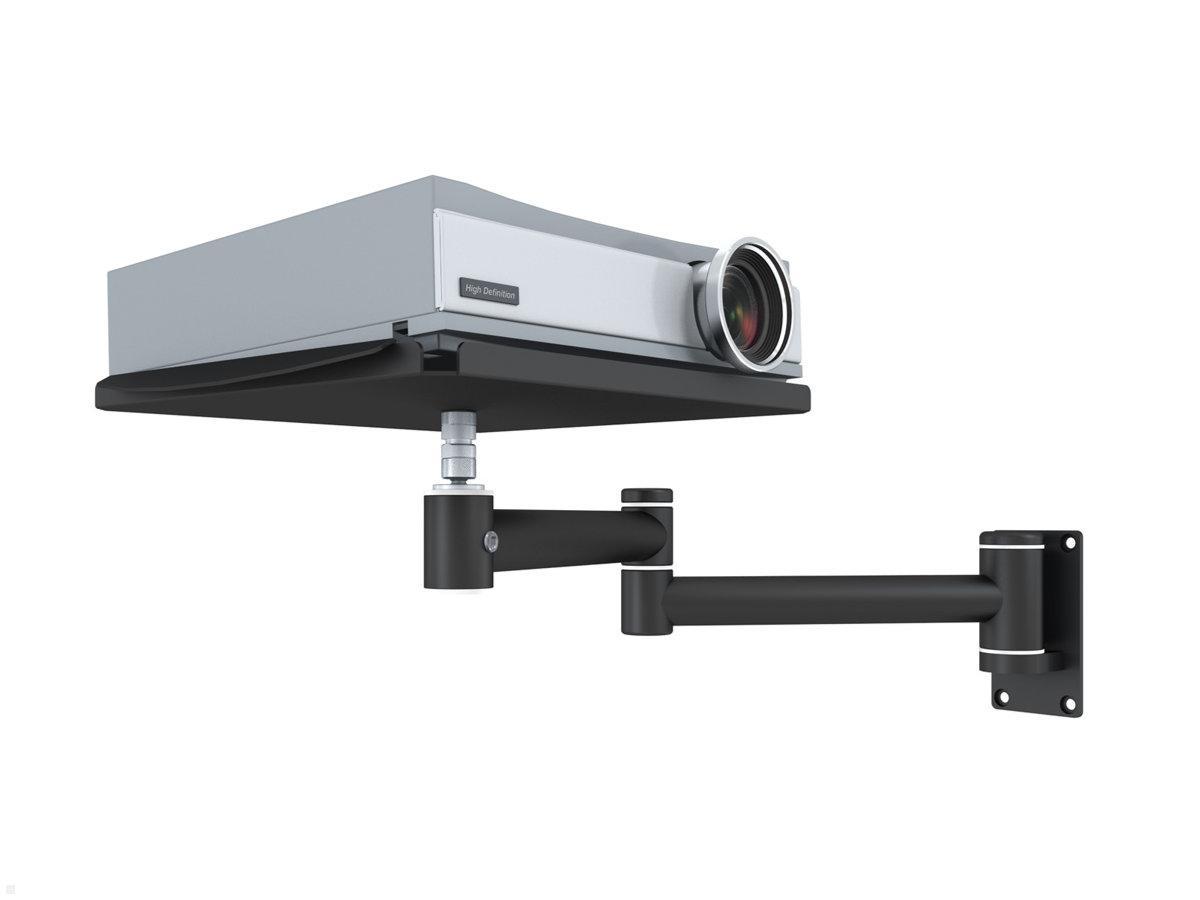

TecLines TBH001B beamer wall mount with swivel arm 2x 600 mm, black
TecLines wall mount for beamers up to 20 kg in black
The TecLines beamer wall mount with swivel arm is suitable for heavy beamers or projectors with a maximum weight of 20 kg. It is made of powder-coated solid steel. Equipped with a 2x 600 mm swivel arm, the beamer mount can be adjusted to your needs at any time.
Key features beamer mount
- Material: powder-coated steel
- Finish: black
- Mounting type: wall bracket
- Length of swivel arm: 600 & 600 mm (total 1200 mm)
- Tableau dimensions (WxD): 300 x 300 mm
- Tableau: rotates 360 degrees, incl. tilt mechanism and handle rail
- Capacity: 20 kg
Special design on request
With no extra price, we shorten the arm to your measurement. Other tableau dimensions are available on request.
| Product sheet: |  [pdf, 367 kb] |
|---|---|

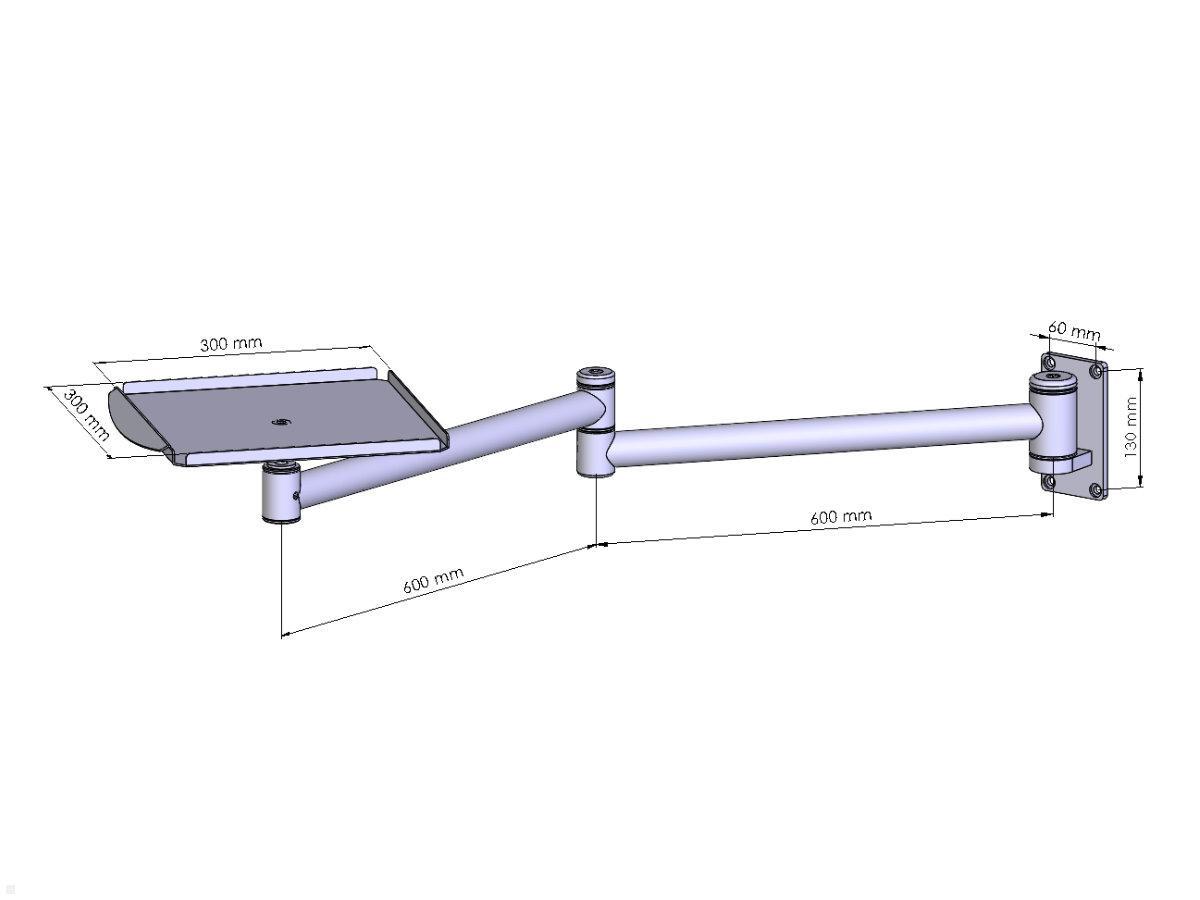

| Technical drawing: | [pdf, 37 kb] |
| Installation manual: | [pdf, 276 kb] |
| Capacity: | 20 kg |
| Swivelling range: | 180° + 360° + 360° |
| Distance of wall: | 1200 mm |
| Material: | Steel |
| Special features: | With no extra price, we shorten the arm to your measurement. Other tableau dimensions are available on request. |
| Suitable for: | Nearly every beamer |
| Contains installation material: | - |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Mobility: | swivelling |
| Mounting type: | wall mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
30 January 2026 17:24
Klare Empfehlung – Produkt & kann ich weiterempfehlen
Top Kommunikation, alles klar und transparent. Funktioniert einwandfrei, klare Empfehlung.
Questions & Answers
-
What is the TecLines TBH001B projector wall mount?
It is a swivelling projector wall mount with a comfortable swivel arm, with arm lengths of 600 mm on each side (1200 mm total). The shelf area fits projectors with a base up to 300 x 300 mm and a maximum weight of 20 kg.
-
What material is it made from and what colour is it?
It is made of powder-coated steel and finished in black.
-
What movement does it offer?
The shelf rotates 360 degrees and includes a tilt mechanism and grip ring.
-
How big is the shelf?
The shelf measures 300 x 300 mm.
-
Can it be shortened or customised?
On request we can shorten the projector wall mount to your size, at the same price. Other table sizes are available on request.
-
What is the maximum load?
Maximum load: 20 kg.
-
What mounting type is it?
Mounting type: wall mount.
-
Who is the manufacturer?
Manufacturer is TecLines.
