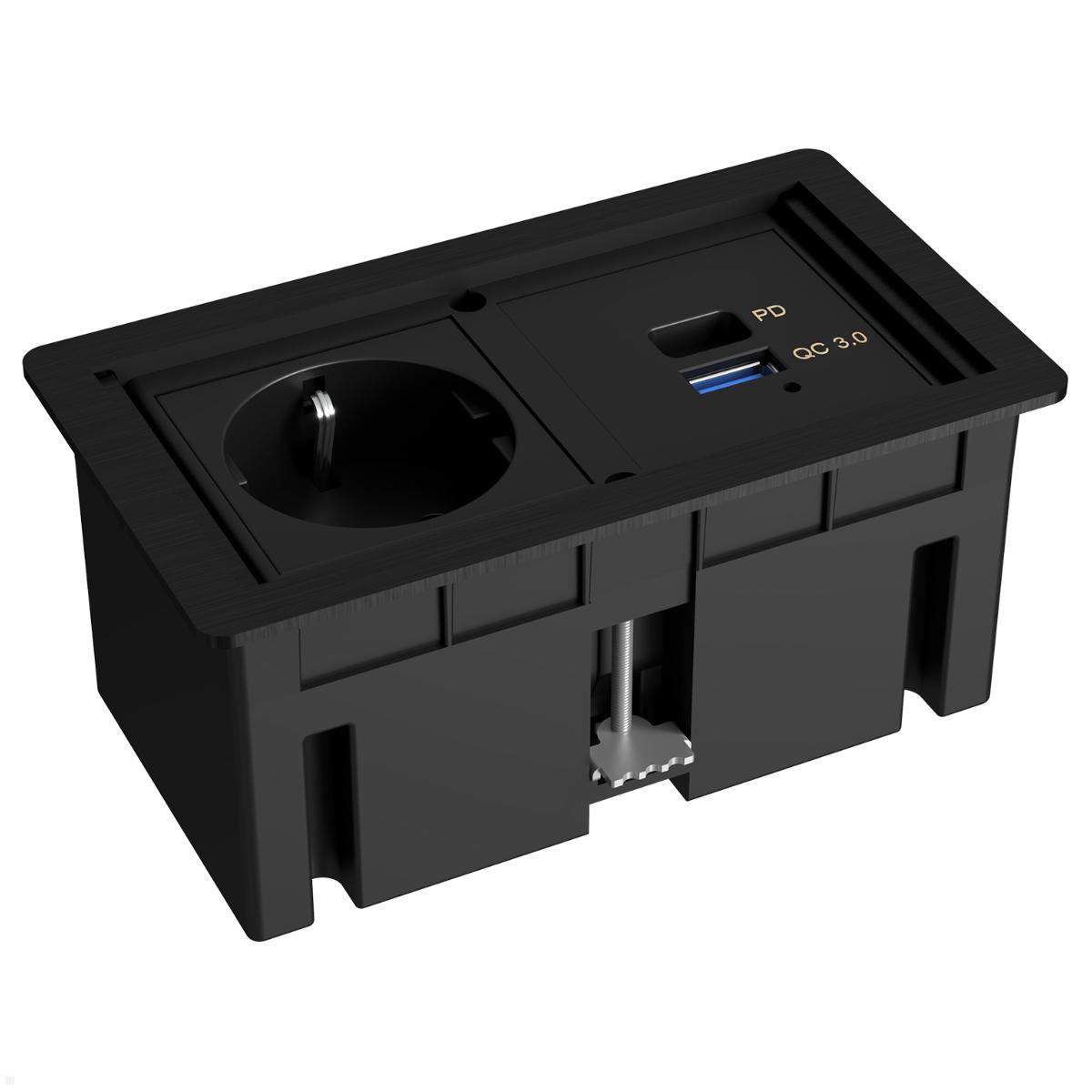

TecLines TMS003 Multifunctional power strip 1x socket, 1x USB A/C 45W
Highlights
- 1x power outlet and 1x USB A/C
- USB fast charging up to 45 W
- PD and QC3.0 protocols
- Magnetic lid closure
- Plate thickness max. 14 mm

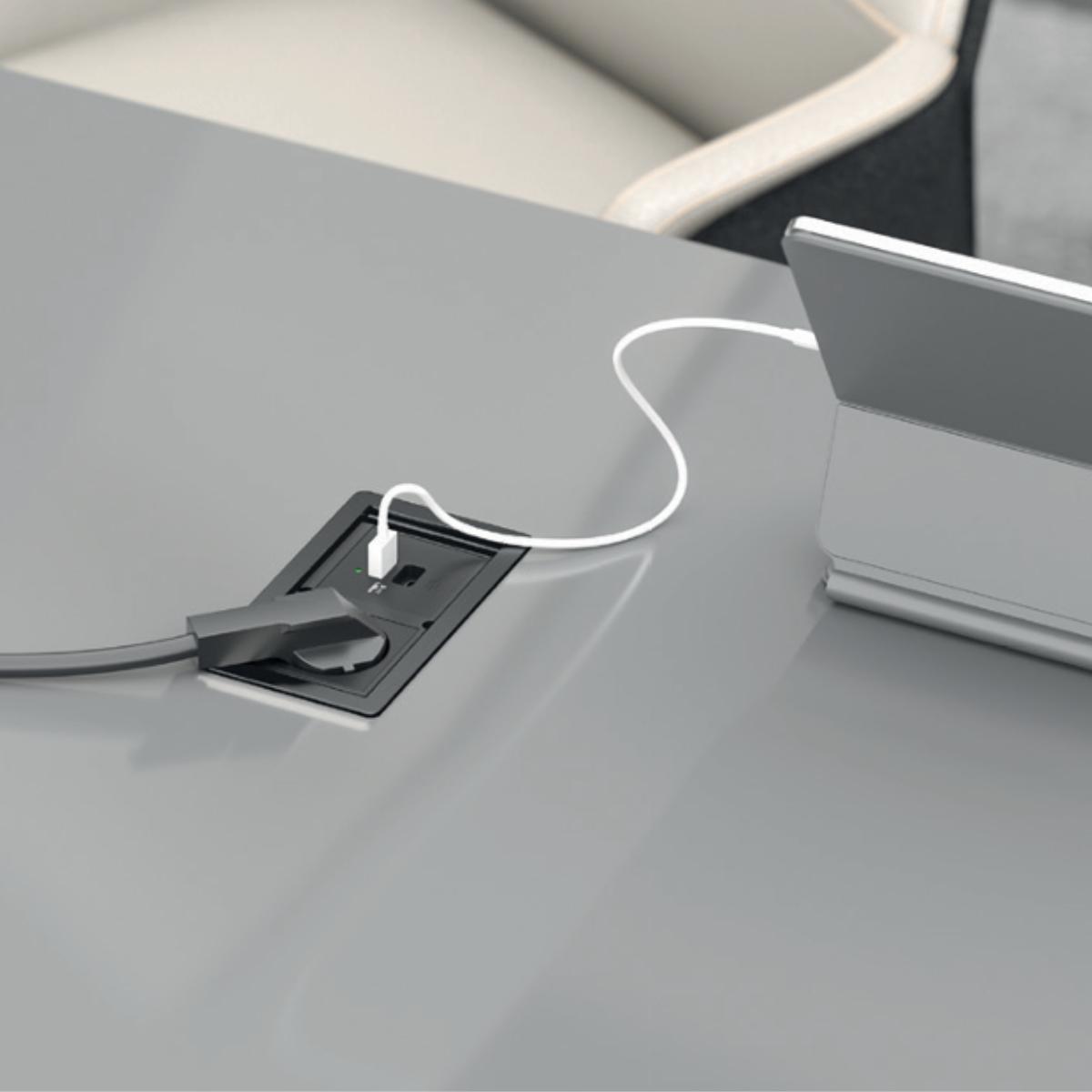

Built-in Power Outlet with USB A/C 45W for Desk and Kitchen
The TecLines TMS003 multifunction power strip 1x outlet, 1x USB A/C 45W combines a grounded outlet (DE/IT UNEL) with a powerful USB A/C charging port delivering up to 45 W of charging power. The integrated charger supports both the PD and QC3.0 protocols for fast charging of smartphones, tablets and laptops. The magnetic lid closure ensures a tidy desktop surface, because when the cover is closed the surface remains completely free and usable.
The multifunction power strip is ideal for use in offices, libraries, workspaces, hotels, kitchens and other private and public areas. Installation is possible on tabletops, vertically or upside down. The maximum panel thickness is 14 mm. With the 2000 mm long connection cable, the TecLines TMS003 offers sufficient flexibility for installation. The two-part lid allows operation with the cover fully or partially open.
Technical Details Multifunction Power Strip with USB Fast Charging
- 1x grounded outlet (DE/IT UNEL)
- 1x USB A+C port, max. 45 W
- USB-A max.: 45 W
- USB-C max.: 45 W
- USB A+C combined max.: 15 W
- Supports PD and QC3.0 protocols
- Operating voltage: 250 V
- Operating current: 16 A
- Max. power: 3500 W
- Cable length: 2000 mm

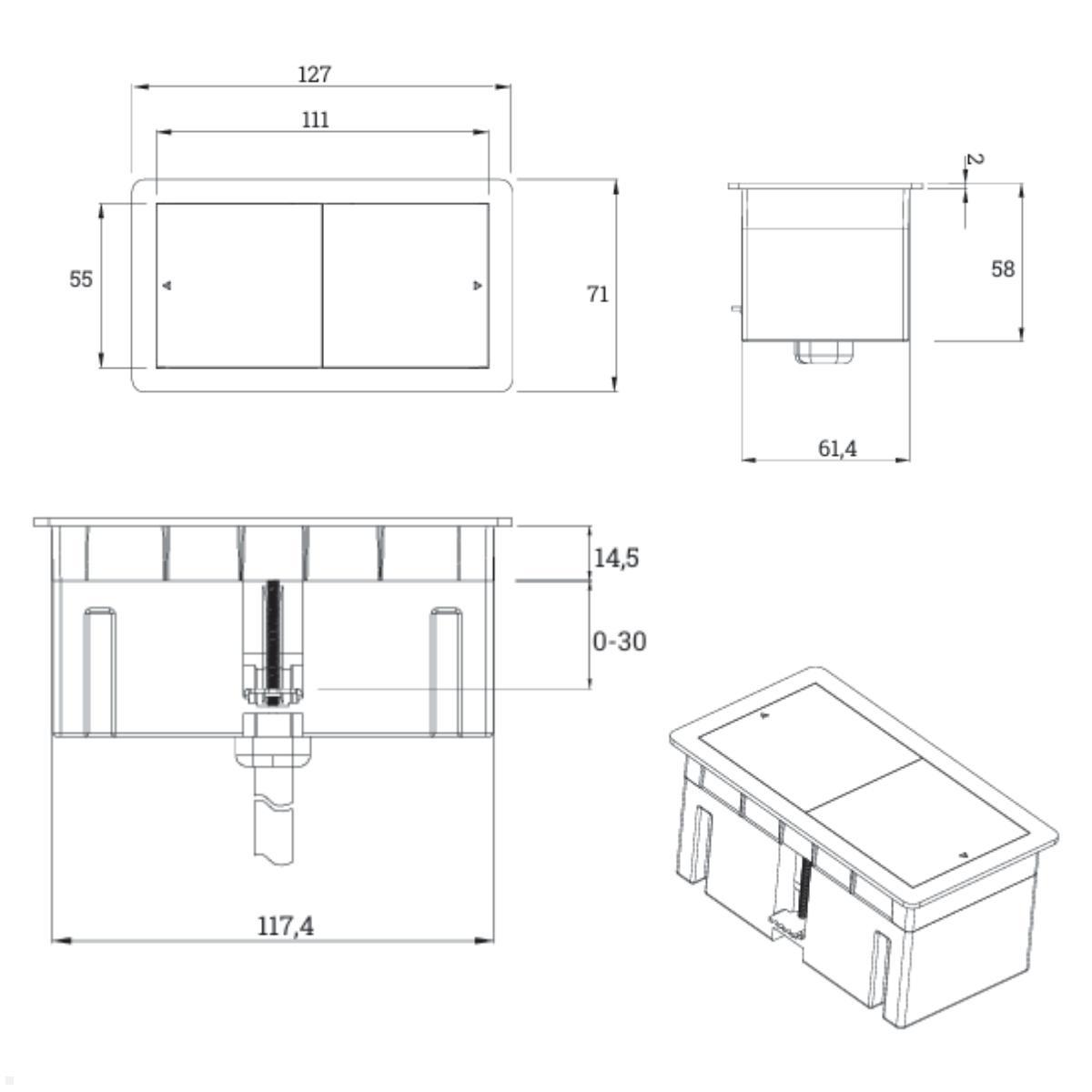

- Panel thickness: max. 14 mm
- Magnetic lid closure
- Two-part lid
- Color: Black
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the TecLines TMS003 multifunction power strip?
The TecLines TMS003 combines 1x protective contact socket (DE/IT UNEL) with 1x USB A/C 45W, suitable for desks and kitchens.
-
What USB charging power is available?
USB A/C socket max 45 W; USB-A max 45 W; USB-C max 45 W; USB A+C combined max. 15 W.
-
Which fast charging protocols are supported?
Supports PD and QC3.0 protocols for fast charging.
-
What are the mounting and installation options?
Ideal for offices, libraries, workspaces, hotels, kitchens, and more. Installation on desk surfaces, vertically or inverted; max board thickness 14 mm; 2000 mm cable.
-
How long is the cable?
Cable length 2000 mm.
-

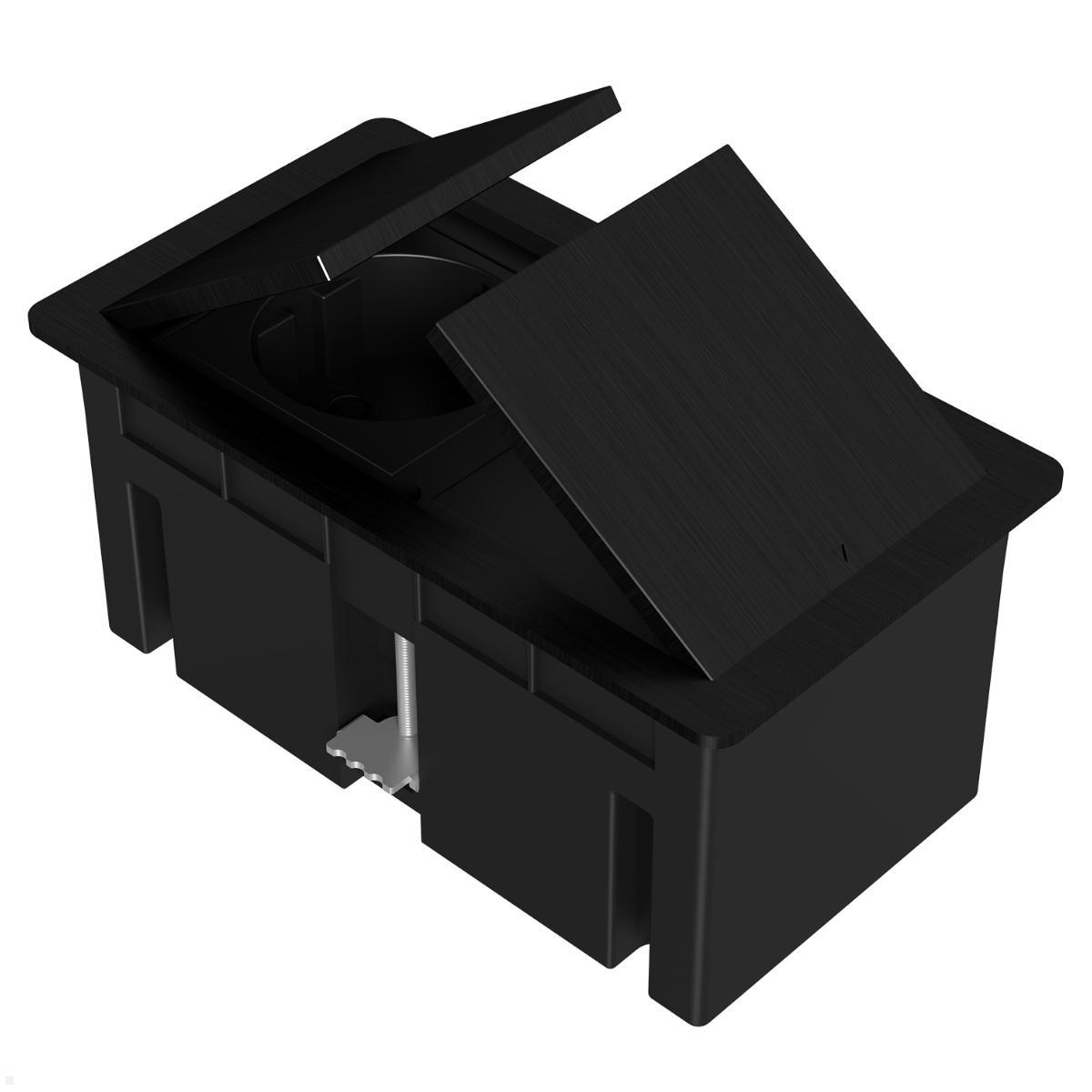

How does the lid work?
Magnetic lid closure; two-part lid allows operation with a fully or partially opened cover.
-
What are the technical specs at a glance?
Operating voltage 250 V; operating current 16 A; max power 3500 W; colour: Black.
Why is the TecLines TMS003 multifunction power strip with USB A/C the ideal solution for the modern workplace?
Efficient work requires a reliable power supply right at the workstation. The TecLines TMS003 multifunction power strip combines a grounded (Schuko) outlet with a powerful USB A/C charging port that provides up to 45 W of charging power. Thanks to support for PD and QC3.0 protocols, smartphones, tablets and even laptops can be charged quickly directly via the USB port without needing a separate charger. The modern and minimalist design blends seamlessly into any work environment. The magnetic lid closure keeps the cover securely closed, so the desktop surface remains completely free and usable when not in use.
Which devices can be charged with the 45W USB fast charge?
The integrated USB A/C port of the TecLines TMS003 delivers up to 45 W of charging power via either USB-A or USB-C. When both USB ports are used simultaneously, a combined power of 15 W is available. This makes the multifunction power strip ideal for charging current smartphones, tablets and compatible laptops. The PD protocol ensures optimal charging speed for Apple and USB-C devices, while QC3.0 quickly charges many Android smartphones. This turns the desk into a full-featured charging station.
For which applications is the built-in socket with USB fast charging suitable?
The TecLines TMS003 is versatile and suitable for offices, libraries, workspaces, hotels as well as kitchens and other private and public areas. Installation can be done on tabletops, vertically or upside down, provided the panel thickness is a maximum of 14 mm. The two-part lid offers additional flexibility, as it can be opened fully or only partially. Cables can therefore be routed through the partial opening even with the lid closed. With an operating voltage of 250 V and an operating current of 16 A, the outlet is perfectly suited for daily use at the workplace.
