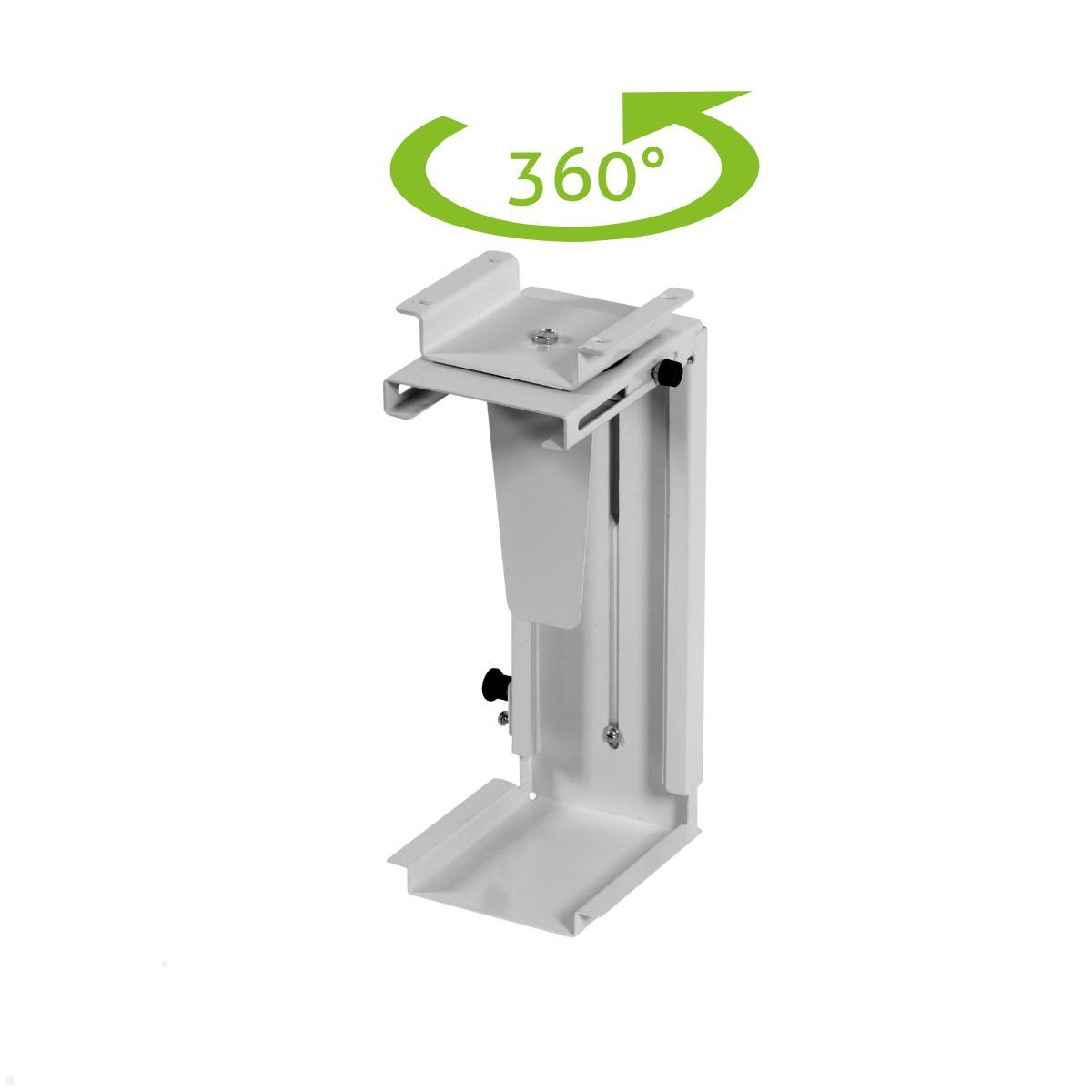

TecLines TPH001S under desk PC mount 80-220 mm, silver
The TecLines TPH001S CPU / PC holder in silver can fix computers with a width of 80 to 220 mm under a desk or worktop. Depending on the size of the PC, the width of the holder is easily adjusted via the top rail with the help of the locking function.
PC under desk mount
The TecLines TPH001S PC holder creates more space on the work surface / desktop because the PC is fixed directly under the desk. This way the PC is protected against dust, dirt and theft. In addition, the workplace can be cleaned more easily. The PC under desk mount can be adapted to many computer case sizes. It can be adjusted in height and also in width, so that the holder is a stable and modern mounting solution for almost every computer. The CPU holder has pre-drilled holes, which makes variable and simple mounting possible. Basically, the upper part of the computer holder is screwed to the underside of the tabletop. However, it can also be attached to vertical surfaces. After installation on the desktop, the height and width can still be flexibly varied. The width is determined by a top rail with a lockable mounting handle, and can be changed in seconds with just a flick of the wrist. TecLines - Intelligent technology by creative innovation.
Key features TecLines TPH001S under desk holder for PC towers
- Material: metal
- Adjustable in width and height
- Width: 85 - 220 mm
- Height: 380 - 610 mm
- PC height: min. 325 - max. 550 mm
- PC width: min. 80 - max. 220 mm
- Top rail with lockable mounting handle
- Height can be adjusted quickly & easily
- Quick and easy mounting under the table top
- Mounting holes pre-drilled
- Finish: silver
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 380 x 290 x 80 |
| Scope of delivery: | 1x PC under desk mount + installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Mobility: | fixed |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
10 February 2026 04:11
Alles top: Kundenservice, spitze Erfahrung
Lieferung war rasant – top Service. Wirklich schöne Optik, sieht klasse aus.
Questions & Answers
-
What is the TecLines TPH001S PC holder?
The TecLines TPH001S PC holder is an under-desk PC mount that creates more space and protects the PC from dust, dirt and theft, making the workspace easier to clean.
-
How is it mounted?
The top part is generally screwed to the underside of the tabletop; mounting to vertical surfaces is also possible. It has pre-drilled holes to aid installation.
-
What adjustments does it offer?

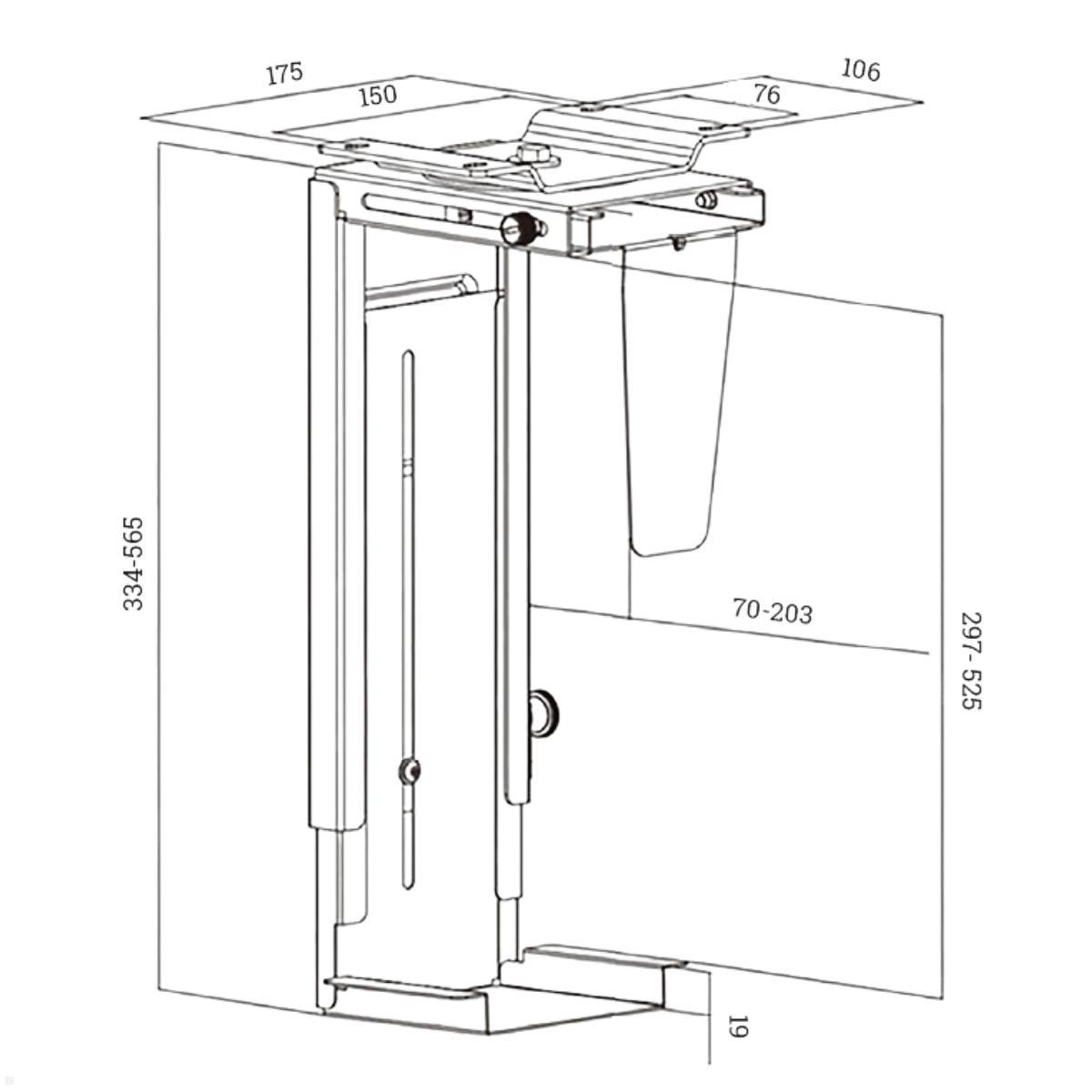

Width and height are adjustable, and the PC can rotate 360°. Height range: 334–565 mm; PC height: 297–525 mm; PC width: 70–203 mm.
-
What does the topschiene with locking grip do?
The width is determined by a topschiene with a locking mounting grip and can be changed in seconds with one hand.
-
What is it made of and what colour is it?
Material: metal; Colour: silver.
-
What are the benefits?
It frees up desk space, protects the PC from dust, dirt and theft, and makes cleaning the workspace easier.
-
Is it compatible with different case sizes?
Yes, it can accommodate many computer case sizes: width 70–203 mm, height 297–525 mm.
