Vogel's EFW 6145 LCD/TFT wall mount
The Vogel's EFW 6145 LCD/TFT 'optimally adjustable' wall support is suitable for TVs up to 26”, and features tilt, turn and reach.

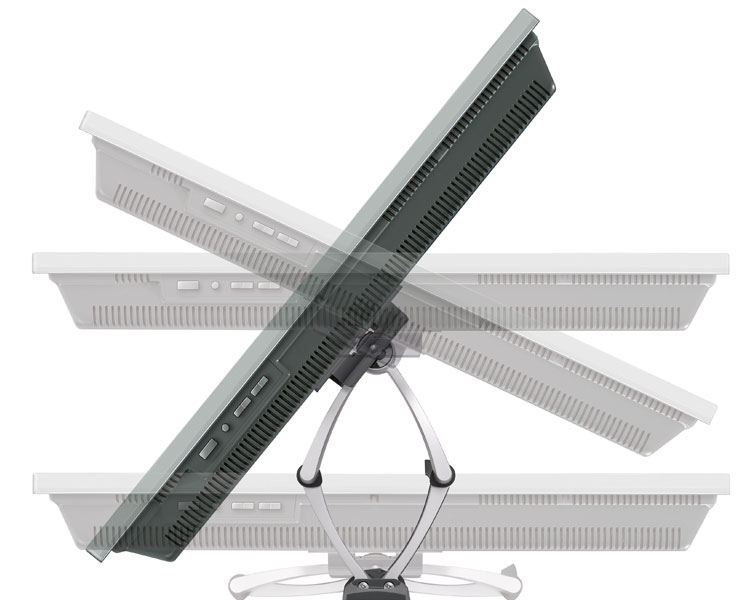

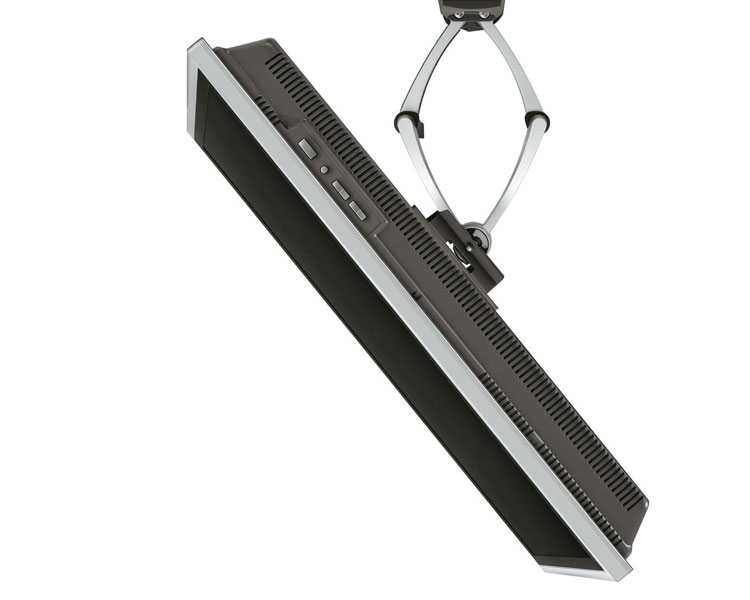

Flexibility and freedom of movement are the key benefits of the Vogel's EFW 6145. You can tilt and turn your screen any way you want for an optimal viewing experience.
Don’t worry about damaging your screen or wall either, as the Vogel's EFW 6145 features Vogel’s unique Screen Protection System (SPSTM) to protect both screen and wall. Note : Some retailers still sell the Vogel's EFW 6105/6125/6145 in the 2007 packaging. The 2007 packaging does not include the strips to create a 200x100 mm mounting hole pattern (the 2007 packaging therefore also indicates a maximum screen size of just 22'', while the current maximum is 26''). Do not worry, the supports in this older packaging can also be made suitable for 26'' screens. Just ask your Vogel's reseller for the service kit containing the 200x100mm strips.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 151 kb] |
|---|---|
| Technical drawing: | [pdf, 73 kb] |
| Installation manual: | [pdf, 3,5 MB] |
| Capacity: | 15 kg |
| Tilt: | +/- 15° |
| Swivelling range: | +/- 60° |
| Length of the swivel arm: | 340 |
| Screen size: | 15 - 26" |
| Material: | Alumnium, Stahl |
| VESA Standard: | 75x75, 100x100, 200x100 (www.vesa-standard.com) |

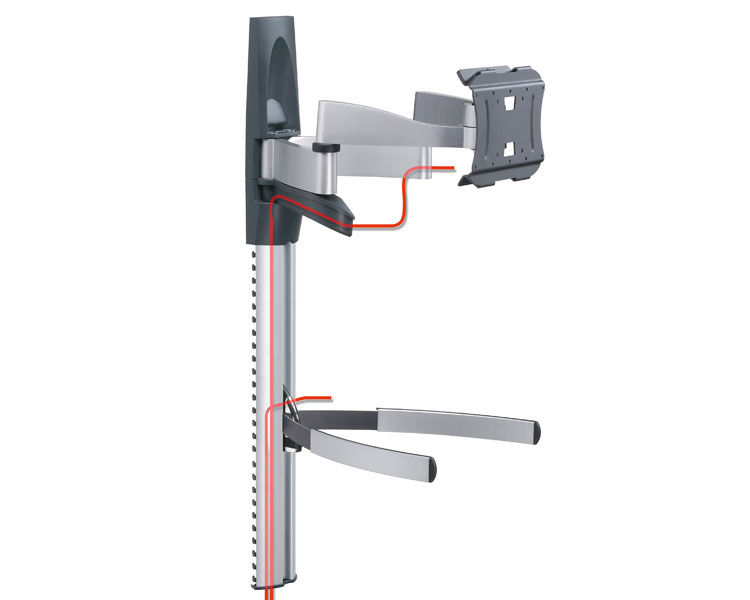

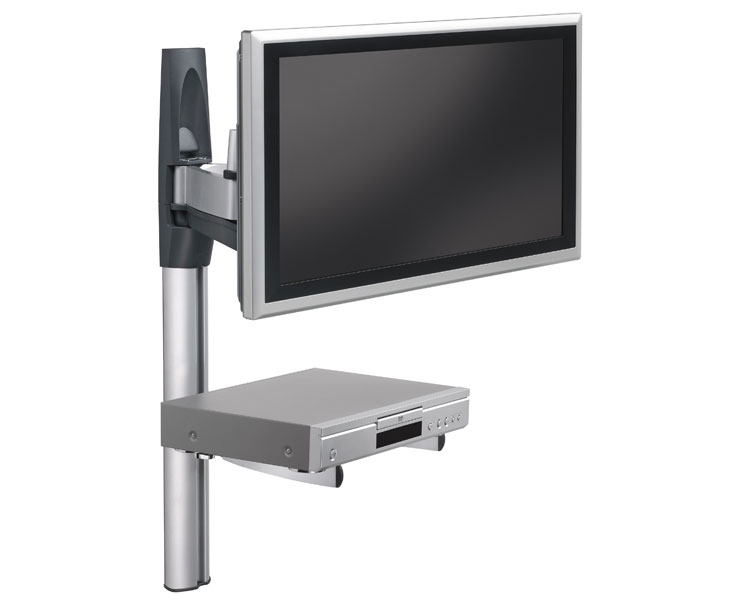

| Accessories: | vogel´s EFA 6825 Audio/DVD-Halter vogel´s EFA 6835/6830/6840 Säulensystem |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
