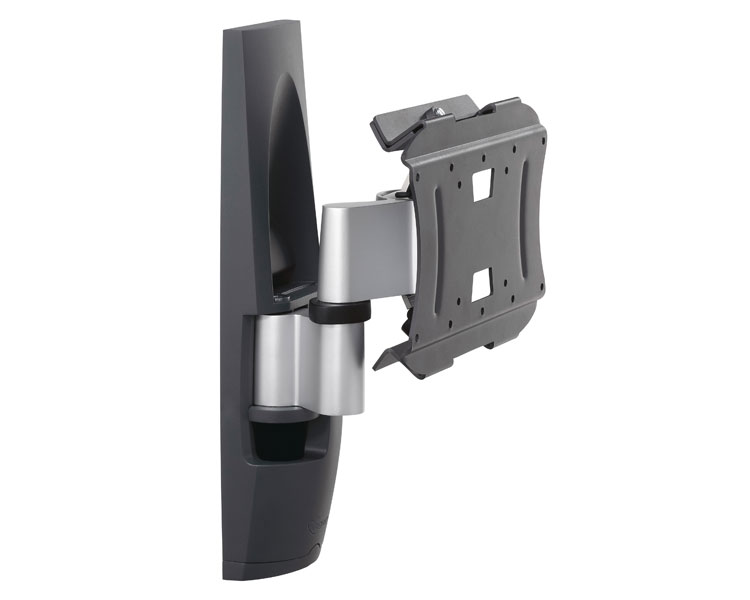

Vogel's EFW 6225 LCD/TFT wall mount
The Vogel' s EFW 6225 LCD 'adjustable' wall support is suitable for TVs up to 37”, and features a tilt and turn function.

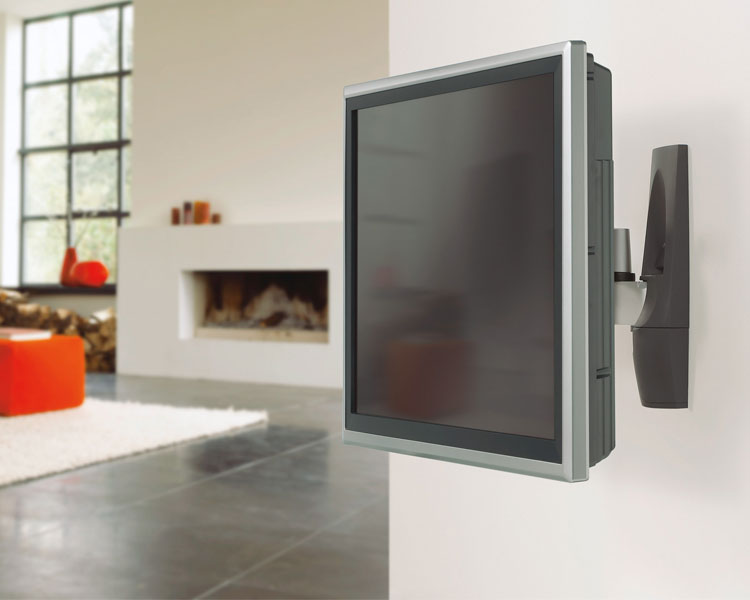

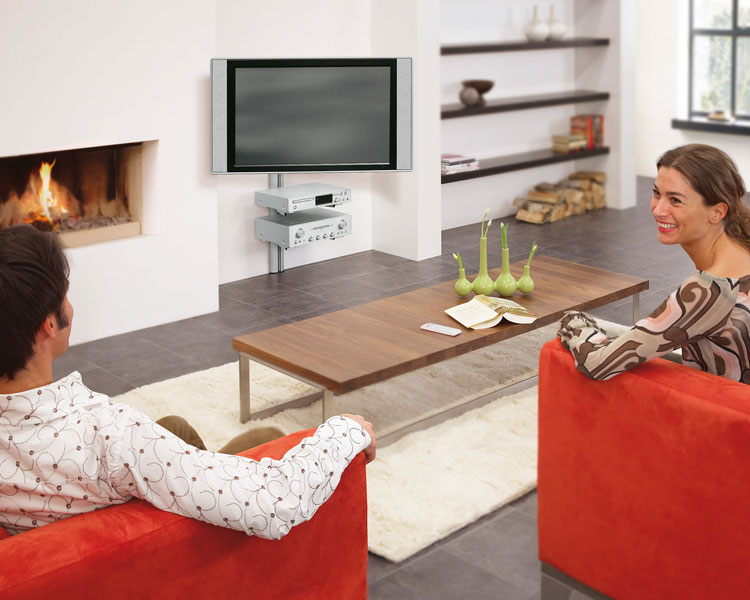

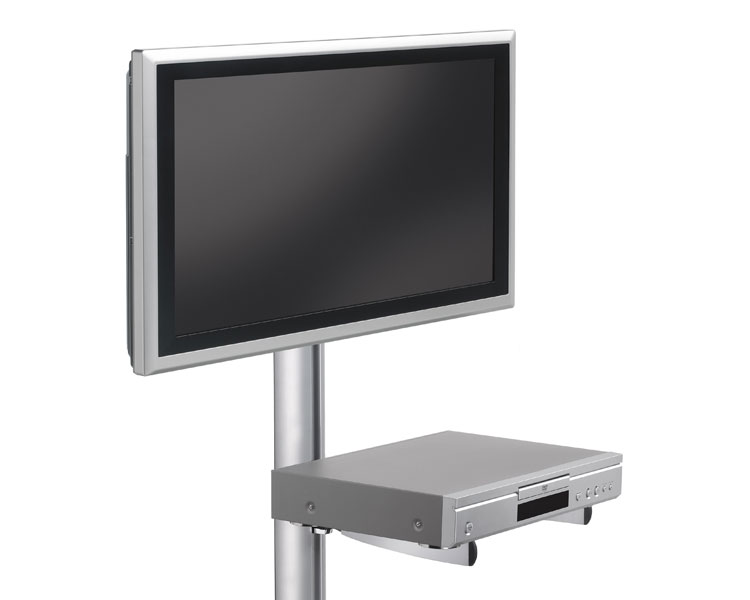

Pull out the EFW 6225 support and turn and tilt your screen to get the best view. Afterwards, simply fold the screen back against the wall. And you can combine this wall support with our Column system and Audio/DVD support to create your own entertainment centre. Note : Some retailers still sell this particular model wall support in the 2007 packaging. The 2007 packaging indicates a smaller maximum screen size compatibility and/or a lower maximum screen weight compared to the specifications on this website. Do not worry, the supports in this older packaging are also suitable for the higher maximum screen sizes and weights as indicated on this website.
- Main Color: Silver/Anthracite
- Turn: 40 °
- Tilt: 30 °
- Min. size: 23 "
- Max. size: 37 "
- Minimum weight: 5 kg
- Max. weight: 35 kg
- Min. distance to the wall: 94 mm
- Max. distance to the wall: 160 mm
- Pre-assembled - install in just 3 easy steps
- Tilt and turn functions guarantee optimal viewing position
- Universal - complies with VESA MIS-D, 100, C, VESA MIS-D, 75, C and VESA MIS-E, C, VESA200x200
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 147 kb] |
|---|---|
| Technical drawing: | [pdf, 71 kb] |
| Installation manual: | [pdf, 3,1 MB] |
| Capacity: | 35 kg |
| Tilt: | +/- 15° |
| Swivelling range: | +/- 20° |
| Length of the swivel arm: | 160 |
| Screen size: | 26 - 37" |
| Material: | Aluminium, Stahl |
| VESA Standard: | 75x75, 100x100, 200x200 (www.vesa-standard.com) |
| Accessories: | vogel´s EFA 6825 Audio/DVD-Halter vogel´s EFA 6835/6830/6840 Säulensystem vogel´s EFA 6875 |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 200x100, VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
