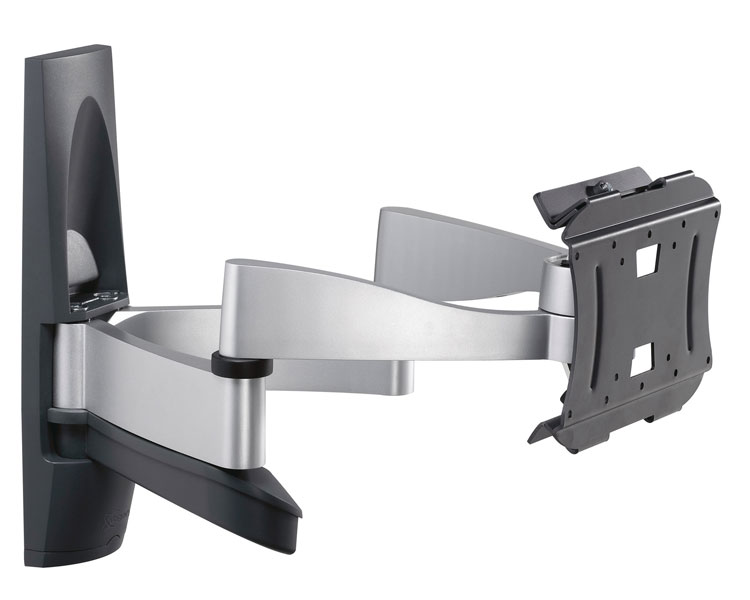

Vogel's EFW 6245 LCD/TFT wall mount
The Vogel's EFW 6245 LCD 'optimally adjustable' wall support is suitable for TVs up to 37”, and features tilt, turn and reach.
Flexibility and freedom of movement are the key benefits of the EFW 6245 as you can tilt and turn your screen any way you want for an optimal viewing experience. Don’t worry about damaging your screen or wall either, as the EFW 6245 features Vogel’s unique Screen Protection System (SPSTM) to protect both screen and wall.
- Main Color: Silver/Anthracite
- Turn: 120 °

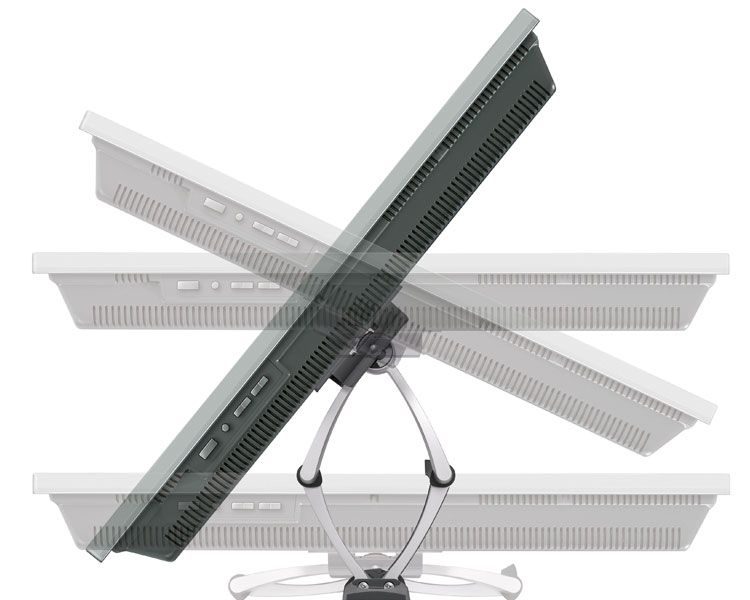

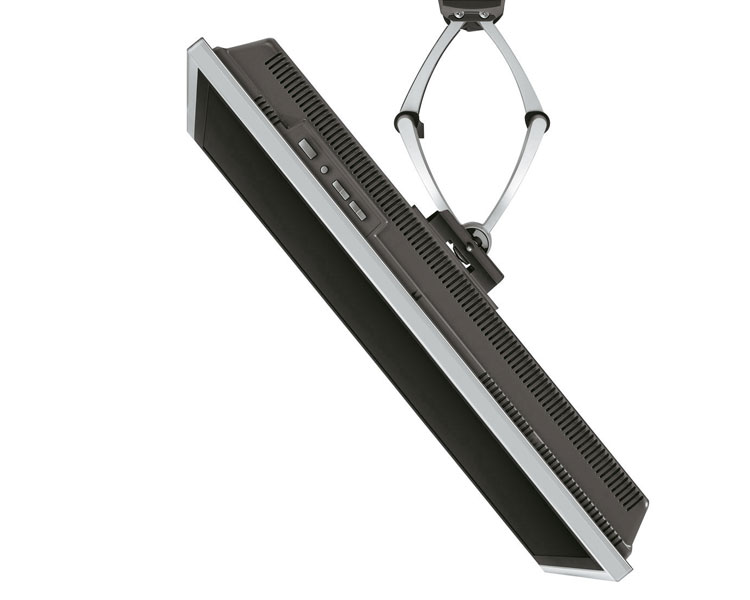

- Tilt: 30 °
- Min. size: 23"
- Max. size: 37"
- Minimum weight: 5 kg
- Max. weight: 35 kg
- Min. distance to the wall: 94 mm
- Max. distance to the wall: 461 mm
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 147 kb] |
|---|---|
| Technical drawing: | [pdf, 76 kb] |
| Installation manual: | [pdf, 3,5 MB] |
| Capacity: | 35 kg |
| Tilt: | +/- 15° |
| Swivelling range: | +/- 60° |
| Length of the swivel arm: | 461 |
| Screen size: | 26 - 37" |
| Material: | Alumnium, Stahl |
| VESA Standard: | 75x75, 100x100, 200x200 (www.vesa-standard.com) |

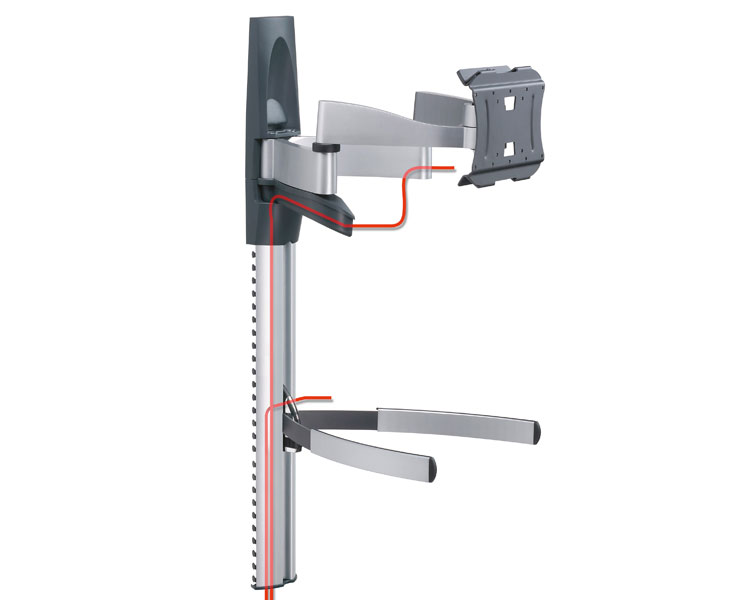

| Accessories: | vogel´s EFA 6825 Audio/DVD-Halter vogel´s EFA 6835/6830/6840 Säulensystem vogel´s EFA 6875 |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 200x100, VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
