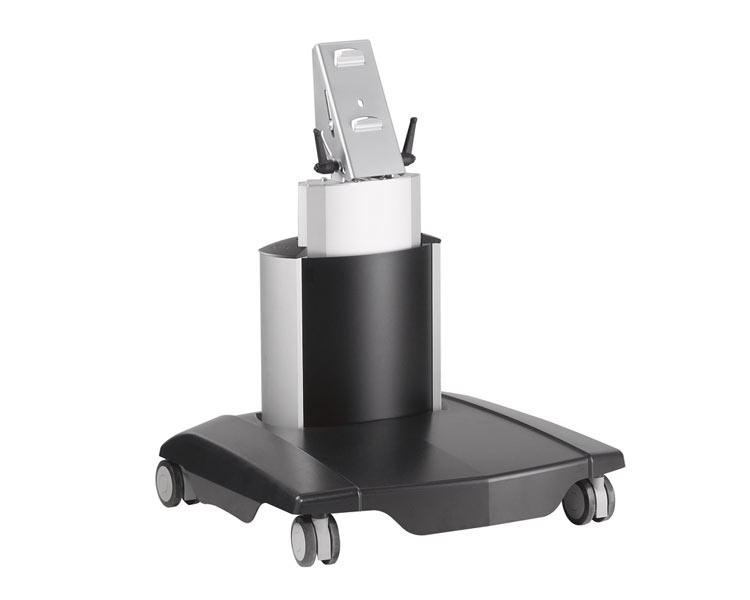

Vogel's PFT 2505 Display floorstand (59 - 64cm) incl. FAU 3150

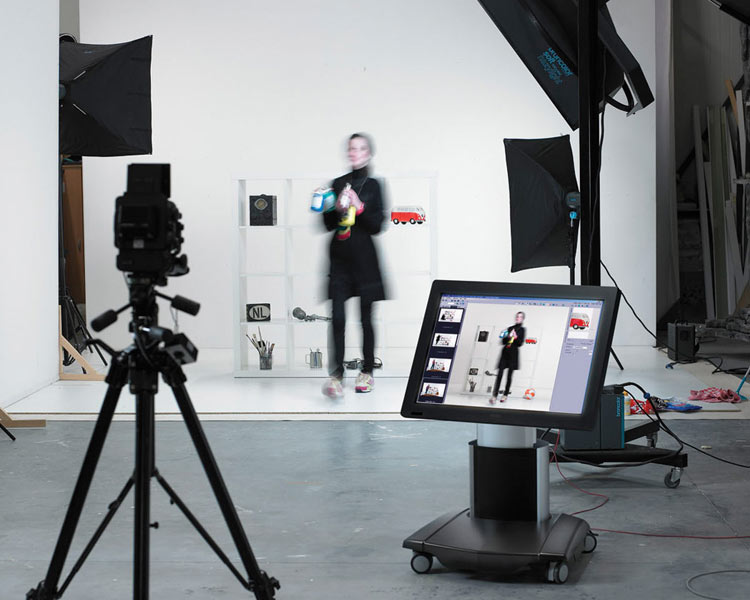

The Vogel´s PFT 2505 is especially designed for monitor use in studio’s and on stage. But also for exhibitions, showrooms and specific retail applications this is an excellent trolley solution.
The new generation AV trolleys and stands from Vogel’s Brand Your Stand The new series of AV trolleys are designed to provide maximum communication power or design integration. Custom fronts offer a solution for both needs. The front cover can be easily customized by putting a sticker or print on it. This enables you to match your trolley to your interior or brand it with your company logo or a campaign sticker.
- Height adjustable (59-64 cm)
- Autolock® locking system

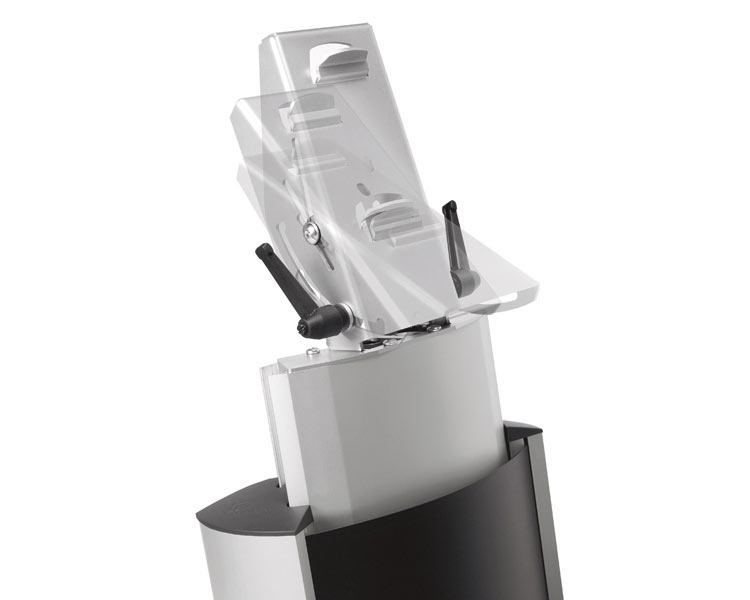

- 10-60º tilting

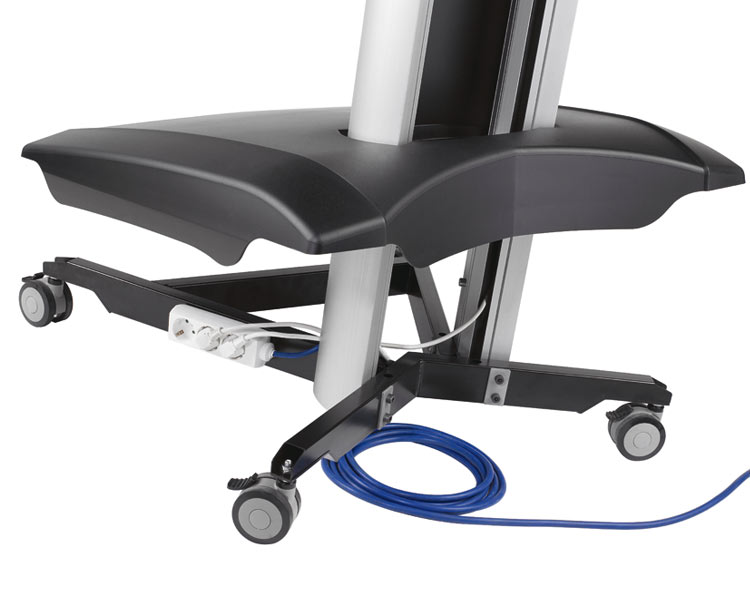

- Cable storage under the base cover
- CIS® Cable Inlay System
- Mounting hole for anti theft cable
- Including interface FAU 3150

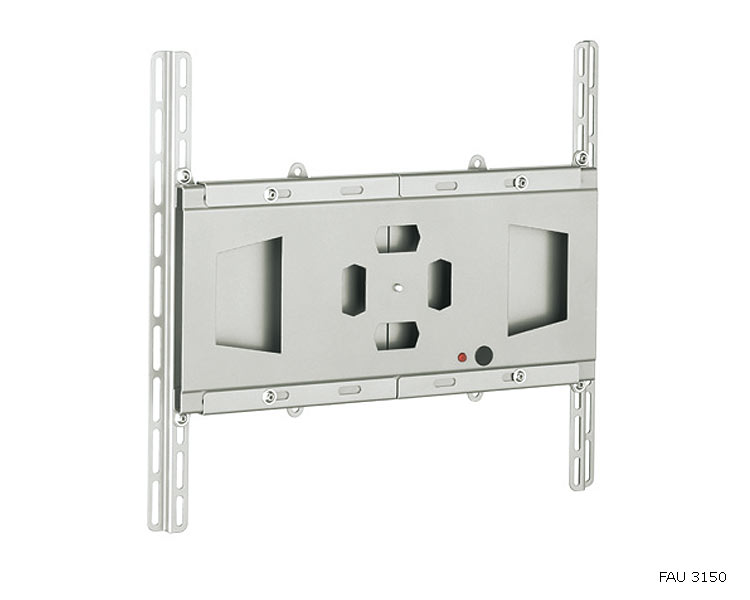

Universal LCD/Plasma interface FAU 3150
The FAU 3150 universal LCD/Plasma interface can be used to mount a LCD/Plasma TV (with VESA MIS-F) to the wall, ceiling or floor (in combination with other modular parts).
The FAU 3150 universal LCD/Plasma interface is part of a modular system which enables you to create your own wall, ceiling or floor mounting solution for LCD/Plasma TV's (30-65", with VESA MIS-F, up to 70 kg). The Autolock® locking system locks the interface onto the support and prevents the display from falling of the turn & tilt unit when accidently lifted. The optional lock PFA 9008 blocks the locking system, hence preventing theft. For wall mounting just add the needed wall mounting plate (PFW 910/920/930) or support (PFW 950/952). For ceiling mounting add the needed ceiling mounting plate, extension tube and turn & tilt unit. In case of floor mounting add floor stand PFA9011 and the needed turn & tilt unit.
- Autolock® locking system
- VESA MIS-F (max. 920x512 mm)
- VESA MIS-D-E possible
- Horizontal and vertical mounting

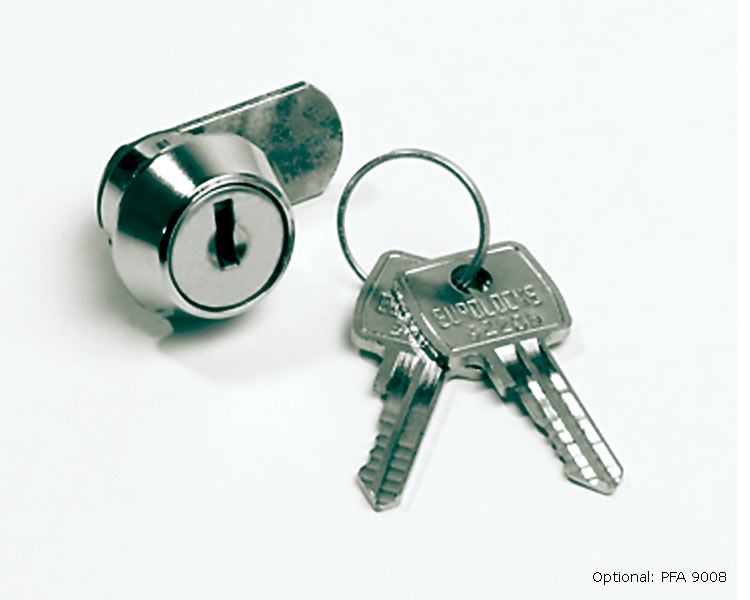

- Optional anti-theft lock PFA 9008
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: | [pdf, 124 kb] |
|---|---|
| Technical drawing: |  [pdf, 303 kb] |
| Installation manual: | [pdf, 1,2 MB] |
| Capacity: | 70 kg |
| Tilt: | 10 - 60° |
| Height range (mm): | 560 - 640 |
| Screen size: | 32 - 65" |
| VESA Standard: | 75/100, 200x100, 200x200, VESA MIS-F (max. 920x512 mm (www.vesa-standard.com) |
| Accessories: | Vogel´s PFA 9008 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mounting type: | Mobile floor stand |
| color: | Others |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x100, VESA 200x200, VESA 300x300, VESA 400x400, VESA 400x600, VESA 600x400, VESA 800x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
