Vogel's VFW 365 LCD/Plasma wall support
Article number:
30312403
Manufacturer:
Vogels
Manufacturernumber:
VFW 365

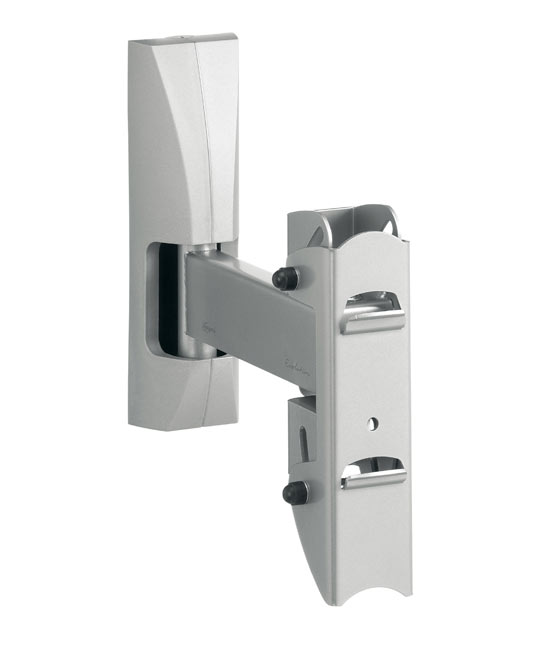

The Vogel's VFW 365 LCD/Plasma wall support with smooth turn and tilt function is suitable for TVs up to 65”.
The VFW 365 provides a tilt and turn function for an optimal viewing position.
- Number of pivot points: 2
- Min. distance to the wall: 125 mm
- Max. distance to the wall: 355 mm
- Autolock® locking system
- With turn & tilt function

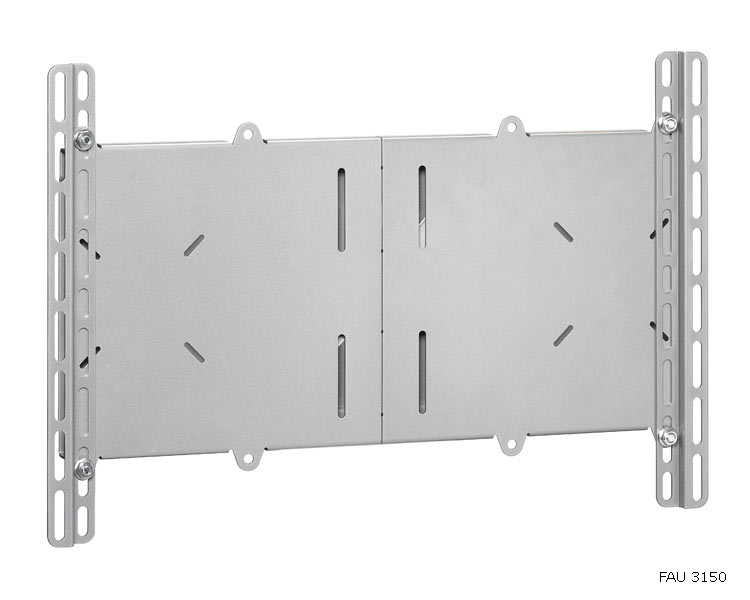

- Including universal interface FAU 3150
- Cable Inly System (CIS®) - all cables cleverly concealed and guided
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: | [pdf, 172 kb - German] |
|---|---|
| Technical drawing: |  [pdf, 390 kb] |
| Installation manual: | [pdf, 372 kb] |
| Capacity: | 70 kg |
| Tilt: | 15° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 355 |
| Screen size: | 25 - 65" |
| VESA Standard: | 200x100, 200x200, VESA MIS-F (max. 920x512 mm) (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mounting type: | wall mount |
| color: | Silber |
| VESA (in mm): | VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
