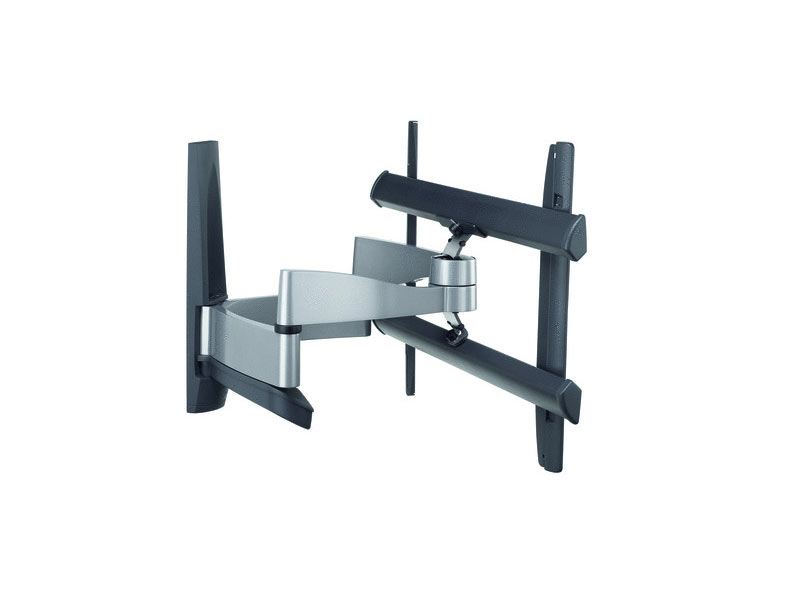

Vogels EFW 6345 PLUS TV wall mount
The Vogels EFW 6345 PLUS TV wall mount support is an 'optimally adjustable' wall support suitable for TVs up to 65”. It features tilt, turn and reach.
Flexibility and freedom of movement are the key benefits of the EFW 6345 PLUS, as you can tilt and turn your screen any way you want for an optimal viewing experience. Don’t worry about damaging your screen or wall, either as the EFW 6345 PLUS features Vogel’s unique Screen Protection System (SPS™) to protect both screen and wall.
Vogels EFW 6345 PLUS TV wall mount

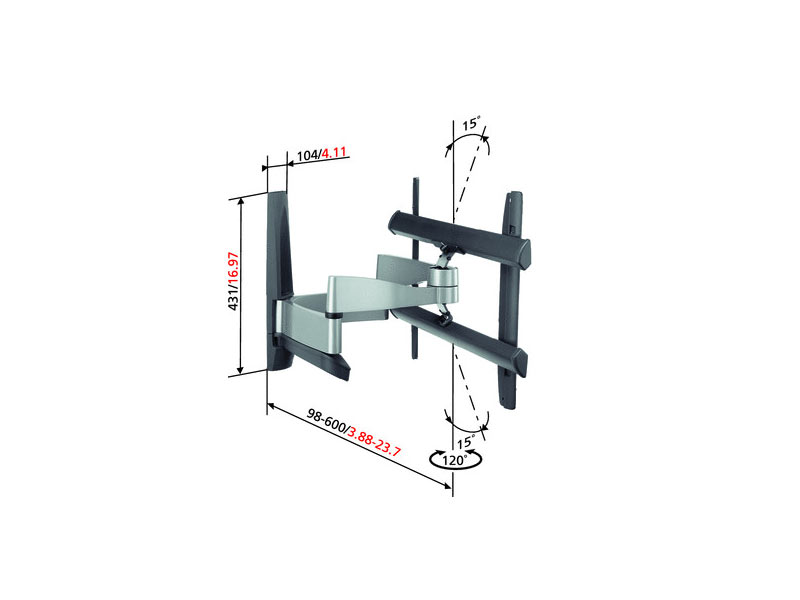

- Turn: 120 °
- Tilt: 30 °
- Min. size: 32"
- Max. size: 65"
- Max. weight: 45 kg
- Min. distance to the wall: 98 mm
- Max. distance to the wall: 600 mm
- CIS®
- SPS™ (Screen Protection System)
- SMM™ (Smart Movement Mechanism)
- TÜV Certificate number: 60013207
- Interface width: 717 mm
- Interface height: 477 mm
- Pre-assembled - install in just 3 easy steps
- Tilt, turn and reach functions guarantee optimal viewing position
- Unique Screen Protection System (SPS™) which protects both screen and wall
- Universal - complies with VESA MIS-F, 700, 450
- Guarantee: Life time
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Installation manual: |  [pdf, 6,7 MB] |
|---|---|
| Minimum weight: | 15 kg |
| Capacity: | 45 kg |
| Tilt: | +/- 15° |
| Swivelling range: | +/- 60° |
| Length of the swivel arm: | 600 |
| Screen size: | 32 - 65 " |
| Material: | Aluminium, Steel |
| VESA Standard: | 100x100 - 700x450 (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400, VESA 800x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
