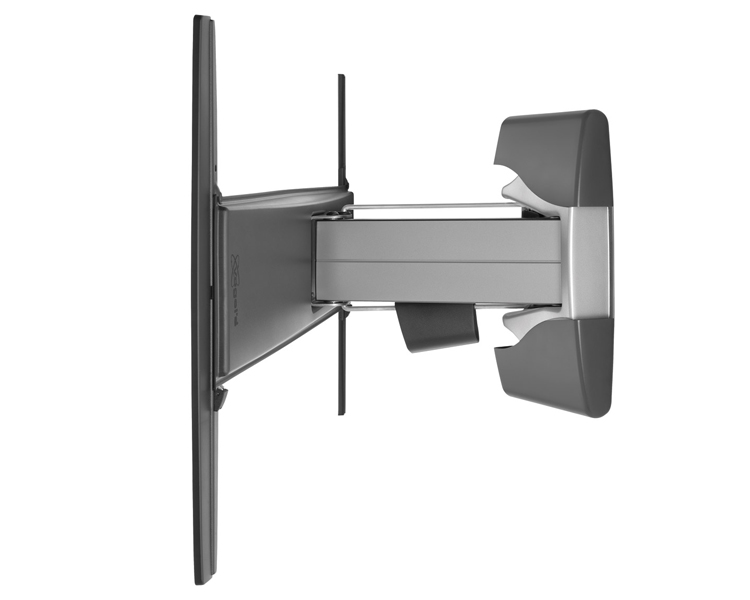

Vogel's EFW 8325 Wall mount Motion L
Vogel’s Motion mount EFW 8325 is suitable for flat TV's from 32 up to 50 inch. It has a maximum turning range of 90 degrees (45 degrees both ways) and features the patented Cable Inlay System (CIS®) to conceals all of your cables.

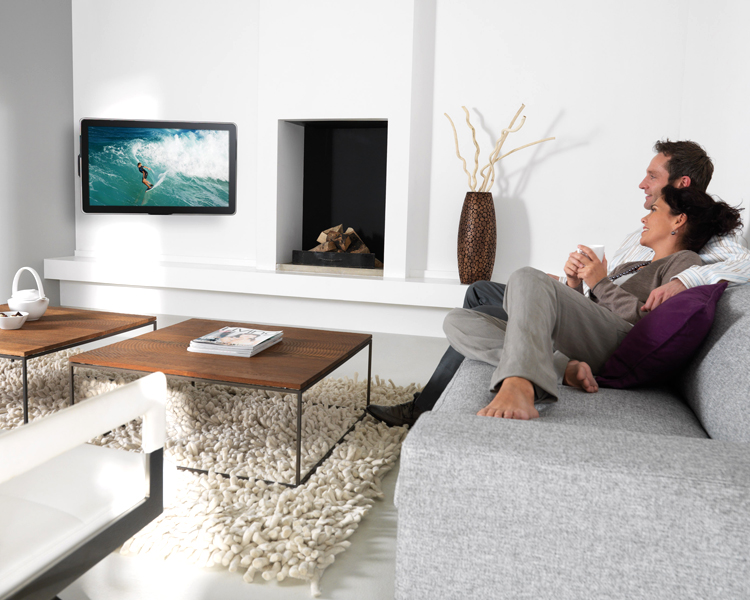

When you’re watching TV you don’t always want to sit in the same place. If you have friends over or the sun is shining on the screen, it would be great if you could just turn it where you need it. Vogel’s Motion mount lets you turn your screen 45 degrees both ways and it looks great too. The Cable Inlay System (CIS®) conceals all of your cables out of sight.
If you want the ultimate movie theatre experience, sit right in front of your TV instead of having to watch at an angle. The Vogel’s 8000 Motion series lets you move your TV for the best view. It turns 45 degrees side-to-side so you always get the best view. Thanks to the patented Smart Movement Mechanism (SMM®) you can move even the biggest flat screen with the touch of a fingertip. Installing is very easy. There’s even a level in the mount to make sure it hangs perfectly straight. The smart AutoLock® holds your screen securely in place so you don’t have to worry about the safety of your valuable TV. Create your own entertainment centre and combine this wall support with the 8000-series Column system and Audio/DVD multi support.
- Main Color: Black-Dolphingrey
- Max. weight: 45 kg
- Min. size: 32"
- Max. size: 50"

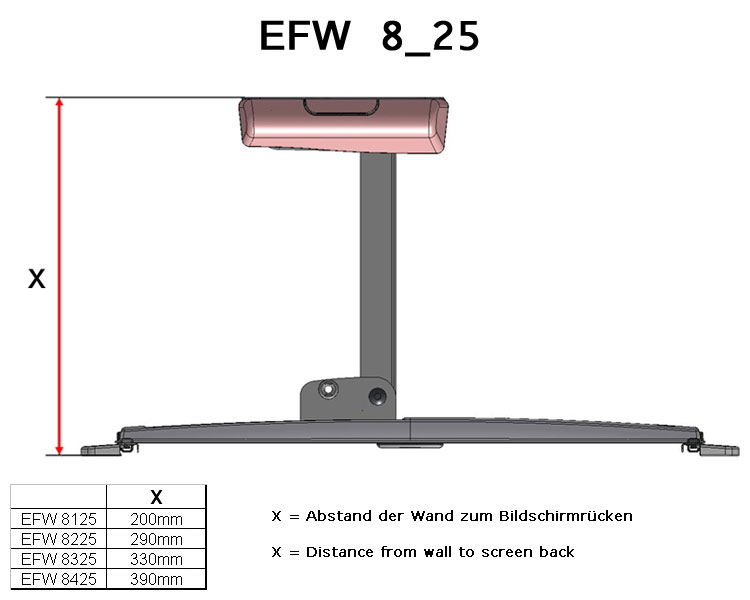

- Min. distance to the wall: 87 mm
50 "
Fits virtually every screen from 32” up to 50”, 81cm up to 127cm
MOTION

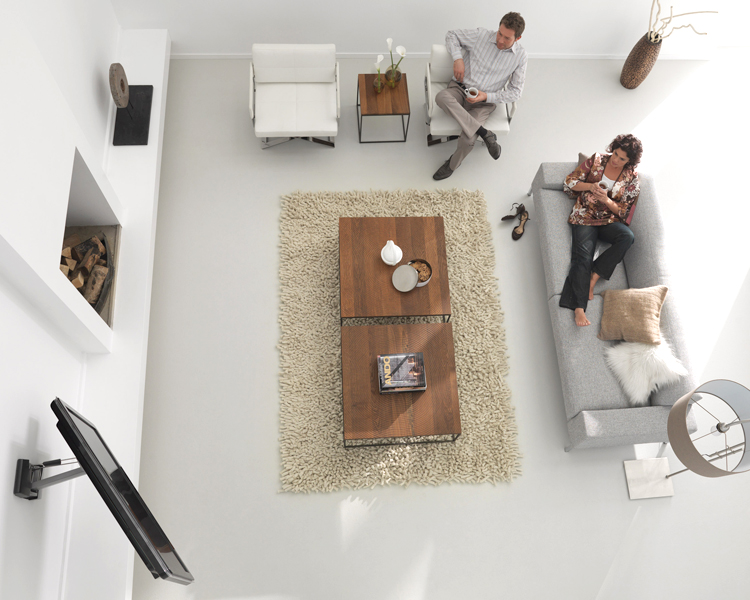

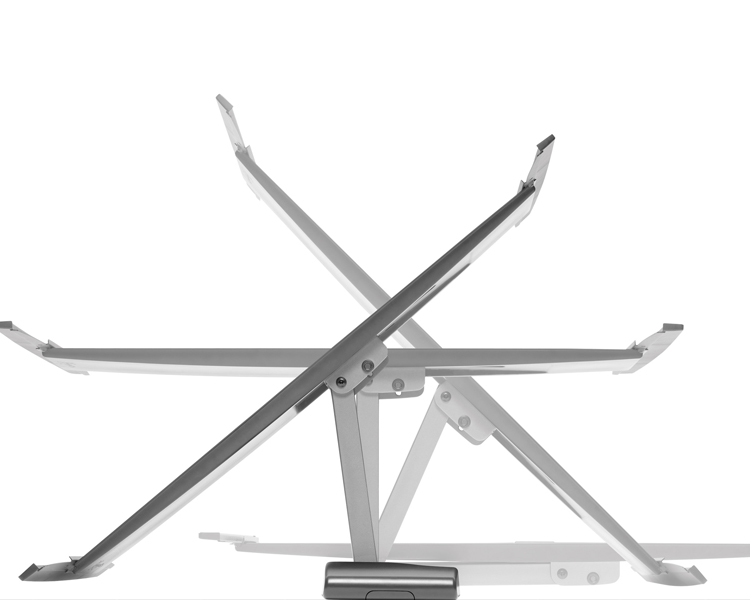

The 2-way, 45° turning range of the Vogel's Motion Series lets you watch your TV from every desired angle. The optional guide arm activates the Screen Protection System (SPS).
SMART MOVEMENT MECHANISM (SMM)
Move even the biggest flat screen with a touch of a fingertip.
INTEGRATED SPIRIT LEVEL
Straight mounting guaranteed thanks to the integrated spirit level.
AUTOLOCK

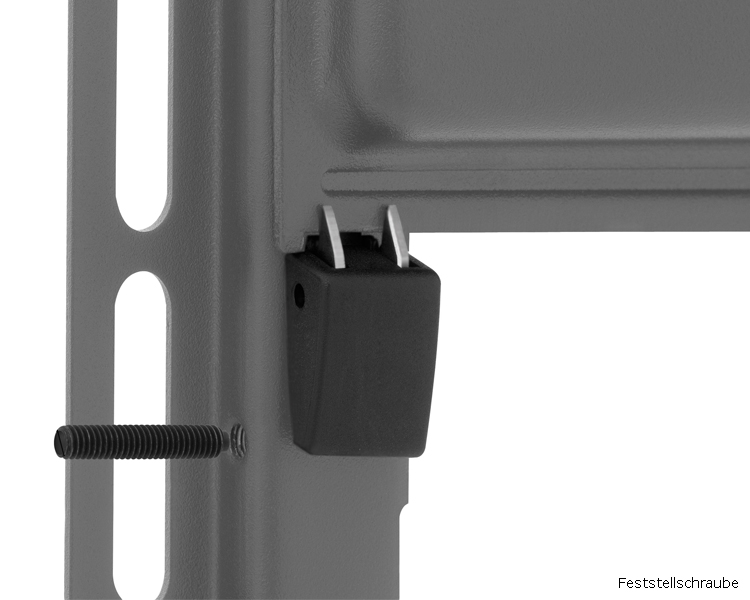

The Vogel's Autolock system secures your tilt module with a single click. Use the optional locking screw to protect your screen against theft.
CABLE INLAY SYSTEM (CIS)
The Vogel's 8000 Series features Vogel?s patented Cable Inlay System (CIS) that hides all unsightly cables. Use the additional 8000 Series Cable column system to hide & guide your cables all the way to the floor.
EASY INSTALLATION
Vogel's products are designed with easy installation in mind. Unique features such as a fully pre-assembled wall mount, integrated spirit level, Autolock and a clear instruction manual make mounting as easy as 1,2,3.
MODULAR
Fully integrate your additional AV equipment into one sleek-looking solution with 8000 Series accessories.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 84 kb] |
|---|---|
| Technical drawing: | [pdf, 94 kb] |
| Installation manual: | [pdf, 497 kb] |
| Capacity: | 45 kg |
| Tilt: | + |
| Swivelling range: | +/- 45° oder 90° in eine Richtung |
| Screen size: | 32 - 50" |
| Material: | Aluminium, Stahl |
| VESA Standard: | 75/100, 200x100, 200x200, VESA MIS-F (max. 800x450 mm) (www.vesa-standard.com) |
| Accessories: | vogel´s EFA 8810 Neigungsmodul S/M vogel´s EFA 8835/8840 Säulensystem + AV Halter vogel´s EFA 8825 AV-Multihalter |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400 |
