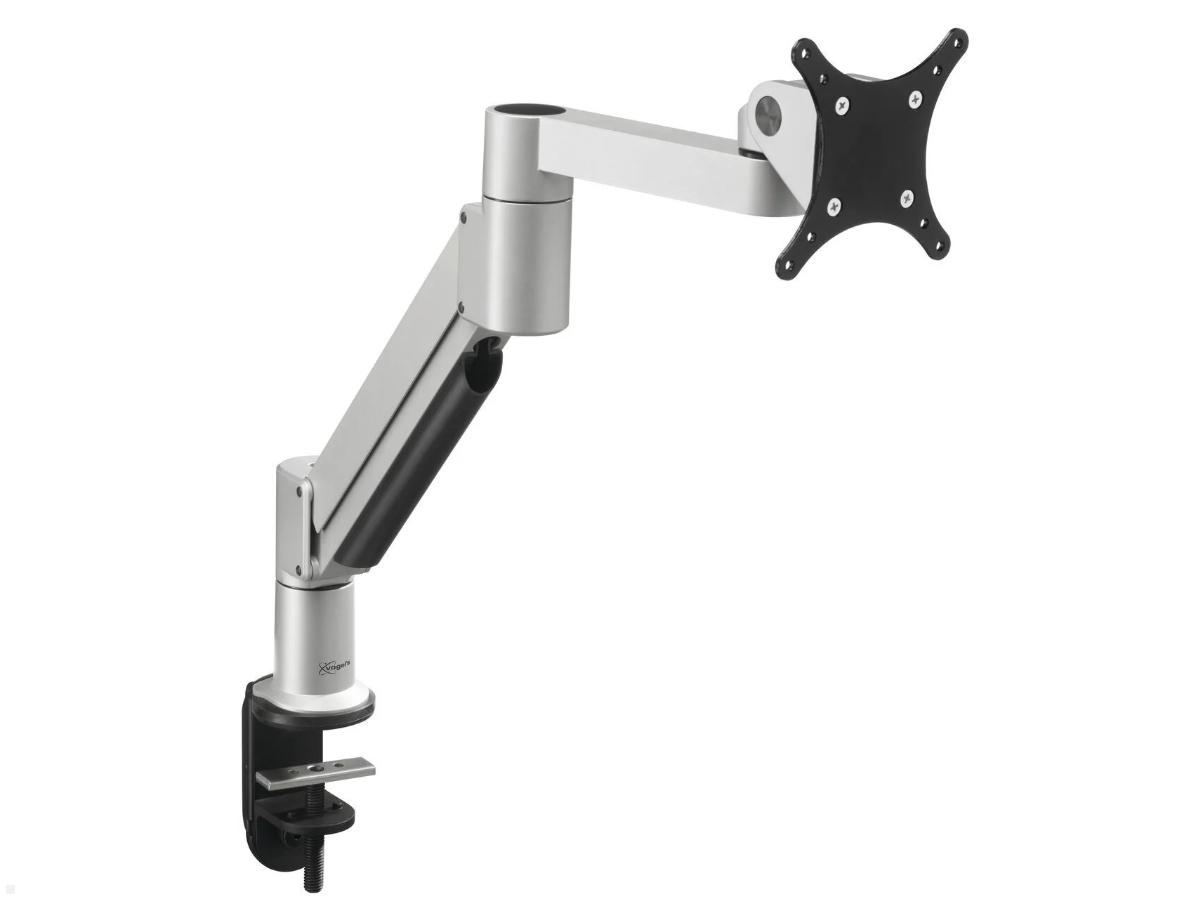

Vogels PFD 8543 monitor desk mount
The Vogels PFD 8543 monitor swivel arm desk mount is designed for intensive professional use. Features such as adjustable bearings, three-point cable management and the special Flexmount™ provide exceptional performance and long-lasting quality. Its elegant design suits any interior design and any type of desk.

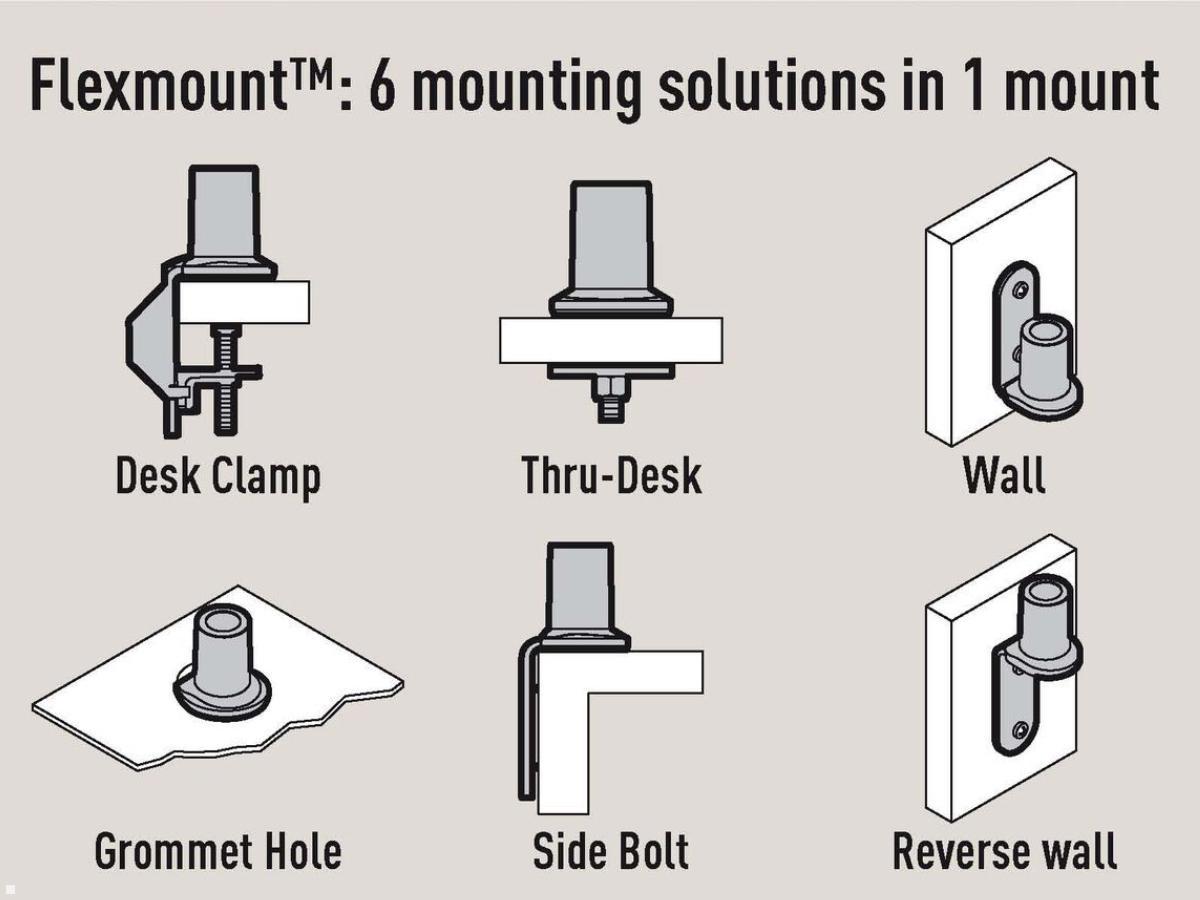

For areas where many people work with a monitor, for example receptions or flexible workstations, our floating model is the perfect solution. The adjustable gas spring makes the monitor weightless, so you can easily pull the monitor up or down to the right height. The Vogels PFD 8543 monitor swivel arm model is suitable for monitors in the 5.4 - 13 kg weight class. With Flexmount you can install the desk mount in 6 different ways. So you can be sure that Vogel's desk mount will fit any desk without the need to buy additional accessories.
Features Vogels PFD 8543 monitor desk mount
The included bracket allows you to mount the arm with clamp, cable hole mount or drill screw mount, wall mount.
- Desk clamping width: 119mm
- Reach: 580mm
- Adjustability: 421mm
Learn more here about the VESA standard for monitor holders!
| Product sheet: |  [pdf] |
|---|---|

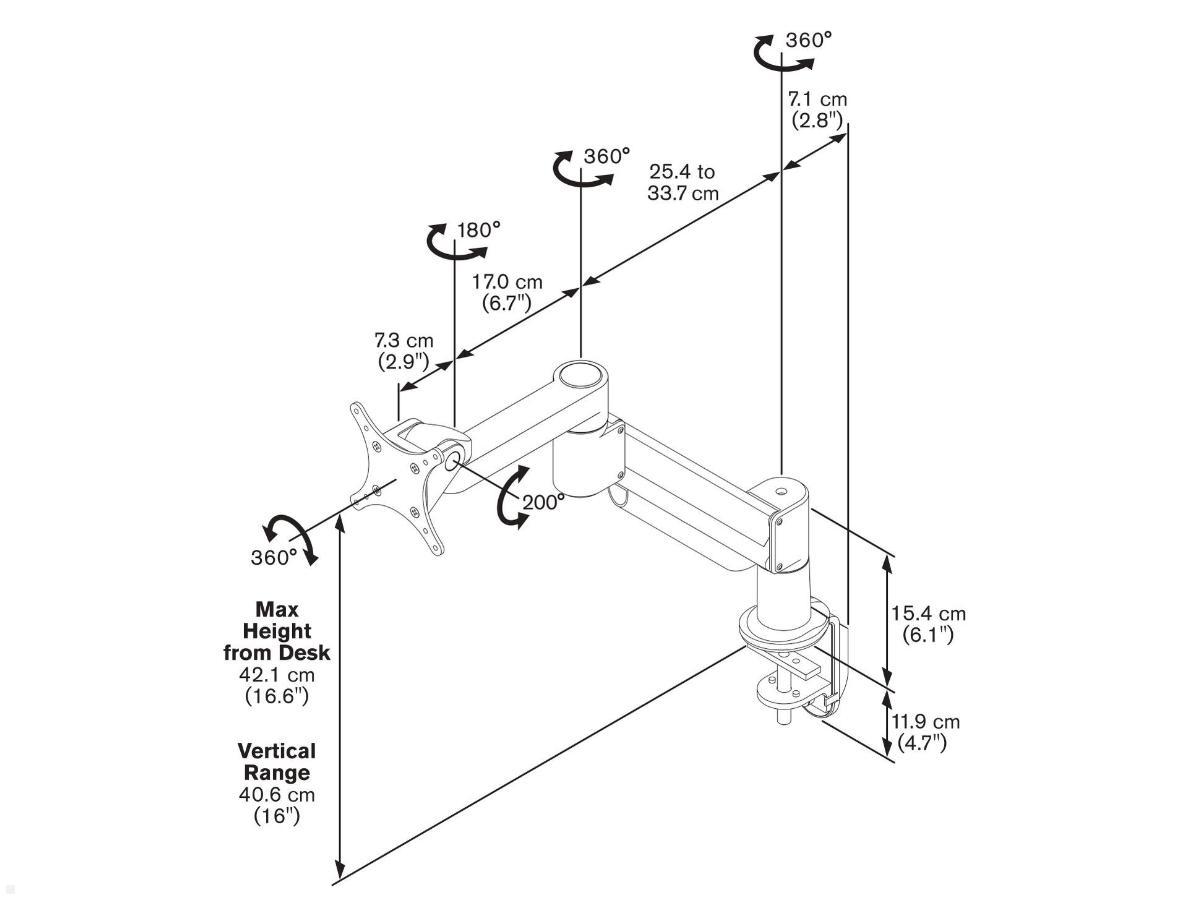

| Technical drawing: | [pdf] |
| Installation manual: | [pdf - Englisch] |
| Minimum weight: | 5,4 kg |
| Capacity: | 13 kg |
| Tilt: | 200° |
| Rotate: | 90° |
| Height range (mm): | 421 |

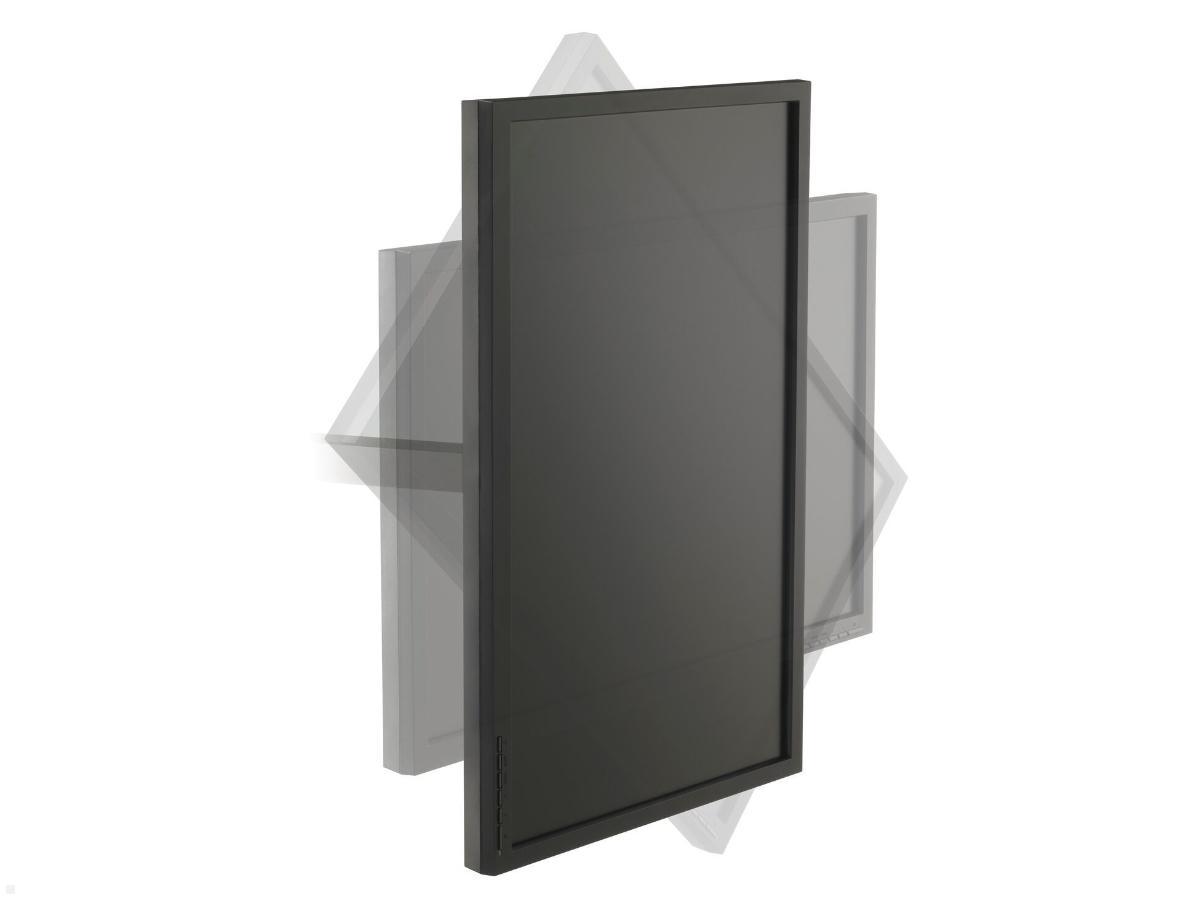

| Pivot: | 90° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 580 |
| Screen size: | 19 - 29" |
| Thickness of table (mm): | 83 mm |
| Material: | Aluminium-Druckguss |
| Special features: | Flexmount™ – 6-in-1-Montagelösung |

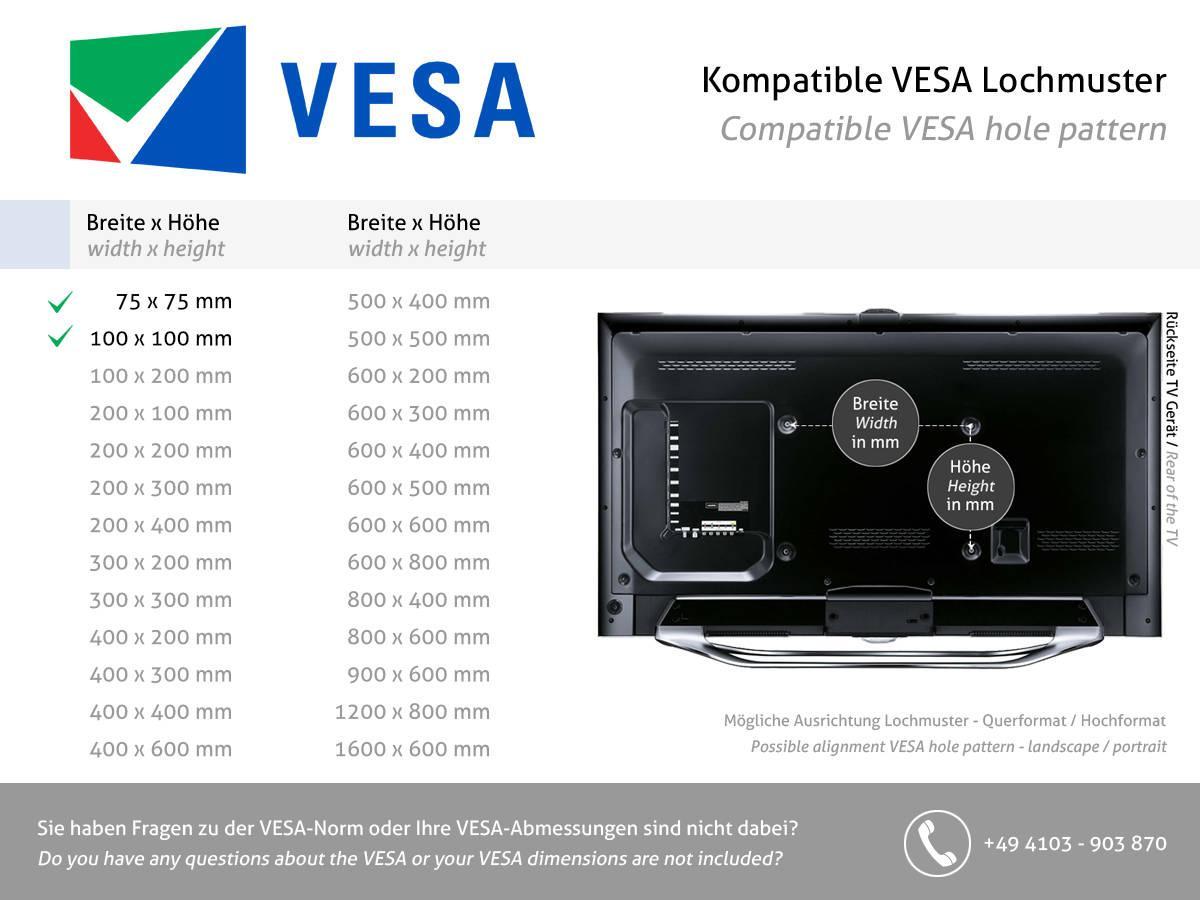

| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.de) |
| Accessories: | Vogels´s PFA 9102 Adapter für zwei Monitore |
| Packaging dimensions (LxWxH in mm): | 442 x 363 x 76 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
