Vogels PFW 5870 fixed videowall module
The PFW 5870 fixed video wall module can be used instead of PFW 6870 in areas of a video wall in which no popout function is required - Create your own video wall!
Vogels PFW 5870 fixed Videowall-Module

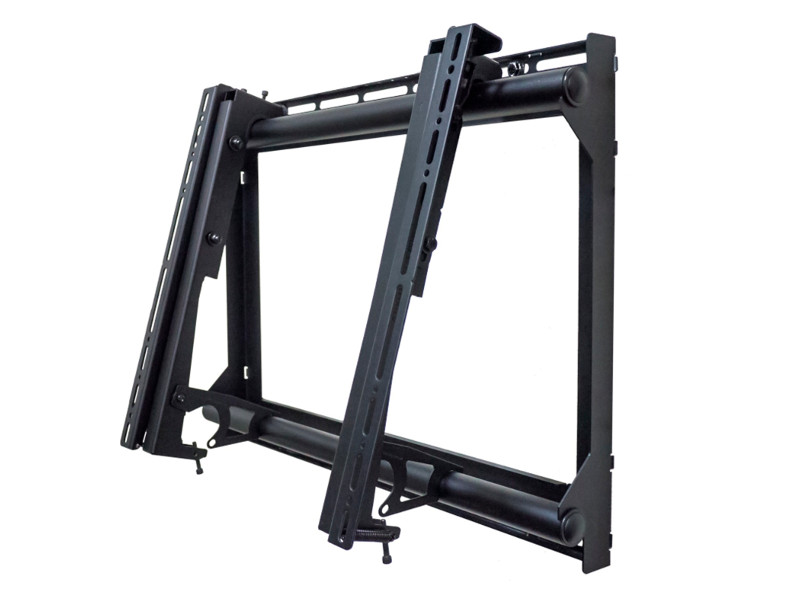

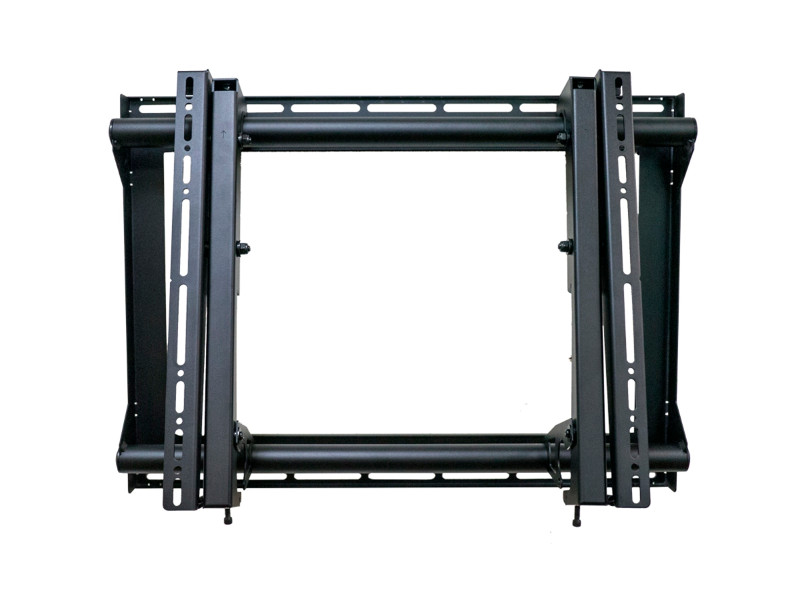

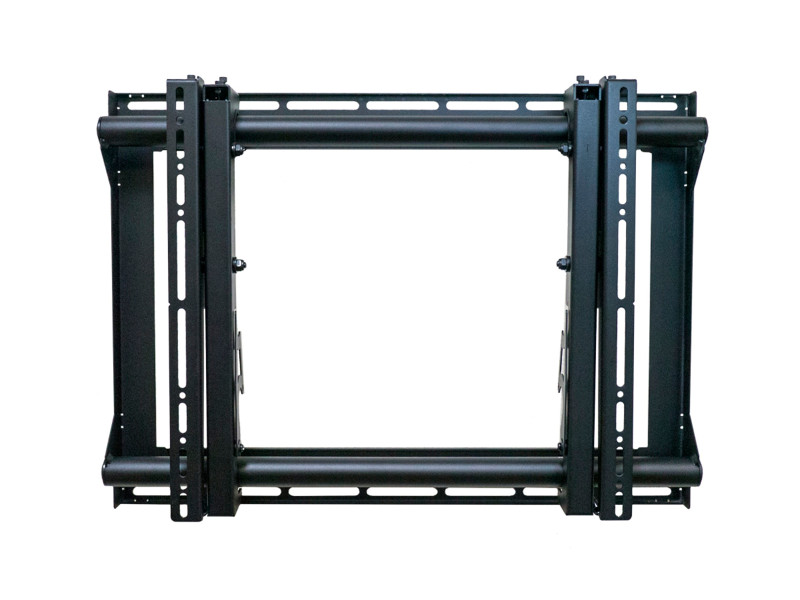

The PFW 5870 Fixed Flat Panel Video Wall Mount is a video wall mounting solution which features multi-monitor stacking, open design, a built-in kickstand for easy service access, custom spacers and top-adjustable mounting brackets with convenient adjustments along the x,y, and z axis for easy panel alignment. The PFW 5870 may be used instead of the PFW 6870 in areas of a video wall where pop-out functionality is not required.
Optional dedicated spacers dramatically reduce installation time. Spacers are available for the most used video wall displays or monitors.
Key features Vogel's PFW 5870 fixed video wall module
- Screen size: 37" - 65"
- Max. weight: 72 kg

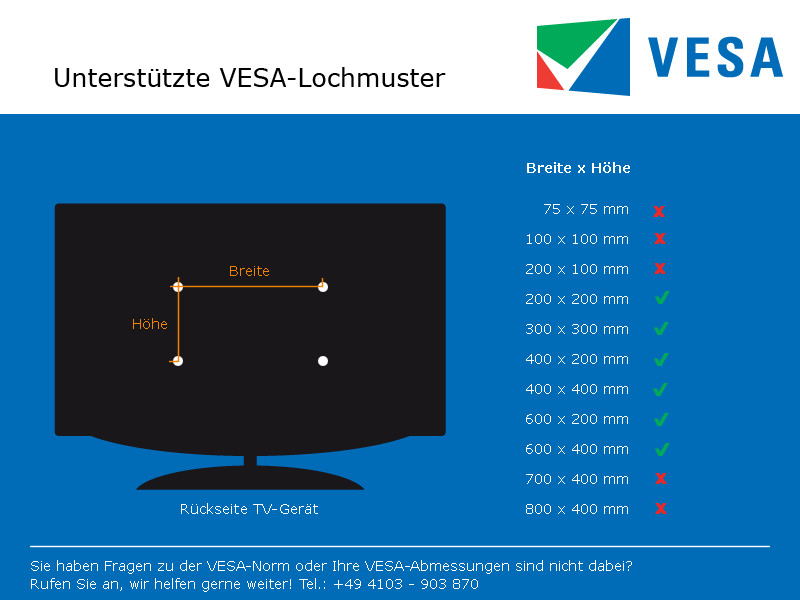

- VESA fitment min. 200x200 mm, max 600x400 mm
- Optional custom display spacers, see on website for the latest list of available spacers
- Leveling, height, lateral and depth adjustment
- Can be combined with the PFW 6870 pop out video wall mount
- Finish: Black
- Warranty: 5 years
Does your monitor oder display fit?
We will gladly check if your monitor is suitable for this Vogel's PFW 5870 bracket. Simply send us at the end of the ordering process in the comment box your model (Manufacturer + model no.). We will then check for you whether the monitor or the display to monitor mount fits and if not, we will contact you.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 165 kb] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 72 kg |
| Screen size: | 37 - 65 " |
| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.de) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mounting type: | Videowall, in-wall solution, wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
