Vogels PFW 6856 Display wall mount - turn & tilt , Panasonic 85"
Vogels PFW 6856 Display wall mount - turn & tilt , Panasonic 85"
Vogels PFW 6856 Display wall mount - turn & tilt , Panasonic 85 inch

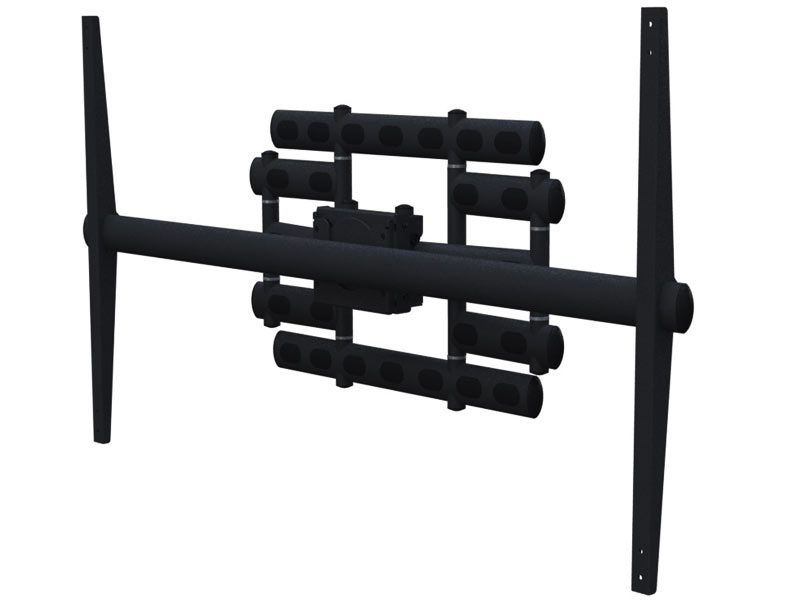

PFW 6856 is dedicated articulating wall mount for Panasonic 85 inch displays.
The positive and negative tilt adjustment allows the mount to be installed level and plumb. The dual articulating arms allow even the heaviest display to be pulled away from the wall for service or alignment. The mount features a 90 degree rotation which allows the display to be installed in landscape, portraitor any other position inbetween. Also see PFW 6855 for VESA fitment displays and PFW 6857 for Panasonic 103 inch displays.
- TV size: 85"
- Max. weight of TV: 227 kg
- Turn: 90°
- Tilt: 4°

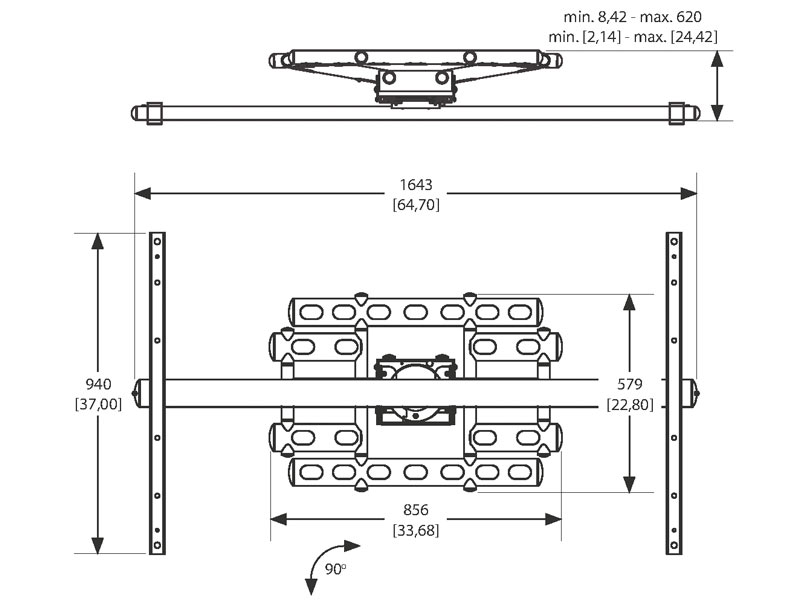

- VESA fitment horizontal max. 1511 mm, vertical 800 mm, or 888 mm
- Depth min. 214 - max. 620 mm
- Rotating function, 90 degrees, for easy landscape-portrait position change
- Dedicated wall mount for Panasonic 85 inch displays
- Perfect for recessed installations
- Turn, tilt and reach functions
- Adjustable depth
- Main Color: Black
- Guarantee: 5 years
- Interface height: 940 mm
- Interface width: 1643 mm
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 116 kb] |
|---|---|
| Installation manual: | [pdf, 858 kb] |
| Capacity: | 227 kg |
| Tilt: | 4° |
| Swivelling range: | 90° |
| Length of the swivel arm: | 620 |
| Screen size: | 85" |
| VESA Standard: | 1511x800 mm, 1511x888 mm (www.vesa-standard.com) |
| Accessories: | Cable Management |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
