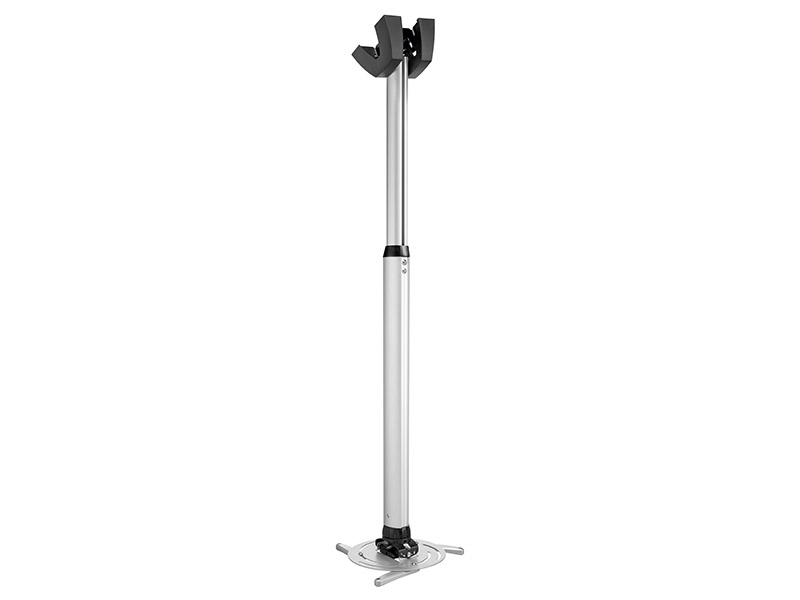

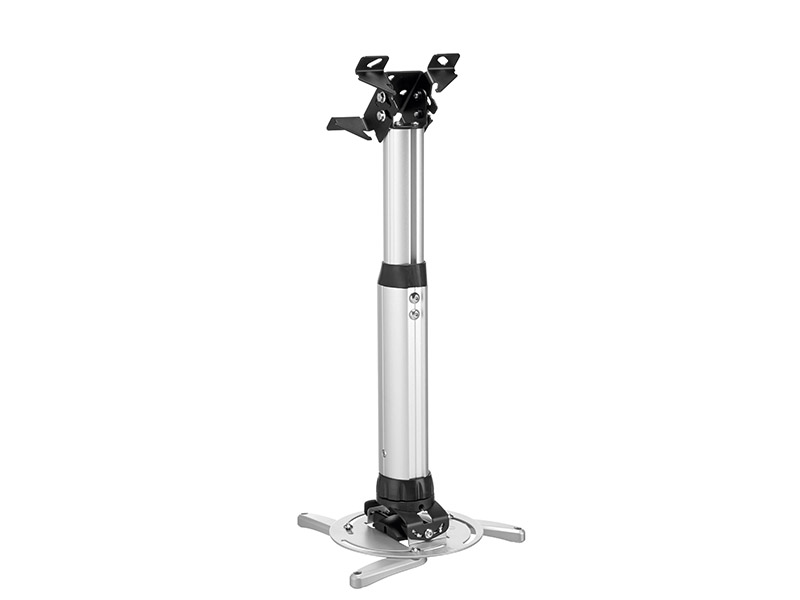

Vogels PPC 2585 projector ceiling mount 850-1350mm 25kg, silver
The Vogels PPC 2585 projector ceiling mount is specially designed for the new generation projectors up to 25kg. These Vogel's beamer mounts come with variable height adjustment from 850 to 1350mm.
Vogels PPC 2585 projector ceiling mount 850-1350mm 25kg, silver
The Vogel's PPC 2585 projector mount is specially designed for the new generation projectors up to 25 kg. This projector interface is equipped with a unique fine tune adjustability for precise alignment with the projection surface. Once aligned, the projector stays in position. Additional fixation features are provided to secure the desired position.
The Vogels height adjustable projector ceiling mount kits can be used when the height of the ceiling is not known or when flexibility is wanted. The CIS® Cable Inlay System runs the full length of the pole and even allows for cable routing after installation. The Vogels CIS® offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds

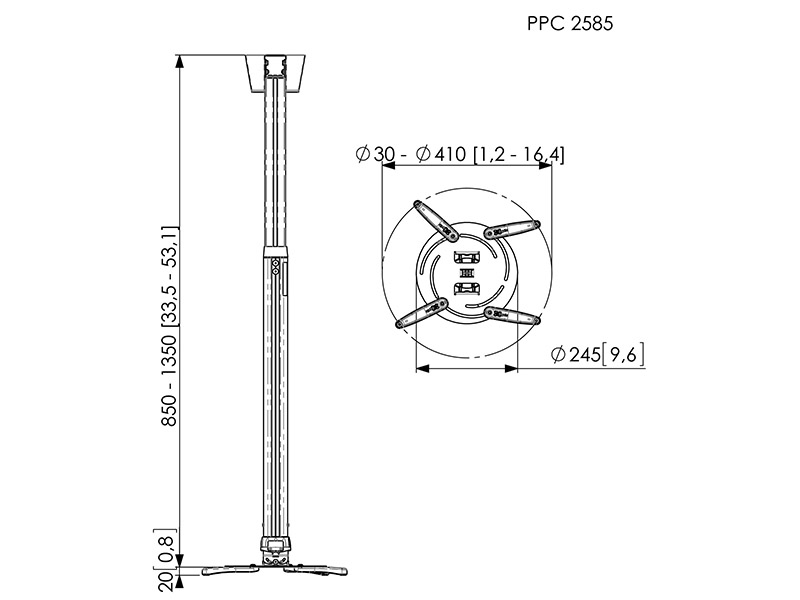

Technical details Vogel's PPC2585 beamer ceiling mount
- Turn: 360°
- Tilt: 15°
- Max. weight: 25kg
- Min. distance to ceiling: 850mm
- Max. distance to ceiling: 1350mm
- Beamer mount range Ø 30-410mm
- Adjustable height
- Easy mounting on the ceiling and the beamer
- Ceiling plate suitable for inclined and flat ceilings
- Cover included for false ceilings
- Fine tune adjustability
| Product sheet: |  [pdf, 75 kb] |
|---|---|
| Installation manual: | [pdf, 425 kb] |
| Capacity: | 25kg |
| Tilt: | 15° |
| Rotate: | 360° |
| Height range (mm): | 850-1350mm |
| Swivelling range: | - |
| Packaging dimensions (LxWxH in mm): | 858 x 258 x 136 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Ceiling distance in m: | < 2m |
| Mounting type: | Ceiling mount |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
28 December 2025 22:52
Großartige Kommunikation, kann ich weiterempfehlen
Unkomplizierte Bestellung, alles reibungslos. Verpackung war umweltfreundlich – gefällt mir!
Questions & Answers
-
What is the Vogels PPC 2585 ceiling mount?
A ceiling mount for projectors up to 25 kg, with fine adjustment for precise alignment with the projection surface. It includes an integrated CIS cable channel and can be used on sloped or flat ceilings.
-
How high can the projector be adjusted?
Height adjustable from 850 mm to 1350 mm.
-
What is the maximum weight?
Maximum weight 25 kg.
-
What are the movement options?
Projector can rotate 360° and tilt 15°.
-
Can it be mounted on sloped ceilings?
Yes, it can be mounted on both sloped and flat ceilings.
-
What is included in the package?
The mid-ceiling cover is included and additional fixings are supplied.
-
What about cable management?
The CIS Cable Inlay System runs along the full length of the profile, enabling post-installation cable routing and hiding cables quickly.
-
How many projectors can be mounted?
One projector per mount.
