Vogel's PPL 1515 Projector lift system (1000mm)

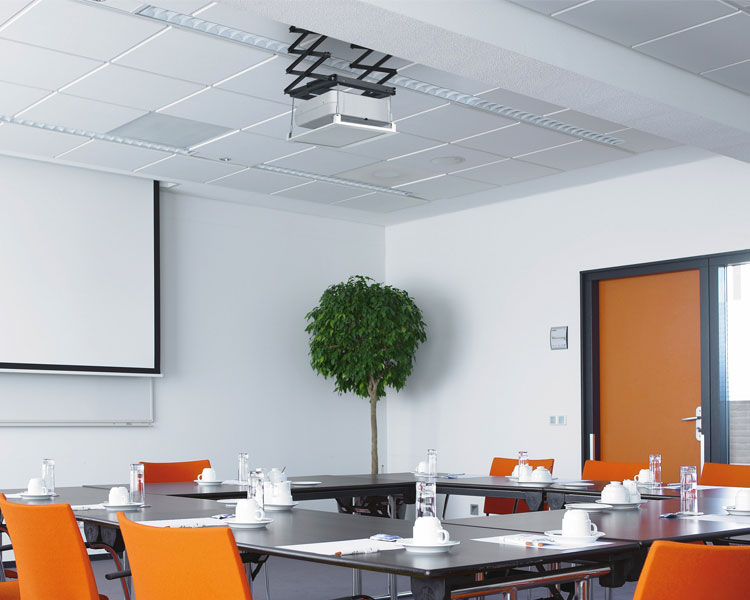

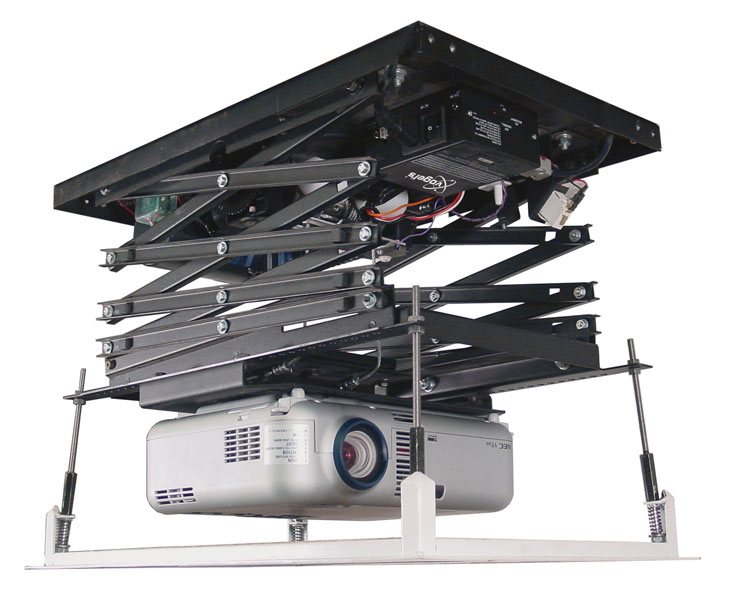

The Vogel's PPL 1515 Projector lift system (1000mm) is a professional full automatic projector lift system, especially designed for use on high ceilings and/or easy projector servicing.

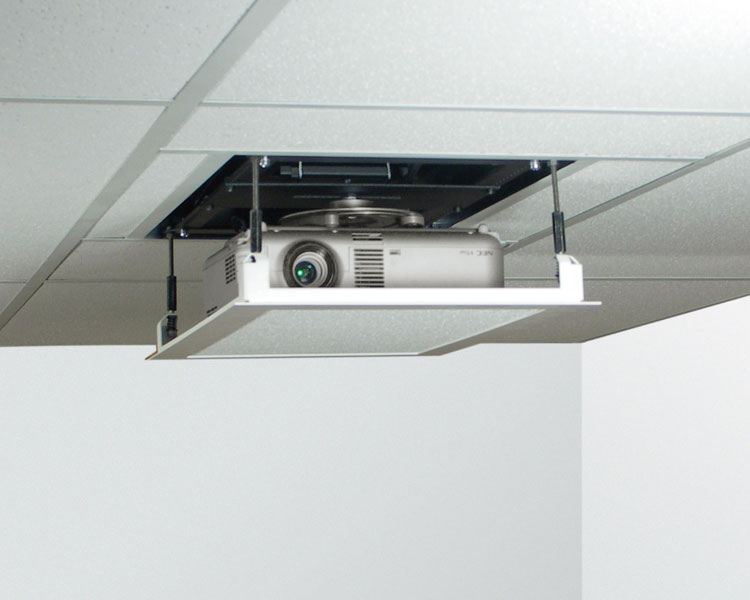

The Vogel's PPL 1515 projector lift system has a unique microprocessor controled operation and height setting. The advantages are quick installation and very accurate height positioning. The built in self diagnostics continiously monitor the lift operation. Vogels PPL 1515 projector lift system has a whisper quiet operation and 3 height positions: home position, show position and service position. Connecting to a automation system as Crestron, AMX or others is easy with the included interface. The maximum drop down distance is 1 mtr. Vogels PPL 1515 projector lift system includes: - universal projector adapter - ceiling finishing kit 40x60 cm - open contact operation/control - interface connector for automation systems as Crestron, AMX, etc. Options: IR remote set, larger ceiling finishing kits
Features Vogel's PPL 1515 Projector lift system (1000mm)
- Whisper-quiet operation

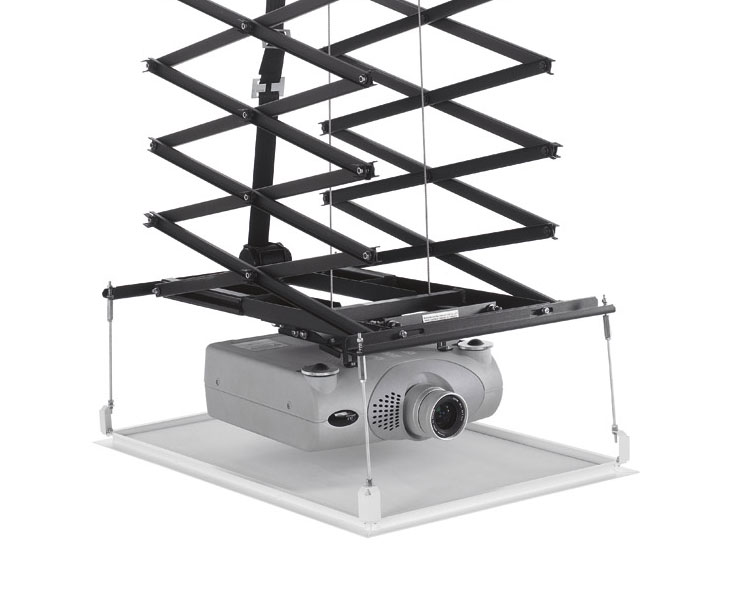

- Including universal projector adapter
- Electronic/remote height position settings.

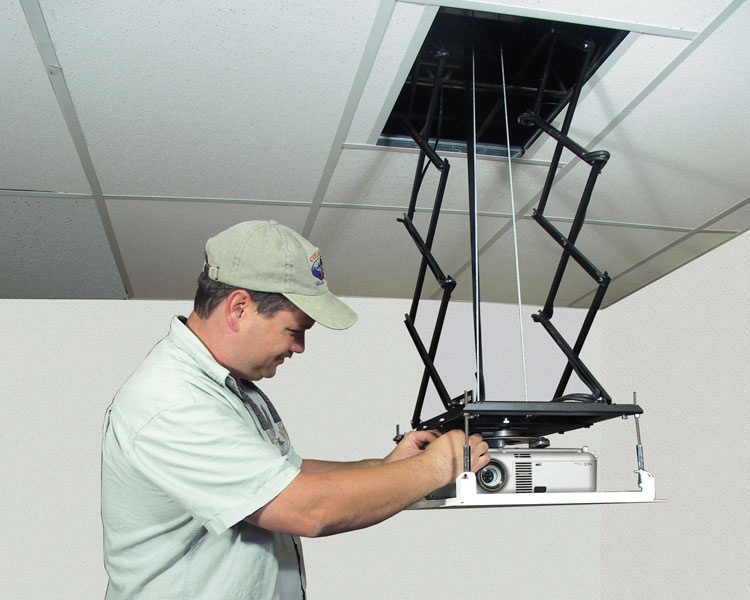

- Three height positions, Home, Show and Service (Show and Service are programmable).

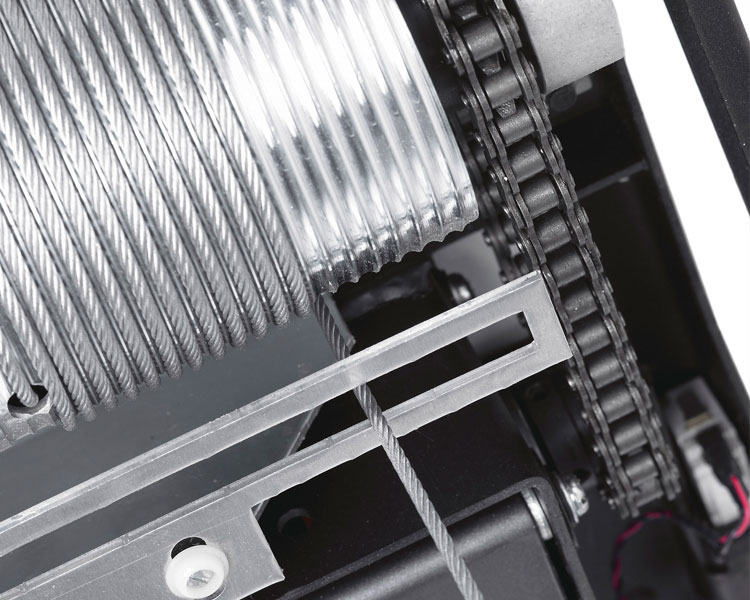

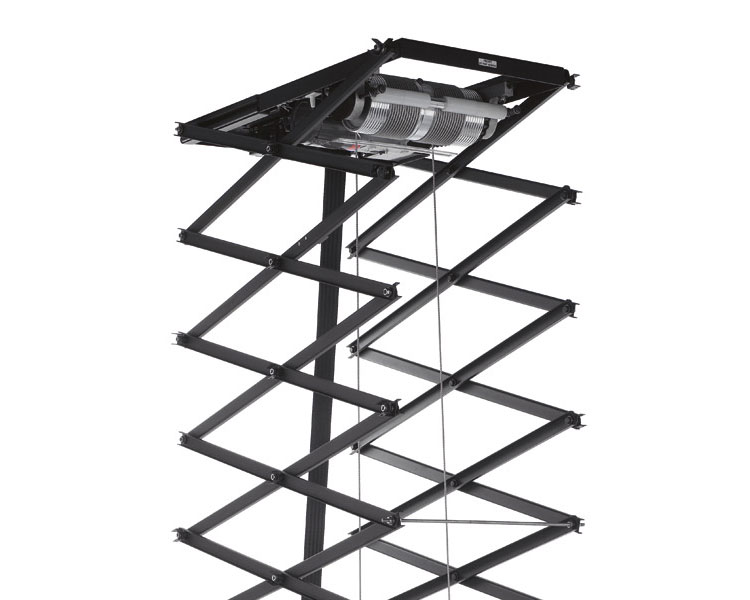

- High quality cable drum with pinch rollers, keeping the cables always in the same position and so preventing cable length variations.
- Cable off drum sensor.
- Remote control 1: Two 12V outputs for controlling external equipment.
- Remote control 2: Two 9-pin inputs for operation of all functions with eg. an AMX or Crestron automation systen(use open, voltage free contacts).
- Remote control 3: One 12V input to operate the lift system with external 12V.
| Product sheet: |  [pdf, 118 kb] |
|---|---|
| Technical drawing: |  [pdf, 586 kb] |
| Installation manual: | [pdf, 815 kb] |
| Capacity: | 15 kg |
| Tilt: | 5° |
| Rotate: | - |

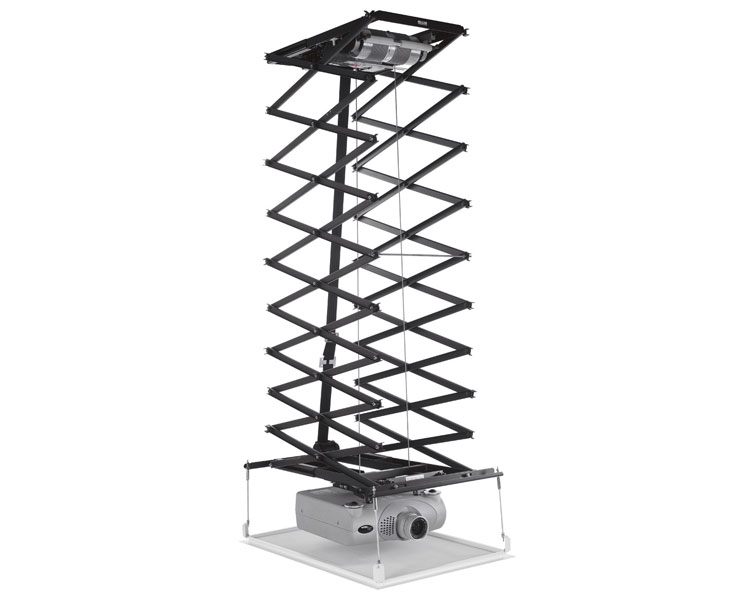

| Height range (mm): | 1000 |
| Swivelling range: | - |
| Ceiling distance: | 127 - 998 mm |
| Accessories: | Vogel's PPA 370 Vogel's PPA 350 Vogel's PPA 360 |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Ceiling distance in m: | < 1m |
| Mounting type: | Ceiling mount |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
