Vogels PPL 2035 electric beamer ceiling lift 350 mm HUB, max. 11 kg
With the Vogel's PPL 2035 Beamer Ceiling Lift with 350 mm stroke in silver, beamers up to 11 kg can be moved silently out of the ceiling and back again. The electrical installation lift system has a light weight and a robust construction. Effortless mounting is done by the provided mounting brackets on the ceiling lift.
Electric projector ceiling lift

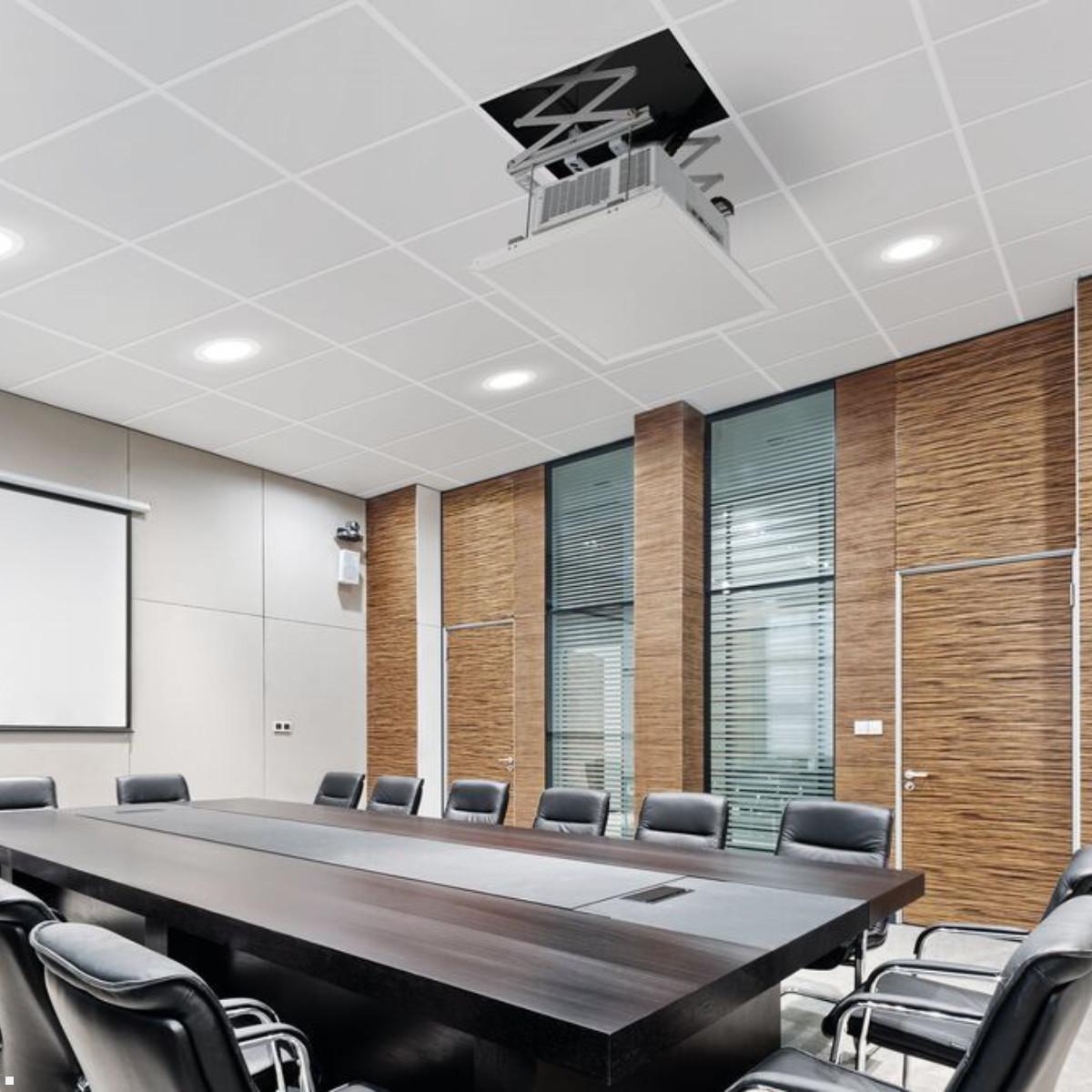

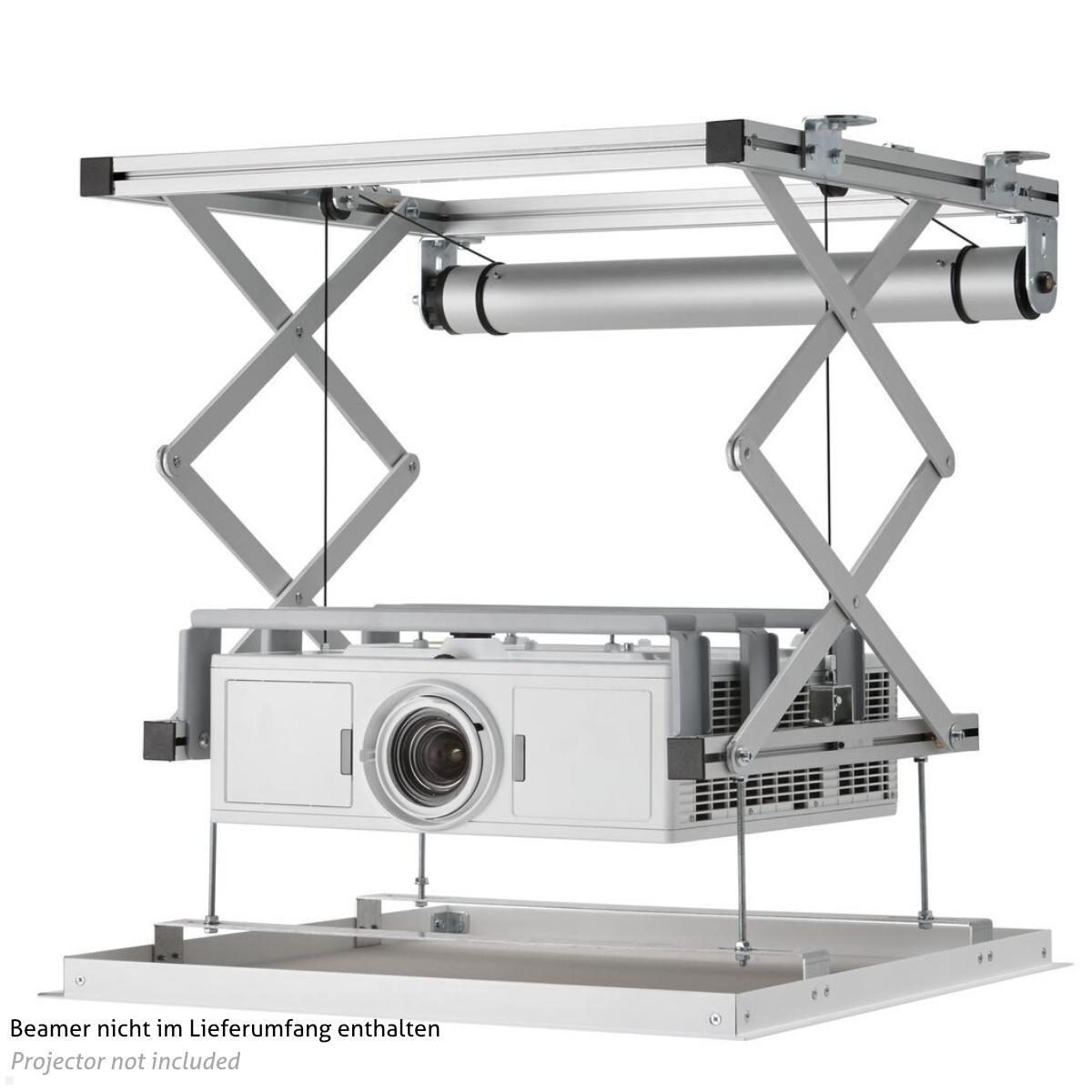

The Vogel's PPL 2035 electric beamer ceiling lift with 350 mm stroke is the perfect solution for integrating a projector / beamer weighing up to 11 kg into the ceiling. The projector can be installed almost invisibly in a conference room, meeting room, concert hall, auditorium or for home cinema in the living room in the ceiling. Visually concealed and at the same time protected against theft, the electric built-in lift system can be silently moved into two fixed positions with a switch.

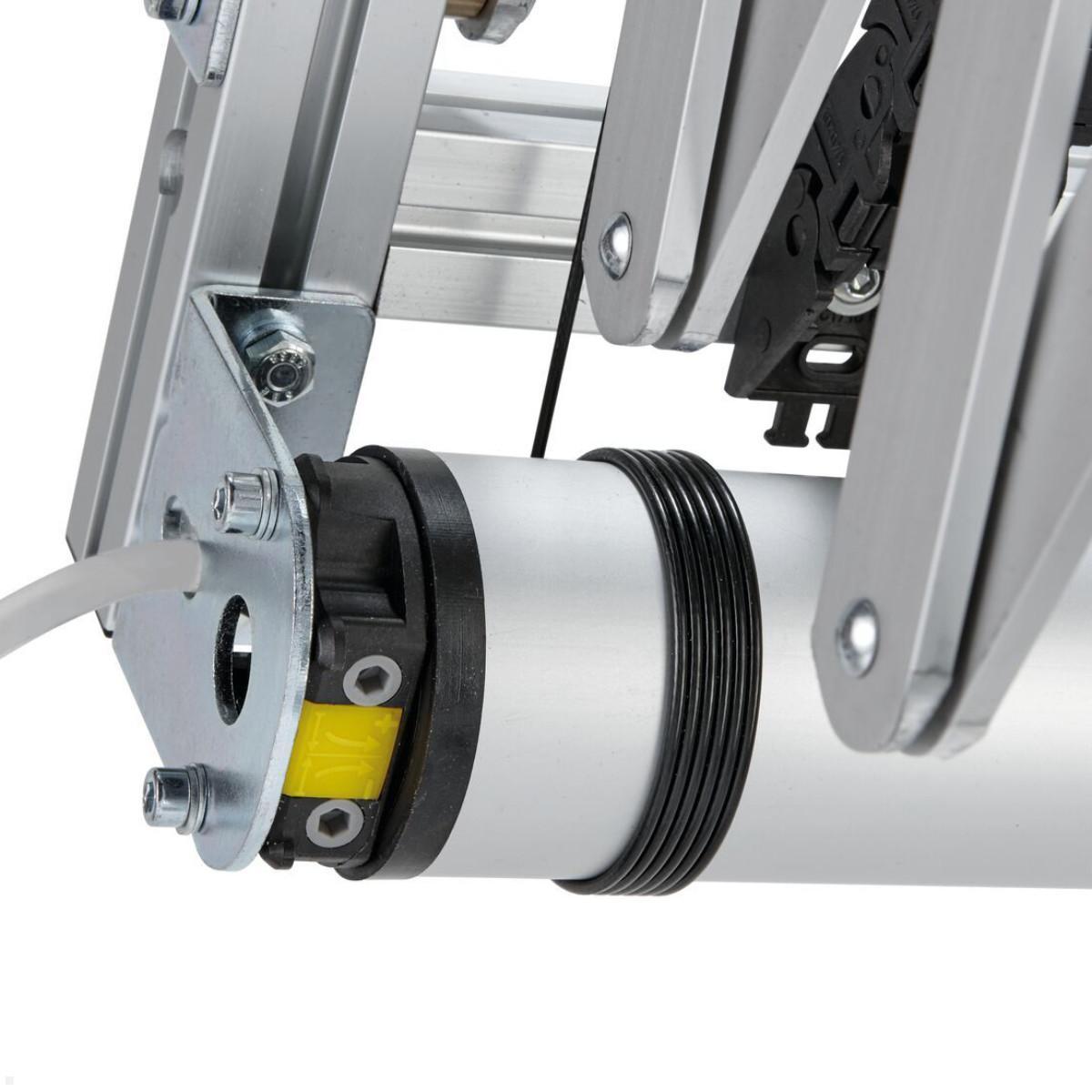

The motor of the projector mount allows a lowering of 35 cm. Vogel's PPL 2035 is supplied with extendable side brackets to allow the ceiling panel to fit exactly into the ceiling pattern. By means of the safety screws, the installation lift is prevented from extending beyond the preset end position. Whether in presentation position or parked in the ceiling, the Vogels electric projector lift is designed for installation in a false ceiling where space is at a premium. For the installation of the lift including the projector only 13 cm height is needed in the false ceiling.
Key features Vogels electric projector installation ceiling lift system
- Max. Weight beamer / projector: 11 kg
- Return distance / stroke: 350 mm
- Dimensions lift closed (WxHxD): 575 x 130 x 554 mm
- Dimensions lift extended (WxHxD): 575 x 480 x 554 mm
- Max. Projector size (WxD): 360 x 371 mm
- Min. ceiling distance: 130 mm
- Max. ceiling distance Ceiling distance: 480 mm
- Voltage: 220 - 230 V, 50 Hz

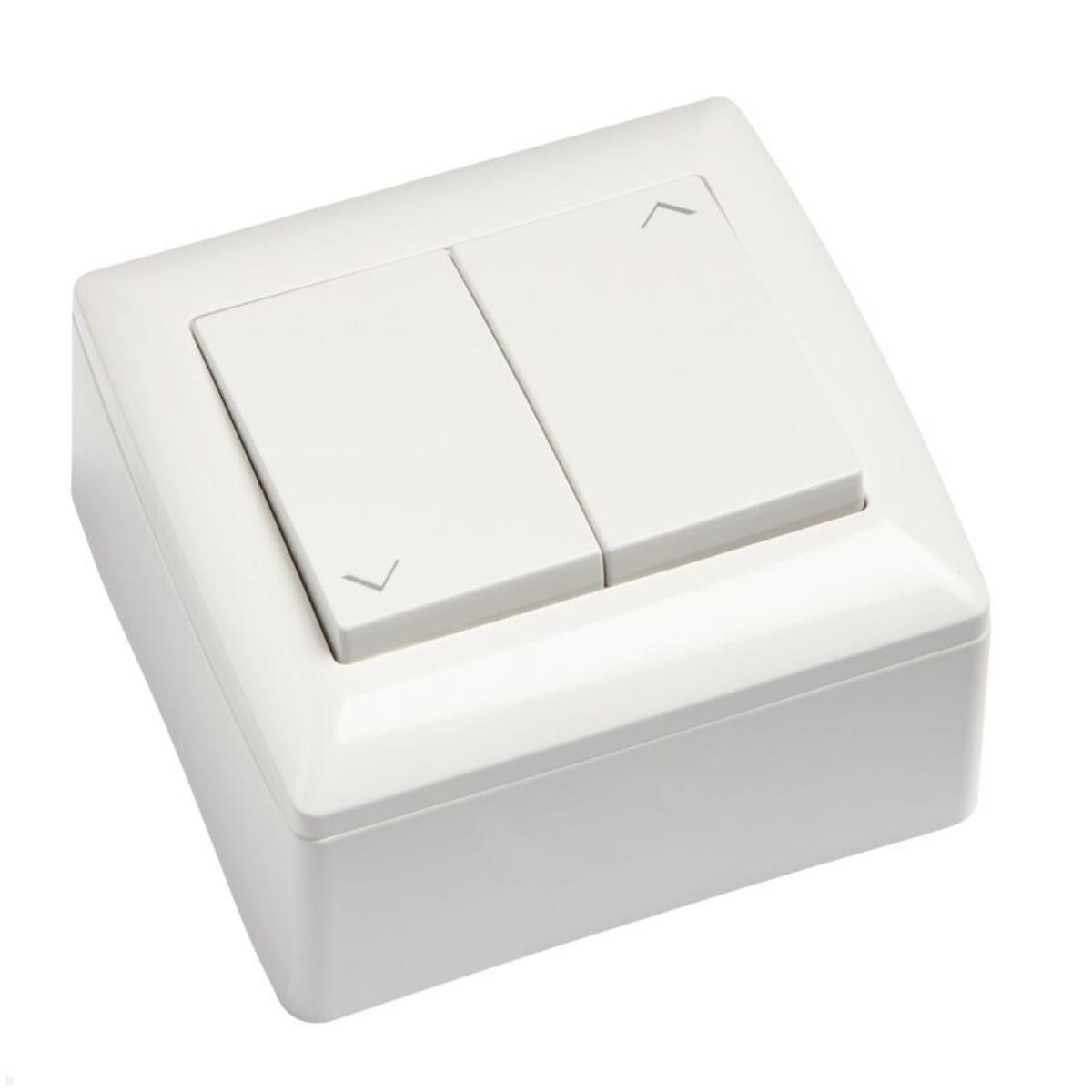

- Incl. wall switch for up / down adjustment of the ceiling lift
- Easy mounting
- Warranty: 2 years
Does your projector or beamer fit the ceiling lift?
We would be happy to check whether your projector is suitable for this Vogel's built-in ceiling lift PPL 2035. Simply tell us your model (manufacturer + model no.) in the comments field at the end of the order process. We will then check for you whether the beamer fits and if not, we will contact you. You can also call us or send us an email.
| Product sheet: |  [pdf] |
|---|---|

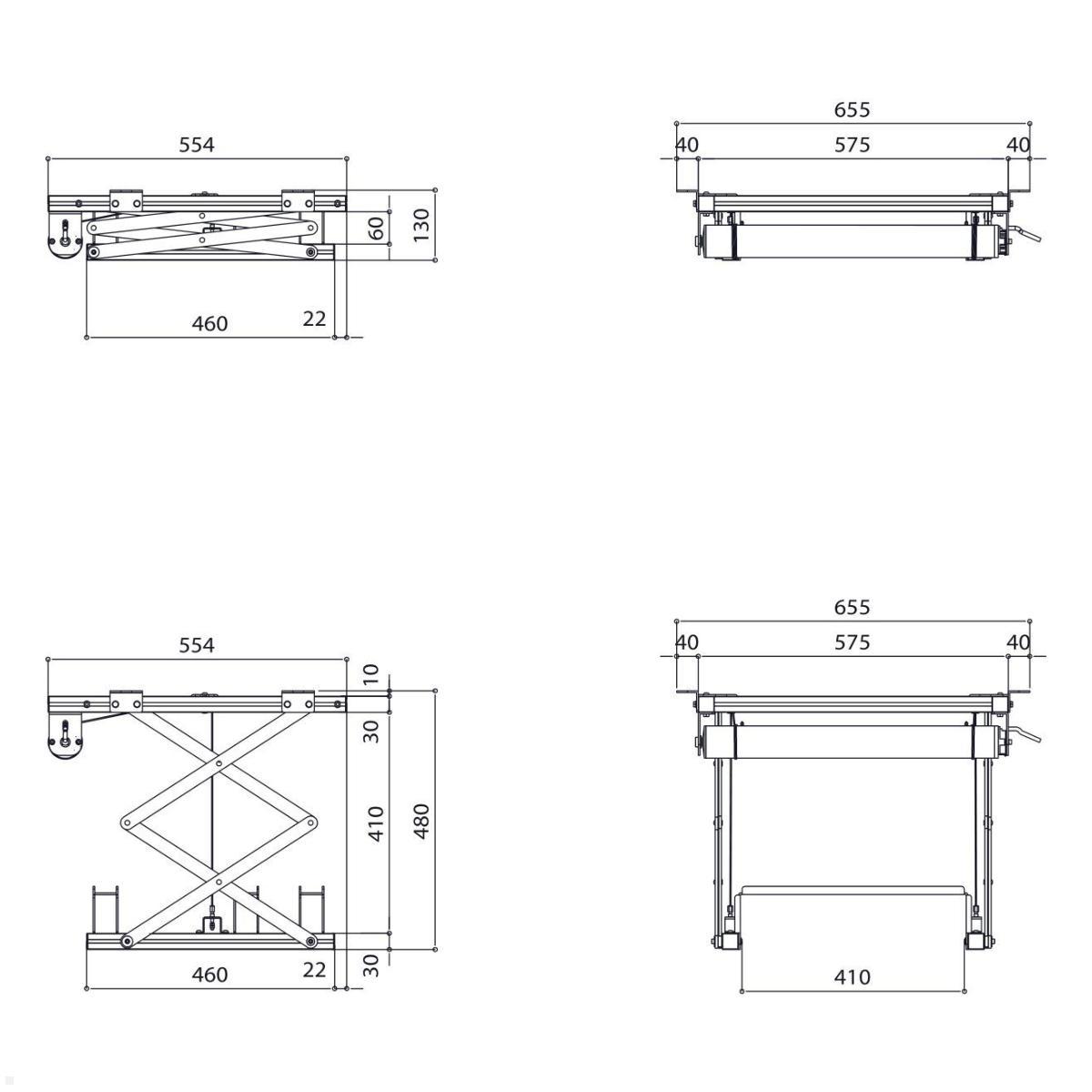

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 15 kg |
| Tilt: | - |
| Rotate: | - |
| Height range (mm): | 350 |
| Packaging dimensions (LxWxH in mm): | 650 x 650 x 230 |
| Scope of delivery: | Lift system, cable management, universal beamer adapter, wall switch |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Ceiling distance in m: | < 1m |
| Mobility: | electrical, height adjustable |
| Mounting type: | Ceiling mount |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Vogels PPL 2035?
The Vogels PPL 2035 is an electric projector ceiling lift with a 350 mm travel that enables a projector up to 15 kg to be integrated into the ceiling. It is visually hidden and theft-protected, and can operate quietly with a wall switch in two fixed positions.
-
What is the maximum projector weight?
Max projector/beam weight: 15 kg.
-
What is the travel and lowering capability?
Travel distance is 350 mm; the motor enables a lowering of 35 cm.
-
What are the dimensions when closed and extended?
Closed: 575 x 130 x 554 mm; extended: 575 x 480 x 554 mm.
-
What are the ceiling distance requirements?
Min ceiling distance 130 mm; max 480 mm.
-
What height is required in a suspended ceiling?
Only 13 cm of height in the suspended ceiling is required for installation of the lift including the projector.
-
What is included and what are the installation details?
Includes a wall switch for up/down; easy installation; 2-year warranty.
-
Will my projector fit?
We will check whether your projector is suitable; please provide Manufacturer + Model Number at the end of checkout in the comments; we will check and contact you if it does not fit. You can also call or email us.
