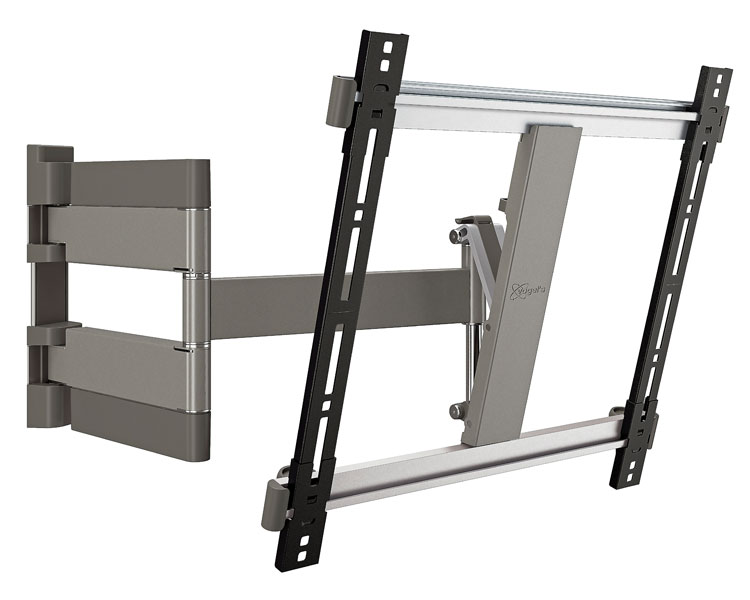

Vogels TV wall mount THIN 245 anthracite
The Vogels TV wall mount THIN 245 is suitable for screen sizes of 26 to 55 inch (66 to 140 cm) with a maximum screen thickness of 5 cm (2 inch). For the maximum swing area, please do not exceed a width of 970 mm screen housing.
Vogel's THIN 245 flatscreen wall bracket
Entertain to the max by mounting your flat screen TV on the THIN 245 UltraThin LED/LCD/Plasma wall mount. It gives you the ultimate viewing flexibility for your bedroom, living room, children’s room and kitchen. This wall mount easily turns your TV up to 180 degrees (90 degrees left and 90 degrees right) and tilts your screen up to 20 degrees forward for convenient viewing, anywhere in the room. This mount is part of the Vogel's TURN products.
Cook along with your favourite food program in the kitchen by turning your flat screen TV as needed. Spend more quality time with the entire family by watching a new movie together in the living room and giving everyone a perfect view. Place your LED/LCD/Plasma TV next to your bed and watch a late night show in comfort. You hardly see this Vogels TV wall mount, with just 3.5 cm (1.4 inch) of space between the TV and the wall. And a cable inlay system keeps cables hidden out of sight. It only takes a moment to install the LED/LCD/Plasma TV wall mount with the easy level adjustment and drilling template. Suitable for screen sizes of 26 to 55 inch (66 to 140 cm) with a maximum screen thickness of 5 cm (2 inch).
Key features Vogels TV wall mount THIN 245
- Screen size: 26"-55"
- Max. depth: 45 mm

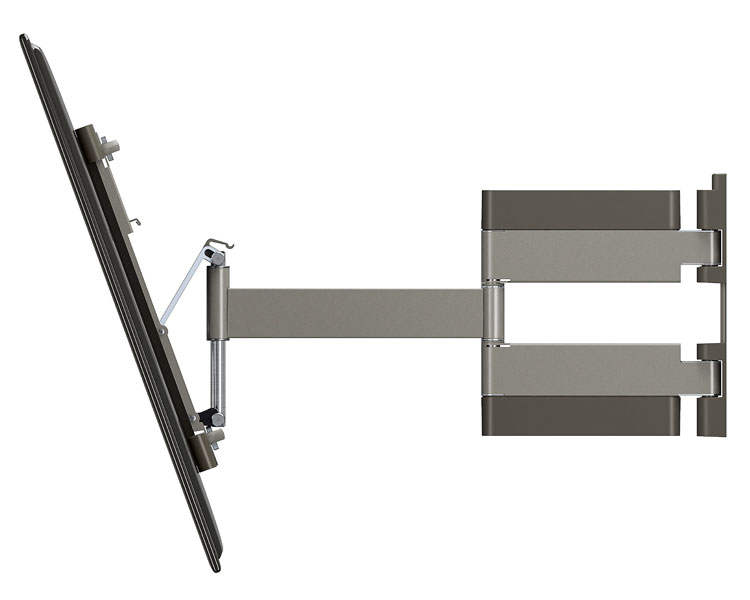

- Tilt: 20°
- Turn: 180°
- Max. weight: 18 kg
- Number of pivot points: 3

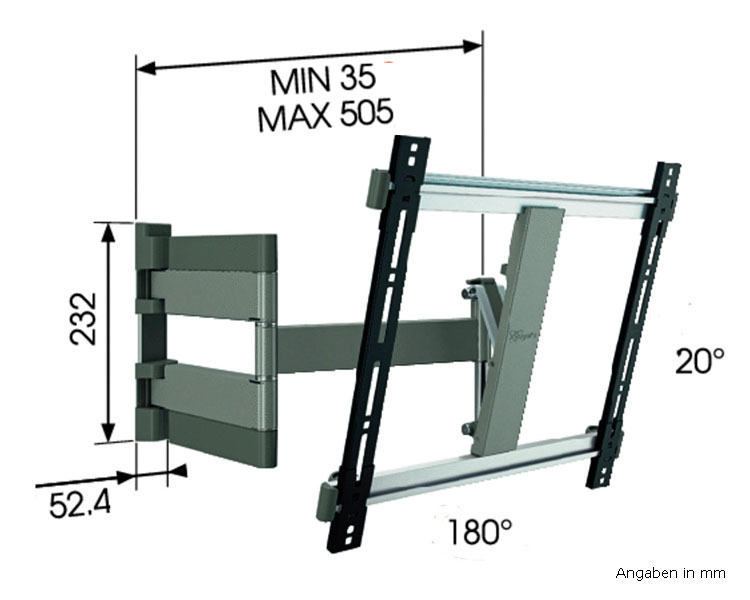

- Min. distance to the wall: 35 mm
- Max. distance to the wall: 508 mm
- Interface width: 509 mm
- Interface height: 348 mm
- Especially for ultra thin TVs
- Minimum distance to wall
- Experience the best view anywhere in the room
- Generally used for bedroom, living room, children’s room and kitchen

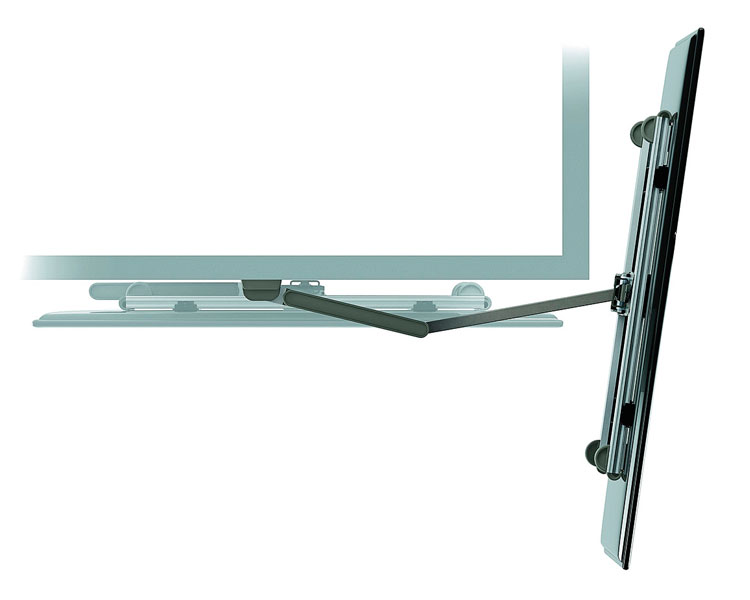

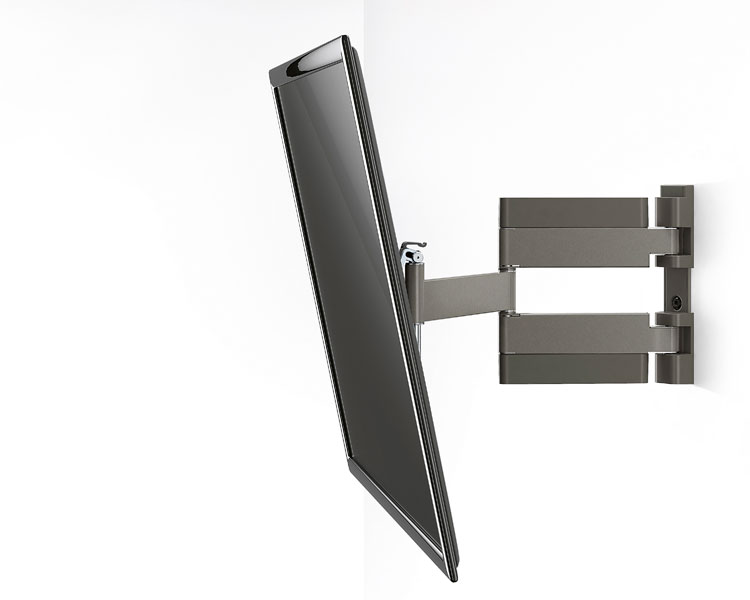

- For use around a corner or in a cabinet
- Cable Inlay System, hide your cables
- Straight mounting guaranteed thanks to easy level adjustment
- All TV mounting materials included: M4, M5, M6 and M8 bolts
- All wall mounting materials included: screws and fischer® plugs
- Easy installation: drilling template included

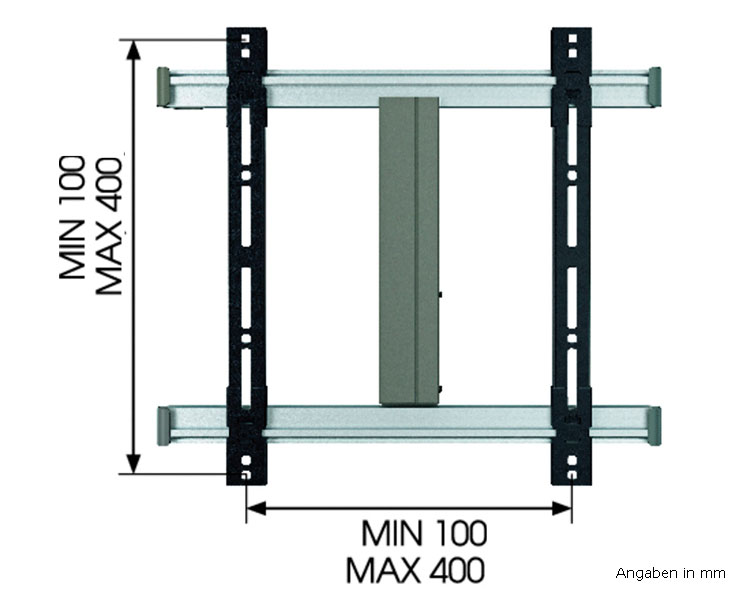

- Mount your TV with (VESA) mounting holes up to 400 x 400 mm
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 181 kb] |
|---|---|
| Installation manual: | [pdf, 2,4 MB] |
| Capacity: | 18kg |
| Tilt: | 20° |
| Swivelling range: | +/- 90° |
| Length of the swivel arm: | 510 |
| Screen size: | 26 - 55" |
| Material: | Steel, Aluminium |
| Depth of the bracket: | 50 mm |
| VESA Standard: | 100x100, 200x100, 200x200, 300x300, 400x400, VESA MIS-F (max. 600x400 mm) (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 20 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
