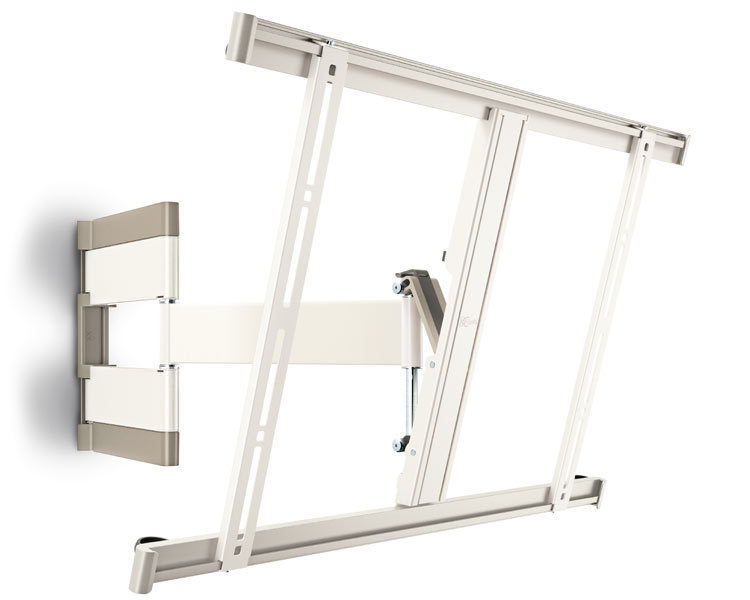

Vogels THIN 345 ALPINE WHITE UltraThin LED/ LCD/ Plasma wall mount
Get an entertainment experience that’s the envy of top designers around the world with the award winning THIN 345 alpine white UltraThin LED/LCD/Plasma wall mount. When you want the utmost viewing flexibility and a wall mount that is just as exquisitely designed as your flat screen TV, this is the choice for you. Create a clean design vibe for your flat screen TV in the living room, home cinema or bedroom. This mount is part of the Vogel's TURN products. Suitable for flatscreens with a maximum screen depth of 50 mm.
For the maximum swing area, please do not exceed a width of 1210 mm screen housing.
Vogels THIN 345 TV wall mount white

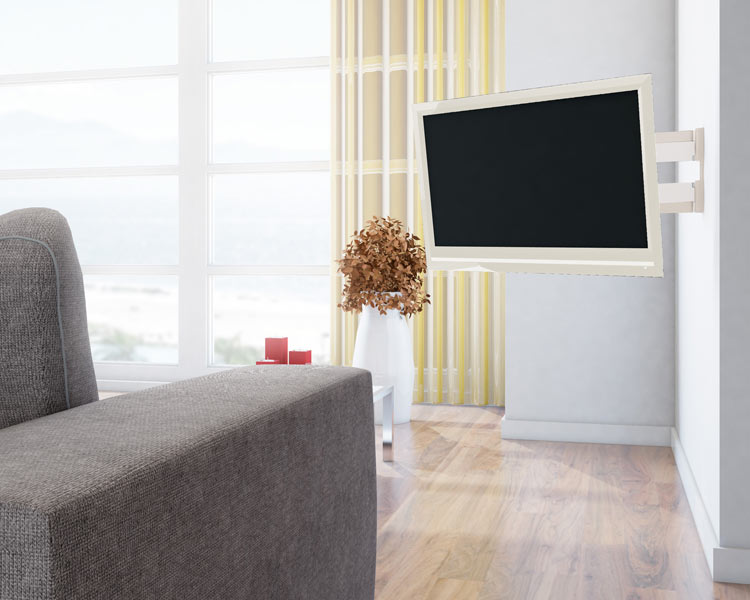

Enjoy an entertainment experience that's the envy of top designers all around the world with the award-winning THIN 345 UltraThin swivel TV wall mount! If you want the crème de la crème of viewing flexibility, and a wall mount that is just as exquisitely designed as your flat screen TV, this is the choice for you. Create a sleek and subtle environment for your flat screen television in the living room, home cinema or bedroom.

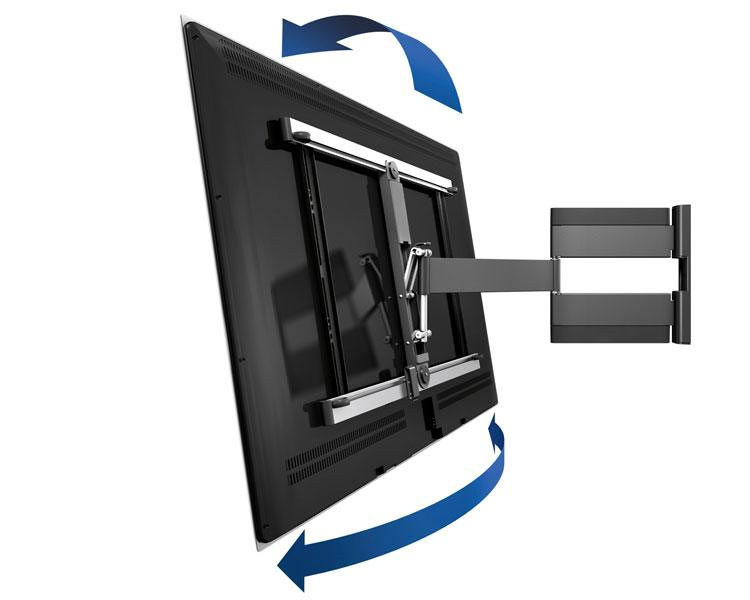

Winner of the prestigious Red Dot design award (the most influential design award in the world) these flat screen wall mounts add an elegant and sophisticated touch to your room and entertainment system. The THIN 345 easily turns your flat screen TV up to 180 degrees (90 degrees left and 90 degrees right), and tilts your screen up to 20 degrees forward, so everyone has a perfect view from any spot. Almost invisible, with just 1.4 inches (3,5 cm) of space between the TV and the wall, these flat screen wall brackets also come equipped with a cable inlay system to keep cables hidden. It only takes a moment to install this TV wall mount with the easy level adjustment and drilling template, and it is suitable for 40 to 65 inch (102 to 165 cm) screens with a maximum screen thickness of 2 inches (5 cm). It also extends up to 25 inches (63 cm) out from the wall. Be the envy of all your friends with the state-of-the-art THIN 345 from Vogel's.
Key features Vogels THIN 345 TV wall mount white
- Screen size: 40"-65"
- Max. screen depth: 50 mm
- Turn: 180°
- Tilt: 20°
- Max. weight: 25 kg
- Number of pivot points: 3
- Min. distance to the wall: 35 mm
- Max. distance to the wall: 630 mm
- TÜV Certificate number: S 60036401
- Interface width: 700 mm
- Interface height: 449 mm
- Guarantee: Lifetime
- Main Color: White
- Supplemental colors: Silver/Aluminium
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 190 kb] |
|---|---|
| Technical drawing: | [pdf, 131 kb] |
| Installation manual: | [pdf, 471 kb] |
| Capacity: | 25 kg |
| Tilt: | 20° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 630 |
| Screen size: | 40 - 65 " |
| Depth of the bracket: | 50 |
| VESA Standard: | 100 x 100mm - 600 x 400mm (www.vesa-standard.com) |
| Accessories: | Vogel´s Cable 4 Vogel´s Cable 8 |
| Contains installation material: | + |
| Warranty: | 20 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| color: | Weiß |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
