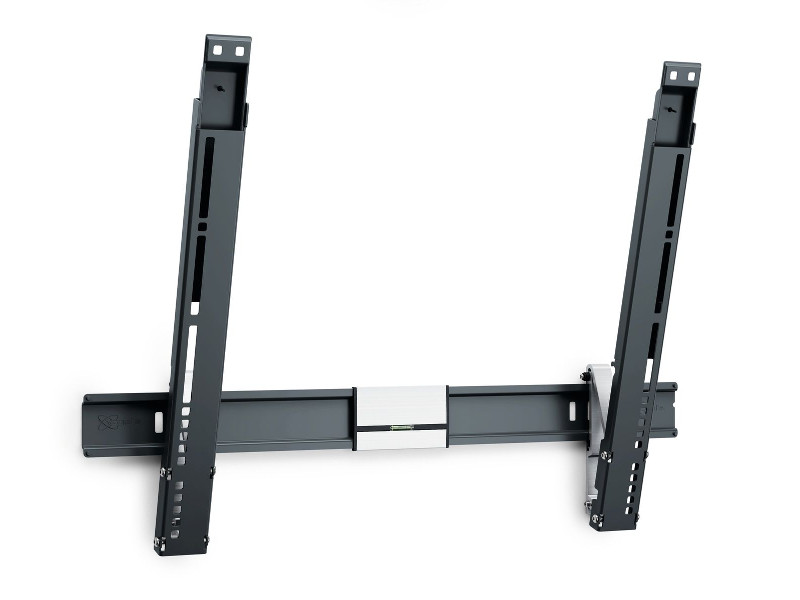

Vogels THIN 515 ExtraThin tiltable TV wall mount 40"-65" up to 25kg
Vogels THIN 515 TV wall mount: simply elegant. With a distance of only 2 cm between the TV and the wall, the THIN 515 TV wall mount is almost invisible to the eye. Suitable for 40 to 65 inch flatscreens weighing up to 25kg. With 15° tilt function for a perfect viewing angle without disturbing reflections.
Vogels THIN 515 ExtraThin tiltable TV wall mount for 40 - 65 inch flatscreens
Looking for a way to mount your TV a little higher on the wall and tilt it a few degrees for the optimal viewing angle without any reflections? With the extra-flat and 15° tiltable Vogel's THIN515 TV wall mount, you can hang up your flat screen with only 20 mm distance from the wall - the ideal fixing solution for limited space, e.g. in the bedroom.
The solid Vogels THIN 515 monitor holder is a reliable and stable solution with the guaranteed quality from Vogel's and is suitable for thin flatscreen TVs between 40 and 65 inches (102-165 cm) with a weight of max. 25 kg.
Key features Vogels THIN 515 TV wall bracket:
- Screen size: 40"-65"
- Capacity: 25 kg

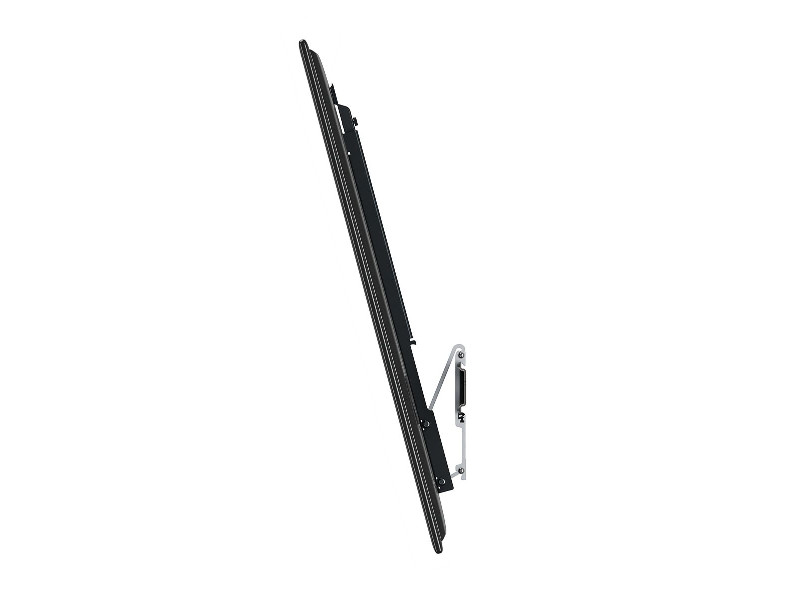

- Wall distance: 20mm

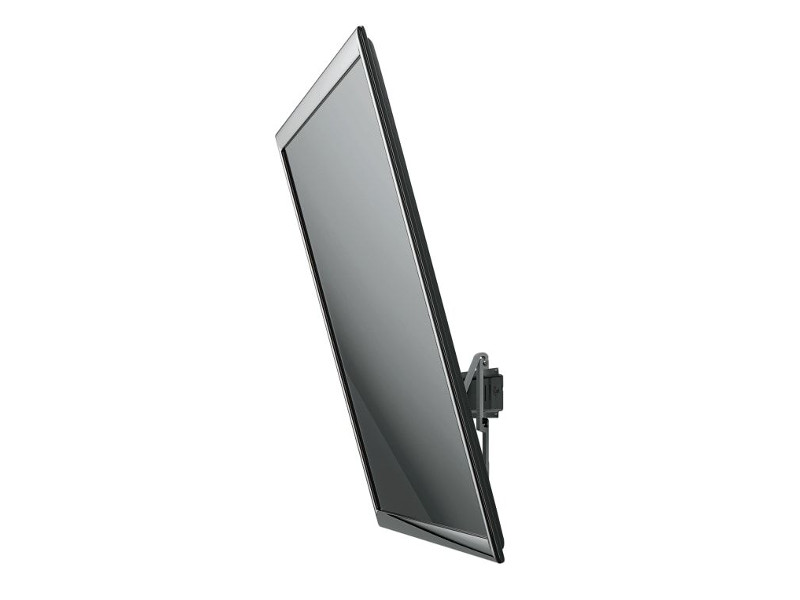

- Tilt: 15°

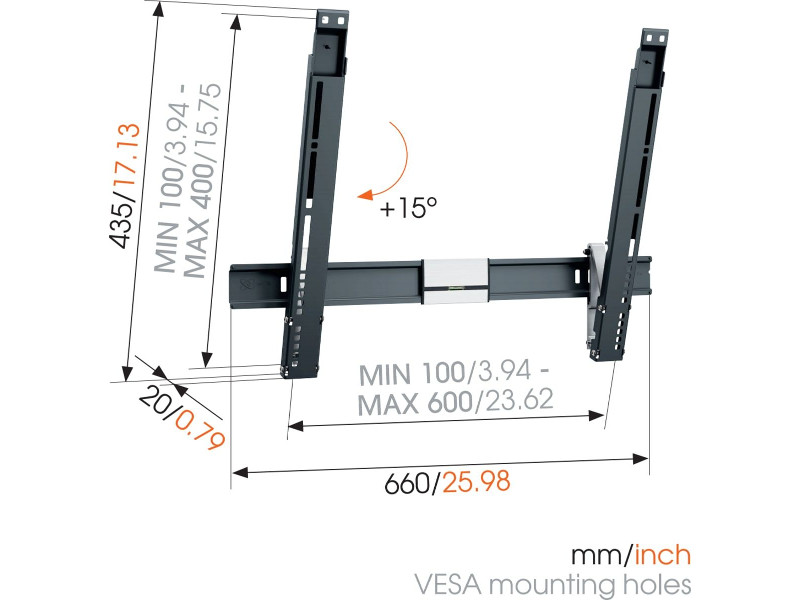

- VESA mounting 100x100, 200x100, 200x200, 300x300, 400x200, 400x400, 600x400mm
- Adapter width: 660mm
- Adapter height: 435mm
- Integrated cablemanagement
- Optional accessories: Vogel's Cable 4 and Cable 8 cable cover
- Easy installation thanks to integrated water scale
- Service positioning allows very easy access to the cables
- Finish: black
- Lifetime guarantee
Does your TV or monitor fit the Vogels THIN515 bracket?
We are happy to check if your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this Vogels THIN 515 monitor holder. Simply send us your model (manufacturer + model no.) at the end of the order process. We then check for you whether the monitor fits and if not, we will contact you.

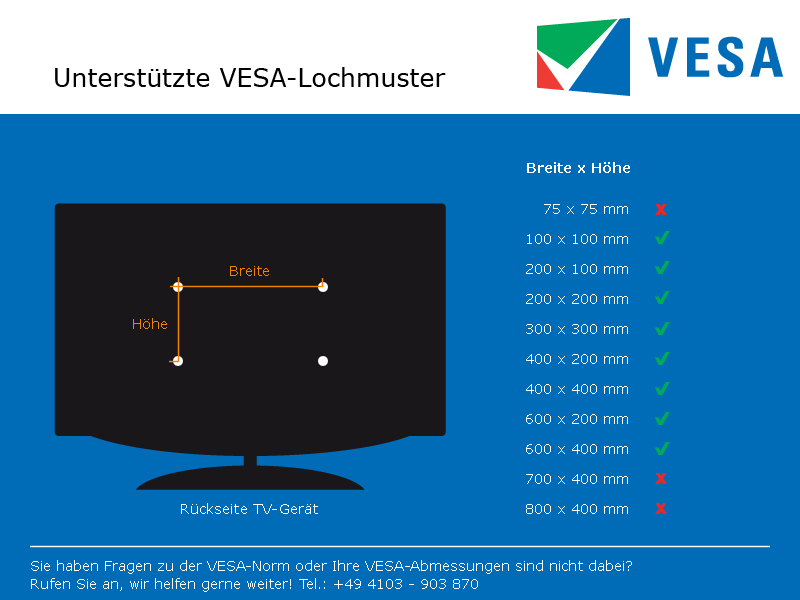

VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 129 kb] |
|---|---|
| Technical drawing: | [pdf, 558 kb] |
| Installation manual: | [pdf, 1,5 MB] |
| Capacity: | 25 kg |
| Tilt: | 15° |
| Screen size: | 40 - 65 " |
| Depth of the bracket: | 20 mm |
| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.de) |
| Accessories: | Vogel´s Cable Management |
| Packaging dimensions (LxWxH in mm): | 715 x 145 x 47 |
| Contains installation material: | + |
| Warranty: | 20 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Inch size: | 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | tilting |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
