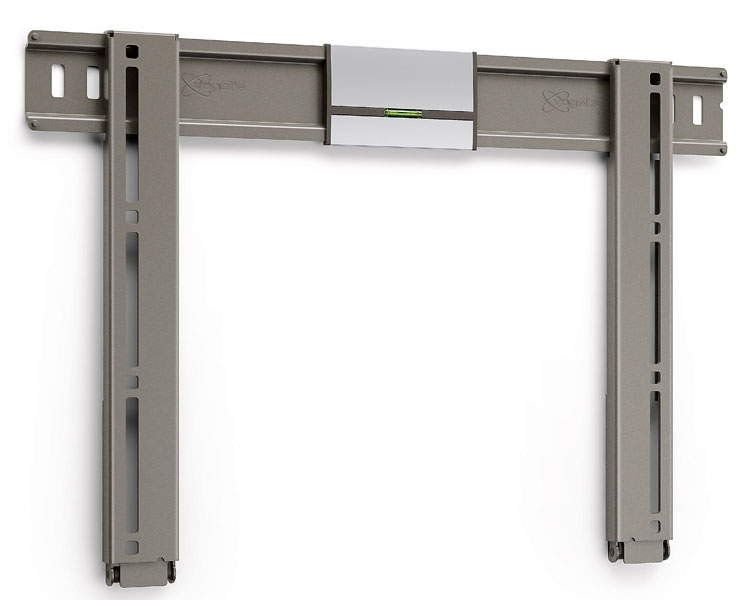

Vogels TV wall mount THIN 205
The Vogels TV wall mount THIN 205 is suitable for flatscreens with 26 to 55 inch and a maximum screen depth of 150 mm.
Vogels TV wall mount THIN 205
Turn your flat TV into beautiful wall art with the THIN 205 UltraThin LED/LCD/Plasma wall mount. Ideal for mounting your TV ‘flat-on-the wall’ in your bedroom, living room, children’s room and kitchen. This wall mount is virtually invisible, with just 1.5 cm (0.6 inch) of space between the TV and the wall. This mount is part of the Vogel's FLAT products.Save space in areas that get a lot of traffic with this ‘flat-on-the-wall’ solution for your flat screen TV. A great way to keep your TV out of the way in a crowded room. Or mount it in a small children’s room. The service positioning lets you easily access cables behind the LED/LCD/Plasma TV. You can easily hang this mount perfectly straight with the built-in spirit level and clear and simple instructions. Suitable for screen sizes of 26 to 42 inch (66 to 107 cm). Stud mountable so you can hang your flat screen TV on wood stud walls.
Key features Vogels TV wall mount THIN 205
- Min. size: 26"
- Max. size: 42"
- Max. weight: 25 kg
- Max. screen depth: 150 mm
- Min. distance to the wall: 15 mm

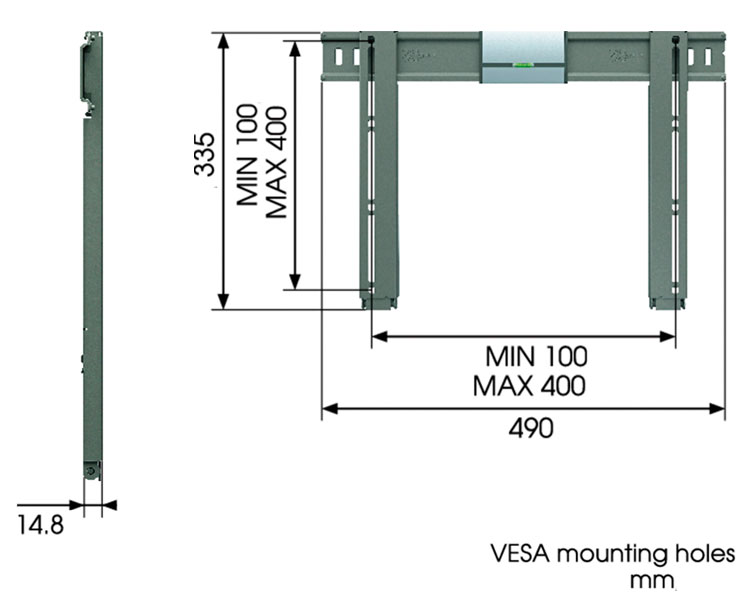

- Interface width: 490 mm
- Interface height: 337 mm
- Especially for ultra thin TVs
- Minimum distance to wall
- Experience your TV as a painting on the wall
- Generally used for bedroom, living room, children’s room and kitchen
- Straight mounting guaranteed thanks to the integrated spirit level
- All TV mounting materials included: M4, M5, M6 and M8 bolts
- All wall mounting materials included: screws and fischer® plugs
- Mount your TV with (VESA) mounting holes up to 400 x 400 mm
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 160 kb] |
|---|---|
| Installation manual: | [pdf, 1,6 MB] |
| Capacity: | 25 kg |
| Screen size: | 26 - 55" |
| Material: | Steel, Aluminium |
| VESA Standard: | 100x100, 200x100, 200x200, 300x300, 400x400, VESA MIS-F (max. 600x400 mm) (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 20 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mobility: | fixed |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
