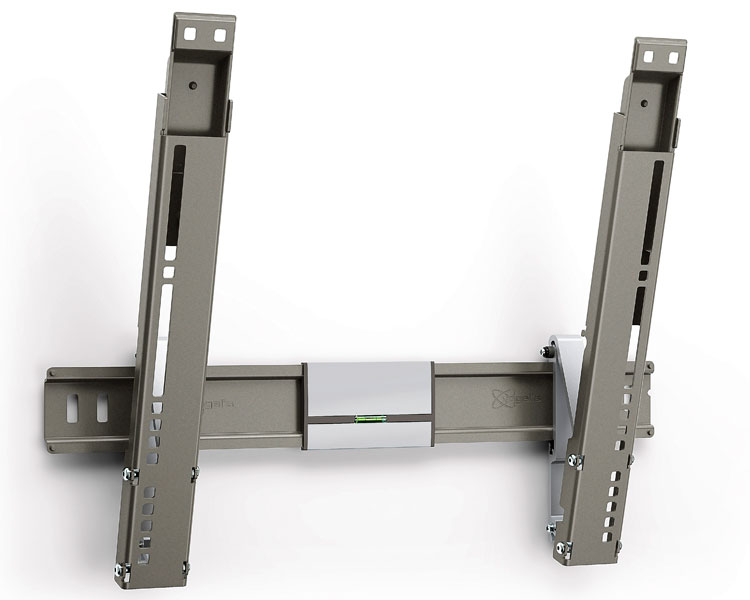

Vogels TV wall mount THIN 215
The Vogels TV wall mount THIN 215 is suitable for screen sizes of 26 to 55 inch (66 to 140 cm) with a maximum screen thickness of 5 cm (2 inch).
Vogels TV wall mount THIN 215 flatscreen bracket

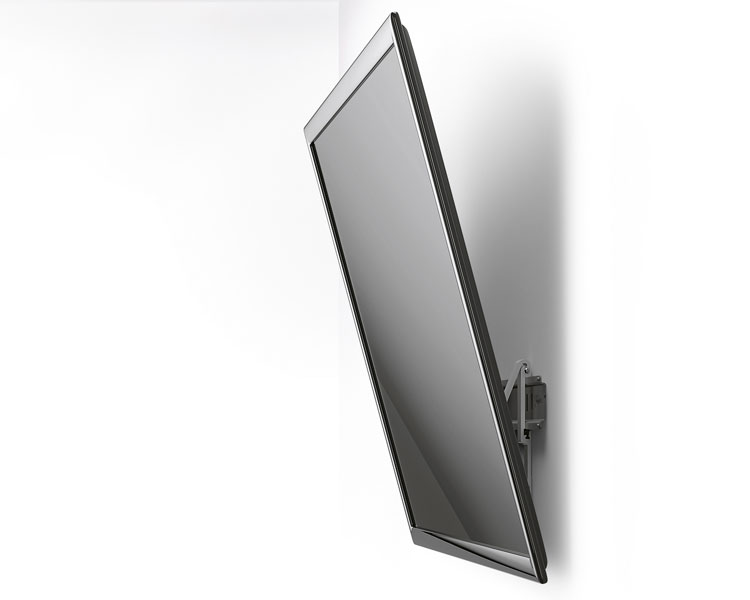

Get a great view for a flat TV that's placed above viewing height with the THIN 215 UltraThin wall mount. A handy way to mount a TV in your bedroom, living room,children's room and kitchen. This wall mount easily tilts your screen 15 degrees smoothly forward without interfering with cables for comfortable viewing. This mount is part of the Vogel's TILT products.

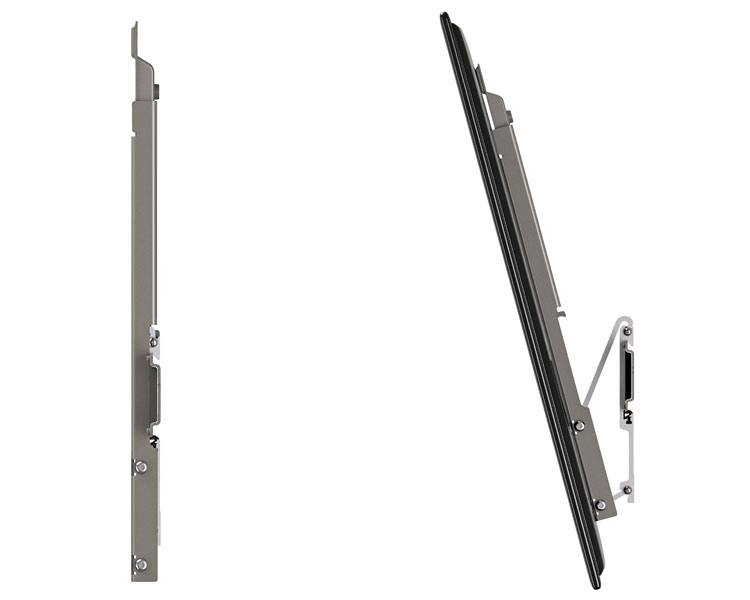

Gamers can play comfortably while lying on the floor with this tilt wall mount. You can keep your flat screen TV up and away from spatters in the kitchen. Or place your TV out of reach of small children in a bedroom. This THIN 215 TV wall mount is virtually invisible, with just 2 cm (0.8 inch) of space between the TV and the wall. A built-in spirit level and simple mounting instructions help you hang it perfectly straight. The mount tilts smoothly forward without interfering with cables. Suitable for screen sizes of 26 to 55 inch (66 to 140 cm) with a maximum screen thickness of 5 cm (2 inch).
Key features Vogels TV wall mount THIN 215
- Screen size: 26"-55"
- Max. screen depth: 50 mm
- Max. weight: 18 kg
- Min. distance to the wall: 20 mm
- Tilt: 15°

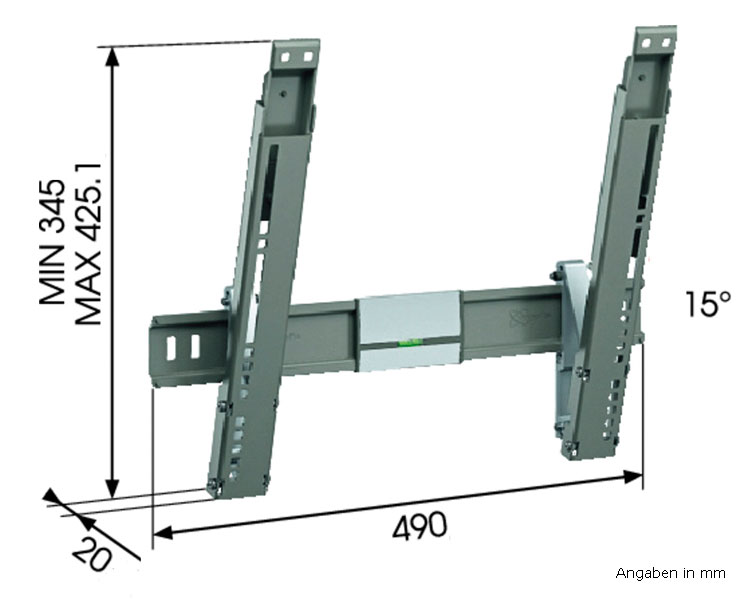

- Interface width: 490 mm
- Interface height: 345 mm
- Especially for ultra thin TVs
- Minimum distance to wall
- Ideal for a TV placed high on the wall
- Generally used for bedroom, living room, children’s room and kitchen
- Straight mounting guaranteed thanks to the integrated spirit level
- All TV mounting materials included: M4, M5, M6 and M8 bolts
- All wall mounting materials included: screws and fischer® plugs

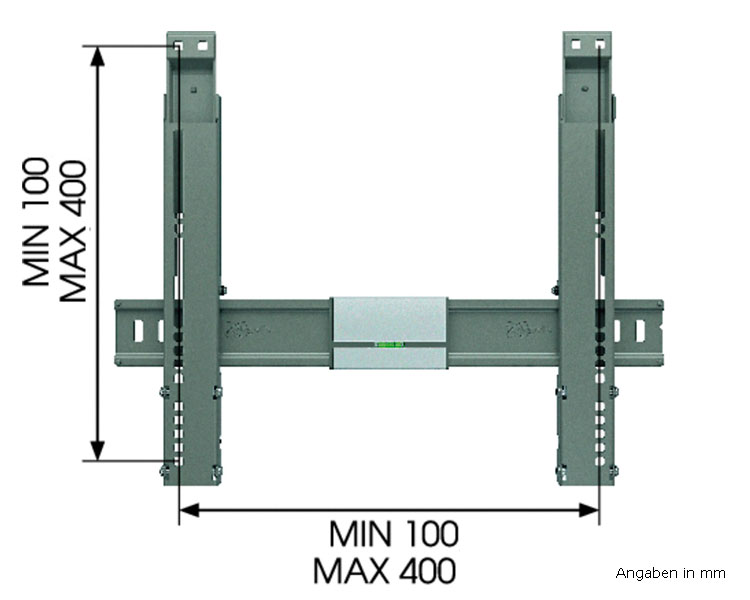

- Mount your TV with (VESA) mounting holes up to 400 x 400 mm
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 174 kb] |
|---|---|
| Installation manual: | [pdf, 1,7 MB] |
| Capacity: | 25kg |
| Tilt: | 15° |
| Screen size: | 26 - 55" |
| Material: | Steel, Aluminium |
| VESA Standard: | 100x100, 200x100, 200x200, 300x300, 400x400, VESA MIS-F (max. 600x400 mm) (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | Lifetime |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Inch size: | 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch |
| Mobility: | tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
