Vogels TV wall mount THIN 225
The Vogels TV wall mount THIN 225 is suitable for screen sizes of 26 to 55 inch (66 to 140 cm) with a maximum screen thickness of 5 cm (2 inch).

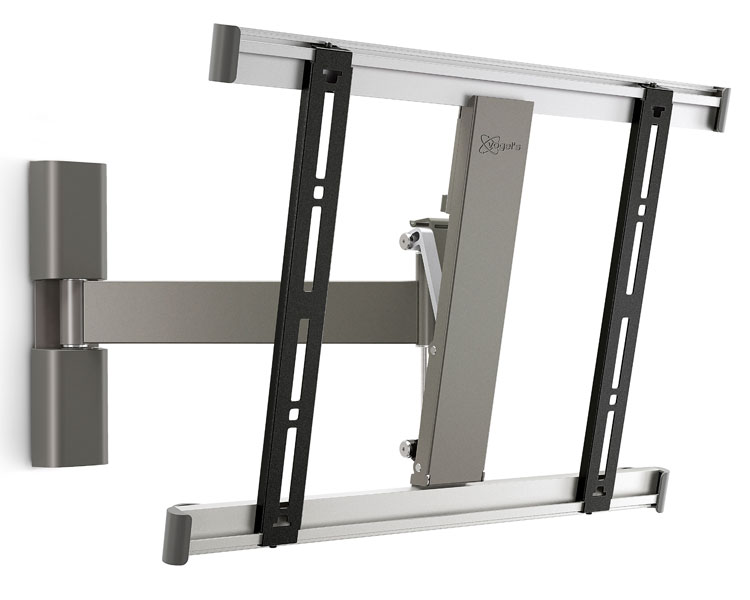

Vogels TV wall mount THIN 225 flatscreen bracket
Experience the best view anywhere in the room with the THIN 225 UltraThin wall mount. Use it in your bedroom, living room,children's room and kitchen for the ultimate viewing flexibility. This wall mount easily turns your TV up to 120 degrees (60 degrees left and 60 degrees right) and tilts your screen up to 20 degrees forward so that everyone can easily watch TV. This mount is part of the Vogel's TURN products.
Enjoy your morning news show or afternoon food program in the kitchen by adjusting your TV to the best view, wherever you are working. Watch a game while working on paperwork or enjoy a movie with friends by turning your flat screen TV to the perfect position. You hardly see this THIN225 TV wall mount with just 3.5 cm (1.4 inch) of space between the TV and the wall. It only takes a moment to install the wall mount with the easy level adjustment and drilling template. Suitable for screen sizes of 26 to 55 inch (66 to 140 cm) with a maximum screen thickness of 5 cm (2 inch).
Key features Vogels TV wall mount THIN 225
- Screen size: 26"-55"
- Max. screen depth: 50 mm
- Max. weight: 18 kg

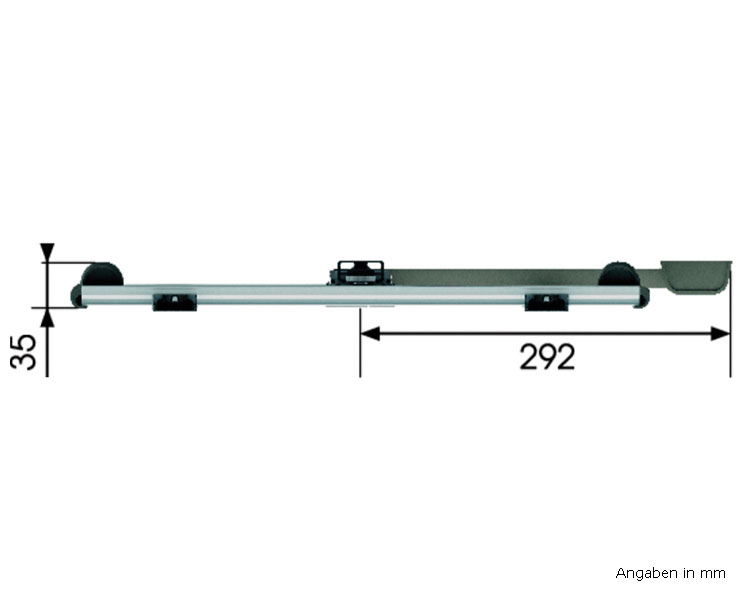

- Wall distance: 35-300 mm

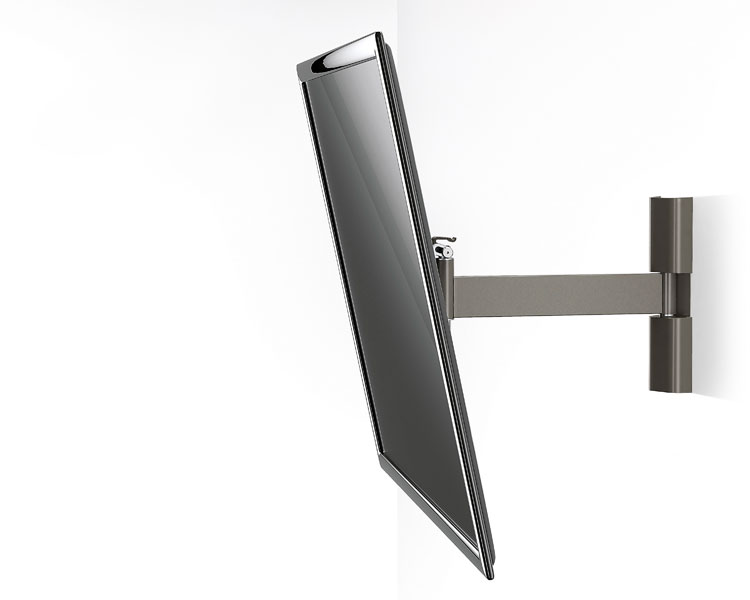

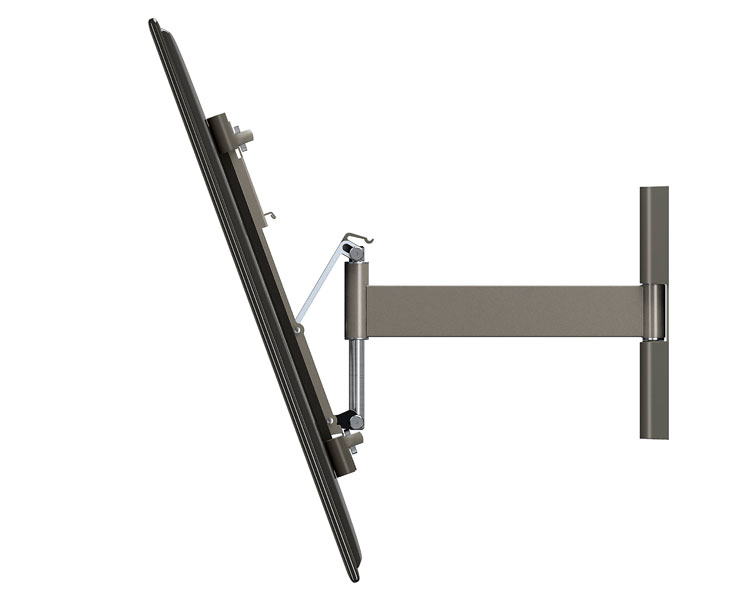

- Tilt: 20°
- Turn: 120°
- Interface width: 509 mm
- Interface height: 348 mm
- Especially for ultra thin TVs
- Minimum distance to wall
- Ideal for a TV placed high on the wall
- Generally used for bedroom, living room, children’s room and kitchen
- Straight mounting guaranteed thanks to the integrated spirit level
- All TV mounting materials included: M4, M5, M6 and M8 bolts
- All wall mounting materials included: screws and fischer® plugs

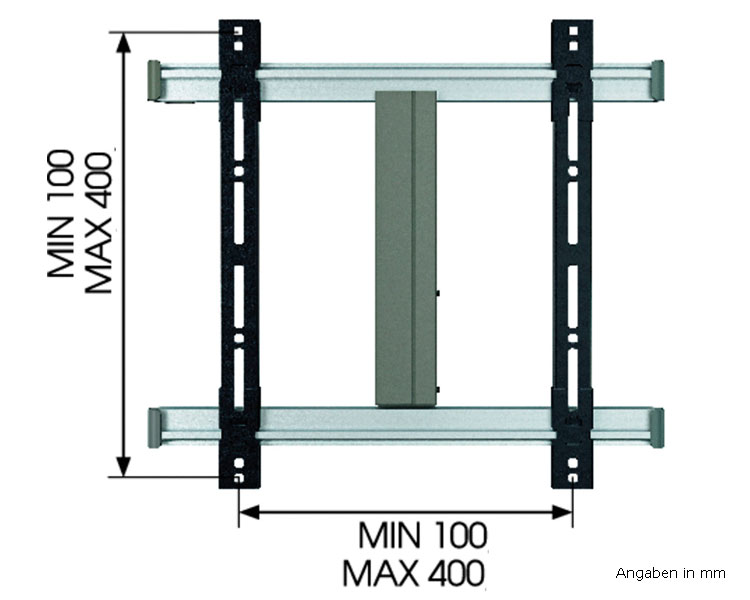

- Mount your TV with (VESA) mounting holes up to 400 x 400 mm
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 177 kb] |
|---|---|
| Installation manual: | [pdf, 2,2 MB] |
| Capacity: | 18kg |
| Tilt: | 20° |
| Swivelling range: | +/- 60° |

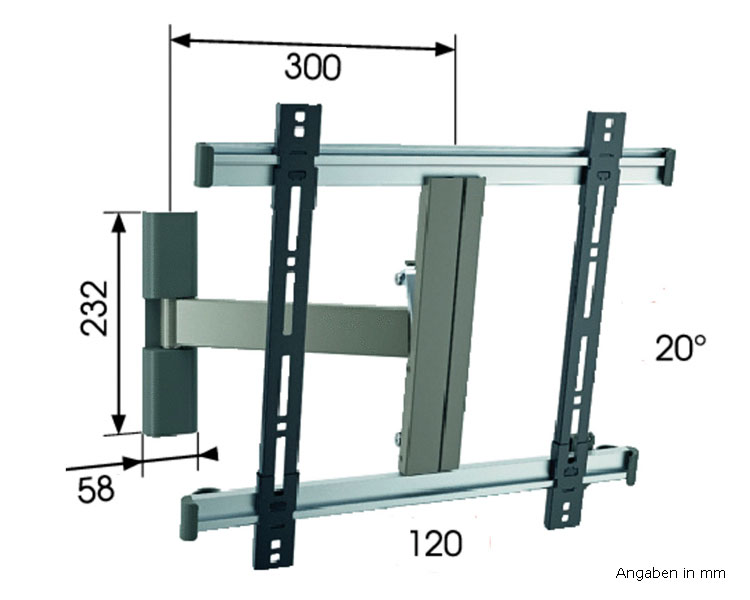

| Length of the swivel arm: | 300 |
| Screen size: | 26 - 55" |
| Material: | Steel, Aluminium |
| Depth of the bracket: | 50 mm |
| VESA Standard: | 100x100, 200x100, 200x200, 300x300, 400x400, VESA MIS-F (max. 600x400 mm) (www.vesa-standard.com) |
| Accessories: | Vogel´s Cable 4 Vogel´s Cable 8 |
| Contains installation material: | + |
| Warranty: | 20 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
