Vogels TV wall mount WALL 1020, black
Vogels WALL 1020 monitor wall mount
The Vogel's WALL 1020 monitor wall mount gives you optimal viewing of your flat screen anywhere in the room. Perfect for mounting a small TV in a child's room, kitchen or work area. For a greater degree of flexibility when watching TV, this wall mount rotates / tilts your TV up to 60 degrees (30 degrees to the left and 30 degrees to the right) and tilts your screen 10 degrees forwards and backwards. This wall mount is part of Vogel's TURN products.
To entertain your children, you can now mount a small -TV in a small bedroom. Enjoy your favourite cooking show while you cook in the kitchen. Place your flat screen in the workspace with this flexible -wall mount. Rotate the screen to the right and left and tilt it forwards and backwards to get great views every time.
Key features Vogels WALL 1020 wall mount monitor
- Swivels / rotates 60°
- Tiltable 10°
- Min. size: 17 inch
- Max. Size: 26 inch
- Max. Weight: 15 kg
- Number of pivots: 1
- Min. wall distance: 70 mm
- Adapter height: 195 mm
- Experience the optimal view anywhere in the room
- Generally used for the kitchen, workplace and children's room
- All mounting materials for the TV included: M4 and M6 screws
- All fixing materials for the wall included in the scope of delivery: Screws and fischer dowels

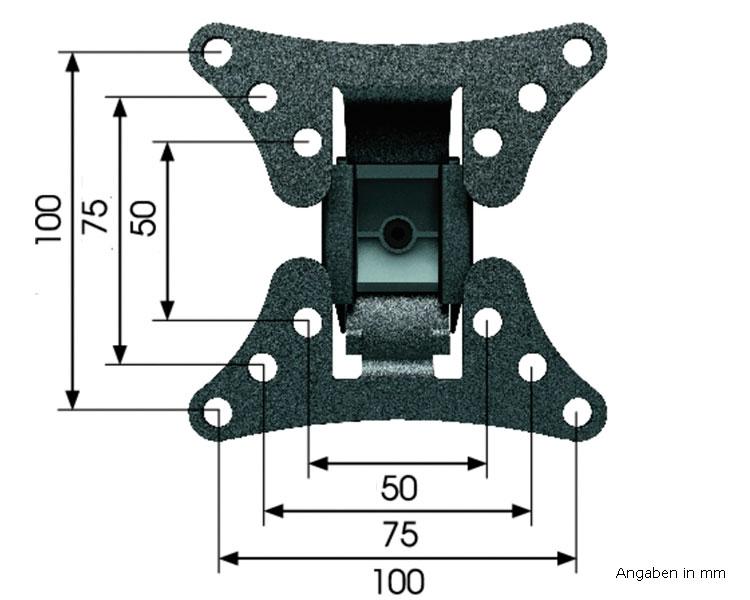

- Mount your TV with (VESA) mounting holes up to 100 x 100 mm
Identical in construction to Vogels VFW 226
Does your TV, screen or display fit the VESA mount?
We would be happy to check whether your TV is suitable for this Vogels WALL 1020 bracket. Simply tell us your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will then check for you whether the TV, monitor or display fits and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 210 kb] |
|---|---|
| Installation manual: | [pdf] |
| Capacity: | 15kg |
| Tilt: | +/-10° |
| Swivelling range: | +/- 90° |
| Screen size: | 17 - 26" |
| Material: | Aluminium, Steel |
| Special features: | Identically constructed like Vogels VFW 226 |
| VESA Standard: | 75x75, 100x100, 200x100, 200x200 (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 245 x 127 x 68 |
| Contains installation material: | + |
| Warranty: | 20 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch |
| Mobility: | swivelling, tilting |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
