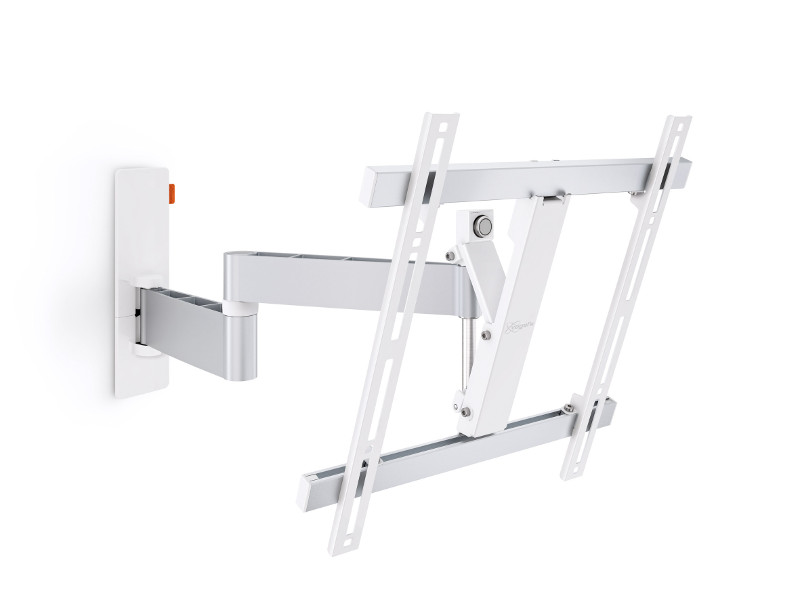

Vogels WALL 3245 TV wall mount swivel 32"-55", white
The Vogel's WALL 3245 TV wall mount tilt 32 "-55" in white is suitable for attaching almost any TV from 32 "-55" with up to 20 kg. The TV can be swivel 180 ° without any problems and tilt 20 °, so that the alignment can also be carried out after assembly.
Vogels WALL 3245 TV wall mount swivel 32"-55", white
With the Vogels WALL 3245 Swivel and Tilt TV wall mount, the TV can be turned into any desired position in the room, so that the best view of the TV is possible from every angle. The Vogels WALL 3245 is suitable for attaching almost every TV from 32 "- 55" with up to 20 kg. The TV can be swivel 180 ° without any problems and tilt20 °, so that the alignment can also be carried out after assembly.
Key features Vogels WALL 3245 TV wall mount swivel 32"-55", white
- Finish: white
- Screen size: 32" - 55"
- Capacity: 20 kg
- Tilt: 20°
- Swivel: 180°
- Number of pivot points: 3
- Wall distance: 55 - 540 mm
- Incl. cable management
- Mounting: wall mount
- VESA mount: 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mm
- Warranty: Lifetime
Does your TV or monitor fit the Vogels WALL 3245 mount?
We are happy to check if your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this Vogels WALL 3245 TV wall mount white. Simply send us your model (manufacturer + model no.) at the end of the order process. We then check for you whether the monitor fits and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 125 kb] |
|---|---|

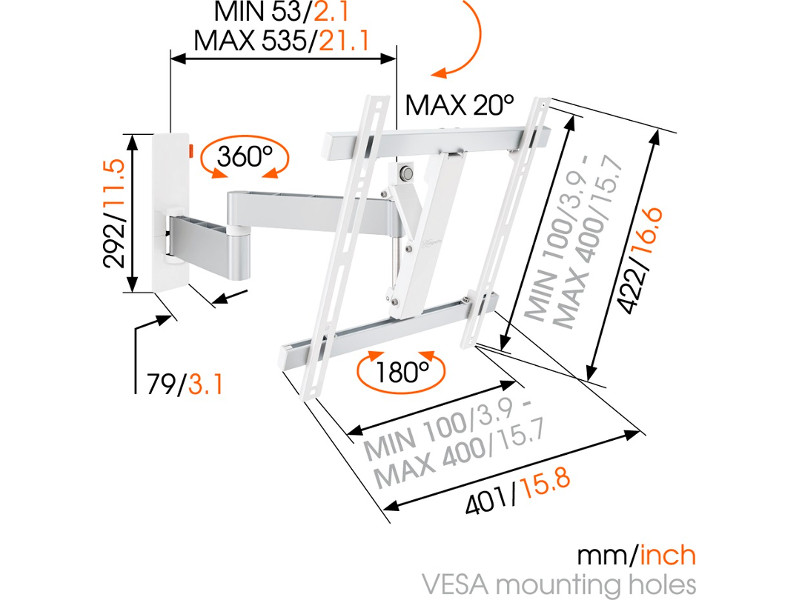

| Technical drawing: | [pdf, 7 kb] |
| Installation manual: | [pdf, 2 MB] |
| Capacity: | 20 kg |
| Tilt: | 20° |
| Swivelling range: | 180° |
| Screen size: | 32 - 55" |
| Depth of the bracket: | 55 - 540 mm |
| VESA Standard: | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 459 x 349 x 95 |
| Contains installation material: | + |
| Warranty: | 20 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, Niederlande, E-Mail: info.de@vogels.com |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| color: | Weiß |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
