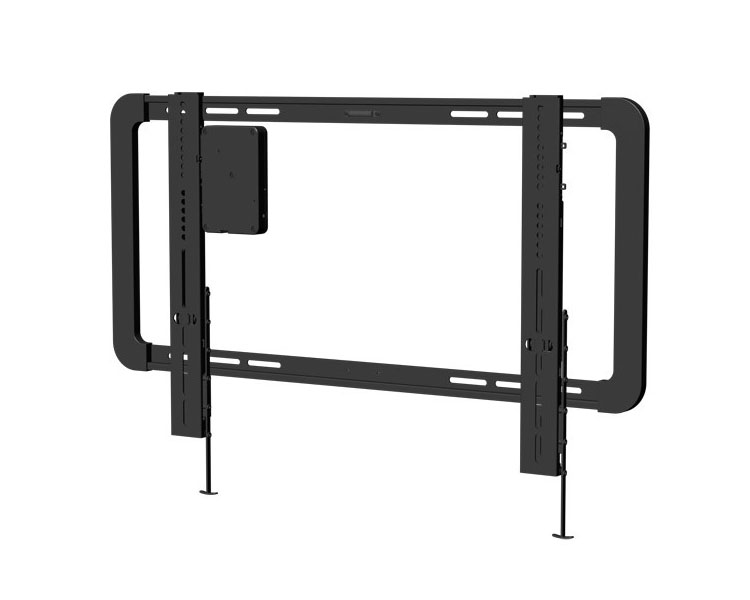

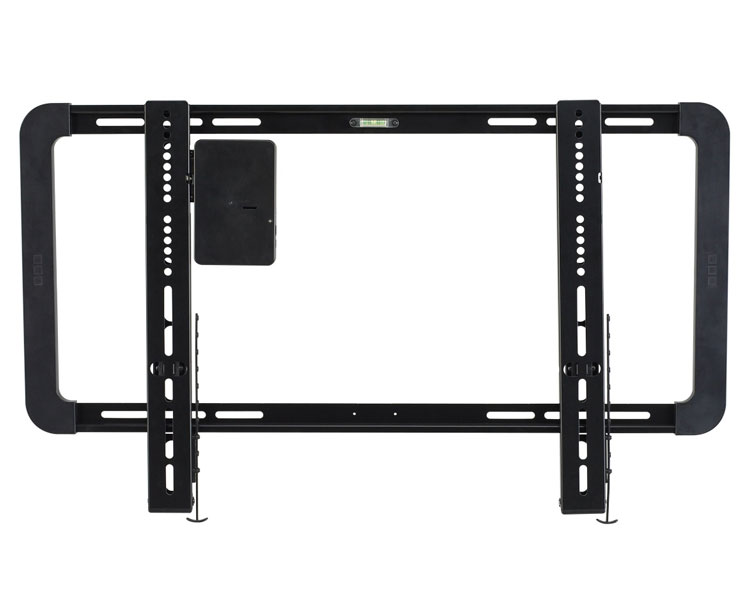

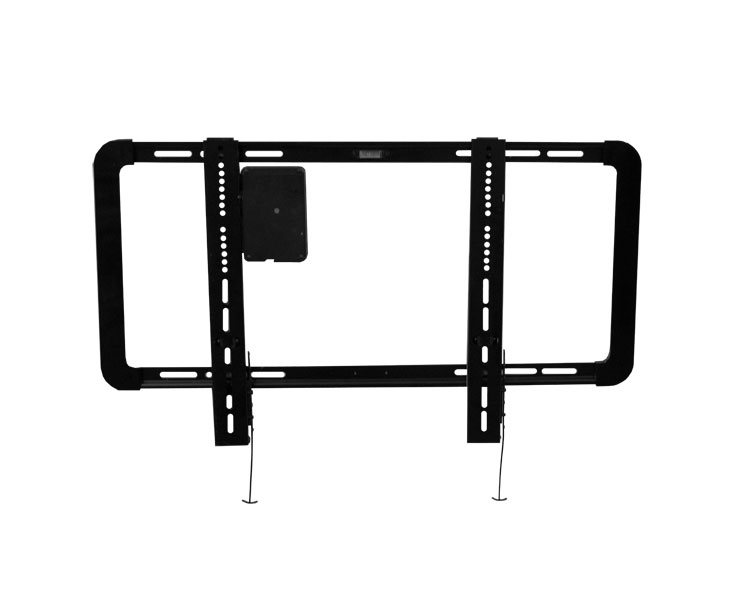

WallWizard TA55 - motorized, tilt wall mount 37-55"
WallWizard TA55 - wall mount for 37-55", motorized and tilt.
Our 1.0” thin motorized tilt mount is perfect for today’s slim LCD and LED TVs, providing enhanced viewing as it reduces glare and reflections. TA55 tilts your TV down at the touch of a button and returns to an aesthetically pleasing upright flush position when not in use. With the included learnable IR receiver, you can program any universal remote control to adjust the tilt position. TA55 is the Industry’s thinnest motorized tilt mount that offers user-friendly design, and a simple installation process. With the optional ControlWand (Wi-Fi adapter) a hand held device (iPhone, iPod) can be used to control the mount via auto, manual, and gyro modes. In the gyro mode, the motion of the mount is synchronized with the motion of the hand held device without having to push a button.
WallWizard TA55 - motorized, tilt wall mount 37-55"
- Fits Most: 37”- 55” Flat panel TVs
- Weight Capacity: Up to 100 lbs

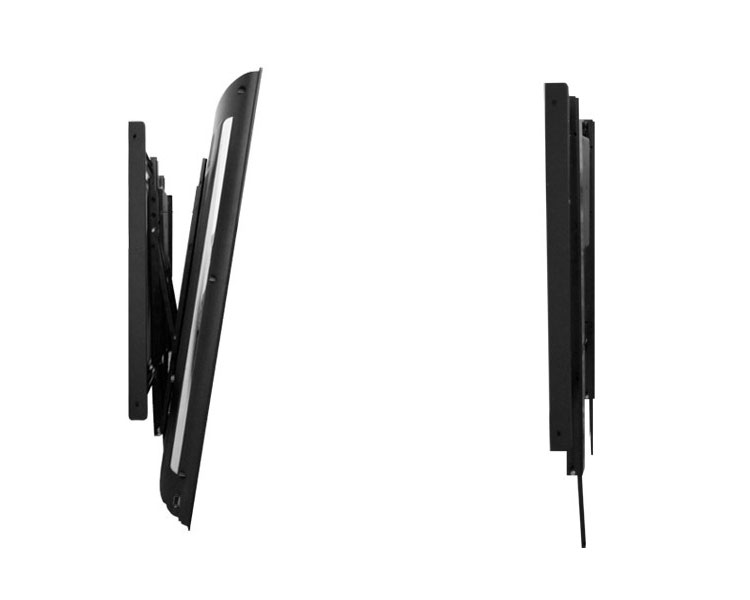

- Variable Tilt: 0°/-10°
- Profile: 1”
- Presets: 2
- RS-232 Port for automation control.

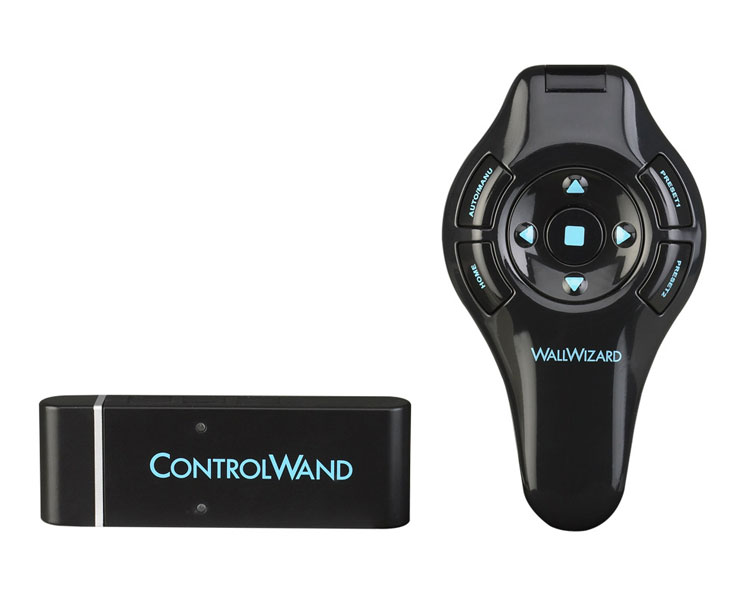

- USB port for ControlWand (Wi-Fi adapter sold separately) to use hand held devices like iPhone or iPod to control the mount.
- Power Supply: 100V – 240V auto ranging
- Color: Black
- Warranty: 1 year
- Certifications: UL, CUL, CE
BENEFITS
- With the optional Wi-Fi adapter, a hand held device (iPhone, iPod) can be used to control the mount via auto, manual, and gyro modes.
- Slippage gear mechanism that stops the tilt motion if there is a resistance for safety.
- Automatically tilts the TV down, when the TV is turned on-reducing or eliminating glare and reflections.
- Automatically tilts the TV flush against the wall, when the TV is turned off.
- Optical cable included for auto mode feature.
- Silent and smooth operation.
- Learnable IR receiver and remote control included.
- Mounting hardware.
- Super low profile - discretely hidden behind the TV.
- $10,000 Component Assurance Guarantee.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 181 kb] |
|---|---|
| Capacity: | 45 kg |
| Tilt: | 0°/-10° |
| Screen size: | 37 - 55" |
| VESA Standard: | 200x100, 200x200, 400x400, 600x200, 600x400 (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Mobility: | tilting |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x100, VESA 200x200, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
